LT-52

AUTO LIGHT SYSTEM

When outside brightness is darker than prescribed level, input is supplied

from optical sensor terminal 2

to BCM terminal 14.

The headlamps will then illuminate. For a description of headlamp operation, Refer to

LT-51, "System Descrip-

tion"

 .

COMBINATION SWITCH READING FUNCTION

Refer to

BCS-3, "COMBINATION SWITCH READING FUNCTION"

 .

DELAY TIMER FUNCTION

Delay timer function carries out a function that BCM activates the timer and controls lights out of headlamps by
door switch signal and lightning switch signal when turning the ignition switch OFF while it is ON and head-
lamps are ON by the auto light function.
Timer types are a 5 minute timer and a 45 second timer

When opening any door (door switch is ON), the 5 minute timer starts and then headlamps go out five
minutes later

When all the doors are closed (from door switch ON to OFF), the 45 second timer starts and then head-
lamps go out 45 seconds later. If any door is opened (door switch ON) while the 45 second timer is in
operation, the 5 minute timer starts again

The timer stops when turning on the ignition switch or turning off the auto light switch under the above
conditions.

Delay timer control mode can be changed by the function setting of CONSULT-II.

CAN Communication System Description

NKS000H0

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

CAN Communication Unit

NKS000H1

Refer to

LAN-47, "CAN System Specification Chart"

 .

Major Components and Functions

NKS000H2

Components

Functions

BCM

Turns on/off circuits of tail light and headlamp according to signals from optical sensor, lighting switch
(AUTO), driver door switch, passenger door switch and ignition switch (ON, OFF).

Optical sensor

Converts outside brightness (lux) to voltage, and sends it to BCM. (Detects brightness of 800 to 2,500
lux)

AUTO LIGHT SYSTEM

LT-53

C

D

E

F

G

H

I

J

L

M

A

B

LT

Schematic

NKS000H3

TKWM2194E

LT-54

AUTO LIGHT SYSTEM

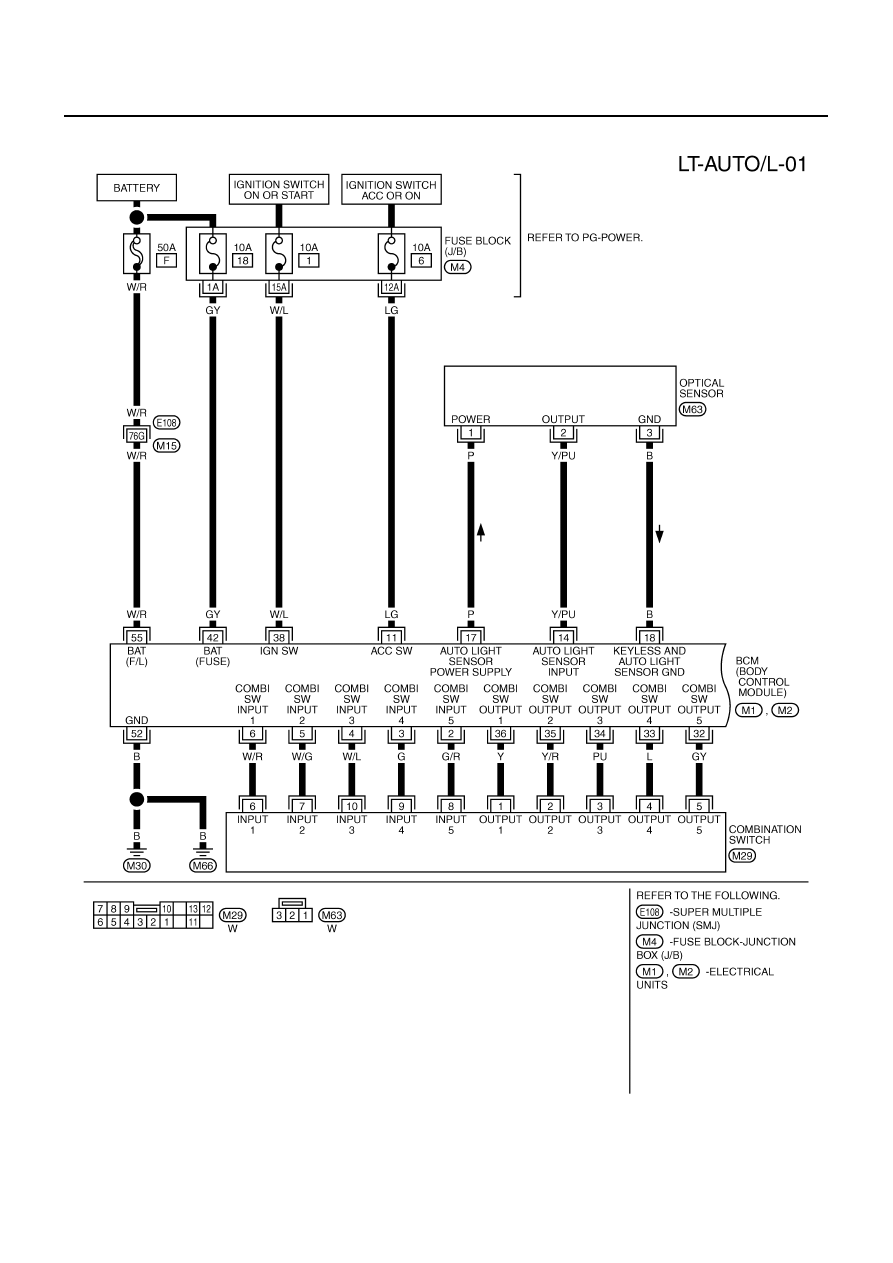

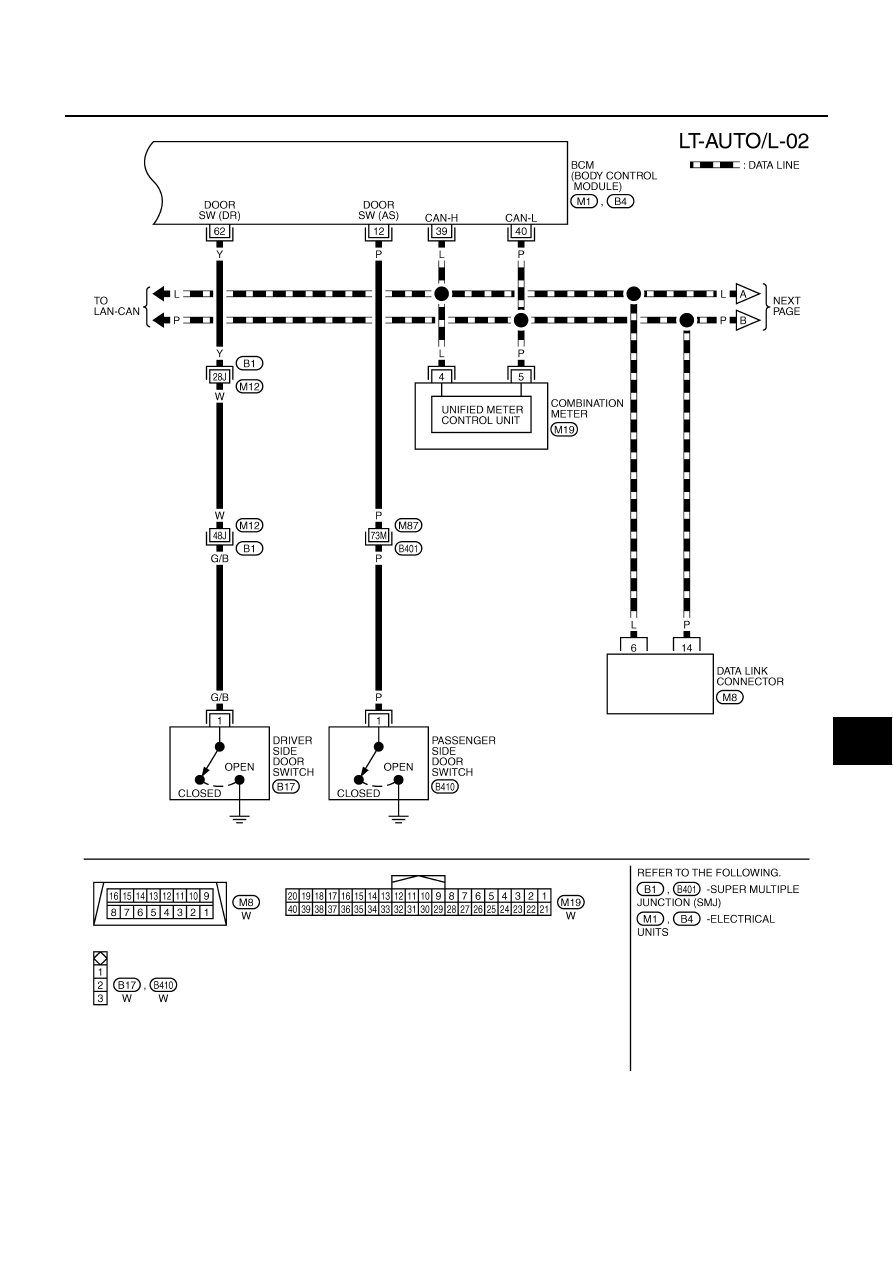

Wiring Diagram — AUTO/L —

NKS000H4

TKWM2195E

AUTO LIGHT SYSTEM

LT-55

C

D

E

F

G

H

I

J

L

M

A

B

LT

TKWM3453E
