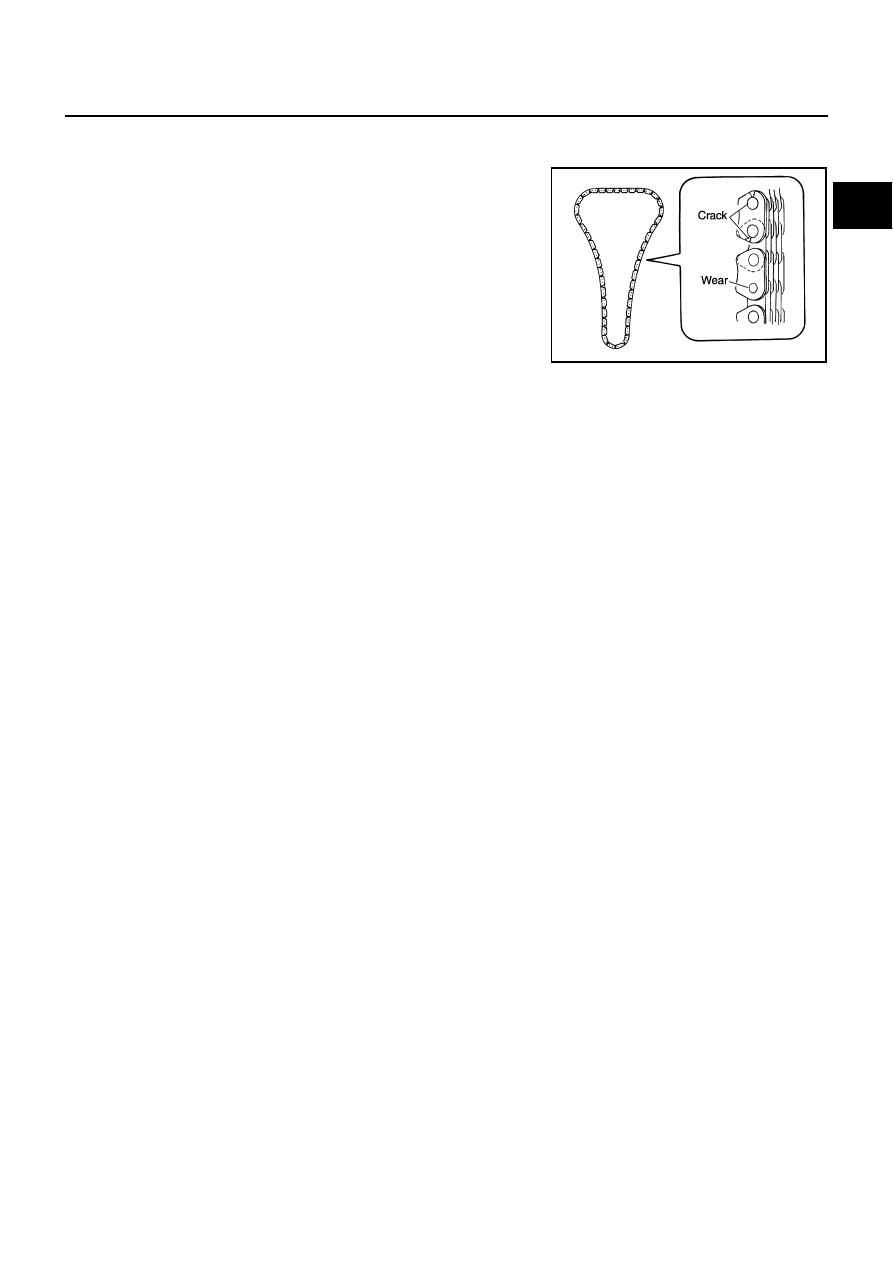

TIMING CHAIN
EM-67
C
D
E
F
G
H
I
J
K
L
M
A
EM
●

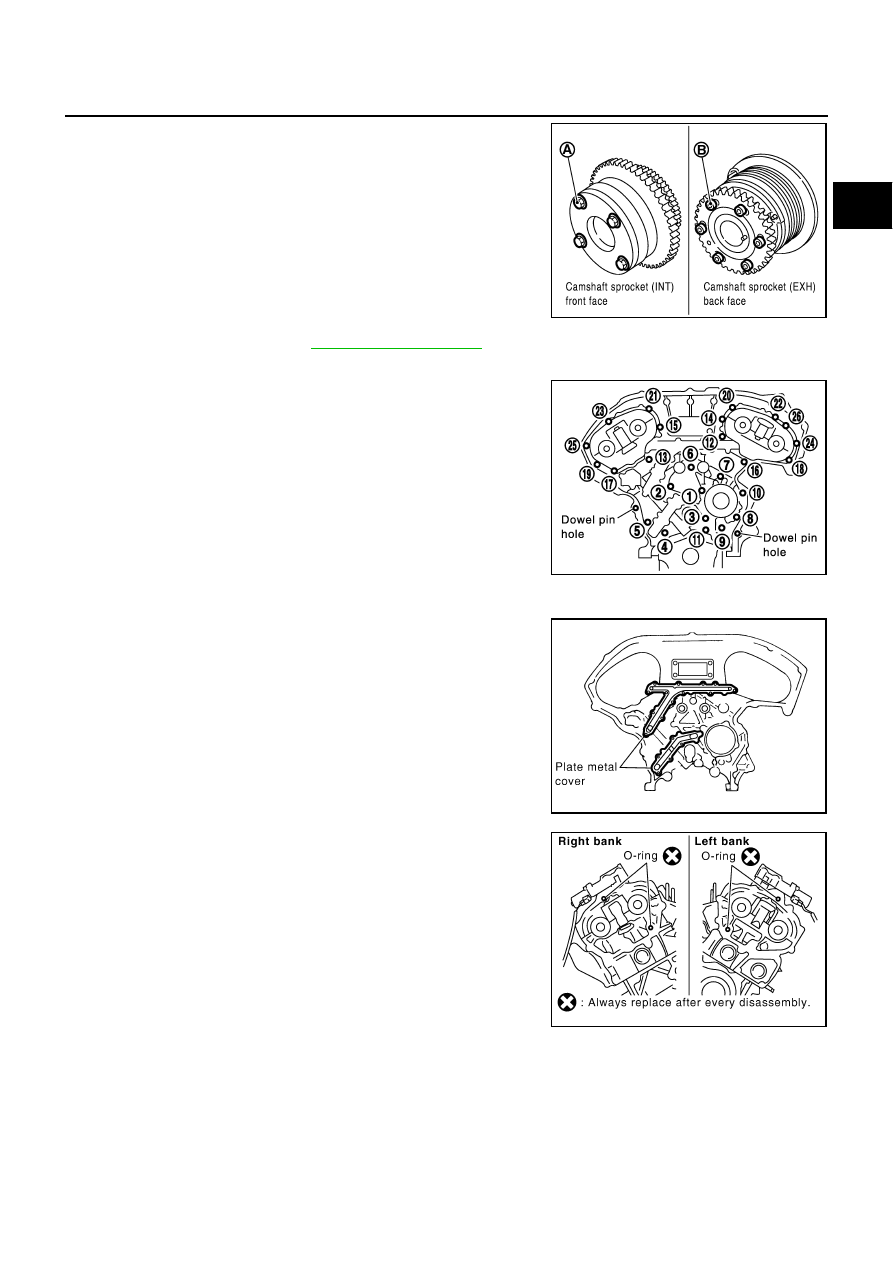

Do not disassemble. (Do not loosen bolts “A” and “B” as
shown in the figure).
NOTE:
Camshaft sprocket (INT) is two-for-one structure of primary and
secondary sprockets.
30. Remove water pump. Refer to
CO-23, "WATER PUMP"
.
31. Remove rear timing chain case as follows:
a.
Loosen and remove mounting bolts in reverse order as shown in
the figure.
b.
Cut liquid gasket using seal cutter [SST: KV10111100 (J37228)]
and remove rear timing chain case.
CAUTION:
●
Do not remove plate metal cover of oil passage.
●
After removal, handle rear timing chain case carefully so
it does not tilt, cant, or warp under a load.

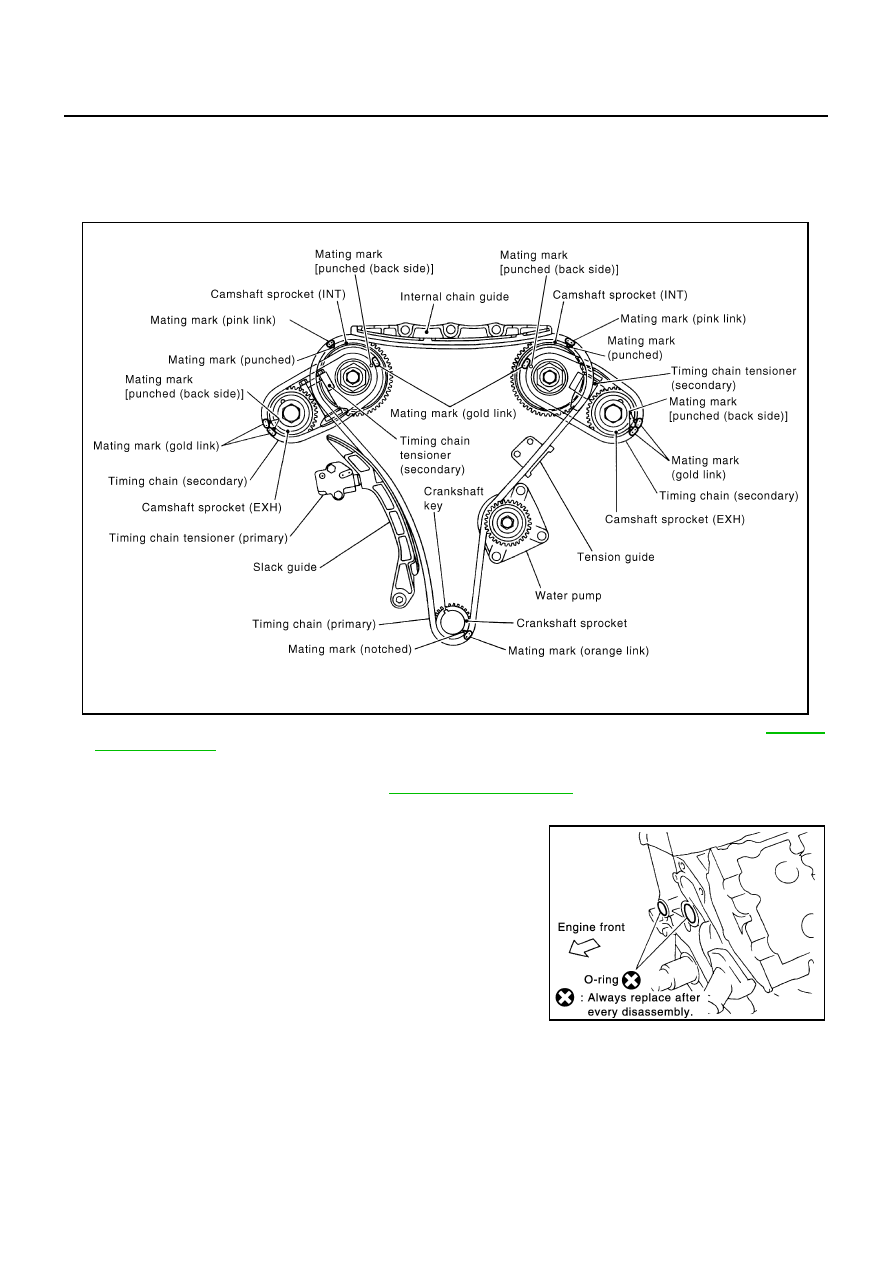

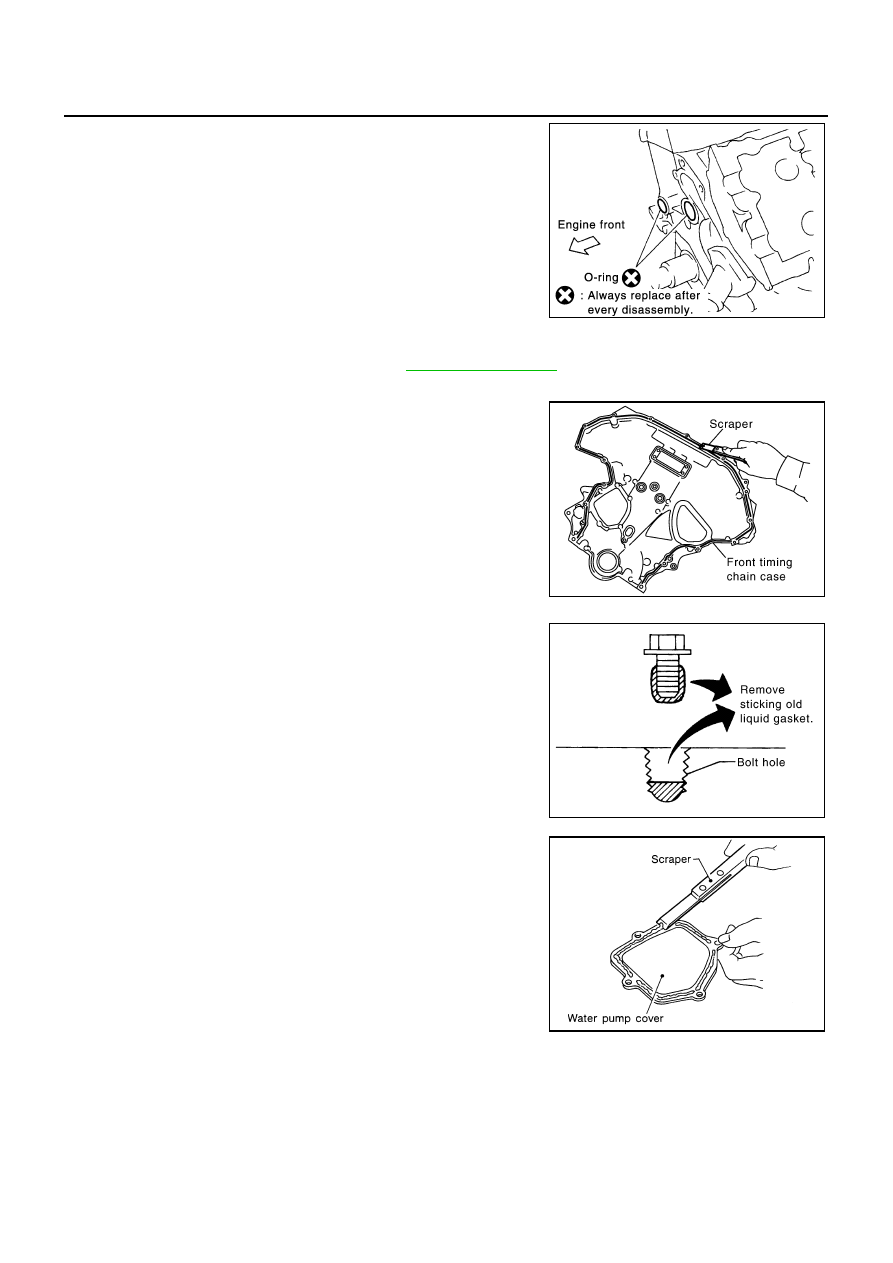

32. Remove O-rings from cylinder head.
PBIC3565E
SEM735G
KBIA1307E
SBIA0496E
