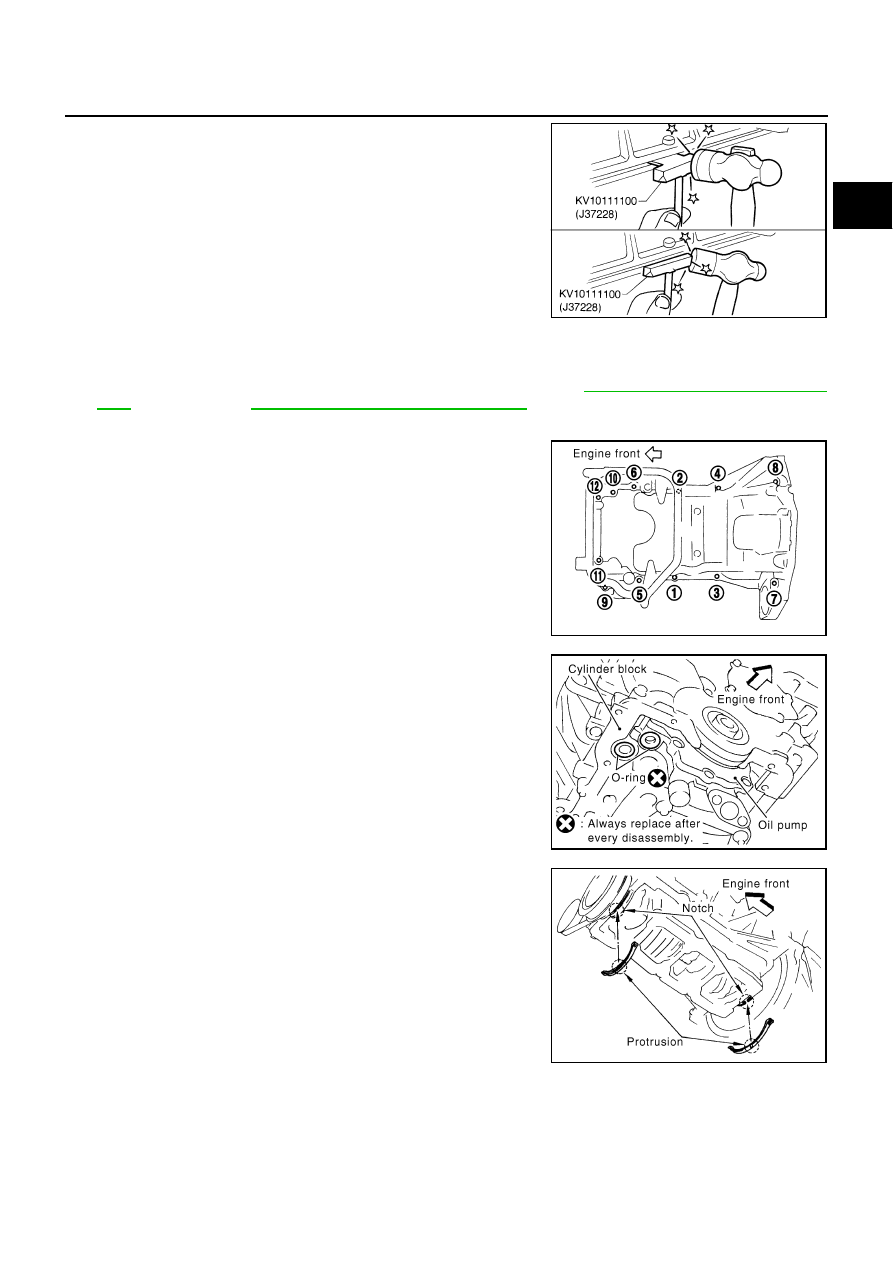

OIL PAN AND OIL STRAINER

EM-31

C

D

E

F

G

H

I

J

K

L

M

A

EM

b.

Insert seal cutter (SST) between oil pan (upper) and oil pan
(lower).

CAUTION:

●

Be careful not to damage the mating surface.

●

Do not insert screwdriver, this will damage the mating
surface.

c.

Slide seal cutter by tapping on the side of tool with hammer.
Remove oil pan (lower).

21. Remove baffle plate.

22. Remove oil strainer.

23. Remove transmission joint bolts which pierce oil pan (upper). Refer to

MT-18, "TRANSMISSION ASSEM-

BLY"

 (M/T models) or

AT-251, "TRANSMISSION ASSEMBLY"

 (A/T models).

24. Remove rear plate cover.

25. Loosen mounting bolts with power tool in reverse order as

shown in the figure to remove oil pan (upper).

●

Insert seal cutter [SST: KV10111100 (J37228)] between oil
pan (upper) and cylinder block. Slide seal cutter by tapping on
the side of tool with hammer. Remove oil pan (upper).

CAUTION:

●

Be careful not to damage the mating surface.

●

Do not insert screwdriver, this will damage the mating
surfaces.

26. Remove O-rings from bottom of cylinder block and oil pump.

27. Remove oil pan gaskets.

INSPECTION AFTER REMOVAL

Clean oil strainer if any object attached.

INSTALLATION

1.

Install oil pan (upper) as follows:

SEM365E

PBIC0783E

PBIC1144E

PBIC1145E

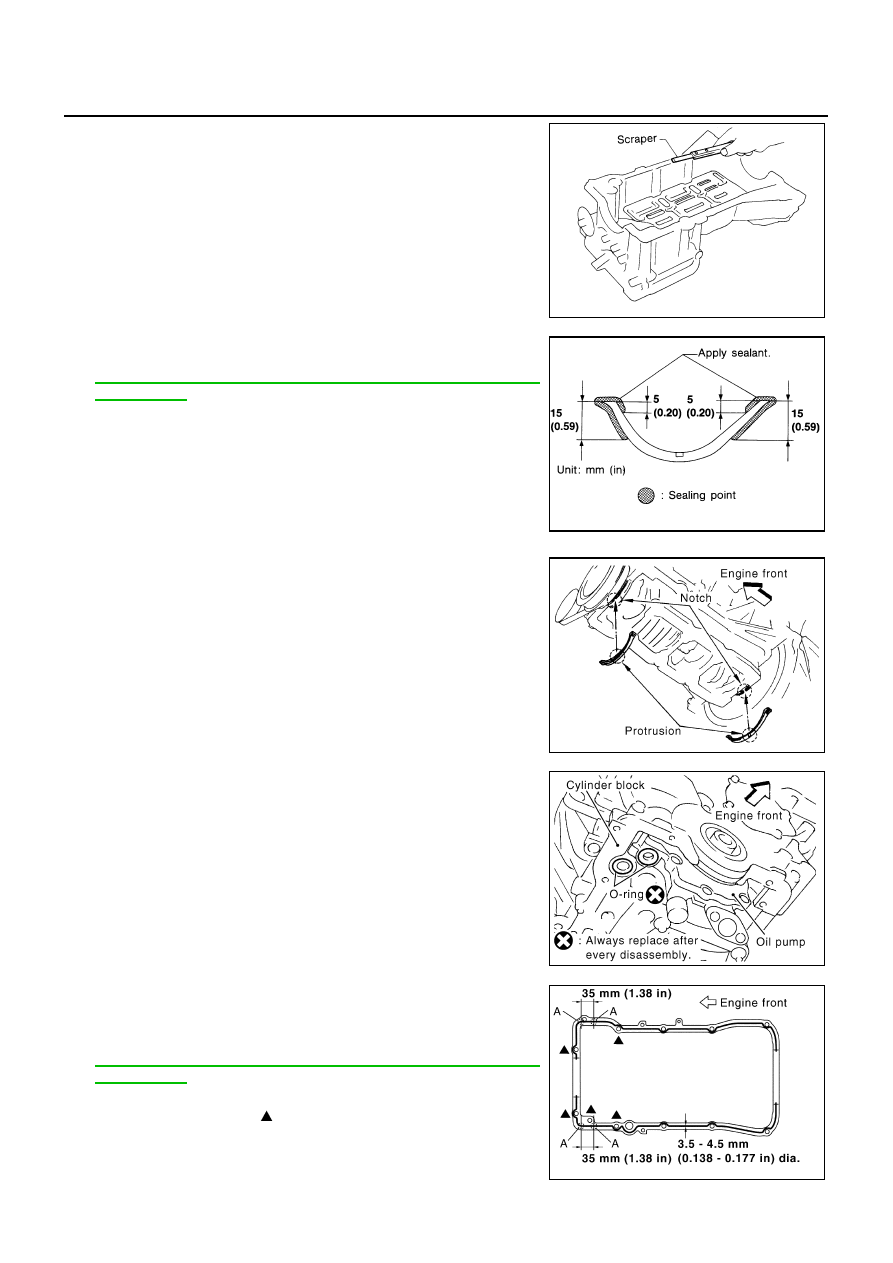

EM-32

OIL PAN AND OIL STRAINER

a.

Use scraper to remove old liquid gasket from mating surfaces.

●

Also remove the old liquid gasket from mating surface of cyl-
inder block.

●

Remove old liquid gasket from the bolt holes and threads.

CAUTION:

Do not scratch or damage the mating surfaces when clean-
ing off old liquid gasket.

b.

Apply liquid gasket to oil pan gaskets as shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-46, "RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS"

 .

●

To install, align protrusion of oil pan gasket with notches of
front timing chain case and rear oil seal retainer.

●

Install oil pan gasket with smaller arc to front timing chain
case side.

c.

Install new O-rings on the cylinder block and oil pump side.

d.

Apply a continuous bead of liquid gasket with tube presser [SST:
WS39930000 (

—

)] to the cylinder block mating surface of

oil pan (upper) to a limited portion as shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-46, "RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS"

 .

CAUTION:

●

For bolt holes with   marks (five locations), apply liquid
gasket outside the holes.

●

Apply a bead of 4.5 to 5.5 mm (0.177 to 0.217 in) in diame-
ter to area “A”.

MEM108A

SEM964E

PBIC1145E

PBIC1144E

PBIC2300E

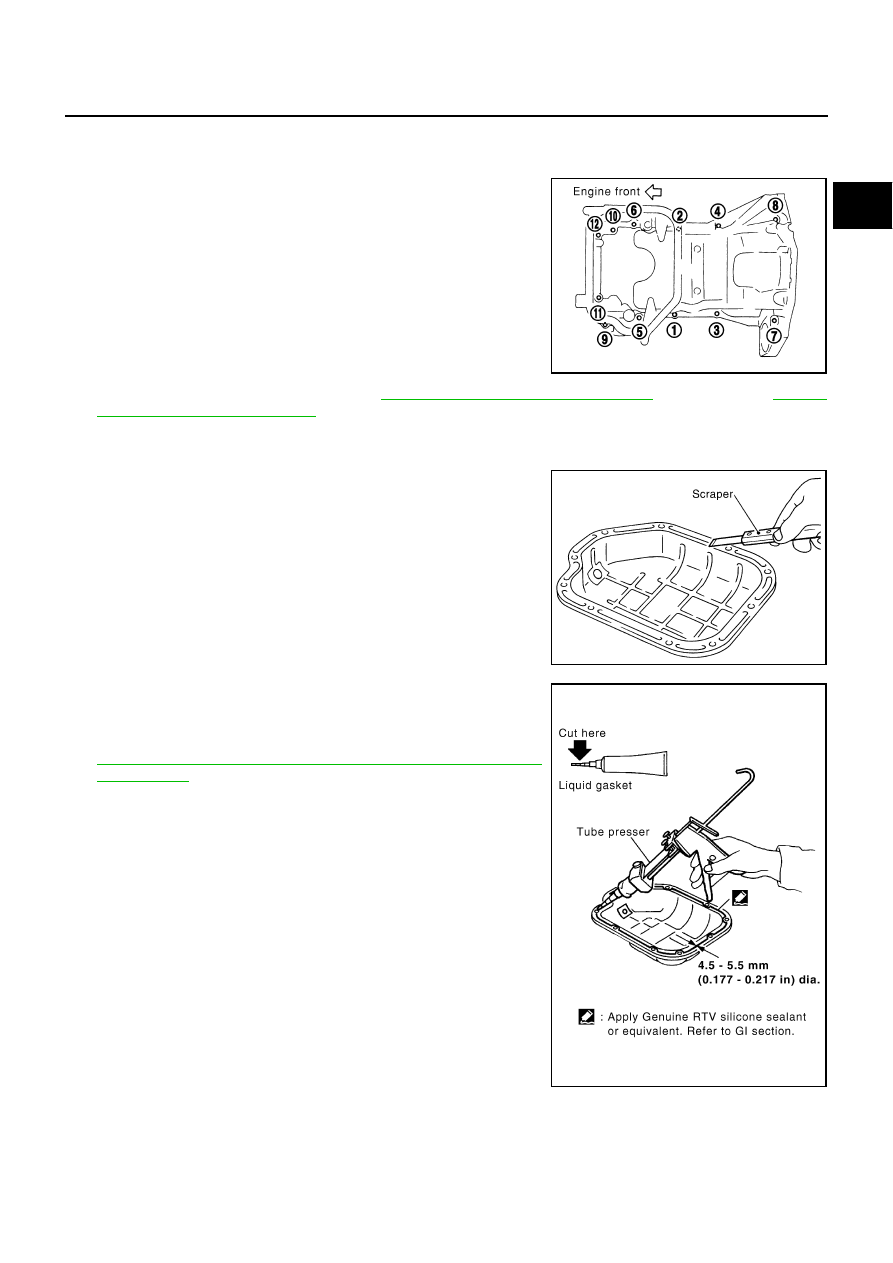

OIL PAN AND OIL STRAINER

EM-33

C

D

E

F

G

H

I

J

K

L

M

A

EM

●

Attaching should be done within 5 minutes after coating.

e.

Install the oil pan (upper).

●

Tighten bolts in numerical order as shown in the figure.

●

There are two types of mounting bolts. Refer to the following
for locating bolts.

f.

Tighten transmission joint bolts. Refer to

MT-18, "TRANSMISSION ASSEMBLY"

 (M/T models) or

AT-251,

"TRANSMISSION ASSEMBLY"

 (A/T models).

2.

Install oil strainer to oil pump.

3.

Install oil pan (lower) as follows:

a.

Use scraper to remove old liquid gasket from mating surfaces.

●

Also remove old liquid gasket from mating surface of oil pan
(upper).

●

Remove old liquid gasket from the bolt holes and thread.

CAUTION:

Do not scratch or damage the mating surfaces when clean-
ing off old liquid gasket.

b.

Apply a continuous bead of liquid gasket with tube presser [SST:
WS39930000 (

—

)] to the oil pan (lower) as shown in the fig-

ure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-46, "RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS"

 .

CAUTION:

Attaching should be done within 5 minutes after coating.

c.

Install oil pan (lower).

M8

×

 100 mm (3.97 in)

: 5, 7, 8, 11

M8

×

 25 mm (0.98 in)

: Except the above

PBIC0783E

SEM958F

PBIC2657E

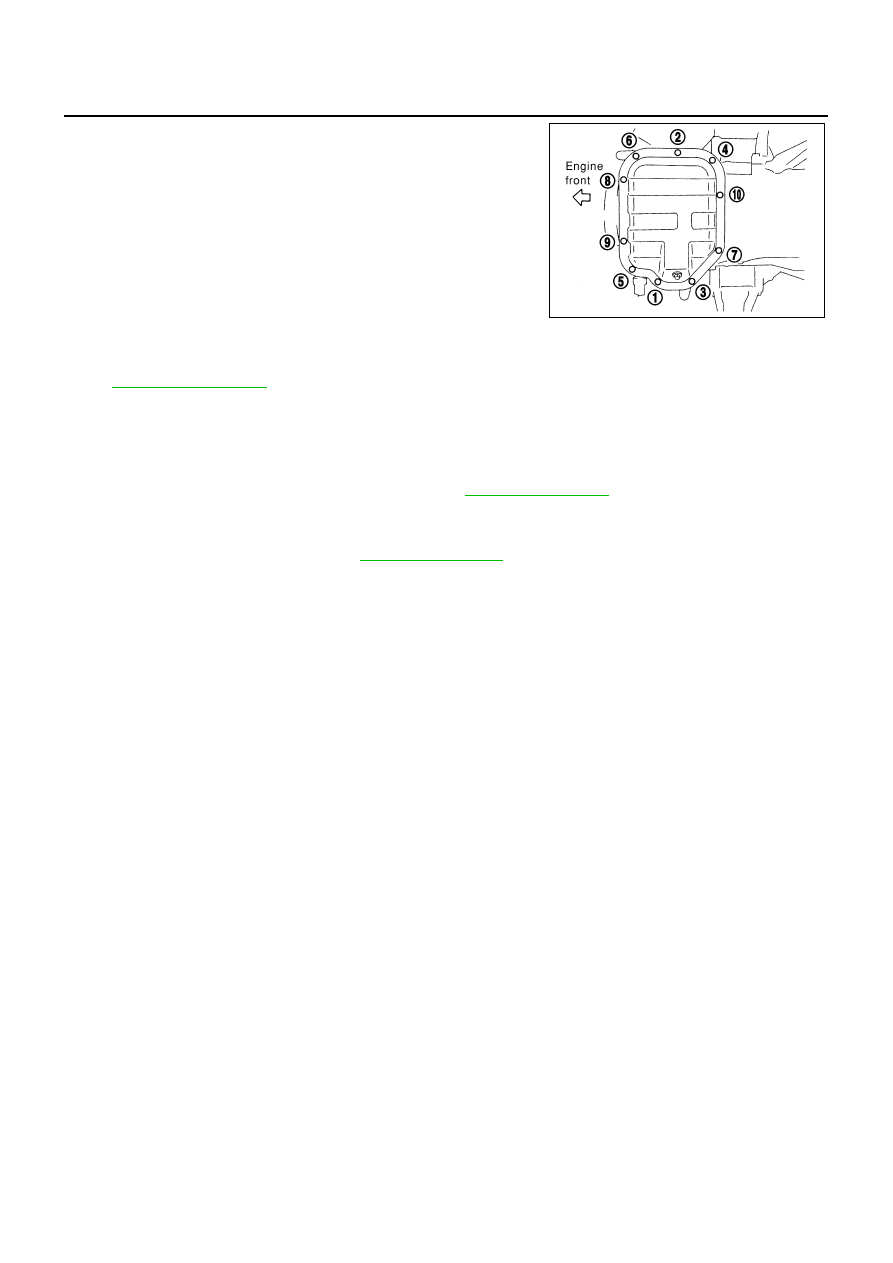

EM-34

OIL PAN AND OIL STRAINER

●

Tighten mounting bolts in numerical order as shown in the fig-
ure.

4.

Install oil pan drain plug.

●

Refer to the figure of components of former page for installation direction of drain plug washer. Refer to

EM-29, "Components"

 .

5.

Install in the reverse order of removal after this step.

●

NOTE:
At least 30 minutes after oil pan is installed, pour engine oil.

INSPECTION AFTER INSTALLATION

1.

Check engine oil level and adjust engine oil. Refer to

LU-7, "ENGINE OIL"

 .

2.

Start engine, and check there is no leak of engine oil.

3.

Stop engine and wait for 10 minutes.

4.

Check engine oil level again. Refer to

LU-7, "ENGINE OIL"

 .
