WARNING CHIME
DI-39
C
D
E
F
G
H
I
J
L
M
A
B
DI
SEAT BELT WARNING CHIME
With ignition switch turned ON and driver's seat belt unfastened, seat belt warning chime will sound for
approximately 6 seconds.
●
Combination meter reads a ON/OFF signal from seat belt buckle switch (driver side), and transmits seat
belt buckle switch signal to BCM with CAN communication.
●
BCM detects ignition switch turned ON and seat belt buckle switch (driver side) ON. And then, transmits
buzzer output signal (seat belt warning chime) to combination meter with CAN communication.
●
When combination meter receives buzzer output signal (seat belt warning chime), it sounds the buzzer.
NOTE:
When ignition key warning chime, light warning chime, and seat belt warning chime should be performed at
the same time, the priorities for each chime are the following.
1.
Seat belt warning chime
2.
Light warning chime
3.
Ignition key warning chime

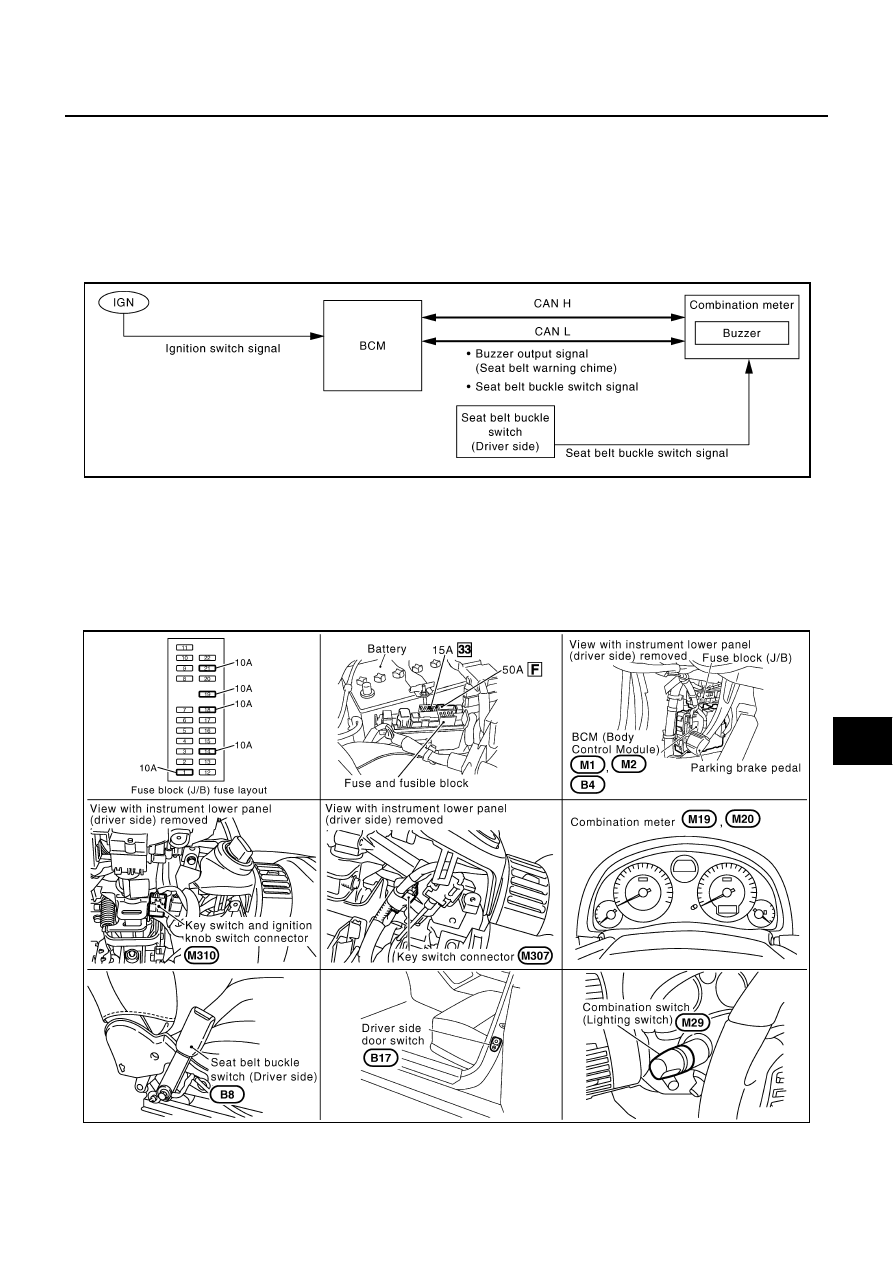

Component Parts and Harness Connector Location
NKS000LF
SKIB6922E
SKIB6923E
