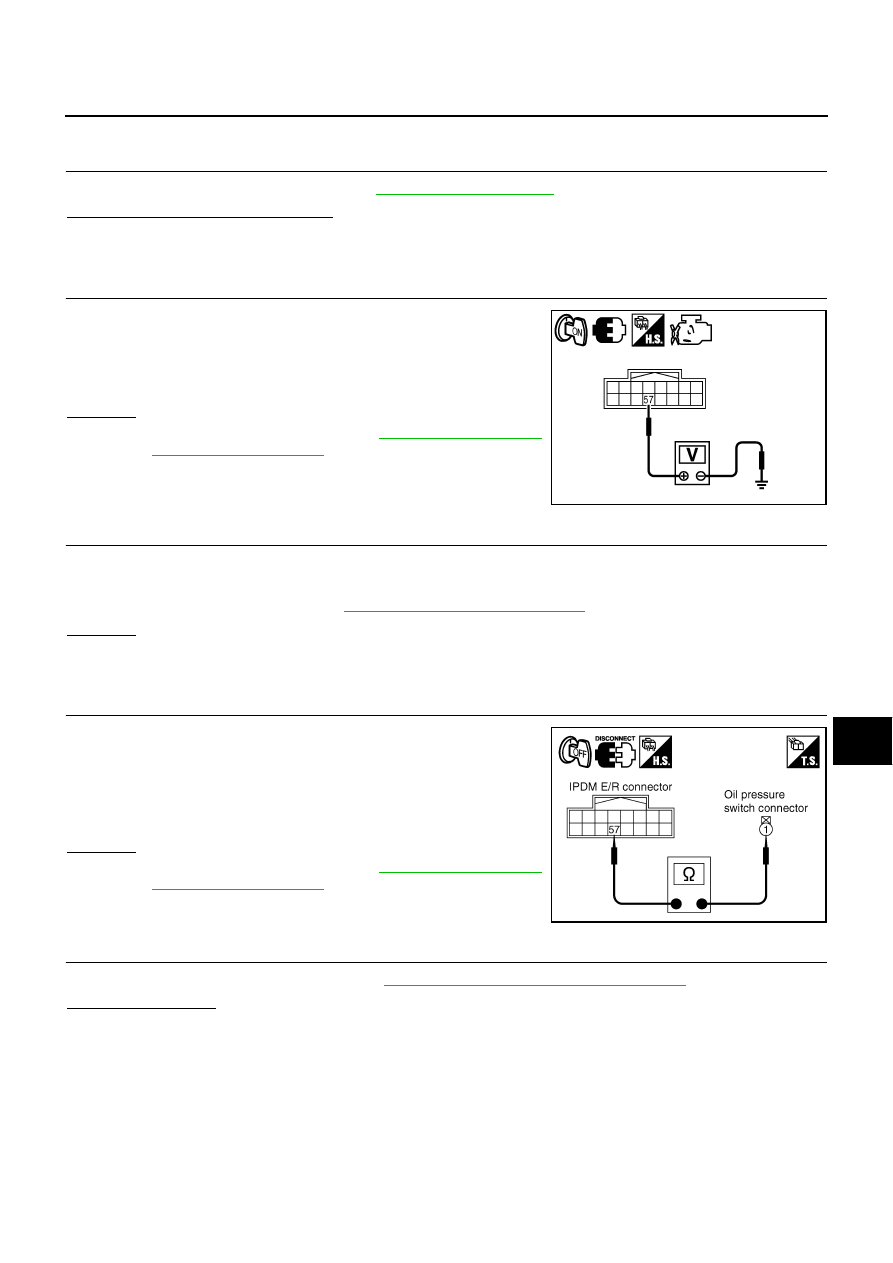

WARNING LAMPS

DI-31

C

D

E

F

G

H

I

J

L

M

A

B

DI

Oil Pressure Warning Lamp Stays Off (Ignition Switch ON)

NKS000L7

1.

CHECK OIL PRESSURE WARNING LAMP OPERATION

Activate IPDM E/R auto active test. Refer to

PG-21, "Auto Active Test"

 .

Does oil pressure warning lamp blink?

YES

>> GO TO 2.

NO

>> GO TO 5.

2.

CHECK IPDM E/R INPUT SIGNAL

1.

Turn ignition switch ON.

2.

Check voltage between IPDM E/R harness connector E9 termi-
nal 57 (Y/B) and ground.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-27, "Removal and

Installation of IPDM E/R"

 .

NG

>> GO TO 3.

3.

CHECK OIL PRESSURE SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect oil pressure switch connector.

3.

Check oil pressure switch. Refer to

DI-33, "OIL PRESSURE SWITCH"

 .

OK or NG

OK

>> GO TO 4.

NG

>> Replace oil pressure switch.

4.

CHECK OIL PRESSURE SWITCH CIRCUIT

1.

Disconnect IPDM E/R connector.

2.

Check continuity between IPDM E/R harness connector E9 ter-
minal 57 (Y/B) and oil pressure switch harness connector F21
terminal 1 (Y/B).

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-27, "Removal and

Installation of IPDM E/R"

 .

NG

>> Repair harness or connector.

5.

CHECK CAN COMMUNICATION

Perform self-diagnosis of IPDM E/R. Refer to

PG-18, "CONSULT-II Function (IPDM E/R)"

 .

Self-diagnosis results

No malfunction detected >> GO TO 6.
Malfunction detected >> Check applicable parts, and repair or replace corresponding parts.

57 (Y/B) – Ground

: Approx. 0 V

SKIB6449E

57 (Y/B) – 1 (Y/B)

: Continuity should exist.

PKIB3831E

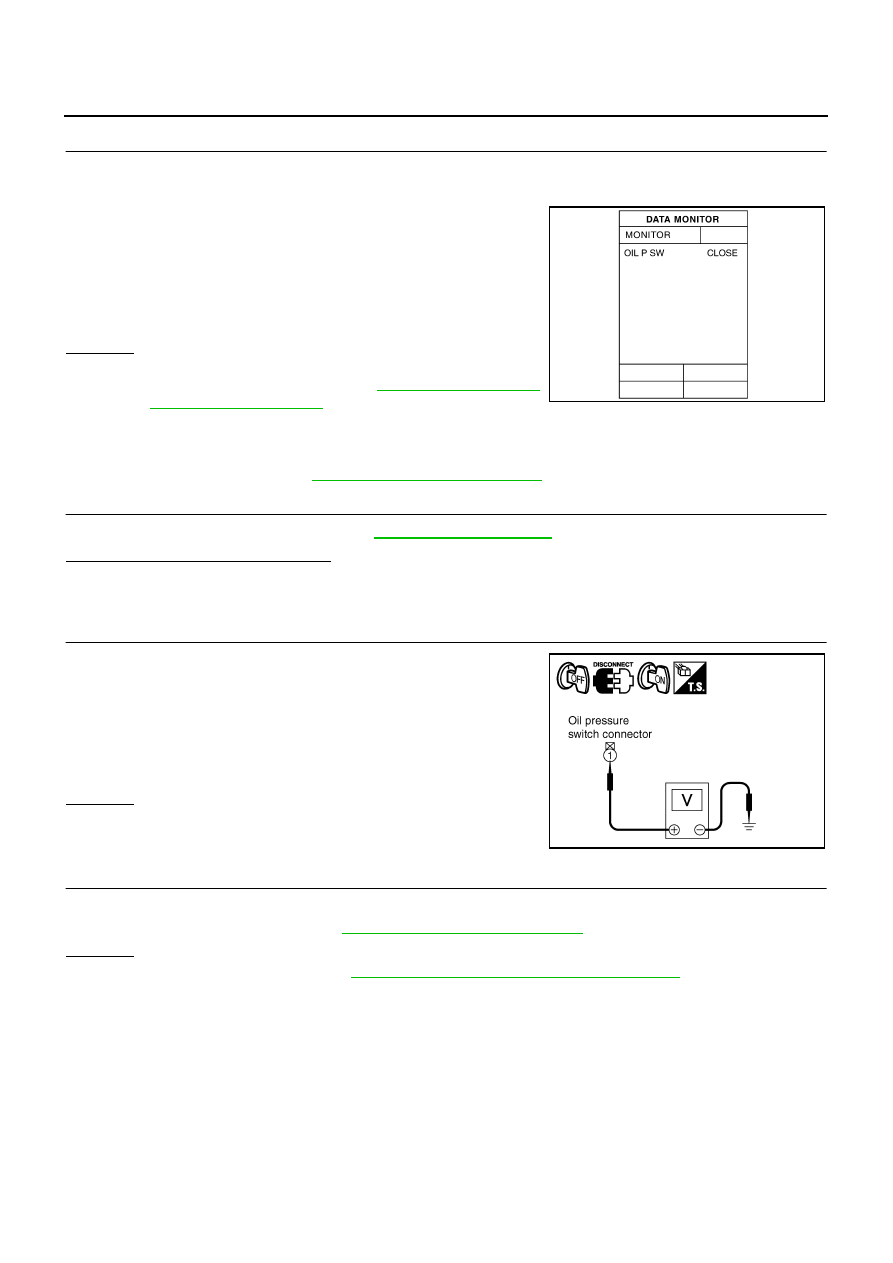

DI-32

WARNING LAMPS

6.

CHECK IPDM E/R INPUT SIGNAL (CONSULT-II)

1.

Select “IPDM E/R” on CONSULT-II.

2.

Select “DATA MONITOR” on “SELECT DIAG MODE” screen.

3.

Operate ignition switch with “OIL P SW” of “DATA MONITOR”
and check operation status.

OK or NG

OK

>> Replace combination meter.

NG

>> Replace IPDM E/R. Refer to

PG-27, "Removal and

Installation of IPDM E/R"

 .

Oil Pressure Warning Lamp Does Not Turn Off (Oil Pressure Is Normal)

NKS000L8

NOTE:
For oil pressure inspection, refer to

LU-8, "OIL PRESSURE CHECK"

 .

1.

CHECK OIL PRESSURE WARNING LAMP OPERATION

Activate IPDM E/R auto active test. Refer to

PG-21, "Auto Active Test"

 .

Does oil pressure warning lamp blink?

YES

>> GO TO 2.

NO

>> GO TO 5.

2.

CHECK IPDM E/R OUTPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect oil pressure switch connector.

3.

Turn ignition switch ON.

4.

Check voltage between oil pressure switch harness connector
F21 terminal 1 (Y/B) and ground.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 4.

3.

CHECK OIL PRESSURE SWITCH

1.

Turn ignition switch OFF.

2.

Check oil pressure switch. Refer to

DI-33, "OIL PRESSURE SWITCH"

 .

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-27, "Removal and Installation of IPDM E/R"

 .

NG

>> Replace oil pressure switch.

“OIL P SW”

When ignition switch is in ON position
(Engine stopped)

: CLOSE

When engine running

: OPEN

SKIA8675E

1 (Y/B) – Ground

: Approx. 12 V

PKIB3573E

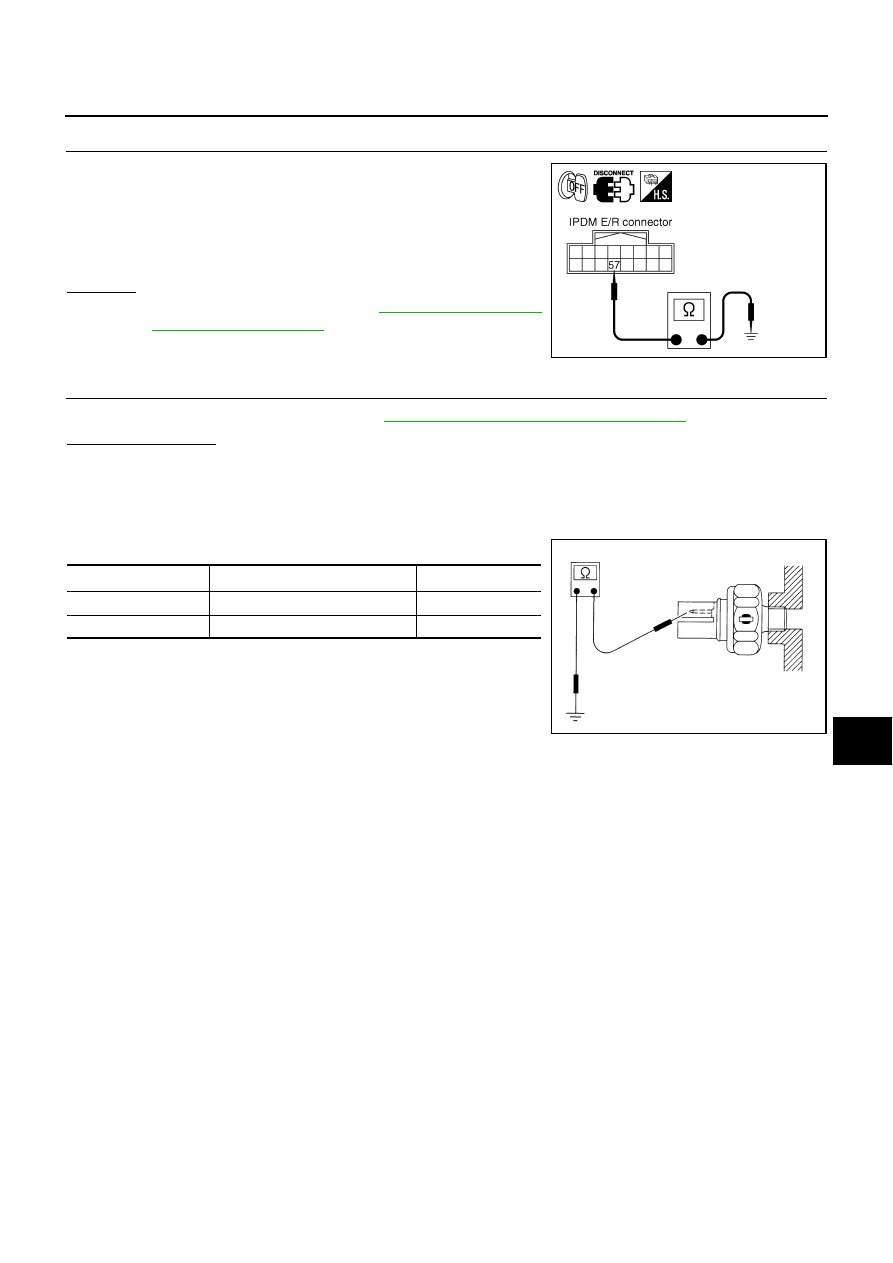

WARNING LAMPS

DI-33

C

D

E

F

G

H

I

J

L

M

A

B

DI

4.

CHECK OIL PRESSURE SWITCH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

Check continuity between IPDM E/R harness connector E9 ter-
minal 57 (Y/B) and ground.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-27, "Removal and

Installation of IPDM E/R"

 .

NG

>> Repair harness or connector.

5.

CHECK IPDM E/R (CONSULT-II)

Perform self-diagnosis of IPDM E/R. Refer to

PG-18, "CONSULT-II Function (IPDM E/R)"

 .

Self-diagnosis results

No malfunction detected >> Replace combination meter.
Malfunction detected >> Check applicable parts, and repair or replace corresponding parts.

Component Inspection

NKS000L9

OIL PRESSURE SWITCH

Check continuity between the oil pressure switch and ground.

57 (Y/B) – Ground

: Continuity should not exist.

SKIA5013E

Condition

Oil pressure [kPa (kg/cm

2

 , psi)]

Continuity

Engine stopped

Less than 29 (0.3, 4)

Yes

Engine running

More than 29 (0.3, 4)

No

ELF0044D

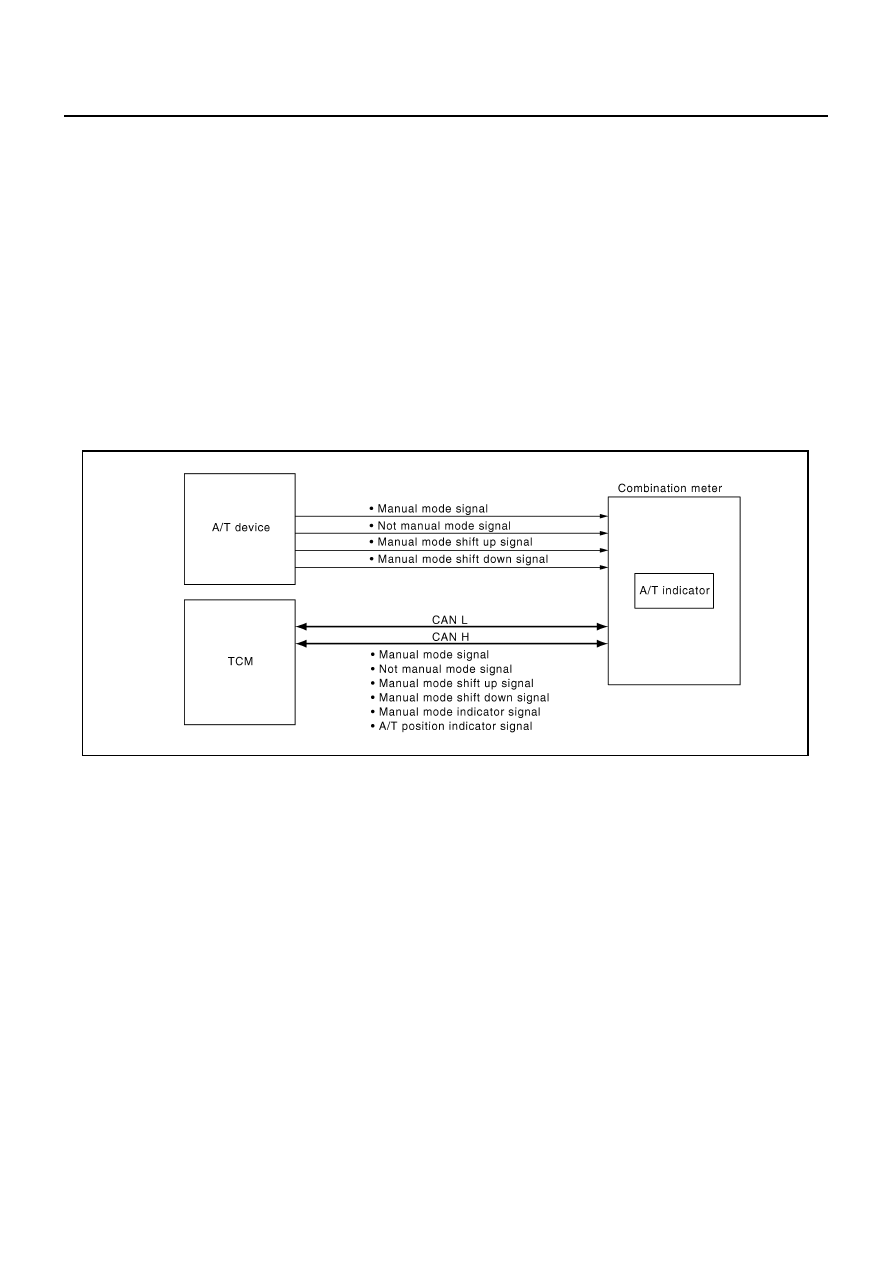

DI-34

A/T INDICATOR

A/T INDICATOR

PFP:24814

System Description

NKS000R1

A/T position is displayed in the segment display in the combination meter.

MANUAL MODE

●

Combination meter reads manual mode signal and shift-up/down signal from A/T device (manual mode
switch), and transmits the signals to TCM with CAN communication.

●

TCM processes manual mode signal and shift-up/down signal, and transmits A/T position indicator signal
and manual mode indicator signal to combination meter with CAN communication.

●

Combination meter indicates A/T gear position and manual mode indicator when receiving A/T position
indicator signal and manual mode indication signal.

NOT MANUAL MODE

●

Combination meter reads not manual mode signal from A/T device (manual mode switch), and transmits
the signals to TCM with CAN communication.

●

TCM transmits A/T position indicator signal to combination meter with CAN communication.

●

Combination meter indicates A/T shift position when receiving A/T position indicator signal.

PKIC1996E
