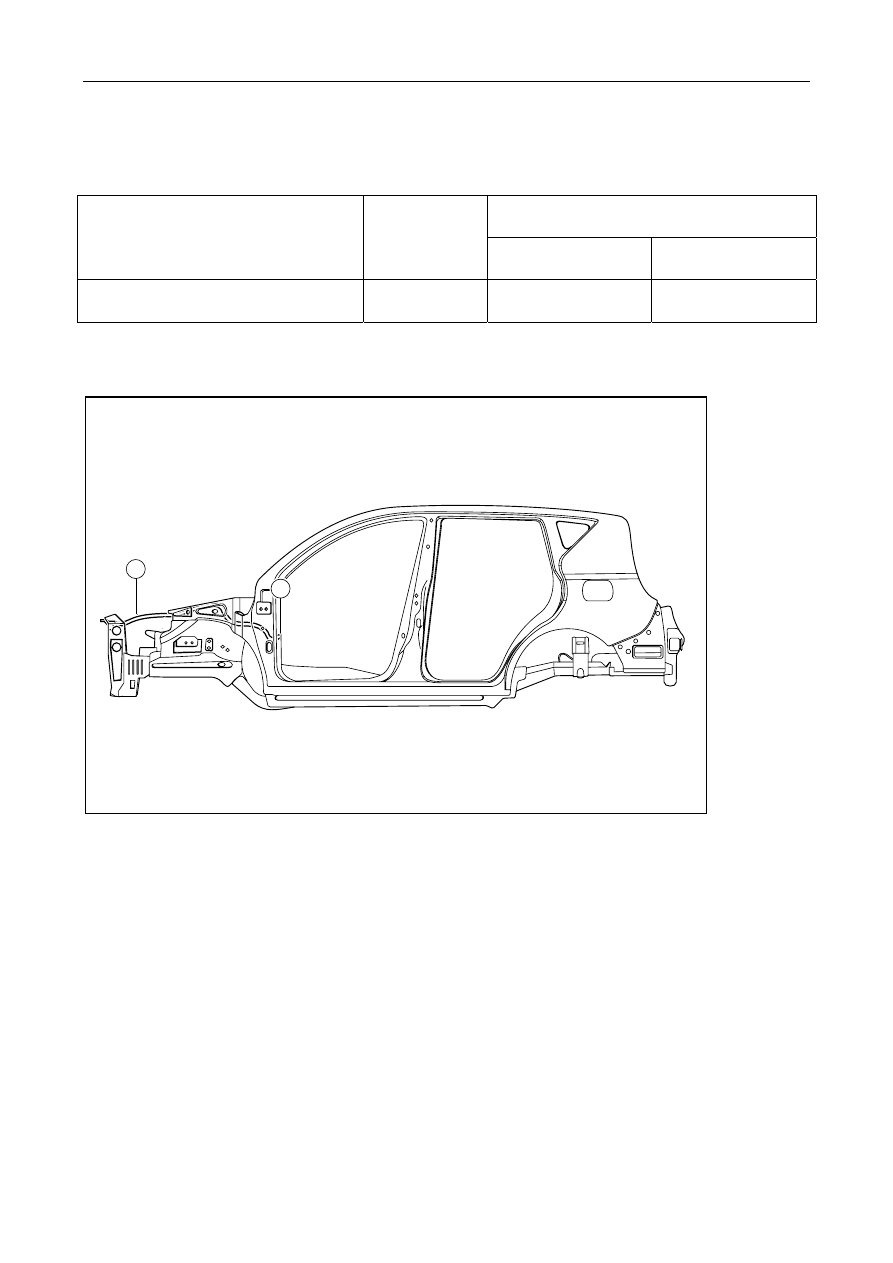

12.2 Front -end of body

12.2.1 Specification

12.2.1.1 Fastener specifications

Torque Range

Fastener Name

Model

Metric (NM)

English system (lb-ft)

Engine hood lock assembly

M6×16

7-9

5.2-6.7

12.2.2 Part position

12.2.2.1 Component position

1

2

NL12-1024b



1.    Engine hood lock.

2.    Engine hood lock cable assembly





2627




12.2.3 Dismantle and install

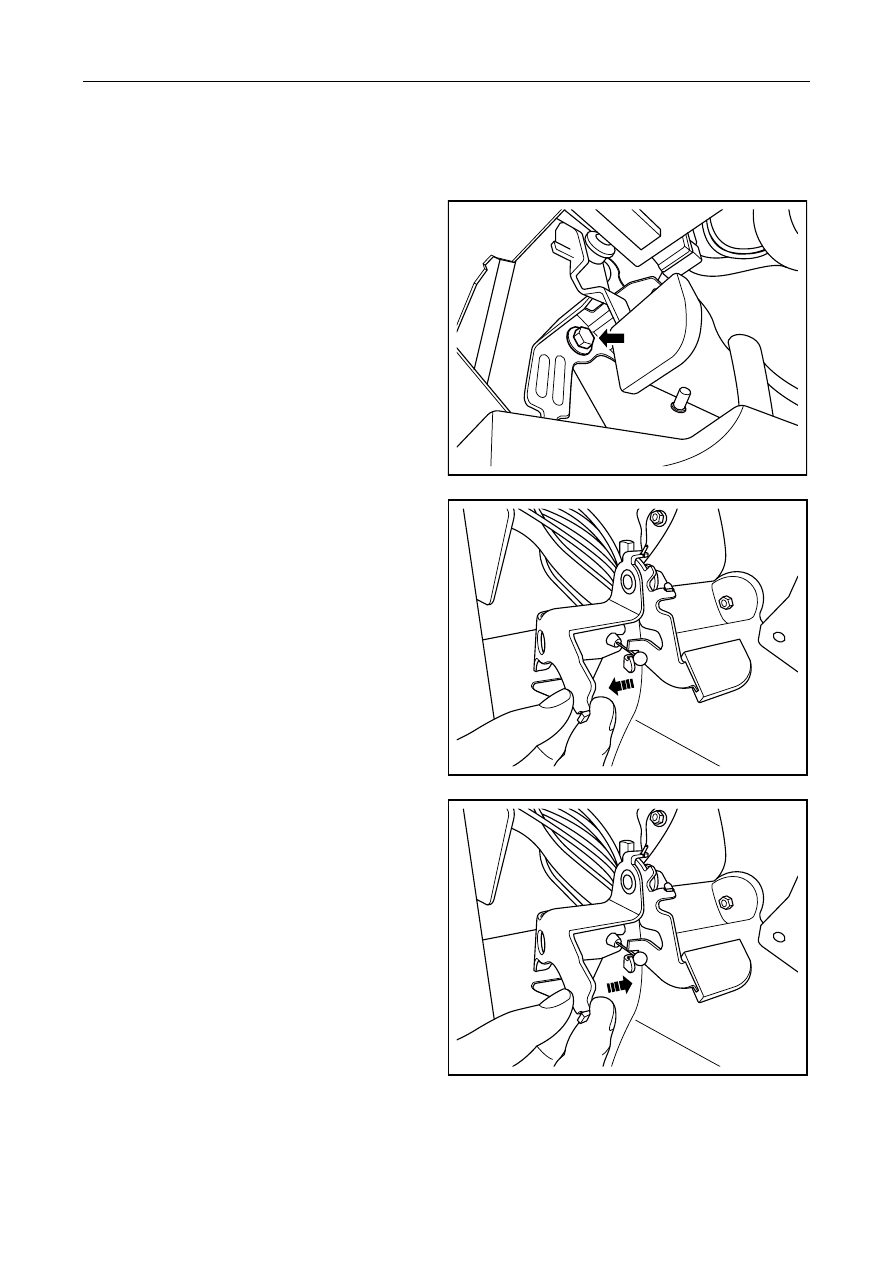

12.2.3.1 Engine hood lock cable assembly replacement

Dismantlement Procedure

1.  Dismantle engine hood opening handle fixing

bolt.

NL12-0119b

2.    Loosen cable from opening handle.

3.   For dismantling of engine hood lock, refer to

12.2.3.2 Replacement of engine hood lock.



4.  Disengage the guy cable fixing buckle and

extract the hood lock guy cable assembly out
from the cab compartment.



NL12-0120b

Installation Procedure:

1.    Put engine hood lock cable pass through engine

hood from driver's cab.

2.  Install the engine hood latch.

3.    Insert opening cable into opening handle.

NL12-0121b

2628

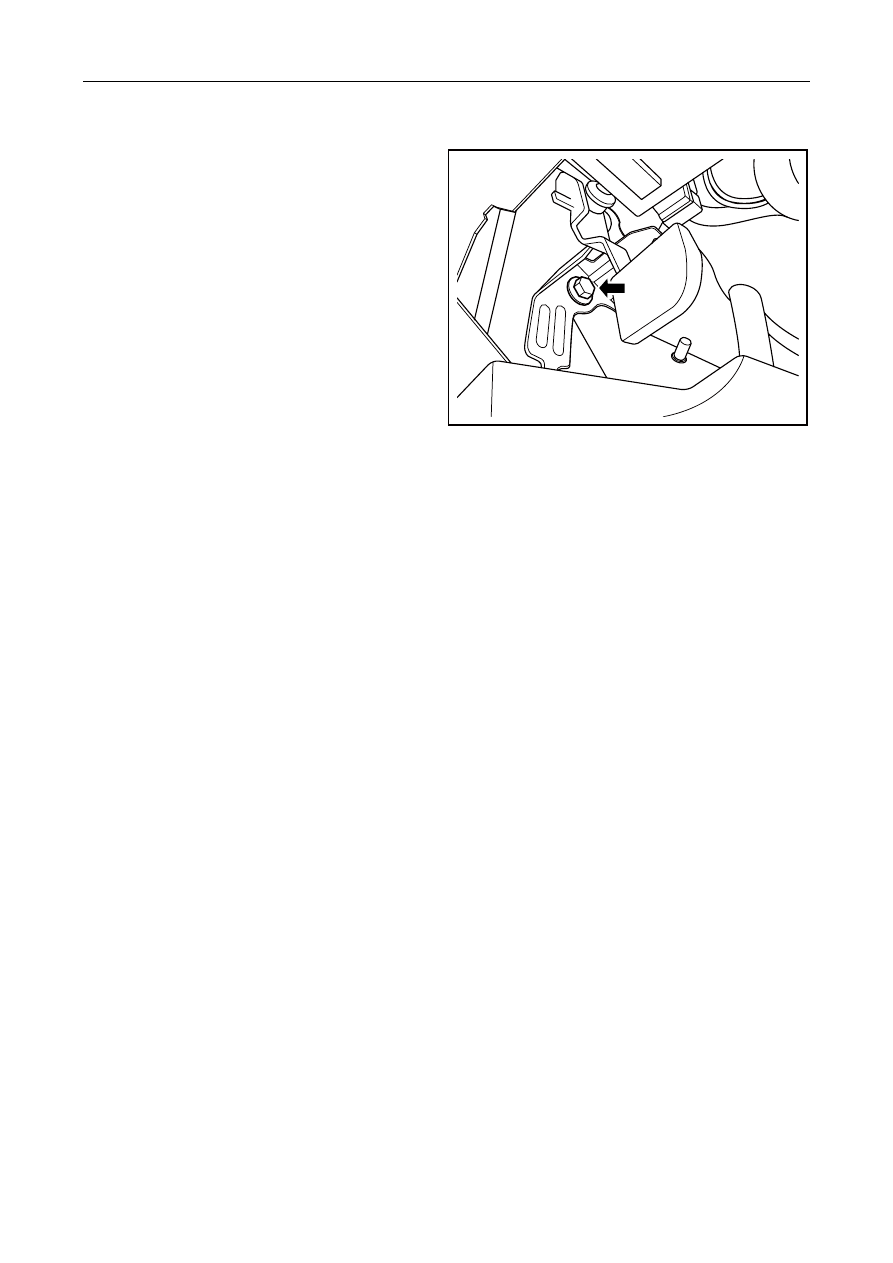

4.  Install opening handle and tighten bolt.

Torque: 8Nm(Metric) 6lb-ft(English system)

NL12-0119b



2629

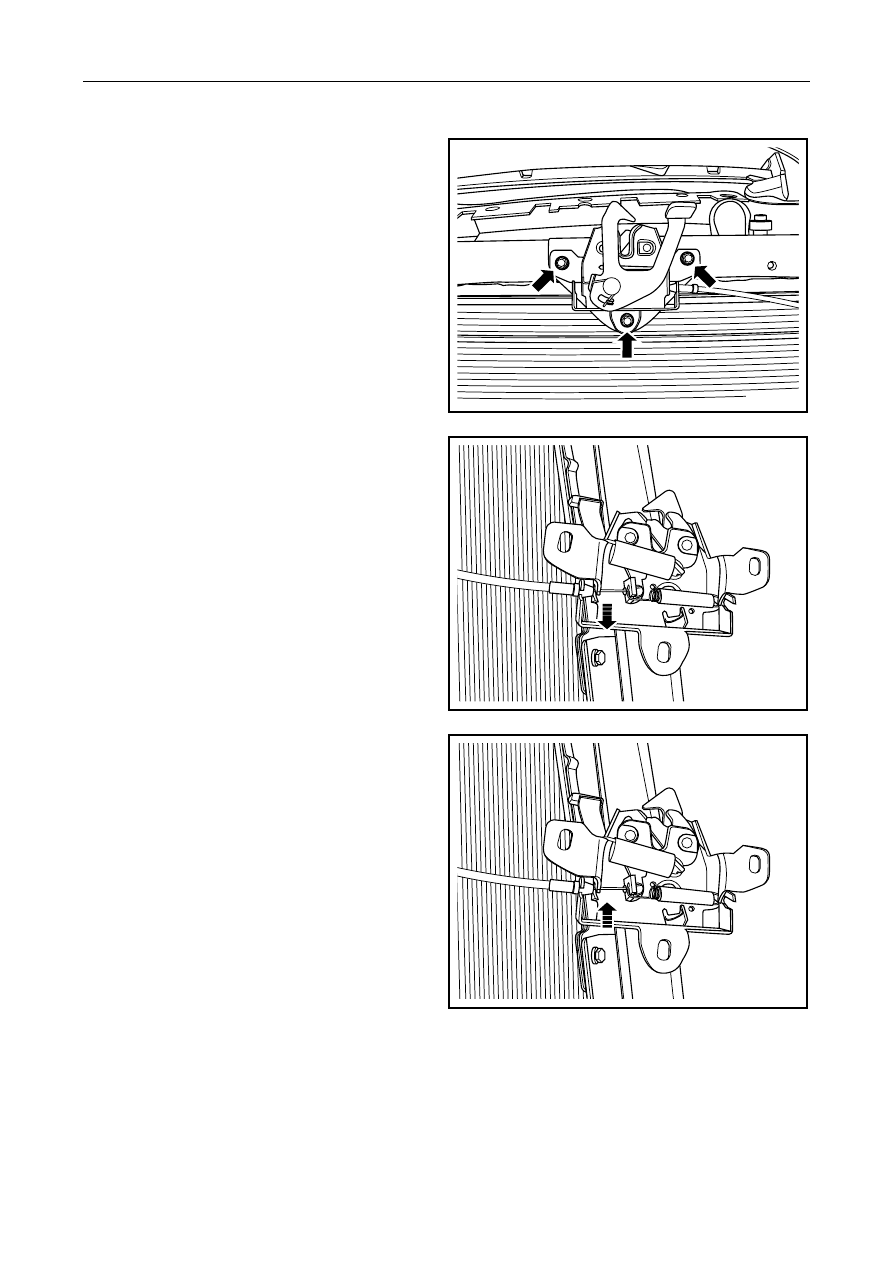

12.2.3.2 Engine hood lock replacement

Dismantlement Procedure

1.    Turn on engine hood.

2.  Dismantle front bumper. Refer to 12.4.3.1

Replacement of Front Bumper.

3.    Dismantle 3 fixing bolts of engine cover lock.

NL12-0122b

4.    Dismantle engine hood lock, and remove opening

cable of engine hood lock.



NL12-0123b

Installation Procedure:

1.   Insert engine hood open cable into engine hood

lock cable slot.



NL12-0124b

2630
