11.11.7.3 Rear windscreen glass defrost switch replacement

Dismantlement procedure

Warning!

Warning: refer to warning on battery disconnection in warnings and precautions.

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

2.  Dismantle the instrument panel

center switch assembly. Refer to
8.2.8.1 replacement of
air-conditioning control panel.

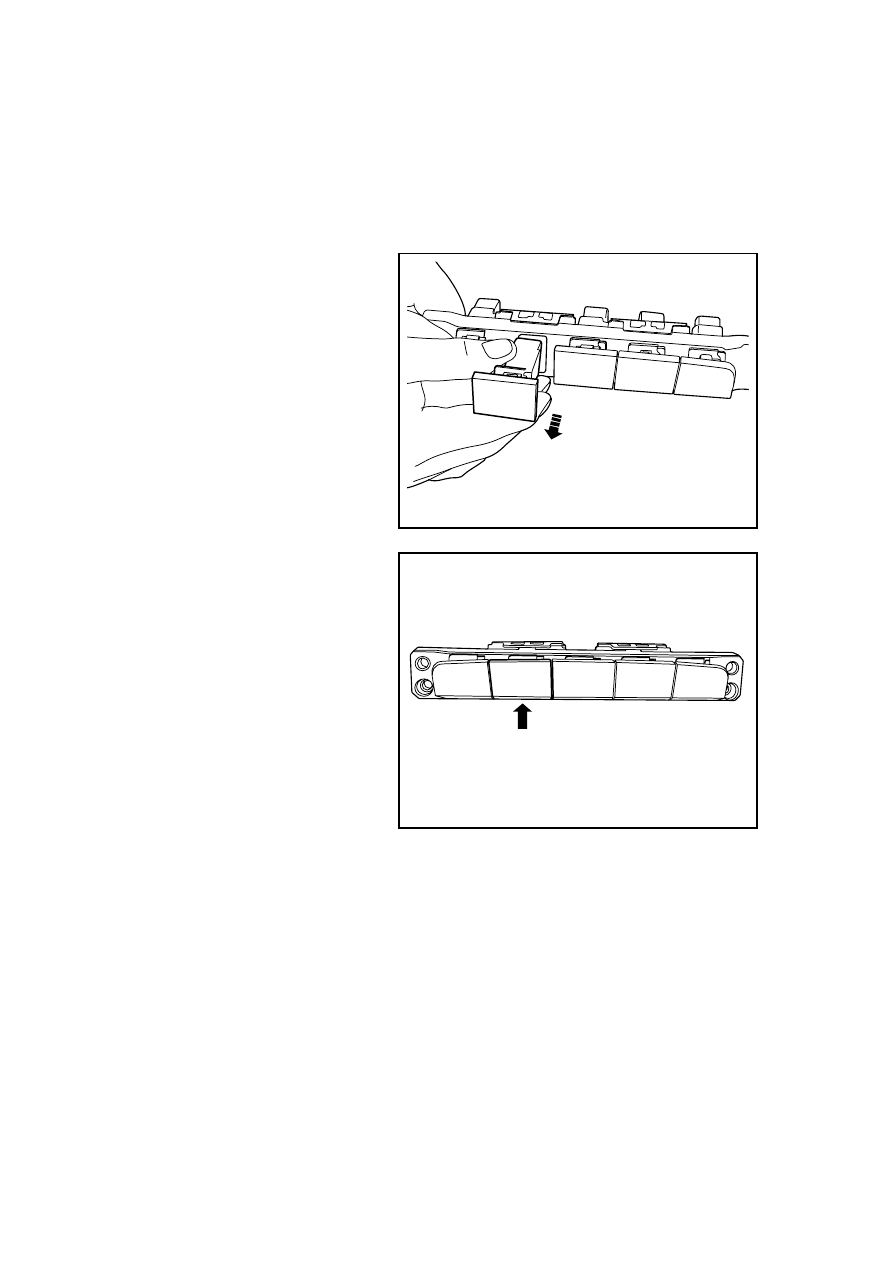

3. Dismatle back door glass

defroster switch from central
switch assembly of instrument
panel.

NL11-0100b

Installation procedure:

1.  Install back door glass defrosting

switch onto instrument panel
central switch assembly.

2.  Install central switch assembly of

instrument panel onto control
panel of air conditioner.

3. Install the air-conditioning

control panel.

4.  Connect the battery negative

cable.

NL11-0101b

2531



11.11.7.4 Woven leading wire repair of rear windscreen glass defrost

Notes:

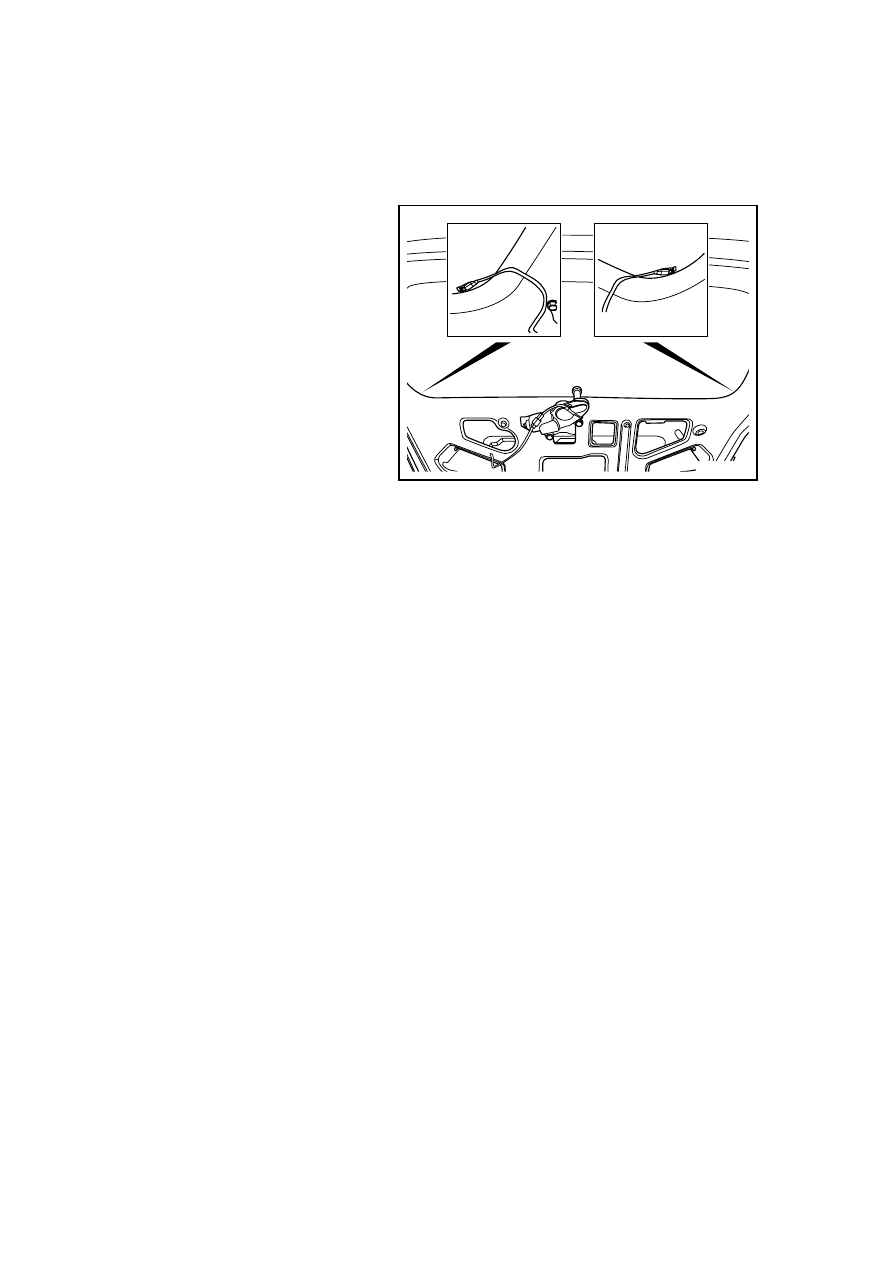

The rear windshield defroster bus lead
or terminal can be reconnected
through re-brazing. Weld through a
welding rod containing 3% of silver
and rosin.

1.  Before welding lead line of CAN,

it is necessary to clean repair
position to bright condition with
fine steel wire.

2.  Apply a little amount of resin to

repair positions of lead wire and
CAN line by using brush.

3.  Use soldering iron to dip welding

material enough to ensure repair
use.

4.  Only apply the heat sufficient to

melt the solder. Be sure not to
overheat the conductor when
leading the re-soldered bus.

NL11-0102b

2532



11.12 Horn

11.12.1 Specification

11.12.1.1 Fastener specifications

Torque range

Fastener name

Model

Metric (N·m)

English system

(lb-ft)

Fastening bolt of electric horn

device

M8×16 18

-

22

13 — 16

11.12.1.2 Horn specification

Sound level

105-118dB

Treble 500±25Hz

Audio frequency

Bass 400±25Hz

11.12.2 Description and operation

11.12.2.1 Description and operation

The horn is arranged in the engine cabin and fixed at the both sides of the radiator at the front of
the vehicle. The high tone horn arranged at the right side and the bass horn arranged at the left side
are controlled by a steering wheel horn switch jointly. When the steering wheel horn button is
pressed down, the horn circuit is electrified, so that the horn makes a sound.

A compound horn is used as anti-theft horn at the same time, which is driven to beep by
controlling the relay grounding through the BCM.

11.12.3 System work principle

11.12.3.1 System operating Principle

The control mode of the horn is to control the power supply end, i.e., the horn switch controls the
closing of the horn relay, then the relay provides supply to the horn; and the horn is normally
grounded. The BCM controls the grounding of the relay and sounding by the horn to achieve an
anti-theft action.

2533



11.12.4 Part position

11.12.4.1 Component position

Horn

1

3

2

NL11-2188b



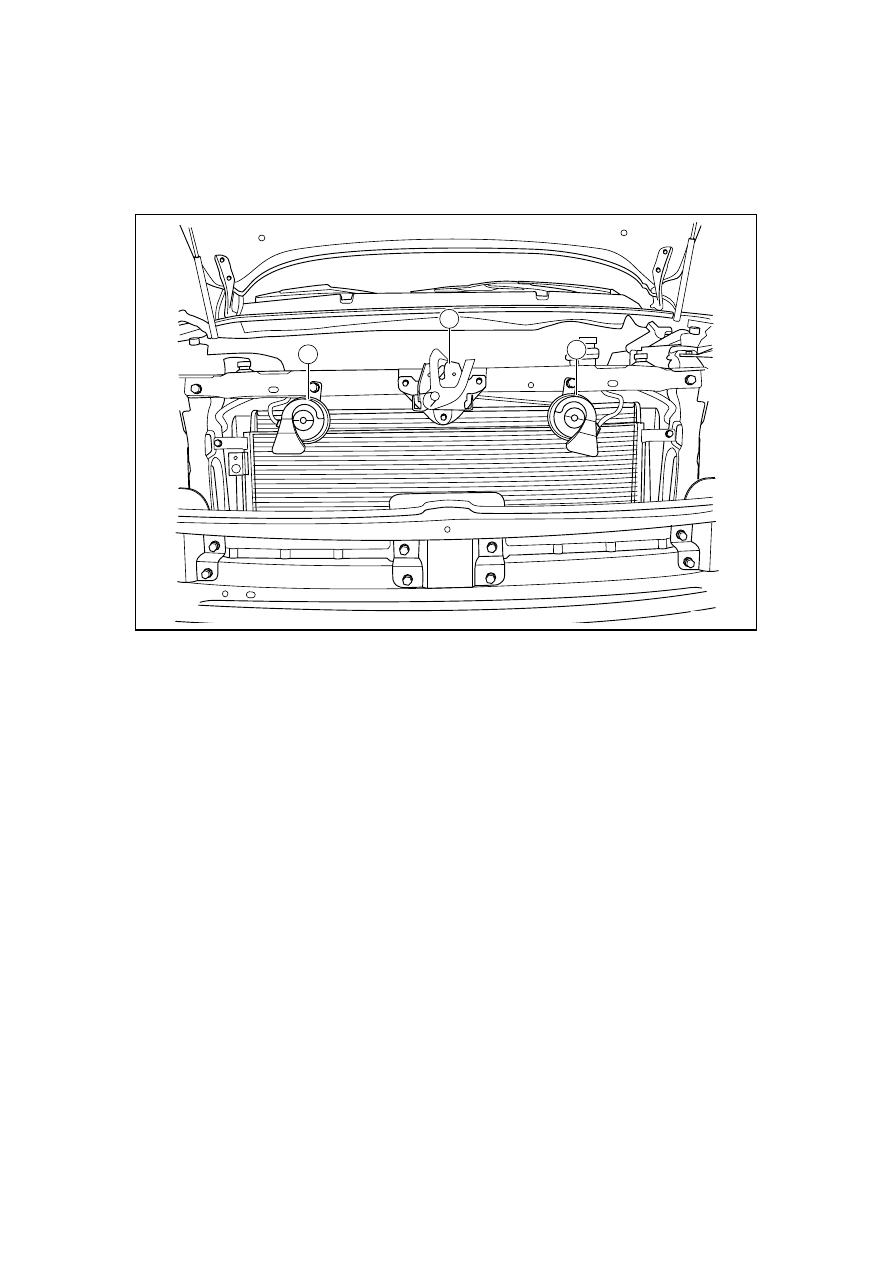

1. High-pitch

horn

2. Bass

horn.

3.  Engine hood plunger latch

2534
