11.11 Defrost

11.11.1 Specification

11.11.1.1 Fastener specifications

Torque range

Fastener name

Model

Metric (N.m)

English system

(lb-ft)

Self-tapping screw for defrosting

switch

ST4.2×13 2-4  4.5-3

11.11.1.2 Defrost work condition requirement.

State of ignition switch

Battery voltage (V)

Defrosting Operation

Status

OFF ---

OFF

ON

＞

10.7 Normal

ACC/ON/START

＜

10.3 Stop

working

11.11.2 Description and operation

11.11.2.1 Description and operation

The defrosting system consists of the following main components:

– Defrost

switch

–

Left, right rearview mirror heater

–

Heater of rear backdoor glass

The defrosting switch is located on the instrument panel central switch assembly, the back door
window heater is located inside the back door window and the left and right rearview mirrors are
integrated with a rearview mirror heater.

2519



11.11.3 System work principle

11.11.3.1 Work principle

Install the backdoor window defrosting switch on the instrument panel center switch assembly.
Transmit the defrosting request signal to the air conditioner control module which then receives
the input signal for the defrosting switch to control the backdoor defrosting relay to close. The
backdoor defrosting relay outputs power to the backdoor defrosting grille and left and right
rearview mirror heaters and at the same time the rear defrosting/rearview mirror heating signal
will be sent to the ECM via a dedicated line. The ECM will increase the RPM of the engine
according to needs. Rear defrosting switch is an inching button switch, and rearview mirror
heating switch is a gyration button.

2520



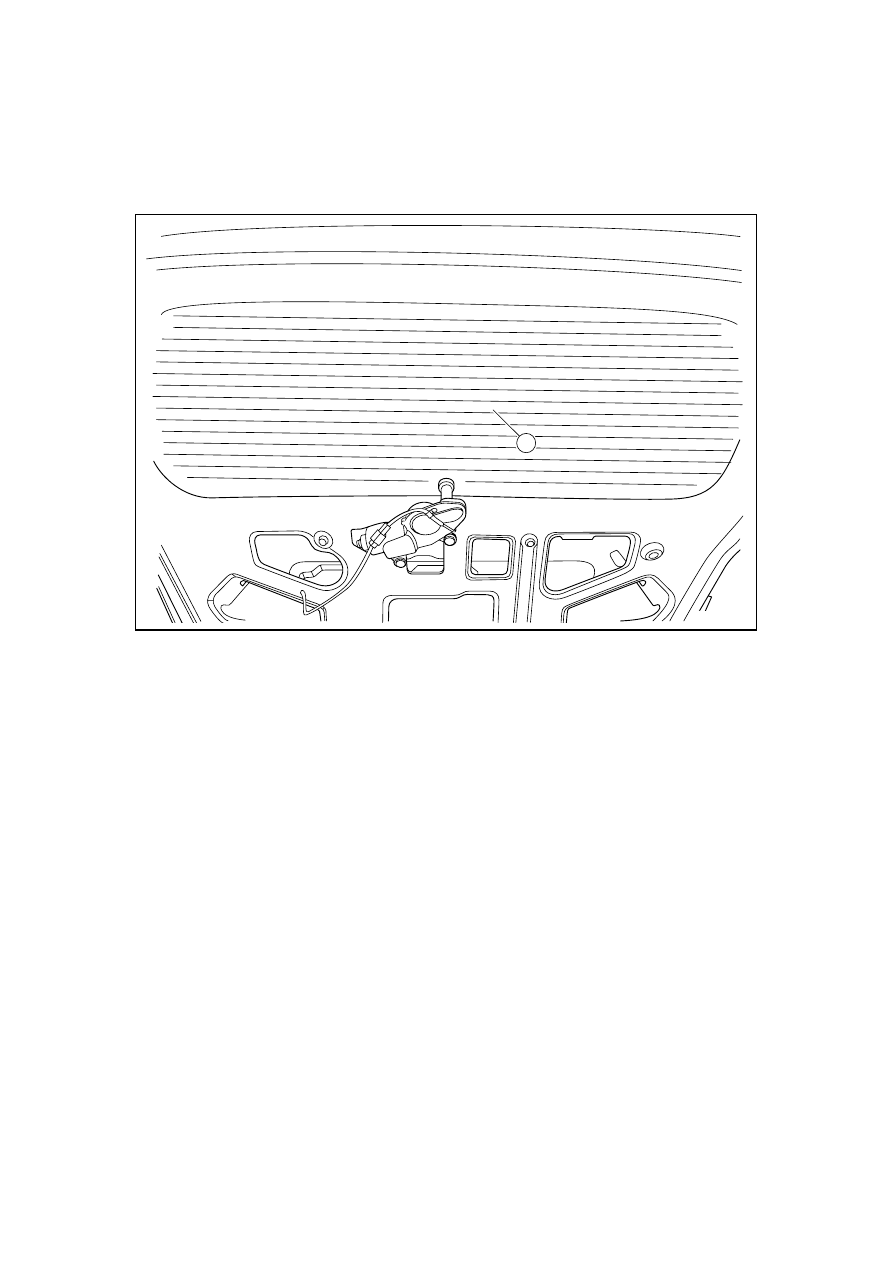

11.11.4 Part position

11.11.4.1 Component position

Defrost grille of rear back-door glass

1

NL11-2178b



1.  Defrost grille of rear back-door glass

2521



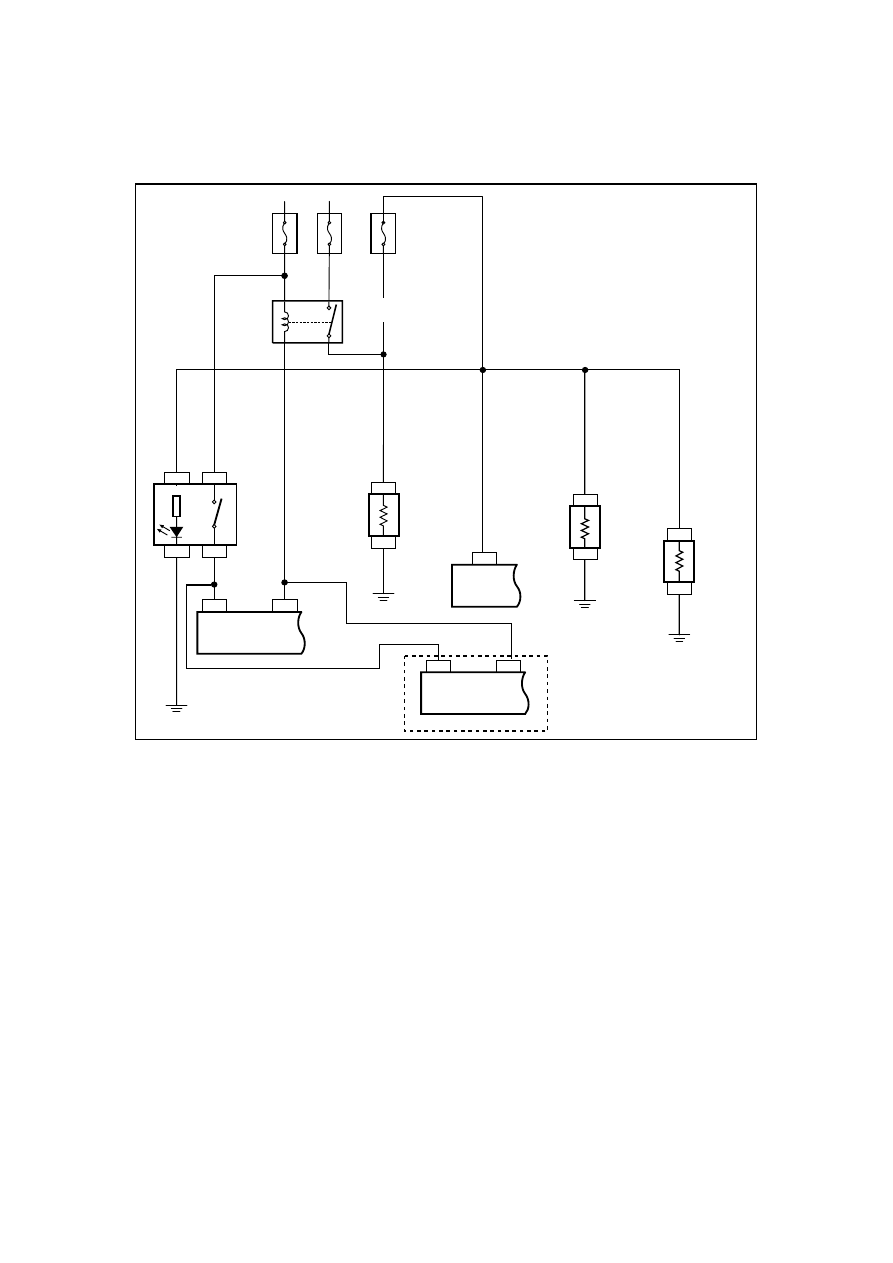

11.11.5 Electrical schematic diagram

11.11.5.1 Electrical schematic diagram

NL11-2180b

IP27

11 IP27

12

35 EN01

4 IP06

5 IP06

1 IP06

3 IP06

10A

IF25

IG1

IPALT

87

85

30

86

30A

IF16

10A

IF18

1 SO47

1 SO42

H DR08

E DR08

H DR18

E DR18

左侧

车外后视镜

右侧

车外后视镜

后窗除雾

自动空调

后除霜开关

后除霜
继电器

AC(

手动空调)

IP16

22 IP16

7

AC(

自动空调）

ECM

空调控制面板

空调控制面板



Rear
defrostrelay

Rear
defrost
switch

A/C(manual air

conditioning) air

condition control panel

Rear
window
defrost

Left side outer
rearview mirror

Rightside
outer rearview
mirror

A/C(manual air

conditioning) air

condition control panel

Auto air conditioning

2522
