Test terminal

Test conditions

Standard voltage

A—B Forward 11-14V

B—A Forward 11-14V

Confirm whether the terminal voltage accords with the standard value?



4

Replace power seat adjusting switch,

(a)  Replace power seat adjusting switch. Refer to 11.9.8.3 Power seat adjuster assembly

replacement.

Confirm whether the electric seat works normally.



5

Check power seat backrest adjusting motor

(a)  Operate electric seat front and rear adjusting switch.

(b)  Meanwhile, use multimeter to measure voltage between electric backrest adjusting motor

wire harness connector terminal No. 1 and No.2.

Test terminal

Test conditions

Standard voltage

1—2 Forward

11-14V

1—2 Forward

11-14V

Confirm whether the terminal voltage accords with the standard value?



6

Inspect the circuit between the electric seat regulating switch and the electric seat back
regulating motor as well as between the back regulating switch and the effective body
grounding point.

(a)  Inspect circuit between electric seat adjusting switch and backrest adjusting motor, between

backrest adjusting switch and vehicle body effective grounding point.

(b) Cut off fault point for cutting broken circuit.

Yes

Go to step 7

No

Yes

The system is normal.

No

Yes

Go to step 5

No

2507

Confirm whether the electric seat works normally.



7

Replace backrest adjusting motor

(a)  Replace Power seat backrest adjusting motor. Refer to11.9.8.3 power seat adjuster assembly

replacement.

Confirm the completion of repair.



8

The system is normal.



Next

Yes

The system is normal.

No

2508



11.10.8 Dismantle and install

11.10.8.1 Front power seat replacement

Dismantlement procedure

Warning!

Warning: refer to warning on battery
disconnection in warnings and
precautions.

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

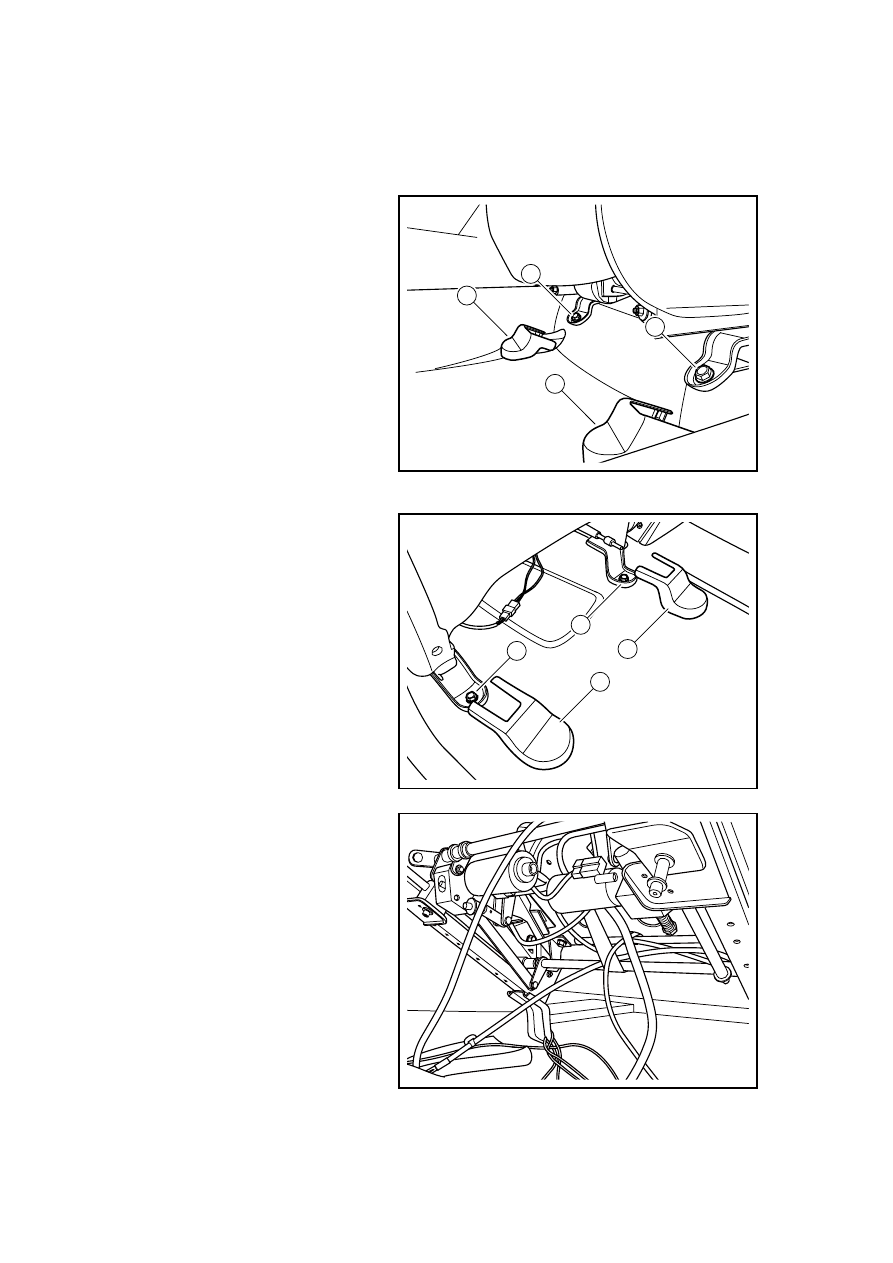

2. Dismantle front end lower

protective cover 1 of electric seat.

3.  Dismantle fixing bolt 2 on the

front of electric seat.

1

1

2

2

NL11-0403b

4.  Dismantle lower protective cover

1 on the rear of electric seat.

5.  Remove Fixing Bolt 2 on the

back of the power seat.

1

2

1

2

NL11-0404b

6.  Disconnect the harness connector

at the bottom of the power seat.

NL11-0405b

2509

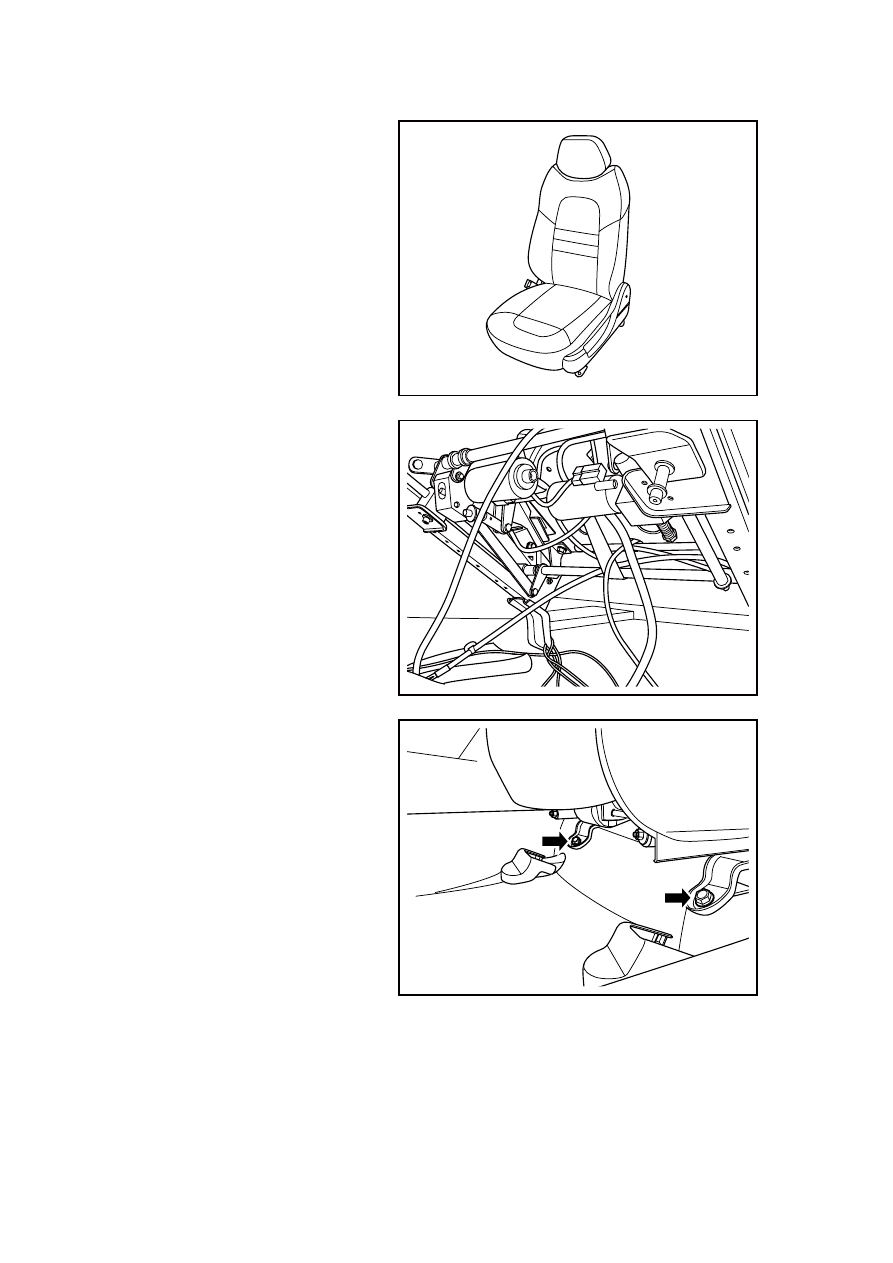

7.  Move out Power seat.

NL11-0406b

Installation procedure:

1.  Install the power seat.

2.  Connect electric seat adjusting

bottom wire harness connector.

NL11-0405b

3. Install

electric seat front fixing

bolt.

Torque: 45Nm (Metric) 33. 3 lb-ft
(English system)

NL11-0407b

2510
