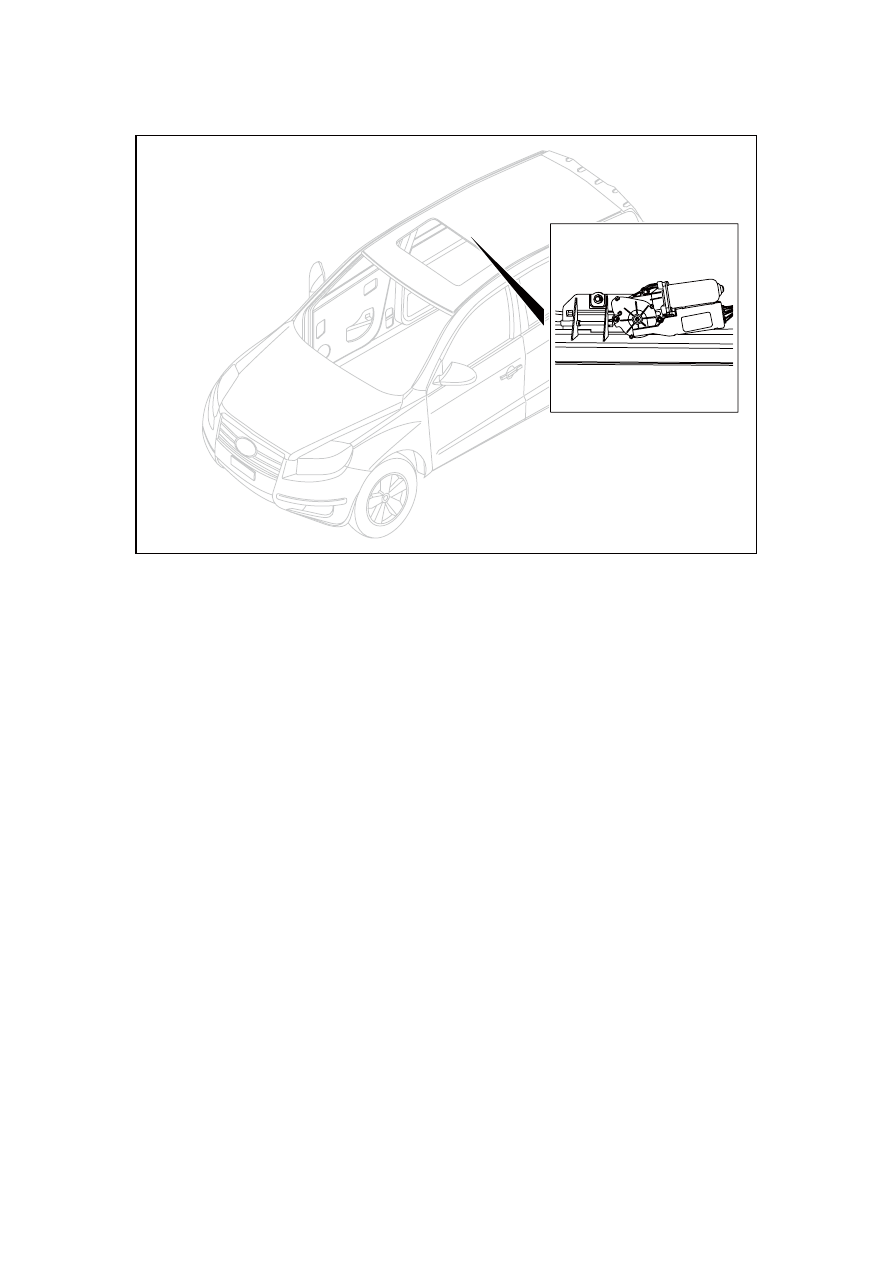

Sunroof motor

NL11-2135b



2395



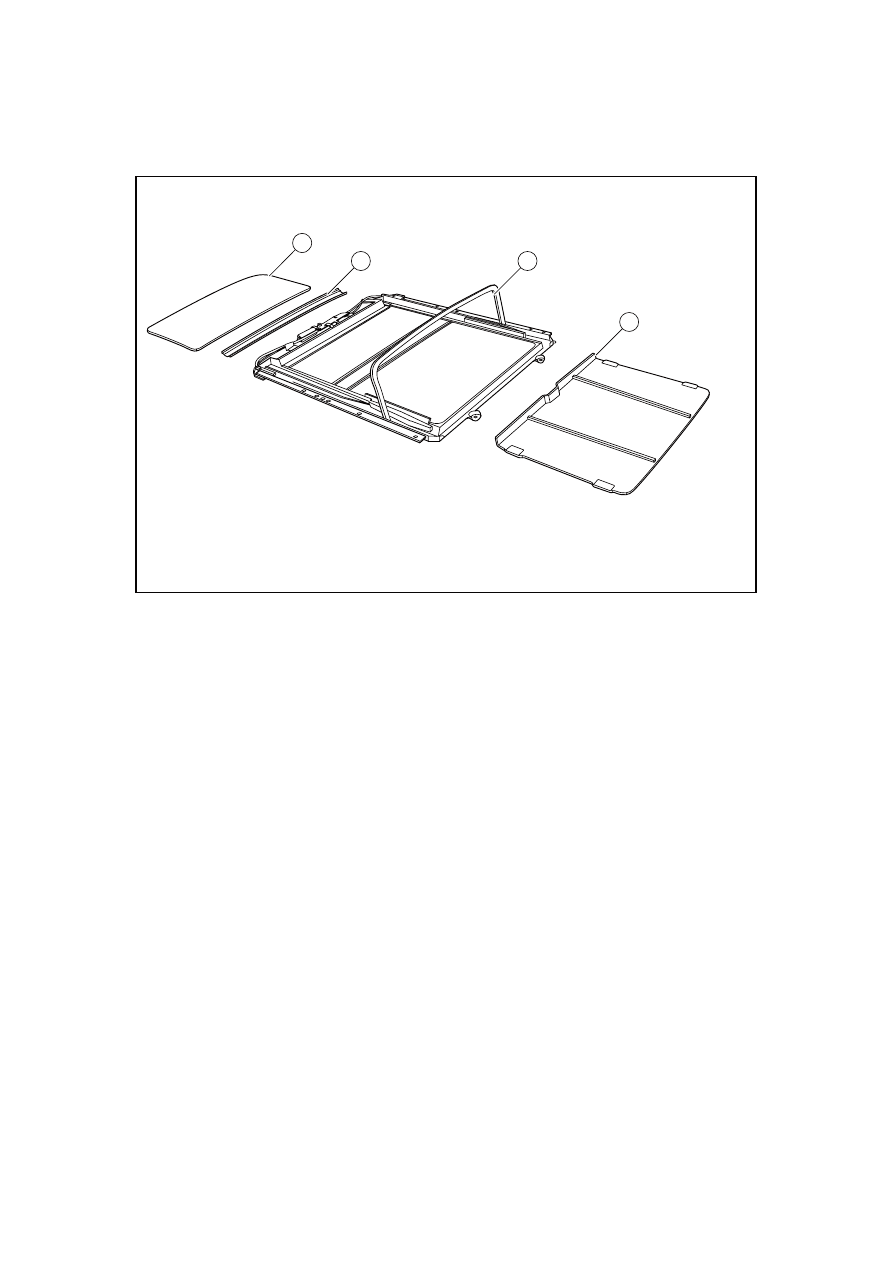

11.8.5 Disassemble drawings

11.8.5.1 Disassemble drawings

NL11-2136b

1

2

3

4



1. Sunroof

window

2. Roof

stiffener

3. Sunroof

frame

4. Sunroof

visor

2396



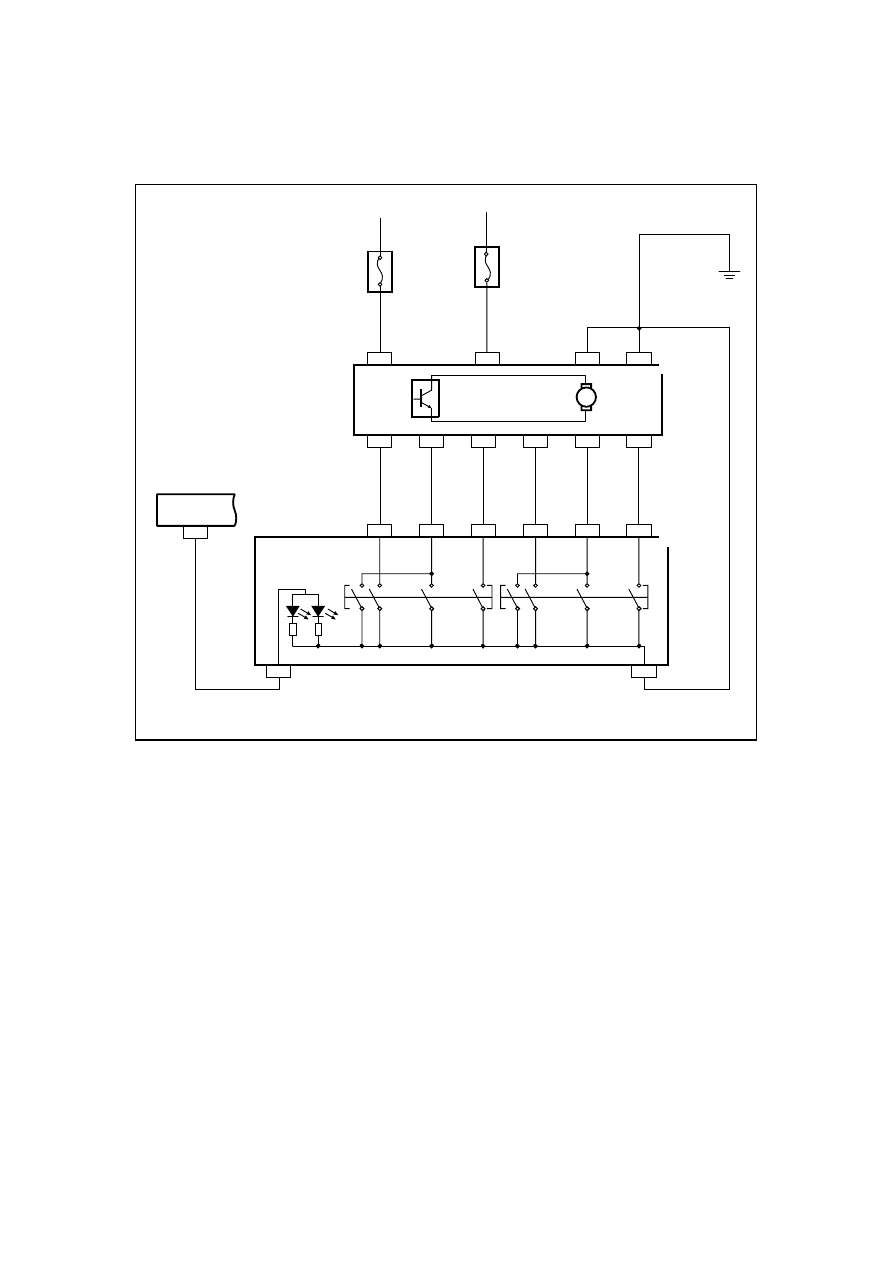

11.8.6 Schematic of electronics

11.8.6.1 Diagnostic schematic diagram

NL11-2137b

RF07

2 RF13

3 RF13

6 RF07

7 RF13

7 RF07

8 RF13

5 RF07

6 RF13

9 RF07

1 RF13

10 RF07

4 RF13

5 RF13

8 RF07

3

RF07

1

RF07

4

RF07

2

10A

IF

2

5

20A

IF

13

IG1

IP ALT

IP63

16

LICENSE/POS-LAMP

BCM

SLIDE CLOSE

CLOSE-1

EX-1

OPEN-1

EX-2

OPEN-2

CLOSE-2

ILL

RAP

ALT

GND

GND

SLIDE EX

SLIDE OPEN

VENT OPEN

VENT EX

VENT CLOSE

天窗模块

天窗开关

M



Sunroof module

Sunroof switch

2397



11.8.7 Diagnostic information and steps

11.8.7.1 Diagnosis descriptions

Refer to 11.8.2 Description and Operation to get familiar with the system functions and operation
before starting system diagnosis, so that it will help to determine the correct diagnostic steps, more
importantly, it will also help to determine whether the situation described by the customer is
normal.

11.8.7.2 Visual inspection

–  Inspect the after-sales optional device which may affect the normal operation of sunroof

system.

–

Inspect components easy to access system to identify whether there is a significant damage
that may lead to the fault.

–

Inspect whether the sunroof initialization is no longer valid.

11.8.7.3 Sunroof Initialization

–

When the initial position is lost, perform this procedure:

–

Press the tumble switch at totally overturning position for more than 5 seconds.
