Geely Emgrand X7. Manual part - 350










22.  Dismantle left side and right side drive shaft,

refer to“ drive shaft replacement

23.  Use a jack to support the transmission;



FE03-0174b

24. Dismantle the rear connecting bolt of
transmission ;



FE03-0175b

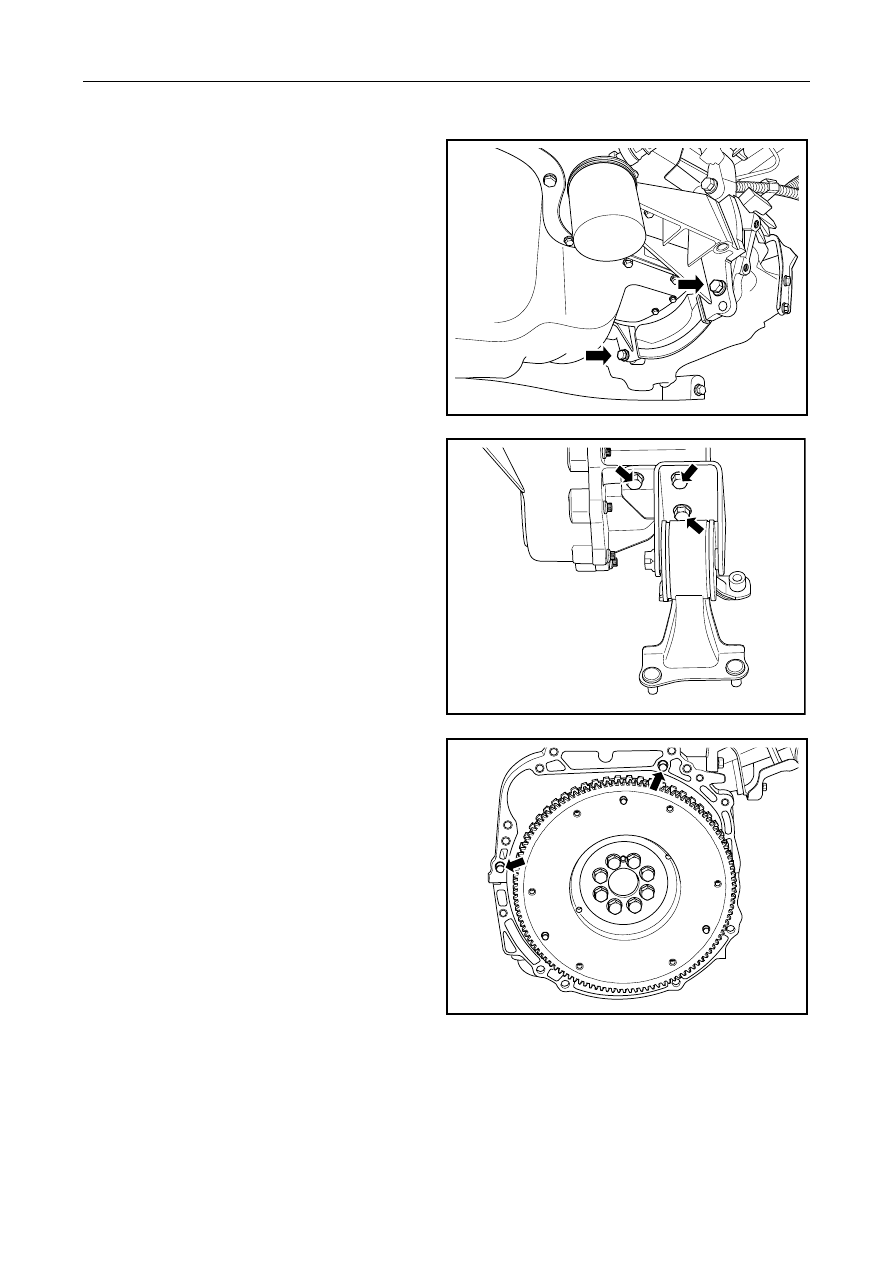

25.  Dismantle fixing bolt of drive disc and torque

converter from the lower section of engine.

Note: disassemble another fixing bolt from the lower
side of the engine again when disassembling one
fixing bolt in the disassembling process to clockwise
rotate the flywheel.

Warning: forbid rotating the crankshaft
counterclockwise.



NL03-2026c



1399






24. Dismantle the lower connecting bolt of

transmission ;



FE03-0176b

25.  Dismantle fixing bolt of rear suspension bracket

and transmission.

26.  Separate engine and transmission, and slowly

lower level hydraulic lifter, to ensure that
transmission can be laid down stably.



NL03-2006c

27.  Inspect 2 positioning pins on flywheel side of

engine, to ensure no loosening condition.



FC02-1004c



1400




Installation procedure::

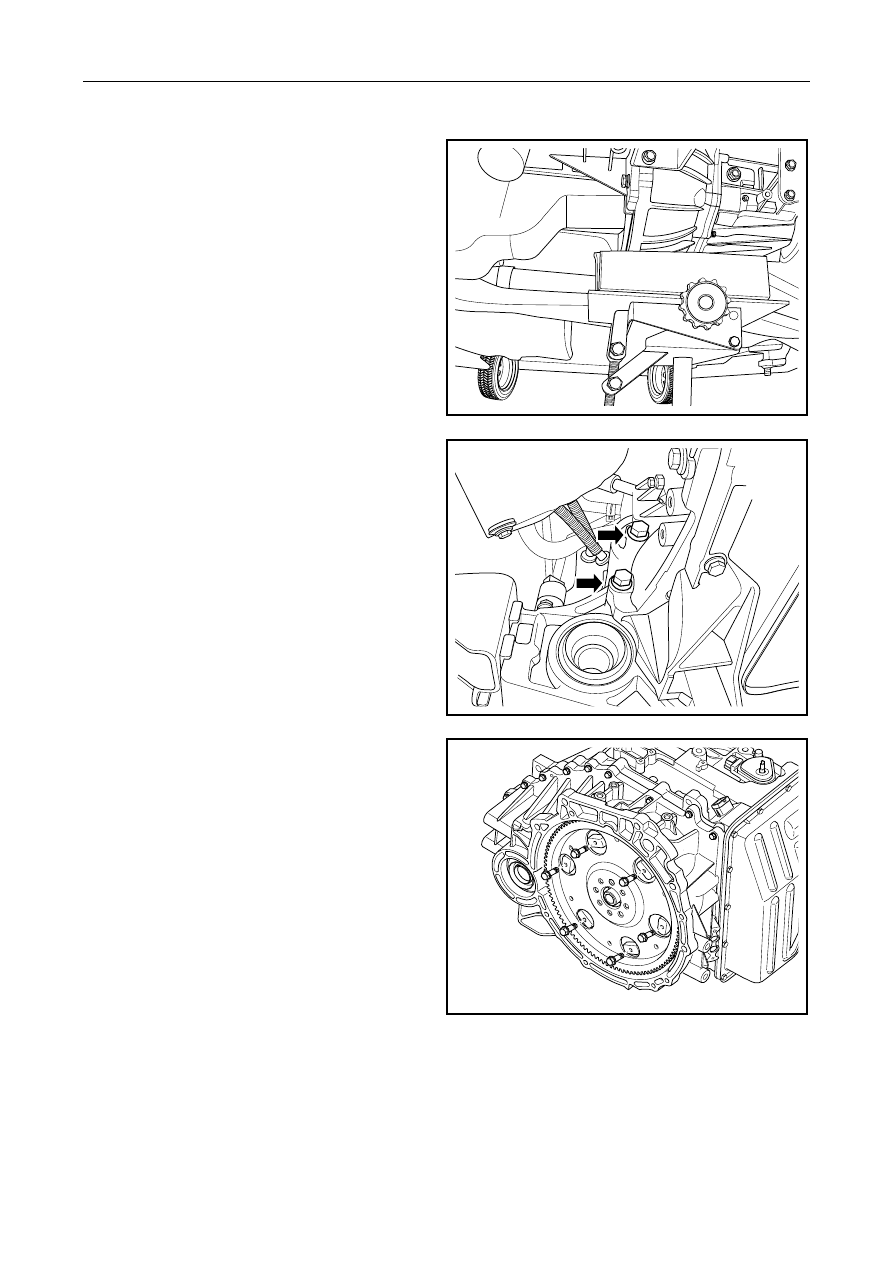

1.  Use a flat-panel jack to support the Transmission

assembly.

2. Insert transmission torque converter into

crankshaft rear end, and push transmission to
engine side, meanwhile fix flexible disc and
torque converter.



FE03-0178b

3.  Install the rear connecting bolt of transmission ;

4.  Install connecting bolt under the transmission

and fixing bolt under start motor;



FE03-0179b

5.  For installation of the fixing bolts and cables on

the starter motor, see Replacing the Starter
Motor.



FE03-0180b

FE03-0180b



1401






6.  Dismantle the flat-panel jack;

7.  Install left side and right side drive shaft , refer

to“ Drive shaft replacement

8.  For installation of front longeron subframe and

relevant connections, see Replacement of Front
Longeron and Subframe;

9.  Install the front wheel tire.

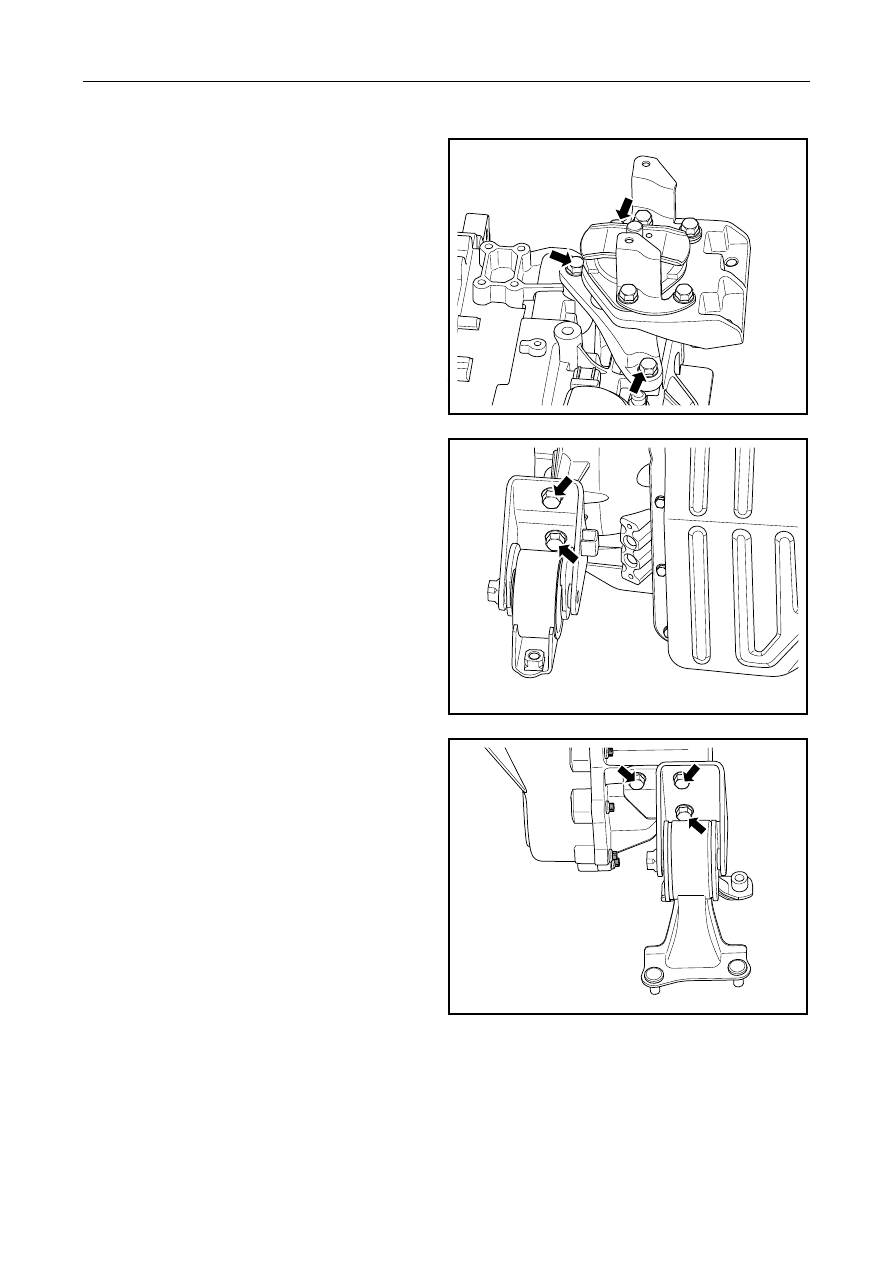

10.  Dismantle special tool for engine bracket;

11.  Install the transmission upper connecting bolts;



NL03-2008c

13.  Install the transmission left bracket assembly.



NL03-2007c

14.  Install right support assembly of transmission :

15. Connect gearshift switch and gearshift flexible

shaft.

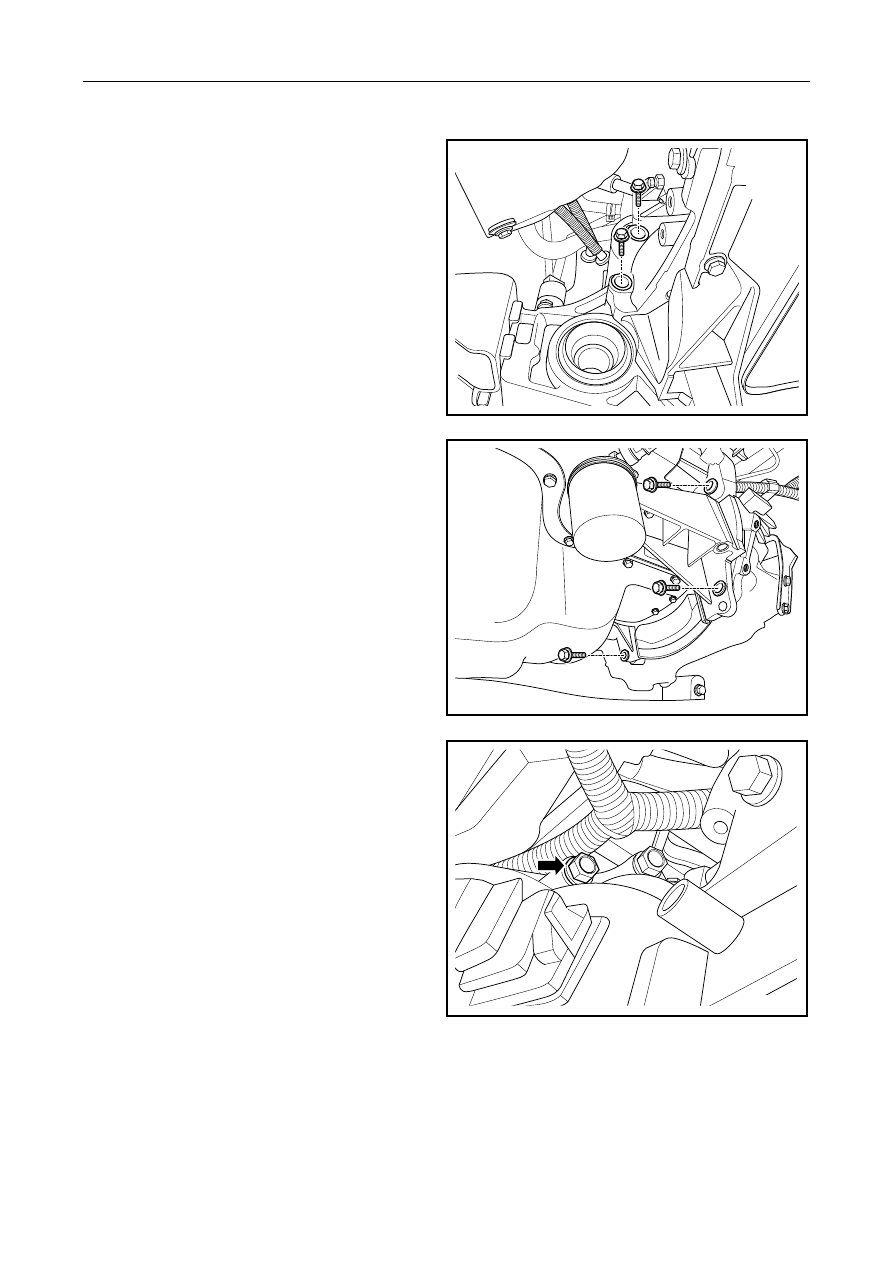

16.  Install oil intake and outlet pipe of transmission.

Note: during assembling, firstly, the oil tube
connector is pressed in place by hand and then
tightened by a bolt; otherwise, it will scratch the
internal seal ring to leak oil.

16.  For filling of transmission oil, refer to 3.5.7.3

Replacement procedures of ATF;

18. Install the crankshaft position sensor harness

connector.

19.  Install transmission wire harness connector;

20.  Install the battery bottom.

21.  Connect battery negative cable.

NL03-2006c

1402
