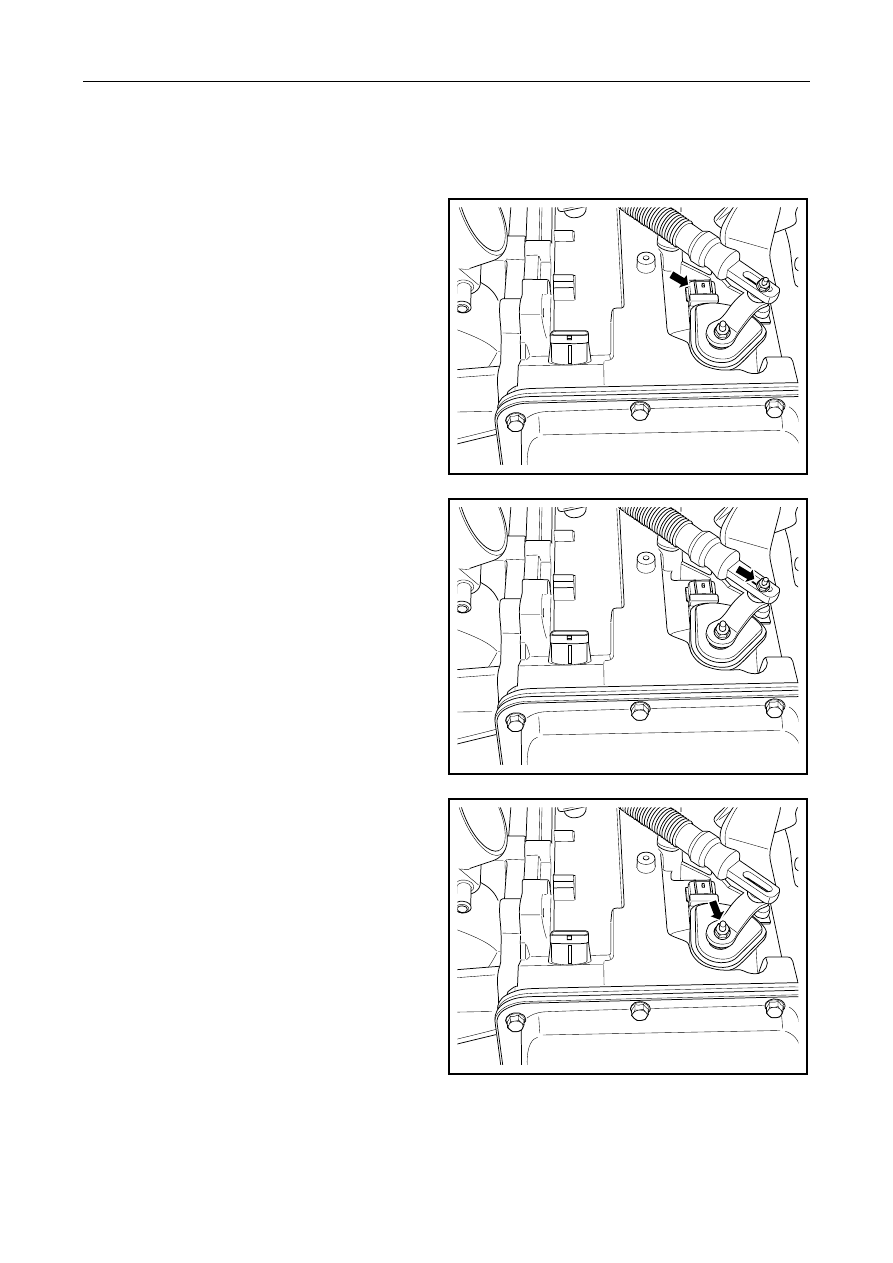

3.5.7.5 Gears switch replacement

Dismantle procedure

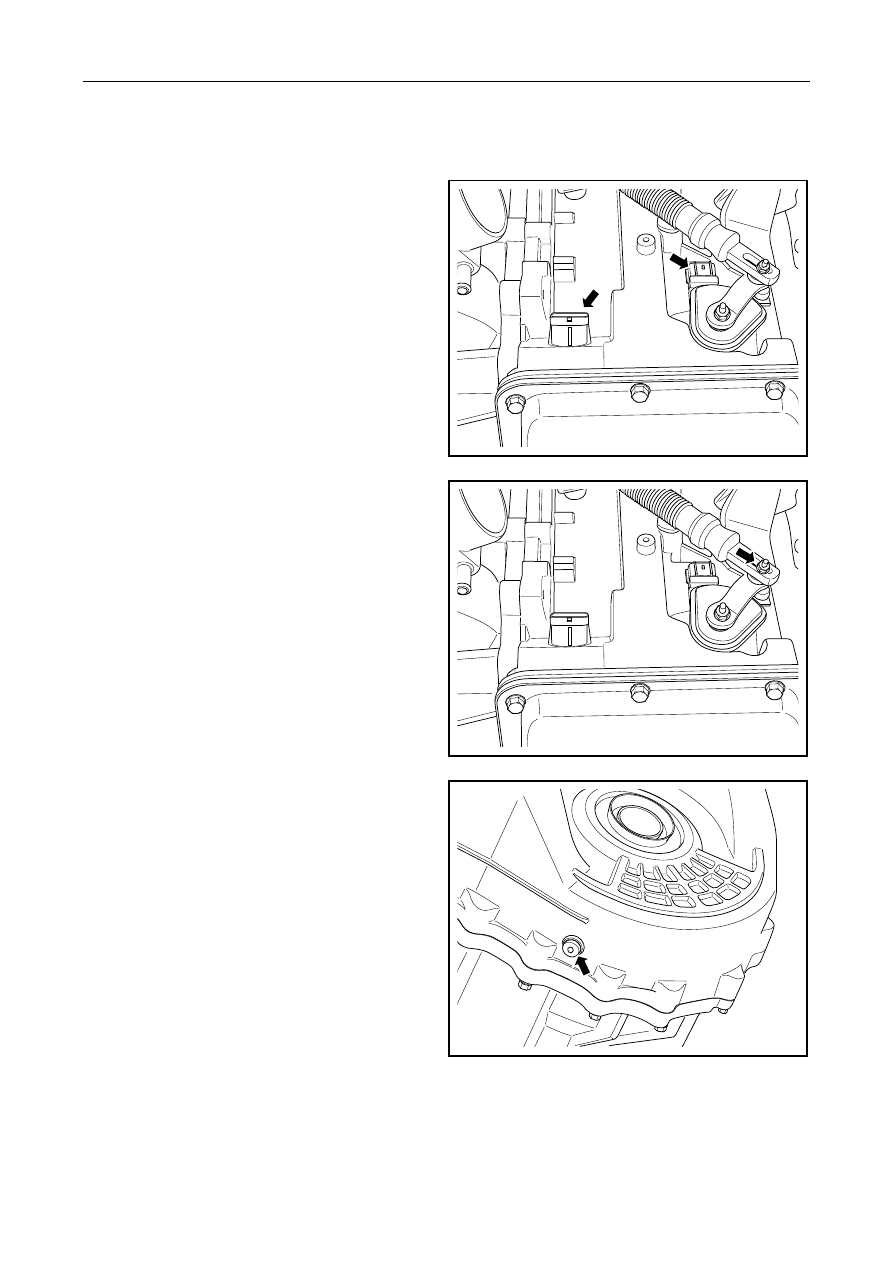

1.  Disconnect the battery negative cable. Refer to

2.12.6.1 Battery disconnection.

2.  Disconnect wire harness of gear switch.



SL03-0021c

3.  Disconnect connection of shift flexible shaft and

gears switch.

4.  Dismantle gear switch fixing nut.

5.  Dismantle the gear switch.



SL03-0022c

Installation procedure::

1.  Install gear switch.

2.  Install operating rod of gear switch, and tighten

fixing nut.

3.  Connect to shift flexible shaft, and tighten fixing

nut .

4.  Connect wire harness connector of gear switch.

5.  Connect battery negative cable.



SL03-0023c

1395




3.5.7.6 Automatictransmission assembly replacement

Dismantle procedure

1.  Disconnect the battery negative cable. Refer to

2.12.6.1 Battery disconnection.

2.  Dismantle battery base plate. Refer to 2.12.6.2

Battery replacement.

3.  Dismantle the air filter base.

4.  Disconnect wire harness connector between

electromagnetic valve and gear switch;

5.  Disconnect the crankshaft position sensor harness

connector.

6.  Dismantle the fixing bolt for the negative earth

on the transmission and disconnect the harness
connector of the negative earth.

SL03-0024c

7.  Disconnect connection of shift flexible shaft and

gears switch.

8.  Dismantle the shift lever    bracket;

9.  Dismantle the shift lever retaining pin.



SL03-0022c

10.  Dismantle oil drain bolt of transmission. After

transmission oil is totally drained out, install it.
Refer to 3.5.7.3 Replacement procedure of
automatic transmission oil.



SL03-0018c



1396






11.  Dismantle oil inlet pipe of transmission ,

Notes:

●   For just stopping vehicle, oil temperature in

transmission is high, it is necessary to prevent
injury by hot oil flowed from transmission.

●    Before dismantling cooling oil pipe joint, clean

neighboring dust, to ensure no dust enters into
oil pipe and transmission.

●    After dismantling of oil inlet and outlet pipe of

transmission, the port of pipe and joint must be
covered with protective cap;

SL03-0025c

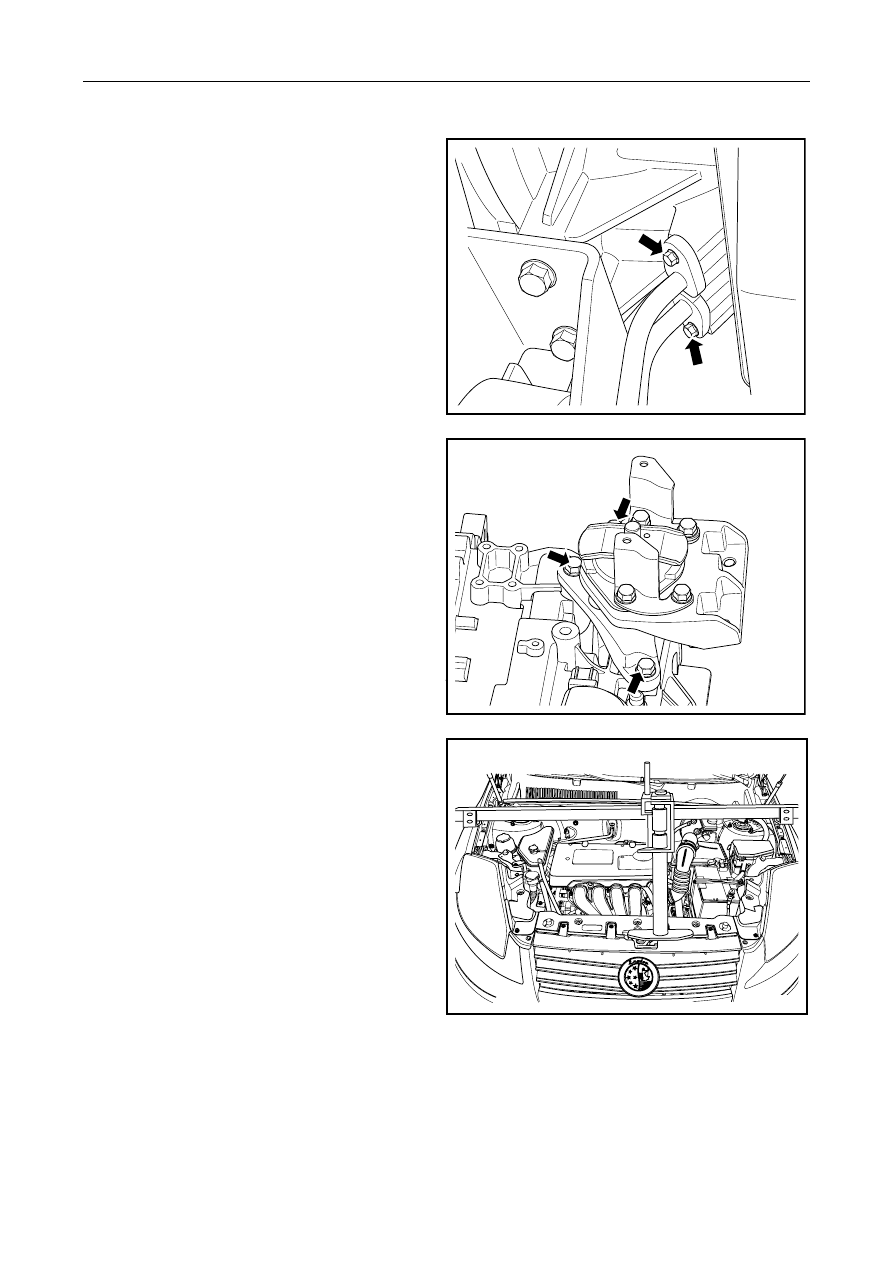

12.  Dismantle the starter cable and the fixing bolts.

13.  Dismantle connecting bolt of left suspension and

transmission

14. Dismantle the transmission upper connecting

bolts;




NL03-2008c

15.  Use special tool to fix the engine.



NL03-1002e



1397






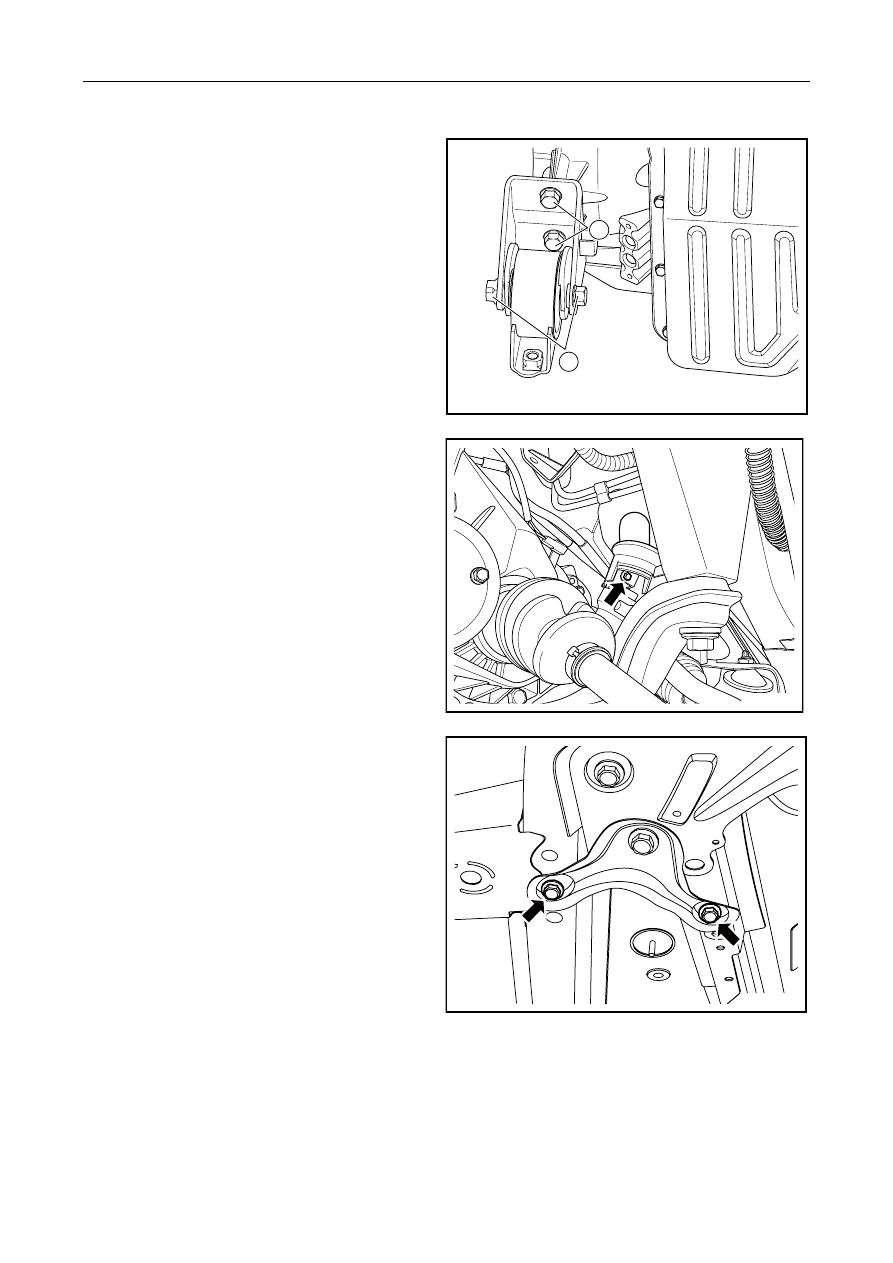

16.  Dismantle fixing bolt B for rear suspension and

auxiliary frame and through bolt A of rear
suspension.



B

A

NL03-2007c

17.  Dismantle the two front wheels;

18  Lifting vehicle

Warning: Refer to Warning for lifting vehicle    in
Warnings and Precautions.

19.  Dismantle the steering cross pin bolt

20.  Dismantle fixing bolt of lower protective plate

and left and right bracket of horizontal beam, and
take out bracket.



FE03-0171b

21.  Respectively dismantle fixing bolt of reinforced

plate of front auxiliary frame on both sides.



NL12-0081b



1398
