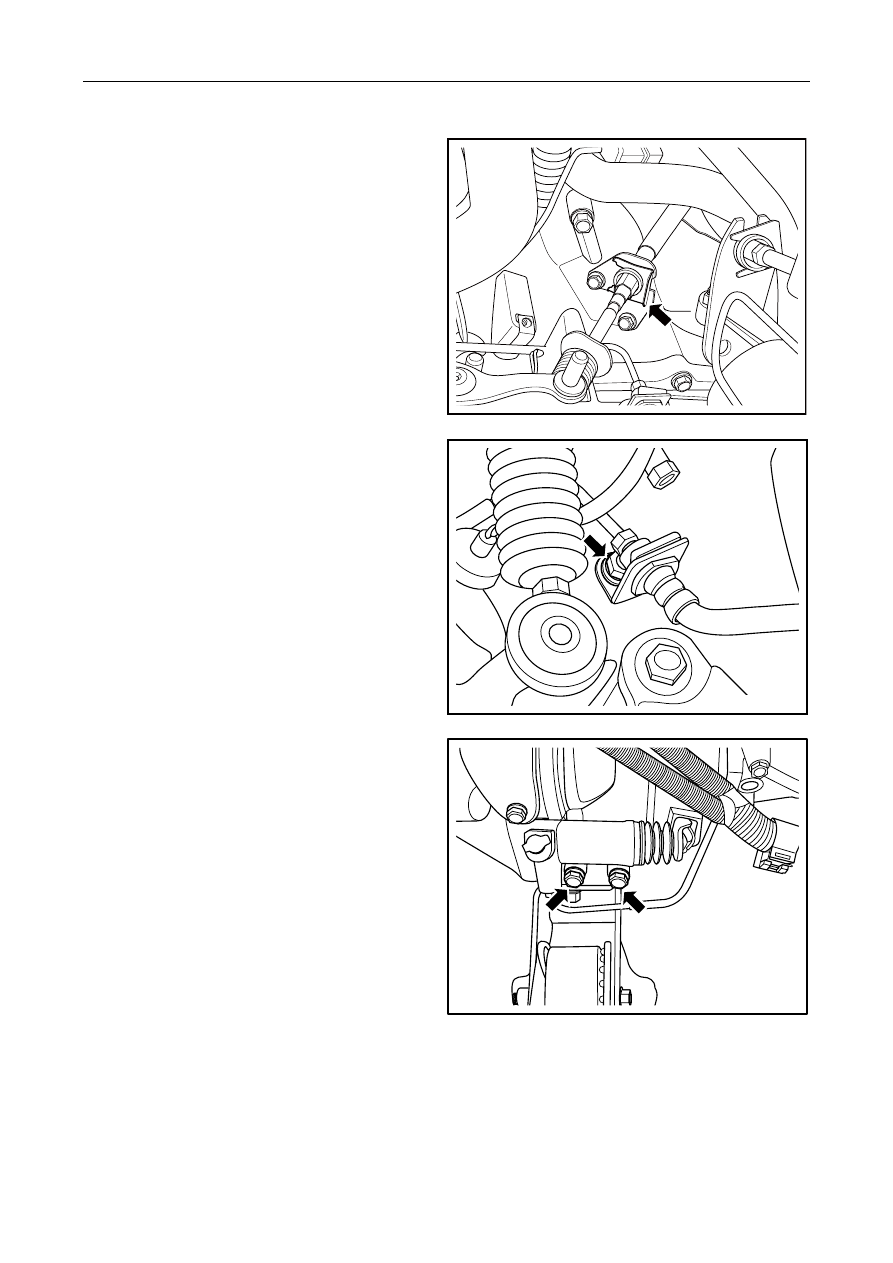

9.  Dismantle the shift lever fixing pin.



NL03-0013b

10.  Dismantle fixing support of clutch slave pump oil

pipe



NL03-0014b

11.  Dismantle fixing bolts of clutch slave pump .

12.  Dismantle starter cable and upper fixing bolt.

refer to2.11.8.4 motor replacement.



NL03-0015b



1191

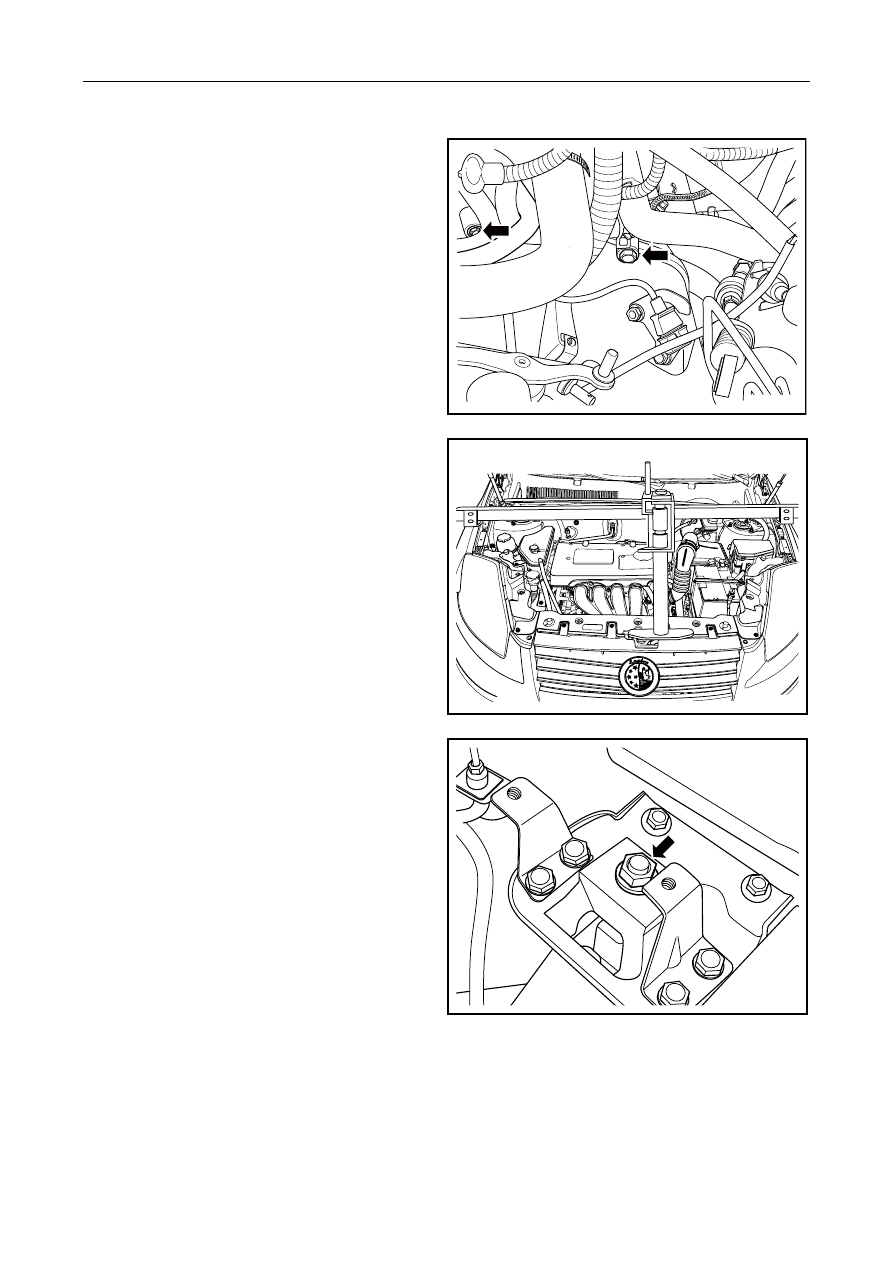

13. Dismantle the transmission upper connecting

bolts;



NL03-0016b

14.  Use an engine hoisting tool to fasten the engine.



NL03-1002e

15.  Dismantle transmission left bracket assembly.

16.  Dismantle two front wheels.

17  Lifting vehicle

18.  Dismantle the transmission oil drain plug until all

the transmission oil is drained and reinstall. Refer
to 3.3.8.1 transmission oil level inspection.



NL03-0018b



1192

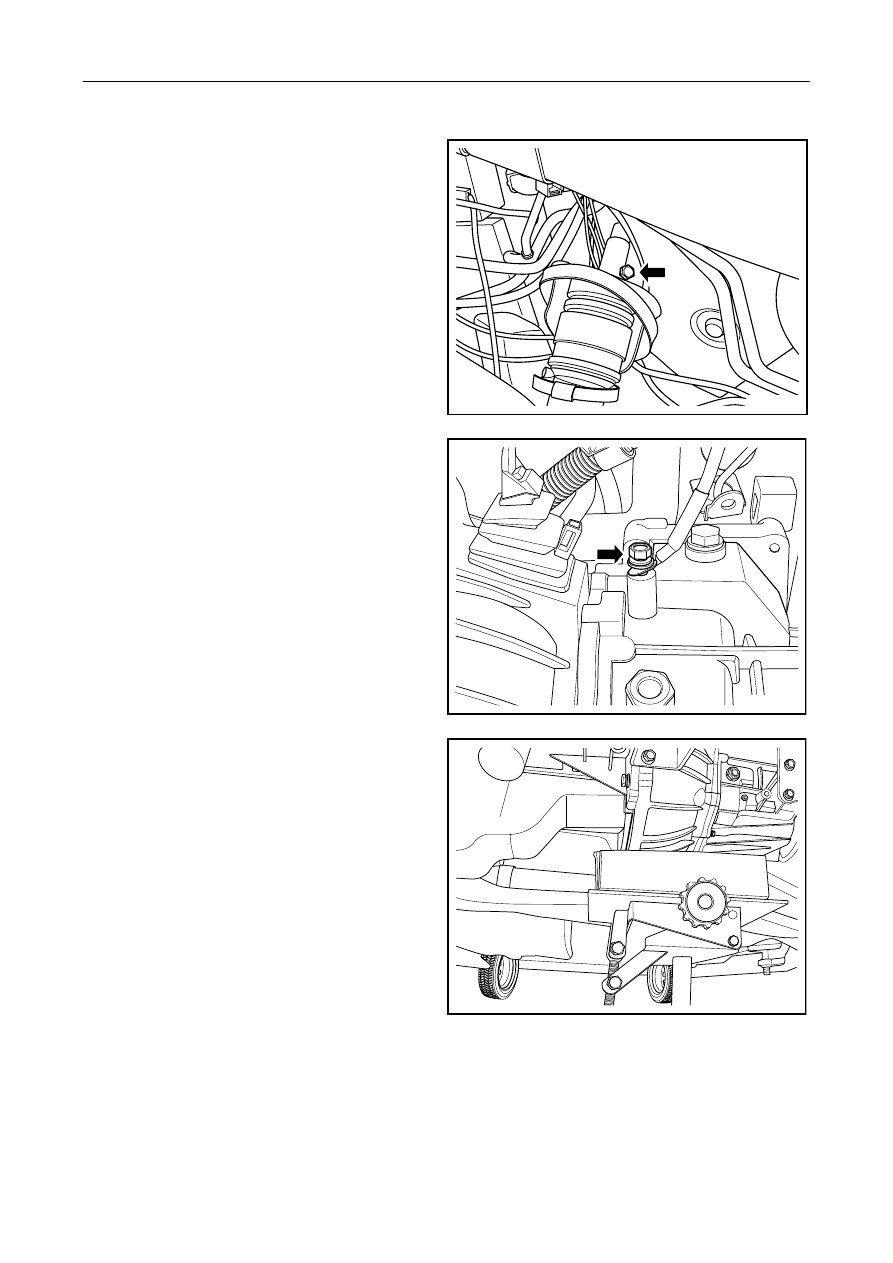

19.  Dismantle the steering cross pin bolt

20.

Dismantle front suspension Longitudinal
beam.from subframe and related connecting part
refer to 12.6.4.3 front suspension longitudinal
beam replacement and 12.6.4.4 front sub-frame
replacement.

21. Dismantle left and right drive shaft, refer to

5.3.4.2 replacement of drive shaft.



NL03-0019b

22.  Dismantle transmission housing grounding cable.



NL03-0020b

23.  Use a jack to support the transmission;



NL03-0021b



1193

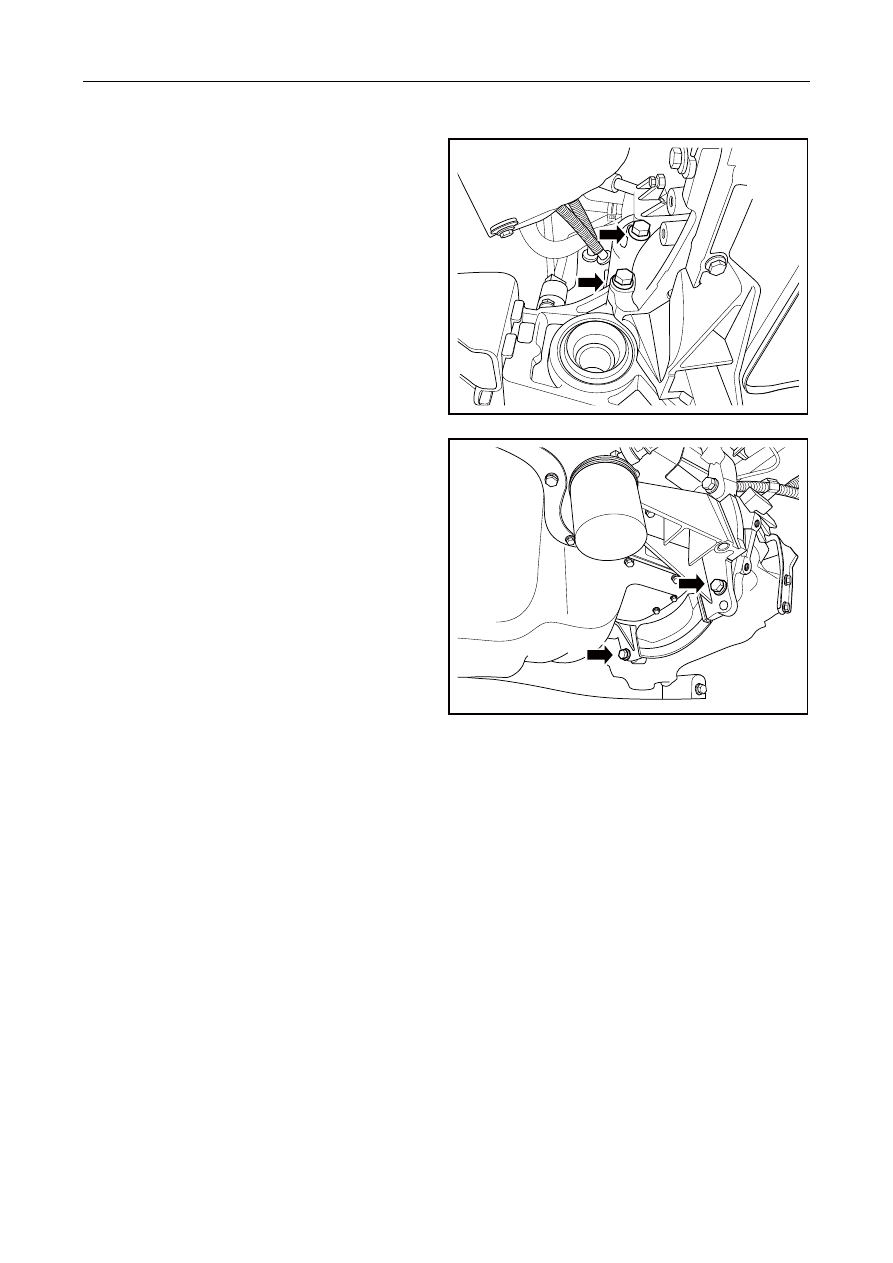

24. Dismantle the rear connecting bolt of
transmission ;



NL03-0022b

25. Dismantle the lower connecting bolt of

transmission ;

26.  Dismantle the transmission assembly.



NL03-0023b



1194
