3.4.8.2 Vehicle speed sensor replacement

Warning: Refer to warning for battery disconnection in the warning and precaution .

Dismantle procedure

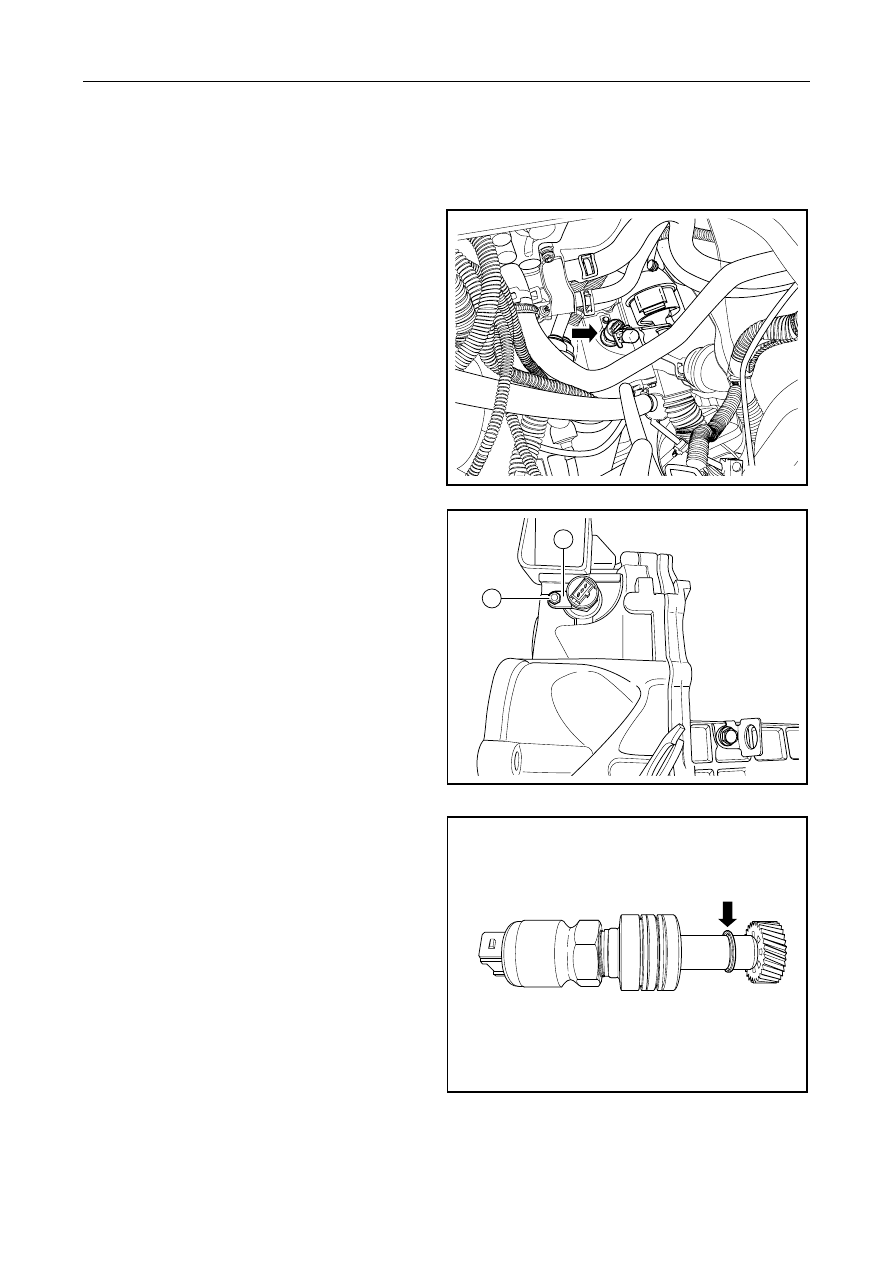

1.  Disconnect the vehicle speed sensor harness

connector.



FE03-0003b

2.  Dismantle speed sensor fixing bolt A.

Notes : Clip plate B is active as shown in the figure

！



B

A

FE03-0004b

3.  Dismantle the circlip as shown in the figure,

disassemble the vehicle speed sensor driven gear.



FE03-0005b



1187






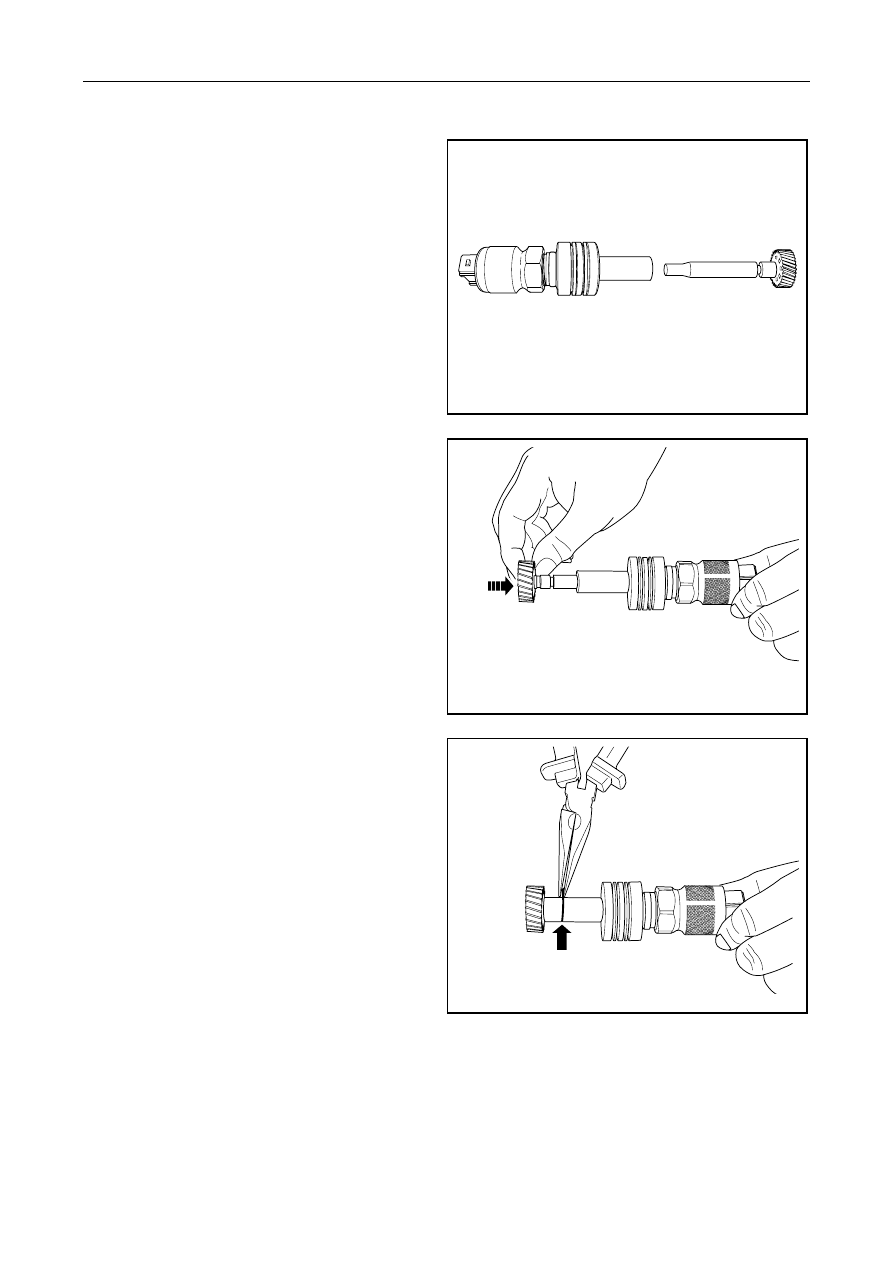

4. Disassembled

speed

sensor.



FE03-0006b

Installation procedure::

1.  Install driven gear of speed sensor,



FE03-0007b

2.  Install the driven gear clamp spring.



FE03-0008b



1188






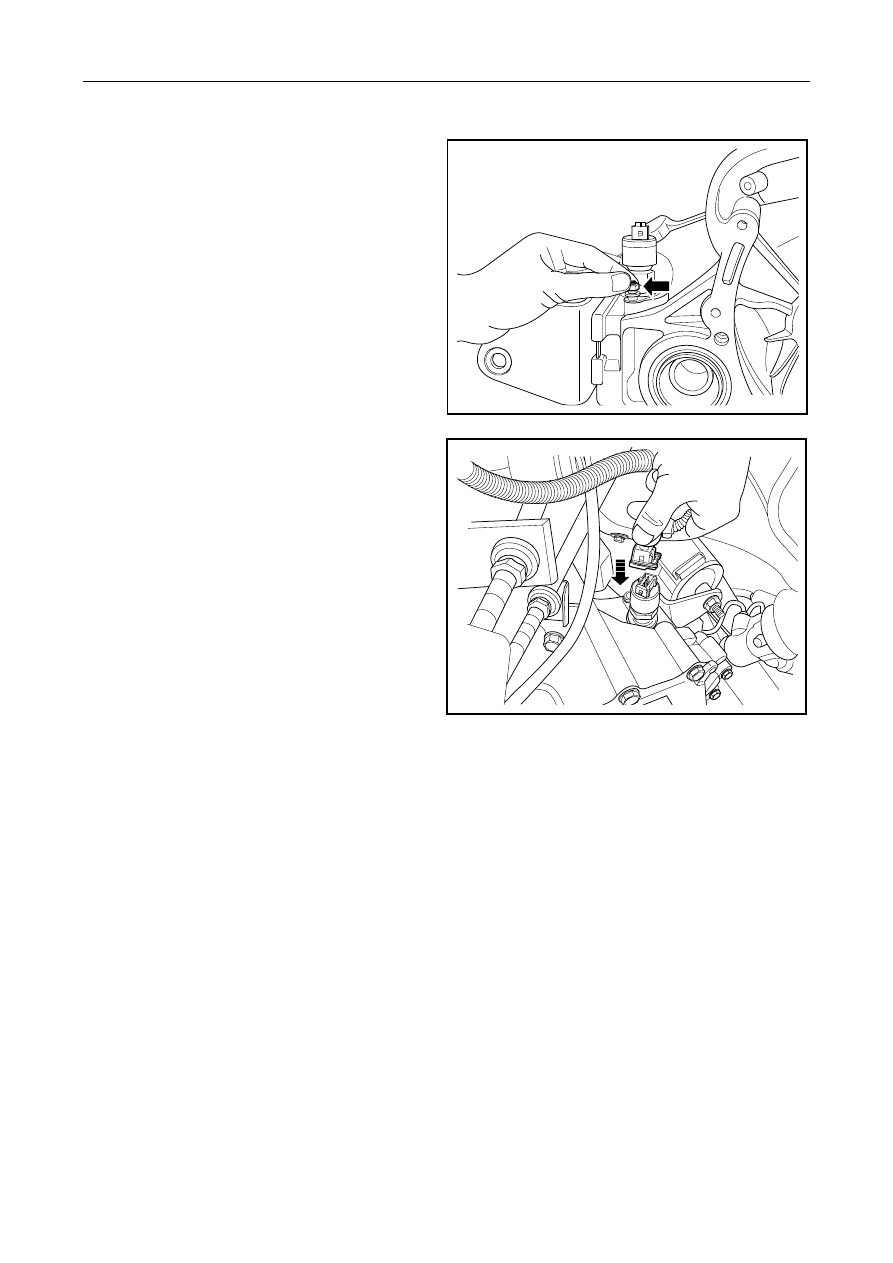

3.  Install the vehicle speed sensor and tighten the

bolt, pay attention to the position of the washer.



FE03-0009b

4.  Connect the vehicle speed sensor harness

connector, as shown in the figure.



FE03-0010b

1189




3.4.8.3 Transmission replacement

Dismantle procedure

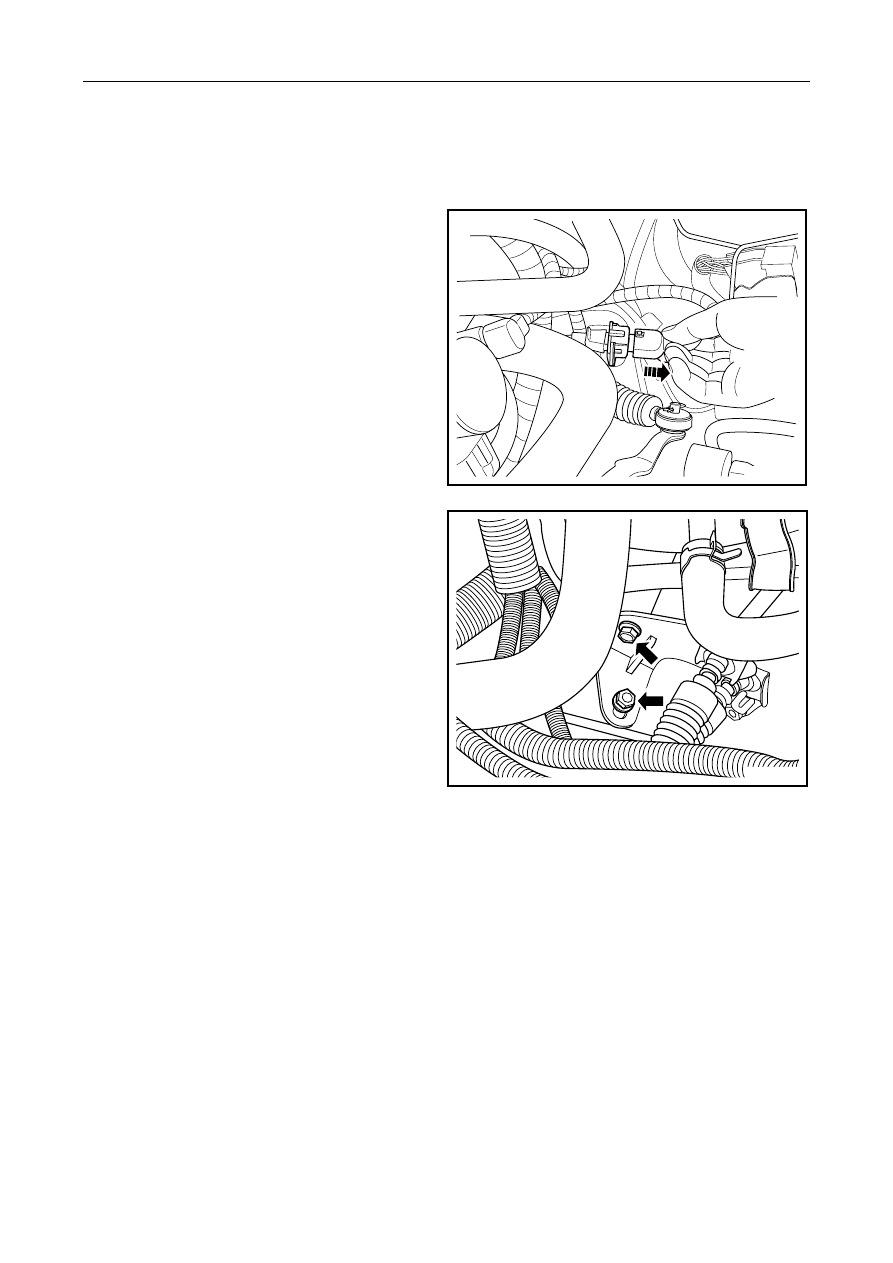

Warning: refer to warning for lifting vehicle in warnings and precautions.

NL03-0011b

1.  Dismantle battery negative cable , refer to

2.11.8.1 disconnect connecting process of battery
cable

2. Dismantle battery,refer to2.11.8.2 battery

replacement.

3.  Dismantle base seat of air filter.

4.  Disconnect reverse door lamp switch harness

connector.

5.  Disconnect the vehicle speed sensor harness

connector.

6.  Disconnect the crankshaft position sensor harness

connector.

7.  Dismantle shift control lever cable plug, refer to

3.3.8.4 shift control mechanism assembly
replacement.

8.  Dismantle the shift lever bracket;

NL03-0012b
