3.3.6 Dismantle and installation

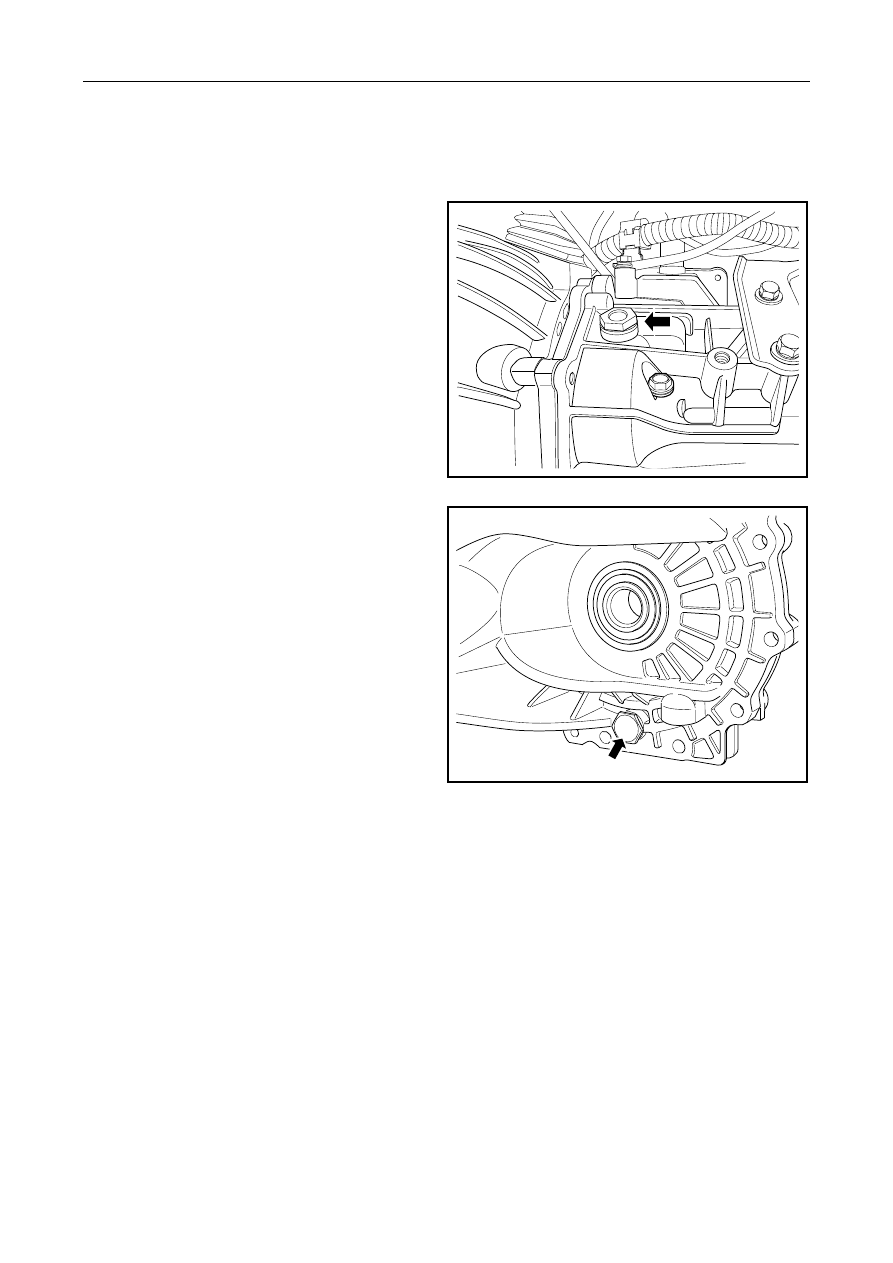

3.3.6.1 Transmission oil level inspection

Inspection Procedure:

Note: Inspecting the transmission fluid when the
transmission fluid temperature is too high, it may
cause burns.

1.  Park the vehicle on a level ground, wait for the

transmission fluid cooling down, Dismantle the
transmission fill plug and check the transmission
fluid level.

Note: Transmission fluid level should be even with
the lower edge of plug.

2.  If the transmission fluid level is too low, add the

dedicated manual transmission fluid through the
plug to until the fluid begins to flow out.

3.  Reinstall and tighten filling hole bolt

GC03-0025b

4.  If needed, replace the transmission fluid.

Dismantle the transmission drain bolt, and drain
the transmission fluid.



GC03-0006c



1123




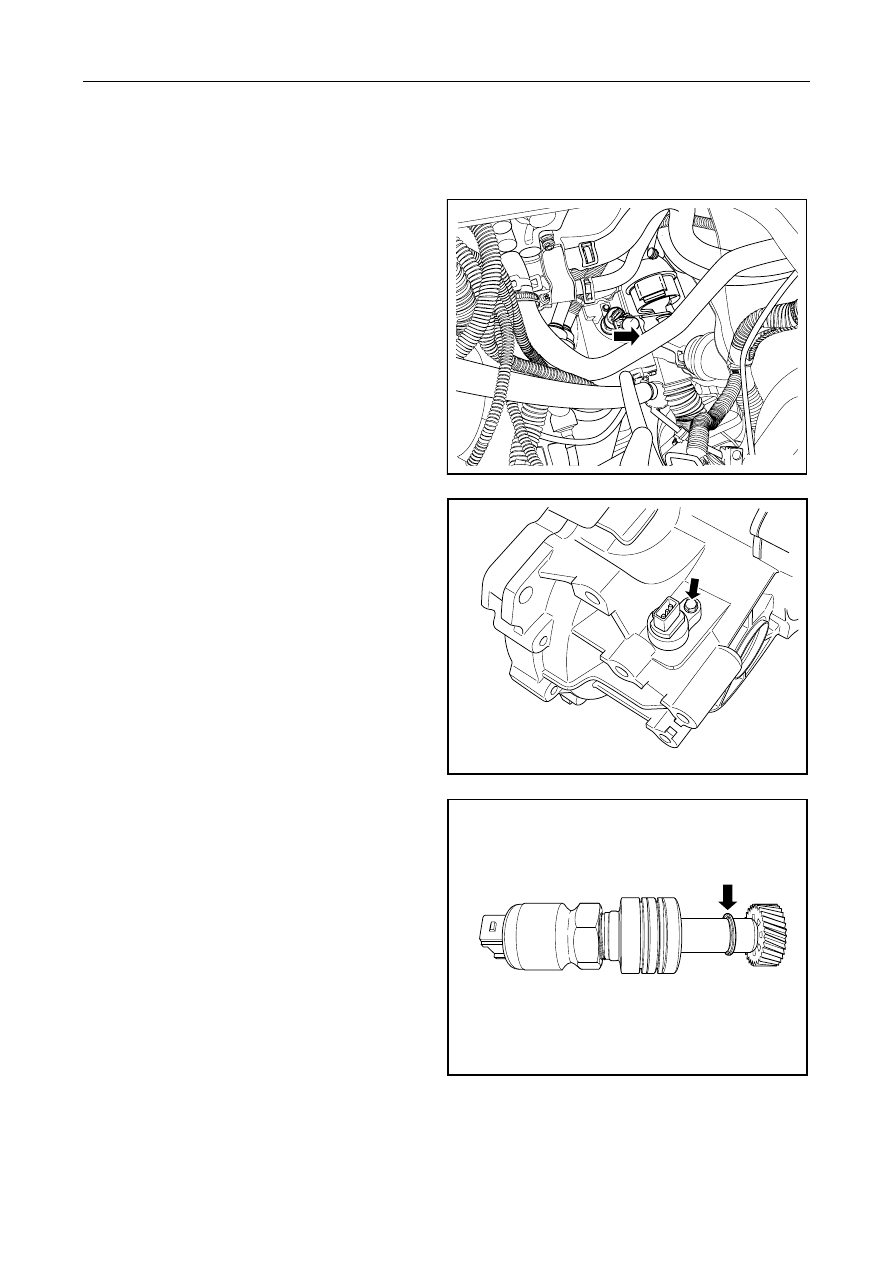

3.3.6.2 Vehicle speed sensor replacement

Warning: Refer to warning for battery disconnection in the warning and precaution.

Dismantle procedure

1.  Disconnect the vehicle speed sensor harness

connector.



GC03-0027b

2.  Dismantle the fixing bolt of speed sensor.



GC03-0007c

3.  Dismantle the circlip as shown in the figure ,

disassemble the vehicle speed sensor driven gear.



GC03-0029b

1124




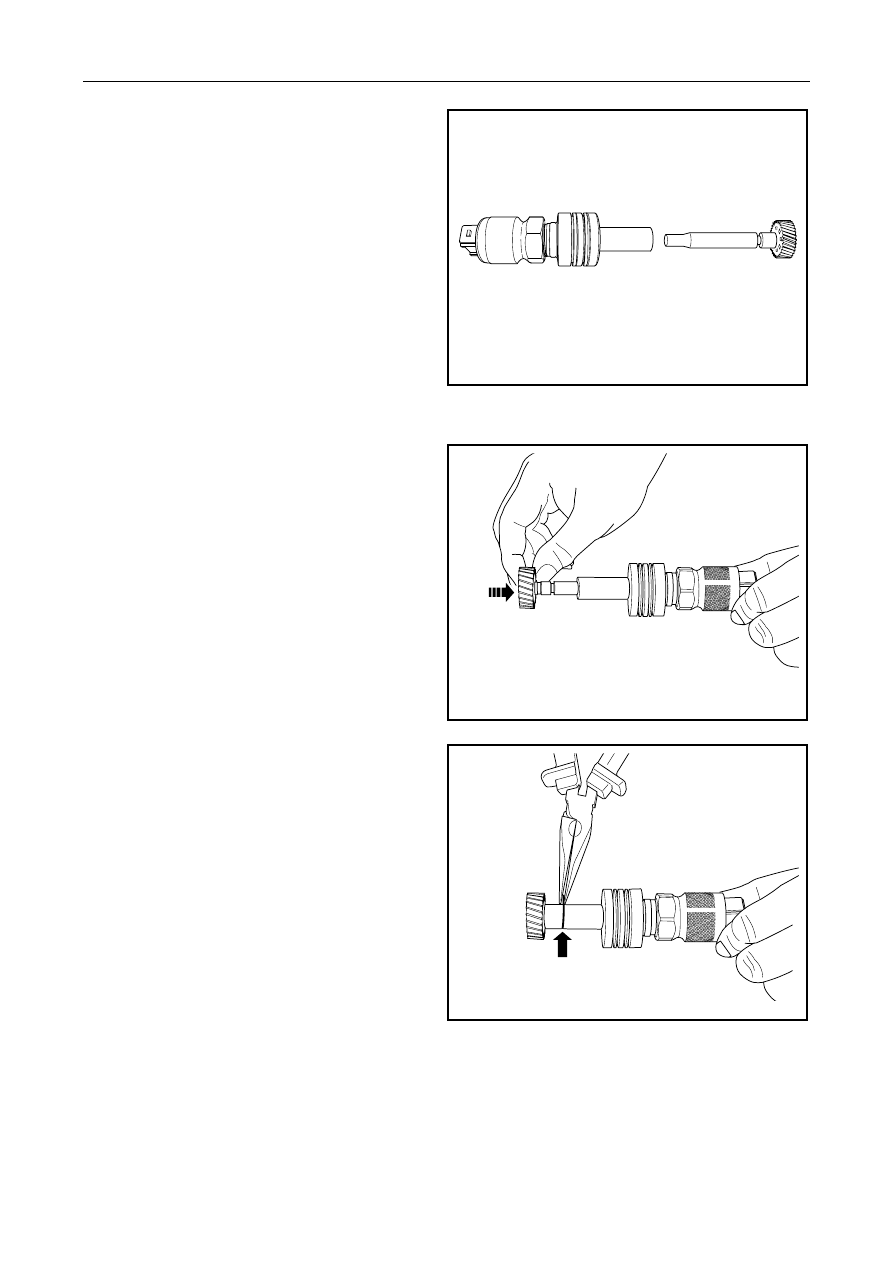

4. Disassembled

speed

sensor.



GC03-0030b

Installation procedure::

1.  Install the vehicle speed sensor driven gear.



GC03-0031b

2.  Install the driven gear clamp spring.



GC03-0032b

1125




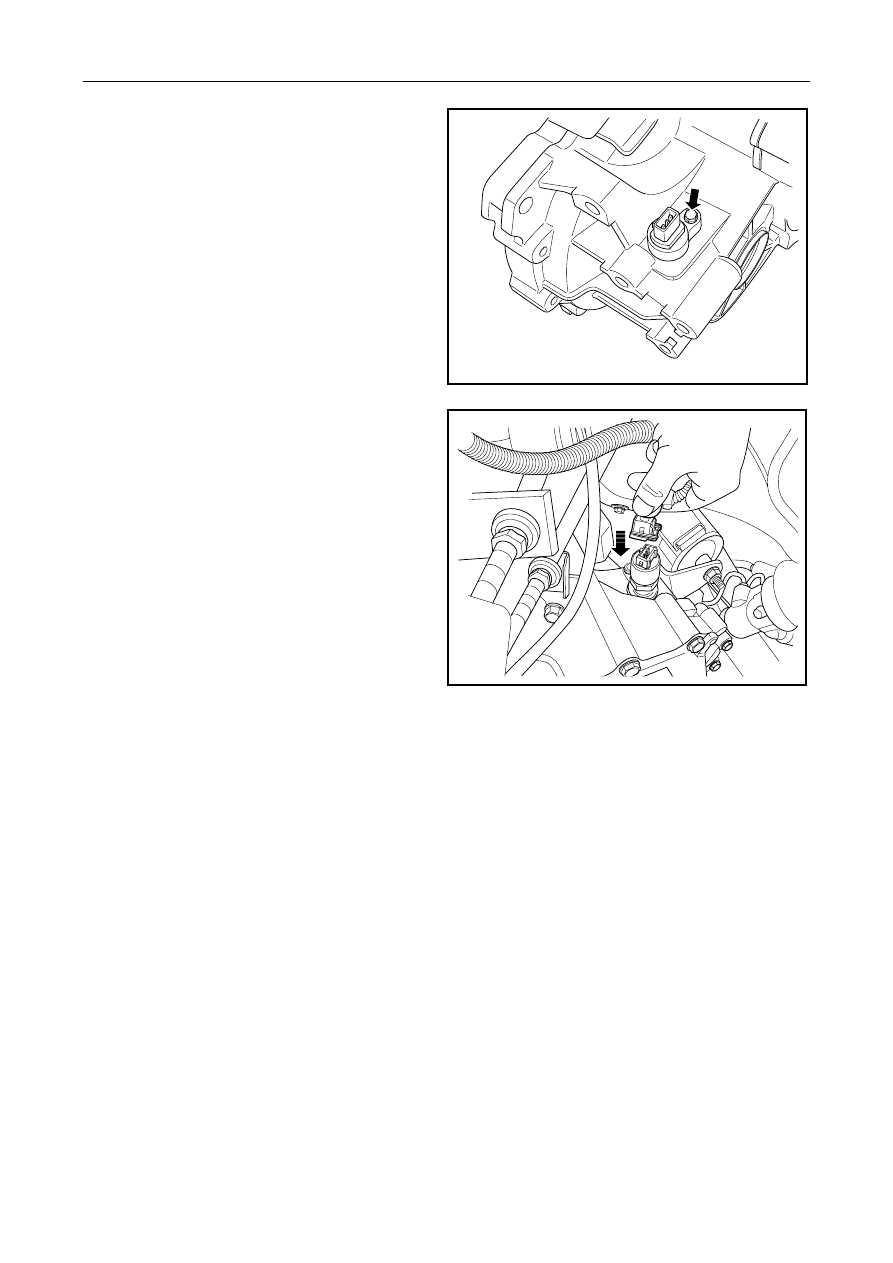

3.  Install the vehicle speed sensor and tighten the

fixing bolt, pay attention to the position of the
washer.



GC03-0007c

4.  Connect the vehicle speed sensor harness

connector, as shown in the figure.



GC03-0034b



1126
