2.10 Ignition System

2.10.1 Specifications

2.10.1.1 Fastener Specifications

Tightening Torque

Fastener Name

Specification

Metric (N.m)

English system
(lb-ft)

Camshaft Position Sensor
Mounting Bolt

M6×14

9±1



6-7 . 4

Fixing Bolts of Ignition Coil

M6×20



9±1



6-7 . 4

Spark Plug

M14×1.25

25±3

16.1-20.5

Knock Sensor

M8×40

19±2

12.5-15.4



2.10.1.2 Ignition System Specification



Applications Specification

Ignition Sequence

1±-3/-4±-2

Ignition Timing

7° before TDC

Ignition Type

Spark Discharge

Spark Plug Gap

0.8-0.9

Spark Plug Manufacturer

Zhuzhou Torch Spark Plug Co., Ltd.

Spark Plug Model

K6RTC

607

2.10.2 Description and Operation

2.10.2.1 Description and Operation

This vehicle uses DLI ignition system for igniting two cylinders at the same time distributor. The
ignition voltage is sent directly from the ignition coil to the spark plug. Main system components
are ECM, two ignition coils, high voltage damper, spark plug, crankshaft position sensor, camshaft
position sensor, knock sensor etc.. This Ignition system without distributor is known as the direct
ignition type. Cylinder No.1 is paired with Cylinder No.4 and Cylinder No.2 is paired with
Cylinder No.3. When ECM triggers the ignition coil to ignite, spark occurs in both cylinders at the
same time. At this time one cylinder is in compression stroke and the other is in exhaust stroke.
For the cylinder in the exhaust stroke, because the cylinder pressure is low, the temperature is high,
the spark plug only requires minimal energy to break ignition voltage gap. It is an invalid ignition,
the remaining energy is used by the spark plug in the compression stroke cylinder.

As a result of using DLI Ignition System without distributor, ECM controls the best ignition
timing based on a variety of load conditions, so that the engine output power, acceleration,
economy and emission performance have reached the ideal situations. The ignition system voltage
does not decrease as the speed increases. In the absence of mechanical components, there is
mechanical error.

The ignition coil can not be repaired and it must be replaced as an assembly.



608

2.10.3 System operating principle

2.10.3.1 System operating Principle

When the ignition switch is at the “ON” or “ST” position, the #5 terminal and #6 terminal of the
ignition switch connector IP45 are connected to supply the power for the #68 terminal of ECM.
When the ECM detects the voltage at the #68 terminal, it will be grounded via the #2 and #3
terminals of the ECM harness connectors to control the pull-in of the main relay, generating a
complete loop in the primary relay coil. Battery voltage power the ignition coil passing through
the EF40 fuse, main relay and EF21 fuse.

Crankshaft position sensor is a magnetic inductive speed sensor. Crankshaft position sensor signal
plate and the flywheel is an integrated part. When the engine rotates, so does the crankshaft
position sensor signal drive plate. So the sensor produces an alternating signal. This signal is
transmitted to ECM. ECM calculates the current crank angle based on this signal in order to
determine the piston reaches the TDC, directly affecting the accuracy of the ignition advance
angle control. This sensor signal is a crucial input signal in the ignition system. When ECM can
not receive the signal, the ignition system can not work. ECM harness connector EM01 terminals
#30 and #11 receive crankshaft position sensor input. After calculation, ECM obtains the ignition
advance angle. ECM harness connector EM01 terminal No.4 controls cylinders #1 ignition,
terminal #81 controls cylinder #2 ignition, terminal #1 controls cylinder #3 ignition and terminal
#82 controls cylinder 4 ignition.

Refer to the 2.2.1.2 Temperature and Resistance Correlation of Temperature Sensor for the
specific parameters of crankshaft position sensor.

Refer to the 2.2.1.2 Temperature and Resistance Correlation of Temperature Sensor for the
specific technology parameters of knock sensor.

Note: When the vehicle Anti-theft alarm system and engine anti-theft locking system are
activated, ECM does not allow ignition coil to be ignited. The ignition system is inoperative at
this time.

609

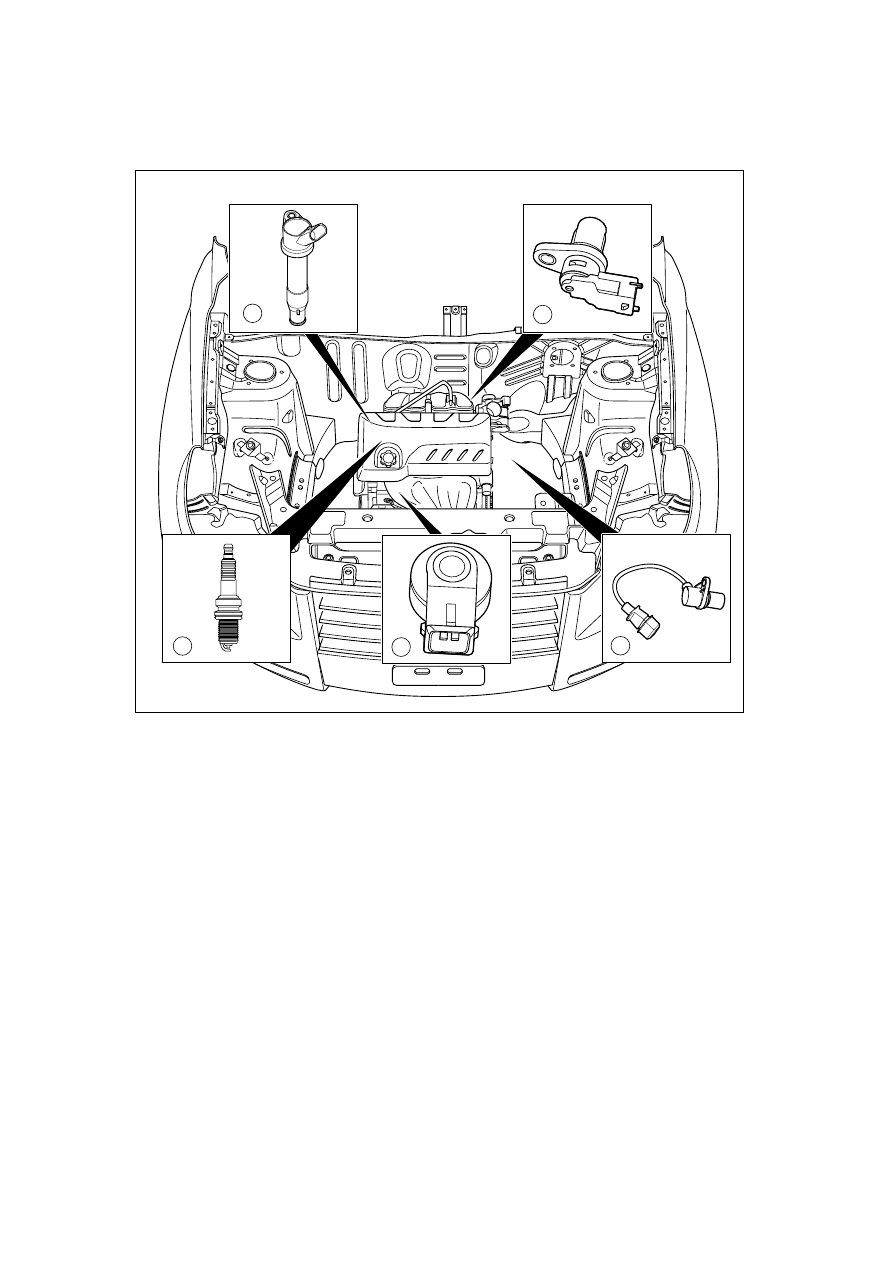

2.10.4 Part position figure



2.10.4.1 Part position figure

5

4

2

1

3

NL02-1006e



1. Ignition

Coil

2. Knock

Sensor

3.  Camshaft Position Sensor

4.  Vehicle speed sensor

5. Spark

plug
