2.8.8 Removal and installation

2.8.8.1 Engine Coolant Discharge and Filling

Warning: Refer to "Warning on Maintenance of Cooling System" in "Warnings and
Precautions".

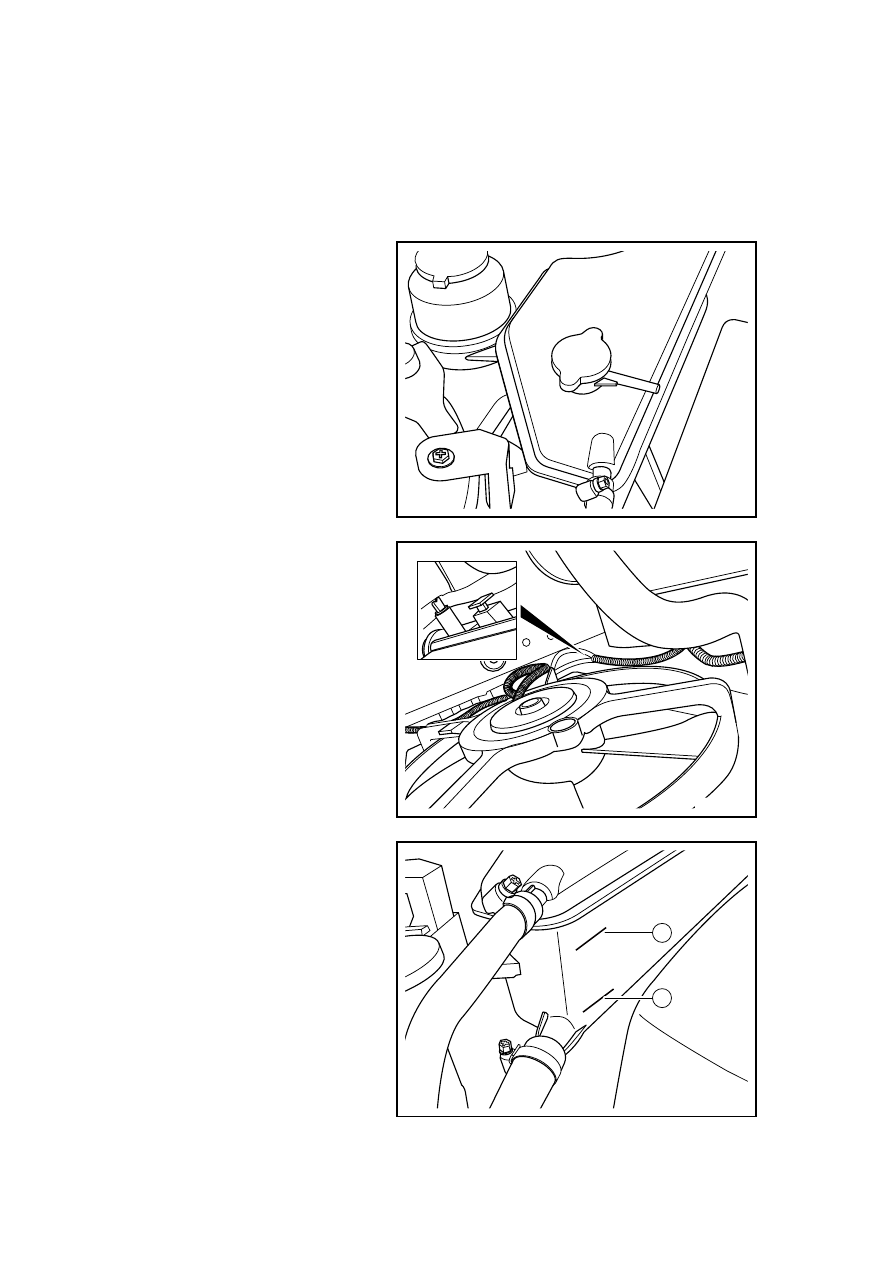

1. Place a recycling container under
the vehicle to contain the discharged
engine coolant.

2. Dismantle expansion tank cover.

NL02-0295b

3. Dismantle the engine coolant
drainage valve.

NL02-0296b

4. Contain the discharged engine
coolant with the container.

Note: Handle the recycled old engine
coolant, waiting for scrap or
recycling. Do not dispose the old
engine coolant into the water sewage
to protect the environment.

5. Install the engine coolant drainage
valve.

6. Refer to 2.8.8.2 Replacement of
Expansion Tank Assembly to clean the
coolant expansion tank assembly.

L

F

NL02-0297b

568

7. Fill engine coolant into expansion tank assembly up to standard scale to discharge air from
cooling pipe.

8. Start the engine until the thermostat opens. When two water inlet/outlet pipes of the radiator are
hot, it means that the thermostat has been opened.

9. Shut down the engine. Confirm that the engine coolant drainage valve is not leaking. (Repeat
the above steps until the discharged coolant is free of bubble.)

10. Fill the engine coolant so that the engine Coolant Recovery Reservoir coolant level reaches the
highest scale (F location).

569

2.8.8.2 Replacement of Expansion Tank

Dismantlement Procedure

Warning: Refer to "Warning on Maintenance of Cooling System" in "Warnings and
Precautions".

1.  Discharge the engine coolant.

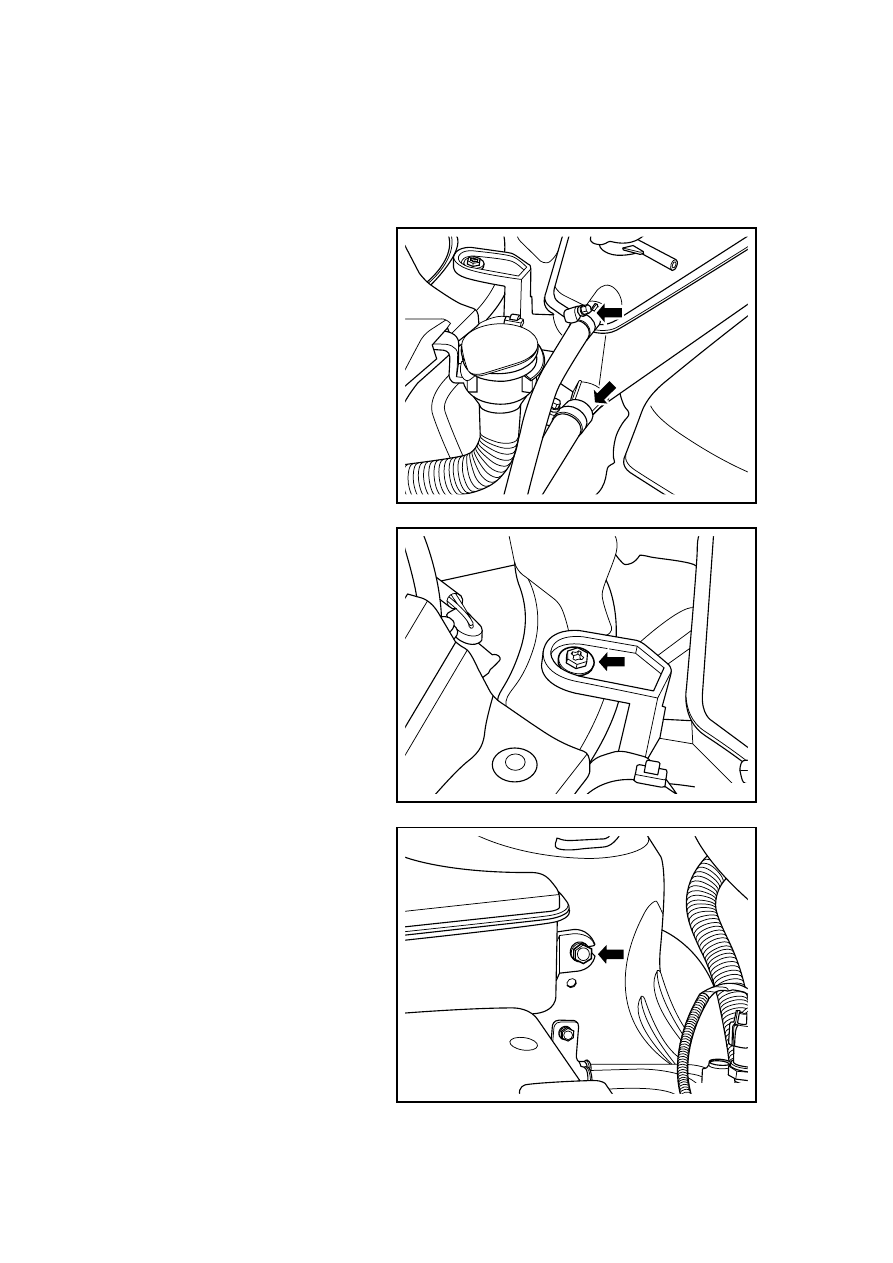

2. Dismantle coolant hose on

expansion pipe.

NL02-0298b

3. Dismantle fixing bolt on

expansion tank assembly.

NL02-0299b

4.  Dismantle fixing bolt on the right

side of expansion tank.

NL02-0300b
