Dodge Dakota (ND). Manual - part 596

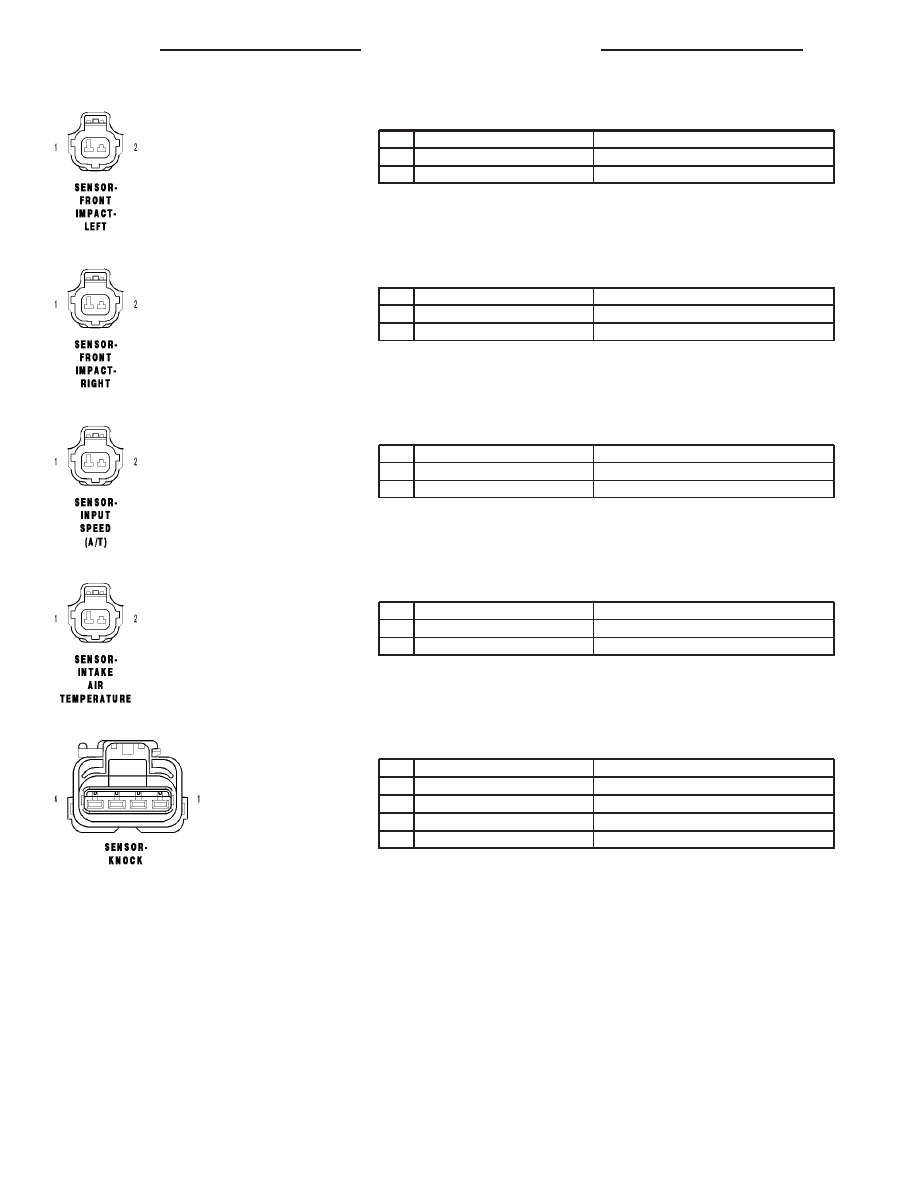

SENSOR-FRONT IMPACT-LEFT - 2 WAY

CAV

CIRCUIT

FUNCTION

1

R81 20LB/WT

LEFT FRONT IMPACT SENSOR GROUND

2

R79 20LB/VT

LEFT FRONT IMPACT SENSOR SIGNAL

SENSOR-FRONT IMPACT-RIGHT - 2 WAY

CAV

CIRCUIT

FUNCTION

1

R82 20WT/LB

RIGHT FRONT IMPACT SENSOR GROUND

2

R80 20VT/LB

RIGHT FRONT IMPACT SENSOR SIGNAL

SENSOR-INPUT SPEED (A/T) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

T52 20YL/PK

INPUT SPEED SENSOR SIGNAL

2

T13 20DG/VT

SENSOR GROUND

SENSOR-INTAKE AIR TEMPERATURE - 2 WAY

CAV

CIRCUIT

FUNCTION

1

K21 20BR/WT

IAT SIGNAL

2

K900 20DB/DG

SENSOR GROUND

SENSOR-KNOCK - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K42 20DB/OR

KNOCK SENSOR NO. 1 SIGNAL

2

K942 20BR/LG

KNOCK SENSOR NO. 1 RETURN

3

K242 20BR/WT

KNOCK SENSOR NO. 2 SIGNAL

4

K924 20PK/RD

KNOCK SENSOR NO. 2 RETURN

8W - 80 - 68

8W-80 CONNECTOR PIN-OUTS

ND

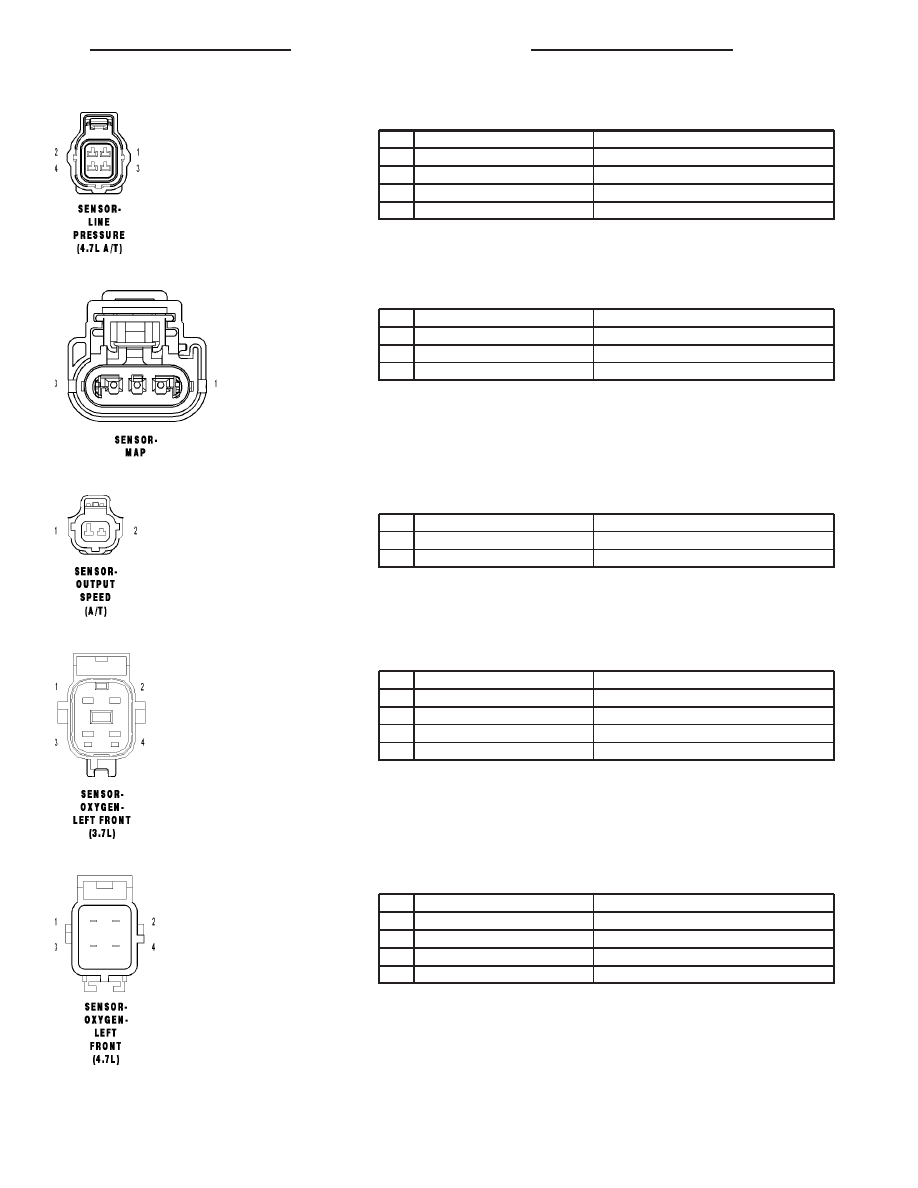

SENSOR-LINE PRESSURE (4.7L A/T) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K900 20DB/DG

SENSOR GROUND

2

F856 20YL/PK

5 VOLT SUPPLY

3

T38 20YL/BR

LINE PRESSURE SENSOR SIGNAL

4

-

-

SENSOR-MAP - 3 WAY

CAV

CIRCUIT

FUNCTION

1

K1 20VT/BR

MAP SIGNAL

2

K900 20DB/DG

SENSOR GROUND

3

F856 20YL/PK

5 VOLT SUPPLY

SENSOR-OUTPUT SPEED (A/T) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

T14 20YL/PK

OUTPUT SPEED SENSOR SIGNAL

2

T13 20DG/VT

SENSOR GROUND

SENSOR-OXYGEN-LEFT FRONT (3.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K99 18BR/TN

O2 1/1 HEATER CONTROL

2

Z43 18BK/LB

GROUND

3

K902 20BR/DG

O2 RETURN (UPSTREAM)

4

K41 20DB/LB

O2 1/1 SIGNAL

SENSOR-OXYGEN-LEFT FRONT (4.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K99 18BR/TN

O2 1/1 HEATER CONTROL

2

Z43 18BK/LB

GROUND

3

K902 20BR/DG

O2 RETURN (UPSTREAM)

4

K41 20DB/LB

O2 1/1 SIGNAL

ND

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 69

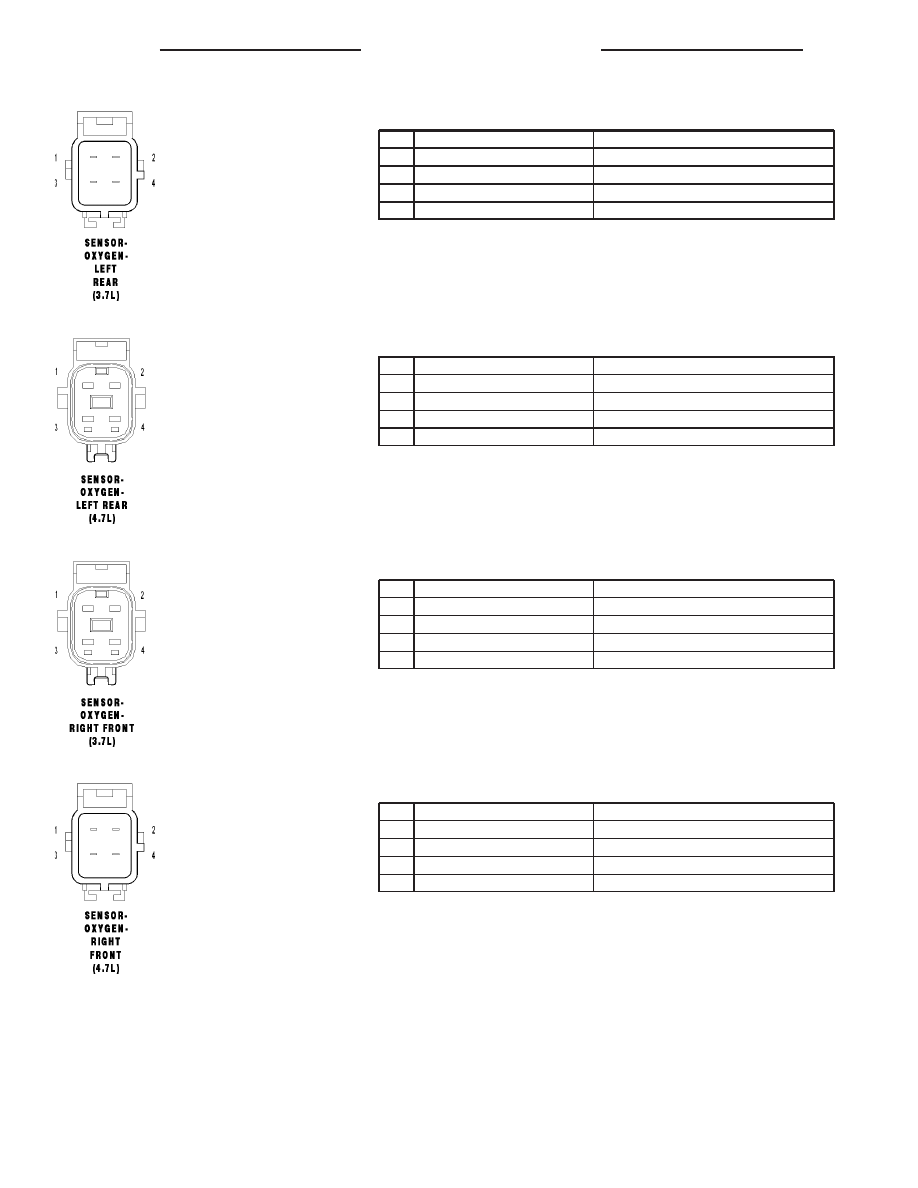

SENSOR-OXYGEN-LEFT REAR (3.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K299 18BR/OR

O2 1/2 HEATER CONTROL

2

Z42 18BK/LG

GROUND

3

K904 20DB/DG

O2 RETURN (DOWNSTREAM)

4

K141 18DB/YL

O2 1/2 SIGNAL

SENSOR-OXYGEN-LEFT REAR (4.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K299 18BR/OR

O2 1/2 HEATER CONTROL

2

Z42 18BK/LG

GROUND

3

K904 20DB/DG

O2 RETURN (DOWNSTREAM)

4

K141 18DB/YL

O2 1/2 SIGNAL

SENSOR-OXYGEN-RIGHT FRONT (3.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K199 18BR/VT

O2 2/1 HEATER CONTROL

2

Z934 18BK

GROUND

3

K902 20BR/DG

O2 RETURN (UPSTREAM)

4

K43 20DB/LG

O2 2/1 SIGNAL

SENSOR-OXYGEN-RIGHT FRONT (4.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K199 18BR/VT

O2 2/1 HEATER CONTROL

2

Z934 18BK

GROUND

3

K902 20BR/DG

O2 RETURN (UPSTREAM)

4

K43 20DB/LG

O2 2/1 SIGNAL

8W - 80 - 70

8W-80 CONNECTOR PIN-OUTS

ND

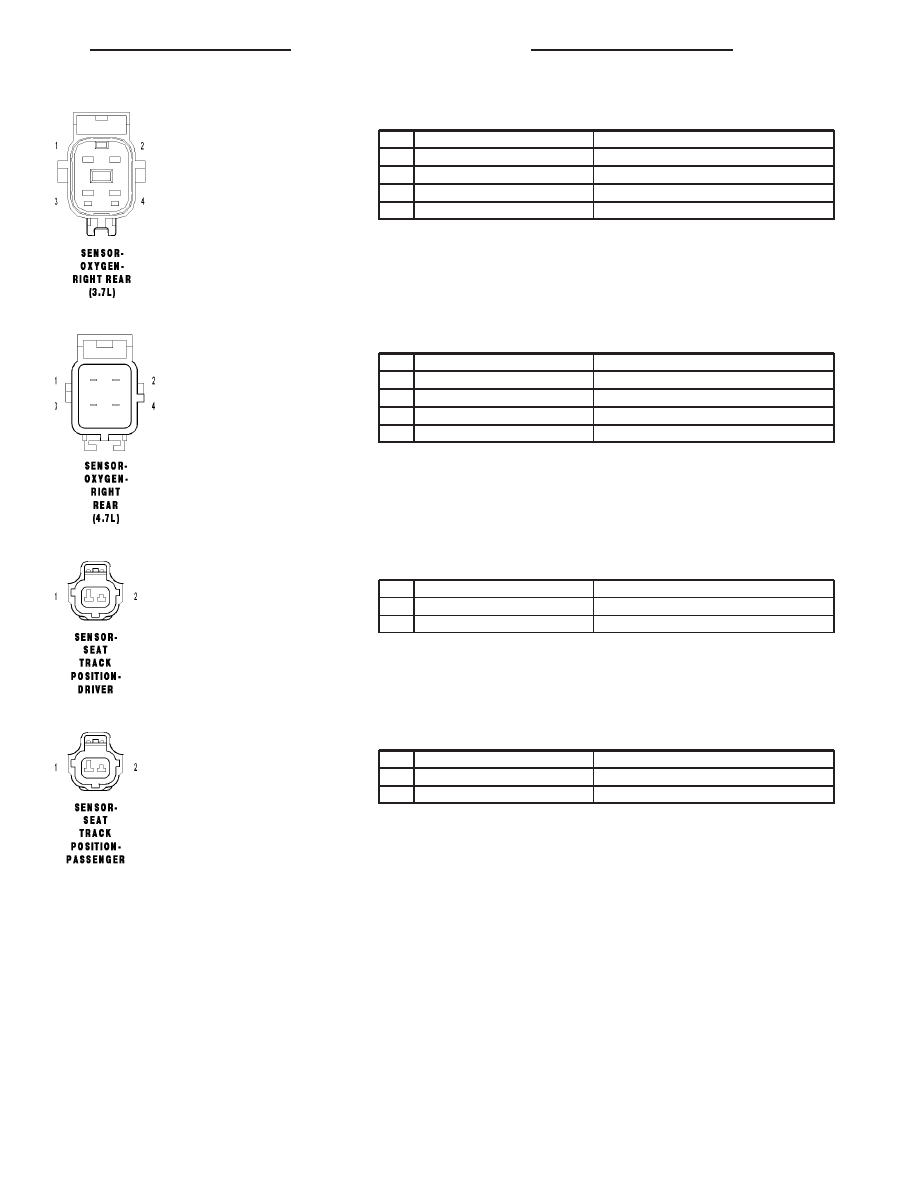

SENSOR-OXYGEN-RIGHT REAR (3.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K399 18BR/GY

O2 2/2 HEATER CONTROL

2

Z992 18BK

GROUND

3

K904 20DB/DG

O2 RETURN (DOWNSTREAM)

4

K243 20BR

O2 2/2 SIGNAL

SENSOR-OXYGEN-RIGHT REAR (4.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K399 18BR/GY

O2 2/2 HEATER CONTROL

2

Z992 18BK

GROUND

3

K904 20DB/DG

O2 RETURN (DOWNSTREAM)

4

K243 20BR

O2 2/2 SIGNAL

SENSOR-SEAT TRACK POSITION-DRIVER - 2 WAY

CAV

CIRCUIT

FUNCTION

1

R261 20LB/WT

DRIVER SEAT POSITION SENSOR DATA

2

R263 20LB/VT

DRIVER SEAT POSITION SENSOR VOLTAGE

SENSOR-SEAT TRACK POSITION-PASSENGER - 2 WAY

CAV

CIRCUIT

FUNCTION

1

R262 20WT/LB

PASSENGER SEAT POSITION SENSOR DATA

2

R264 20VT/LB

PASSENGER SEAT POSITION SENSOR VOLTAGE

ND

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 71
