B212C-IGNITION RUN/START INPUT CIRCUIT OPEN (CONTINUED)

CHECK (F201) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT RESISTANCE WITH OCM C1
CONNECTOR DISCONNECTED

WARNING: If the Occupant Classification Module is dropped at
any time, it must be replaced. Failure to take the proper precau-
tions can result in accidental airbag deployment and personal
injury or death.

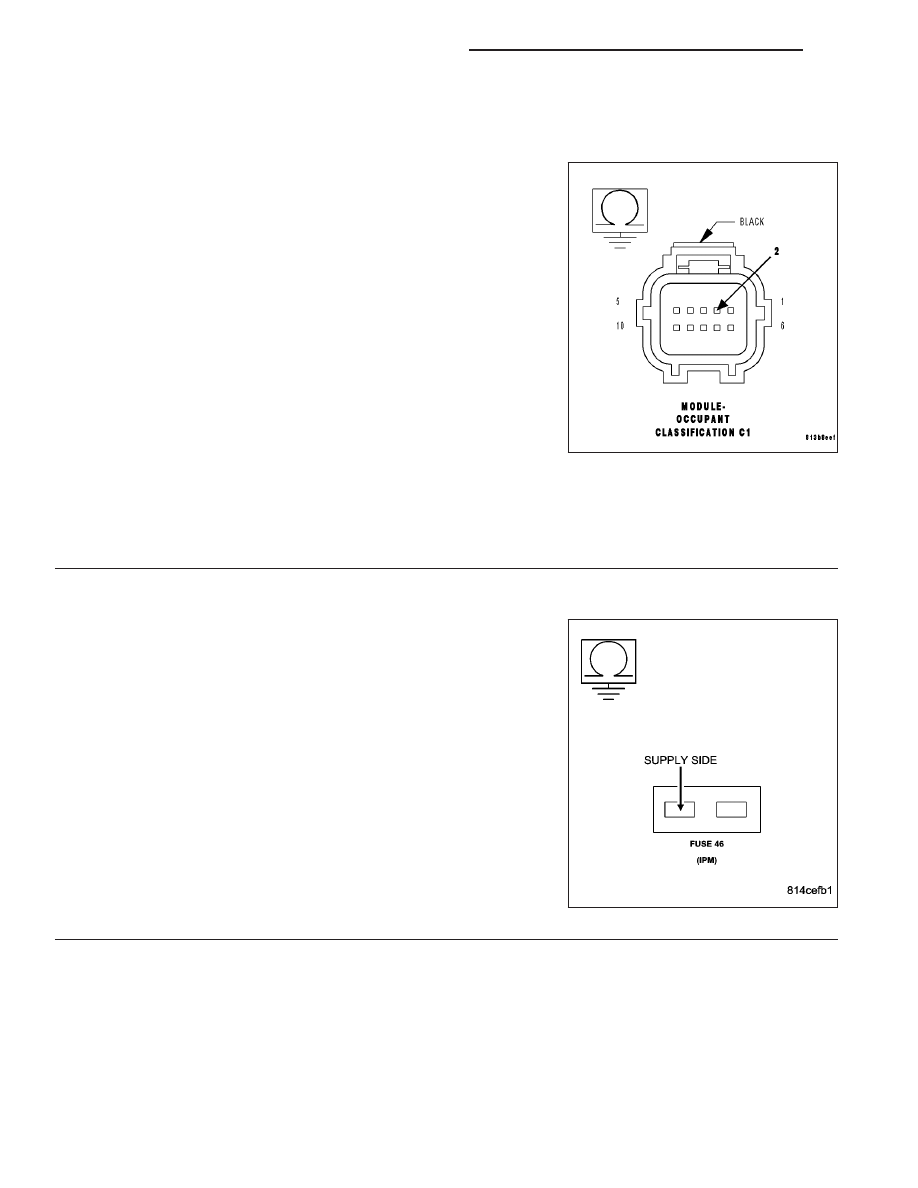

Disconnect the OCM C1 connector.

Measure the resistance of the (F201) Fused Ignition Switch Output
(Run-Start) circuit between ground and the Airbag Run-Start fuse ter-
minal (output side).

Is the resistance below 100.0 ohms?

Yes

>> Repair the (F201) Fused Ignition Switch Output (Run-

Start) circuit for a short to ground.

Replace the Airbag Run-Start Fuse.

Perform ORC VERIFICATION TEST - VER 1.

Perform OCS VERIFICATION TEST - VER 1.

>> Replace the OCM in accordance with the Service Informa-

tion.

Replace the Airbag Run-Start Fuse.

Perform ORC VERIFICATION TEST - VER 1.

Perform OCS VERIFICATION TEST - VER 1.

CHECK (F201) IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT FOR AN OPEN

Turn the ignition on.

Measure the voltage of the (F201) Ignition Switch Output (Run-Start)
circuit at the Airbag Run-Start fuse terminal (supply side).

Is the voltage above 6.0 volts?

Yes

>> Go To 8

>> Repair the open (F201) Ignition Switch Output (Run-Start)

circuit.

Perform ORC VERIFICATION TEST - VER 1.

Perform OCS VERIFICATION TEST - VER 1.

8O - 328

RESTRAINTS - ELECTRICAL DIAGNOSTICS

B212C-IGNITION RUN/START INPUT CIRCUIT OPEN (CONTINUED)

CHECK (F201) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT FOR AN OPEN

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Reinstall the Airbag Run-Start Fuse.

Disconnect the both ORC connectors.

NOTE: Check connectors - Clean and repair as necessary.

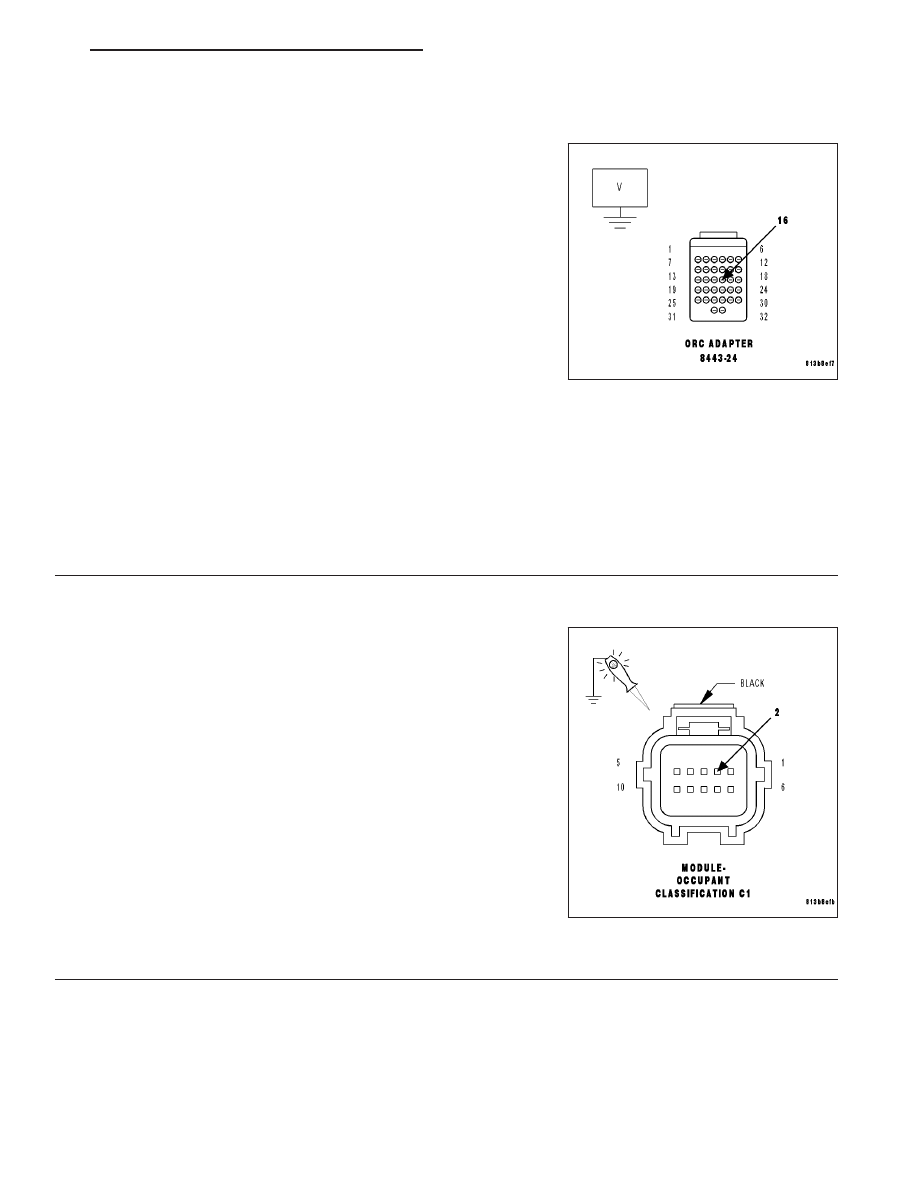

Install the Airbag Load tool ORC 8443–24 adaptor to the ORC C2 con-
nector.

WARNING: To avoid personal injury or death, turn the ignition on,
then reconnect the battery.
Measure the voltage of the (F201) Fused Ignition Switch Output (Run-
Start) Circuit between the 8443–24 connector and ground.

Is the voltage above 6.0 volts?

Yes

>> Replace the ORC in accordance with the Service Information.

Perform ORC VERIFICATION TEST - VER 1.

Perform OCS VERIFICATION TEST - VER 1 if DTC B210C IGNITION RUN/START INPUT CIRCUIT
OPEN was Active in the OCM.

>> Repair the open (F201) Fused Ignition Switch Output (Run-Start) circuit.

Perform ORC VERIFICATION TEST - VER 1.

Perform OCS VERIFICATION TEST - VER 1 if DTC B210C IGNITION RUN/START INPUT CIRCUIT
OPEN was Active in the OCM.

CHECK (F201) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT FOR AN OPEN

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Reinstall the Airbag Run-Start Fuse.

Disconnect the both Occupant Classification Module (OCM) connec-
tors.

NOTE: Check connectors - Clean and repair as necessary.

Is the voltage above 6.0 volts?

Yes

>> Go To 10

>> Repair the open (F201) Fused Ignition Switch Output

(Run-Start) circuit between the OCM and the splice.

Perform ORC VERIFICATION TEST - VER 1.

Perform OCS VERIFICATION TEST - VER 1.

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 329

B212C-IGNITION RUN/START INPUT CIRCUIT OPEN (CONTINUED)

10.

VERIFY THAT DTC B212C IGNITION RUN/START DTC IS ACTIVE.

Reconnect both Occupant Restraints Controller (ORC) connectors.

Reconnect both Occupant Classification Module (OCM) connectors.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool, read Occupant Restraint Controller (ORC) DTCs and Occupant Classification Module (OCM)
DTCs.

Select the module displaying the active: B212C IGNITION RUN/START INPUT CIRCUIT OPEN?

ORC

>> Replace the Occupant Restraint Controller (ORC) in accordance with the Service Information.

Perform ORC VERIFICATION TEST - VER 1.

Perform OCS VERIFICATION TEST - VER 1 if DTC B212C IGNITION RUN/START INPUT CIRCUIT
OPEN was Active in the OCM.

OCM

>> Replace the Occupant Classification Module (OCM) in accordance with the Service Information.

Perform ORC VERIFICATION TEST - VER 1.

Perform OCS VERIFICATION TEST - VER 1 if DTC B212C IGNITION RUN/START INPUT CIRCUIT
OPEN was Active in the OCM.

11.

TEST FOR INTERMITTENT CONDITION

With the scan tool, record and erase all DTCs from all Airbag modules.

If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

Look for chaffed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or
contaminated terminals.

The following additional checks may assist you in identifying a possible intermittent problem.

Reconnect any disconnected components and harness connector.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool, monitor active codes as you work through the following steps.

WARNING: To avoid personal injury or death, maintain a safe distance from all airbags while performing the
following steps.
Wiggle the wiring harness and connectors of the related airbag circuit or component.

If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.

If only stored codes return, continue the test until the problem area has been isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting the active DTC in ques-
tion.

Does the scan tool display any ACTIVE DTCs?

Yes

>> Select appropriate symptom from Symptom List.

>> No problem found Erase all codes before returning vehicle to customer.

8O - 330

RESTRAINTS - ELECTRICAL DIAGNOSTICS

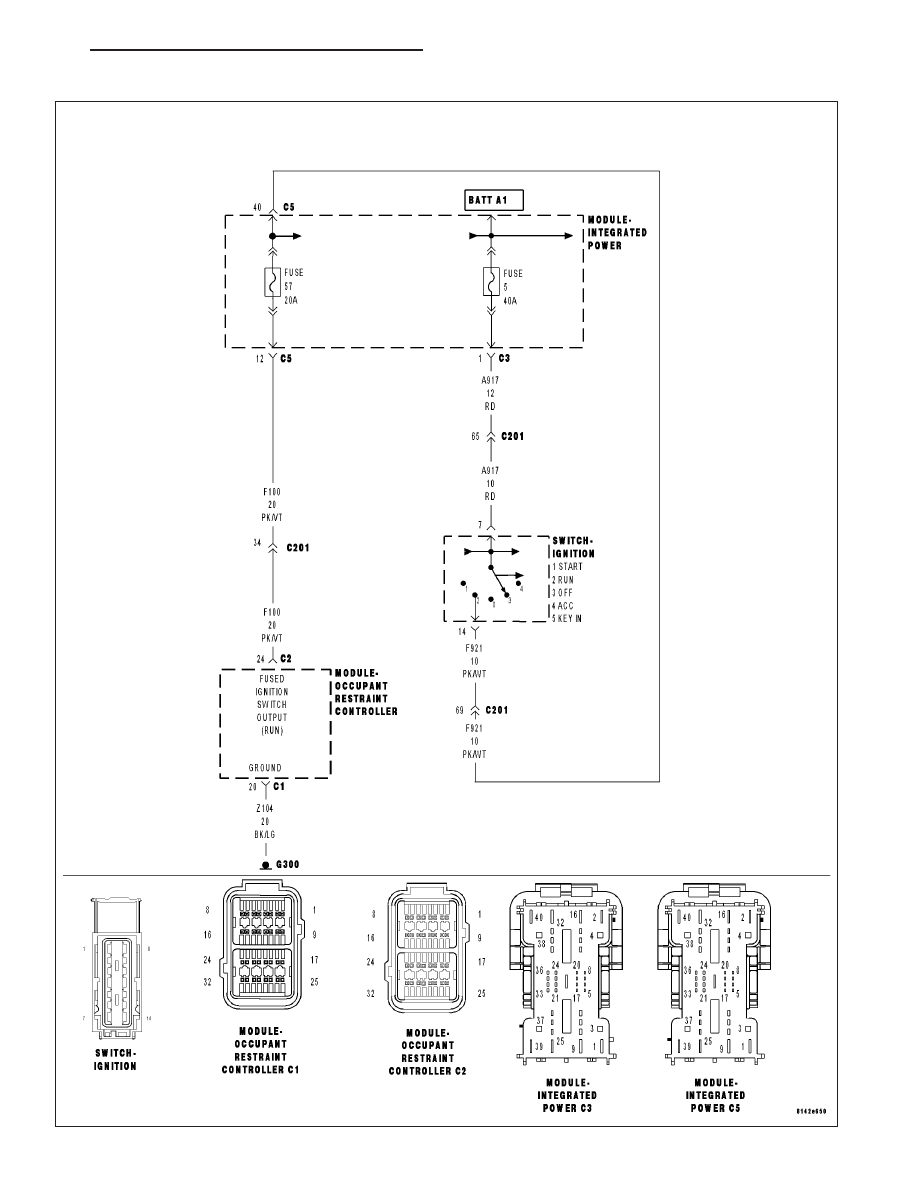

B212D-IGNITION RUN ONLY INPUT CIRCUIT OPEN

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 331
