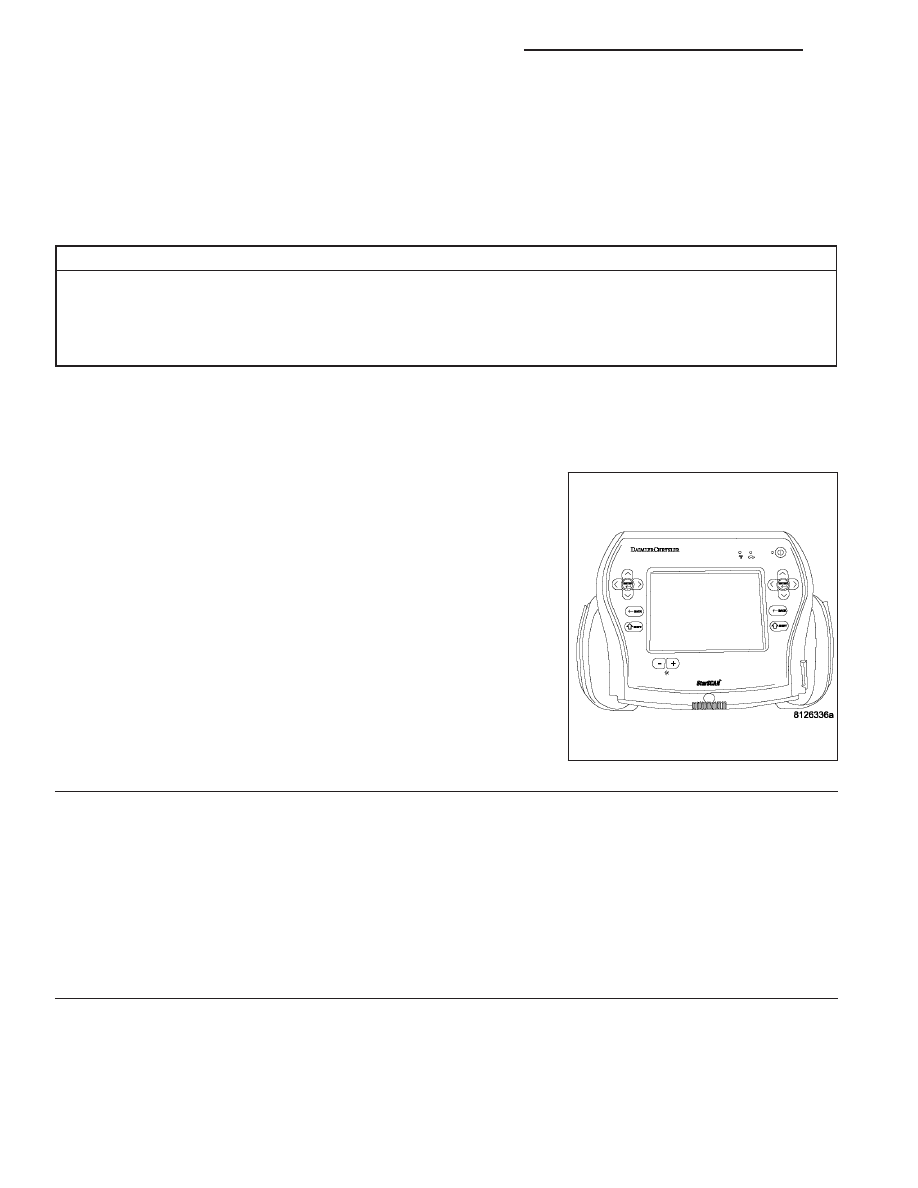

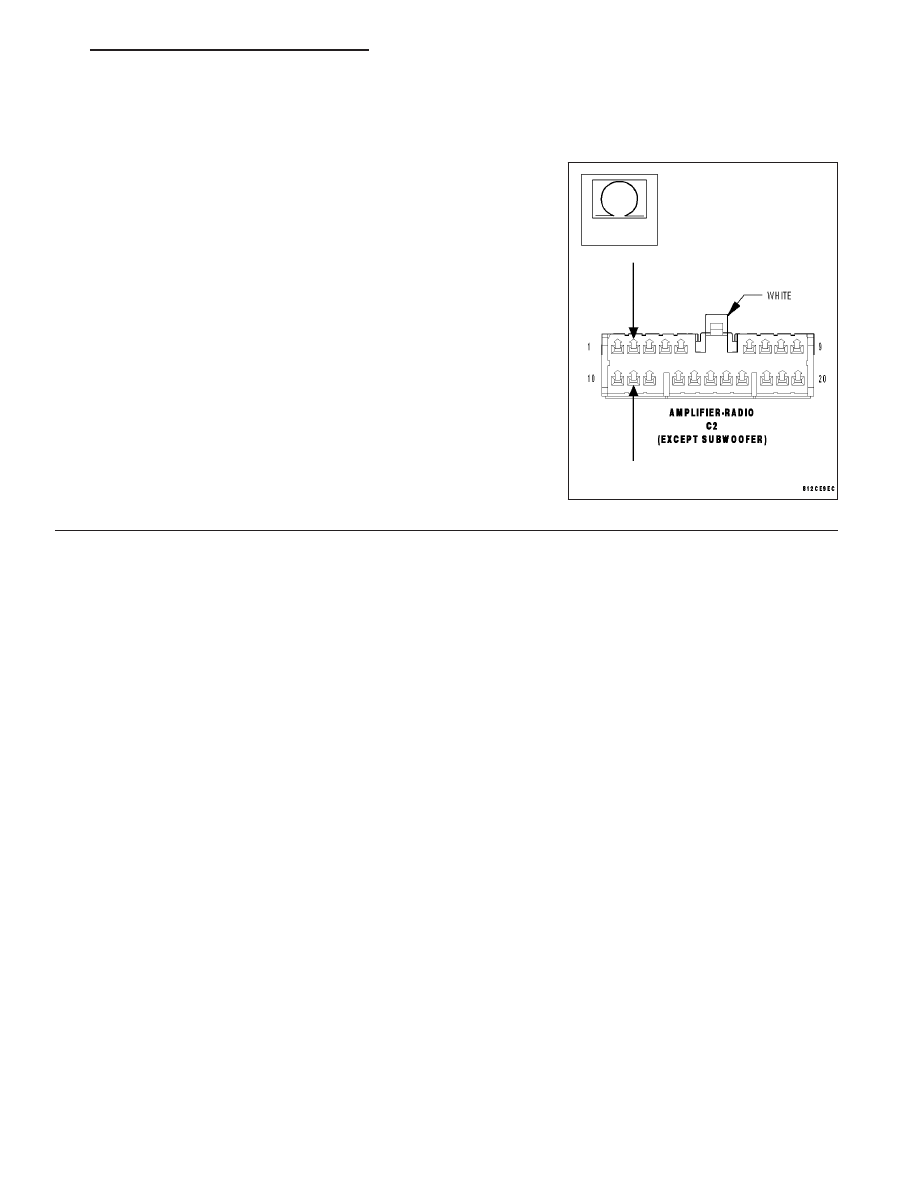

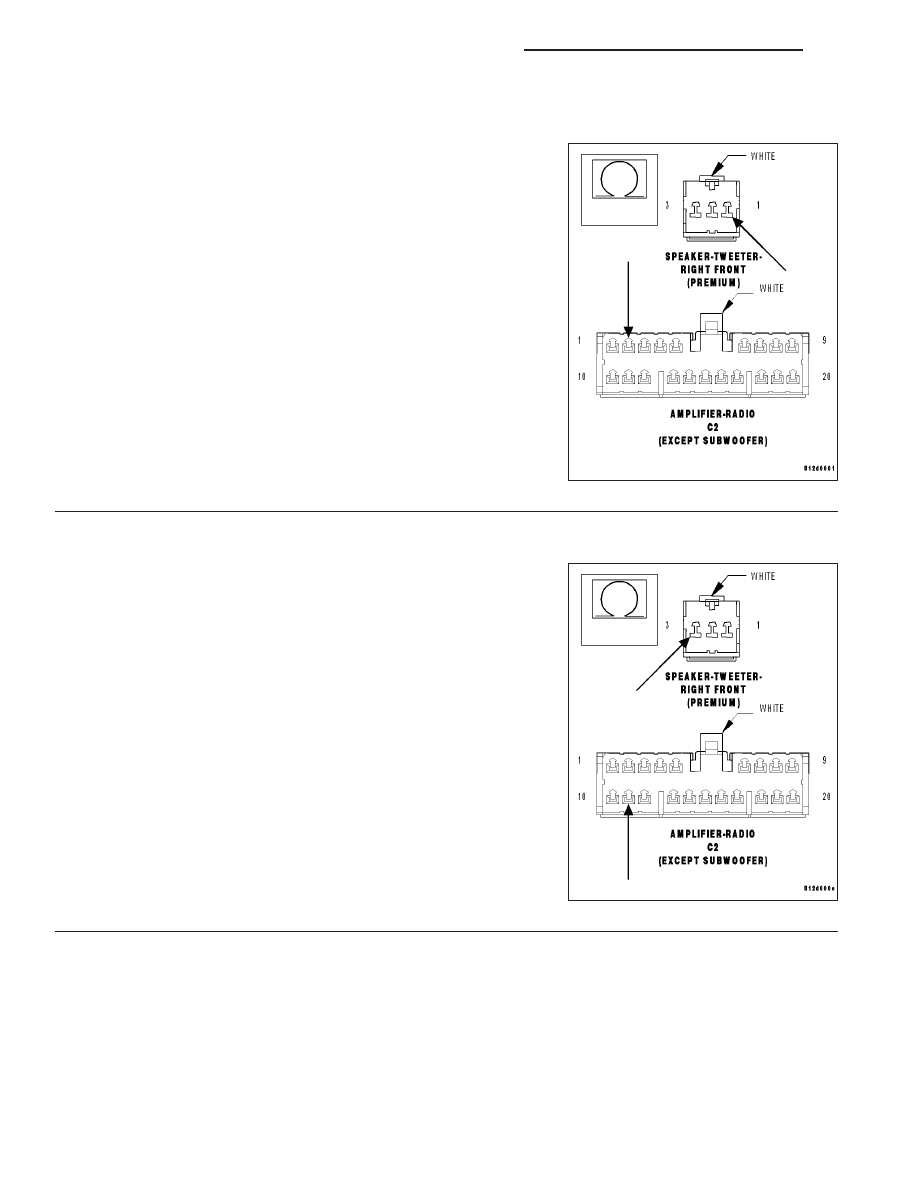

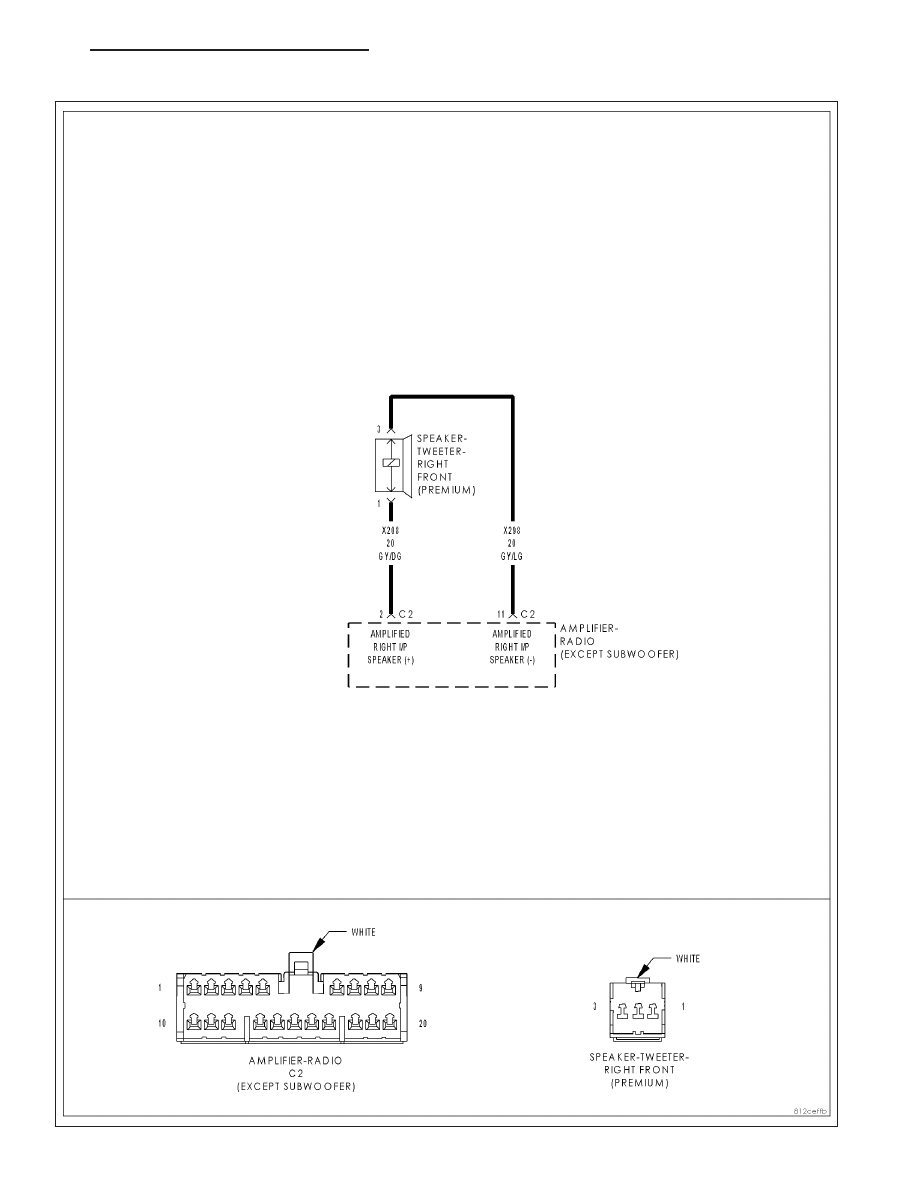

B1468-CHANNEL 2 AUDIO SPEAKER OUTPUT CIRCUIT OPEN (CONTINUED) 3. CHECK THE (X208) AMPLIFIED RIGHT I/P SPEAKER (+) CIRCUIT FOR AN OPEN Turn the ignition off. Disconnect the Amplifier C2 harness connector. Measure the resistance of the (X208) Amplified Right I/P Speaker (+) Is the resistance below 5.0 ohms? Yes >> Go To 4 No >> Repair the (X208) Amplified Right I/P Speaker (+) circuit for an open. Perform BODY VERIFICATION TEST VER-1. 4. CHECK THE (X298) AMPLIFIED RIGHT I/P SPEAKER (-) CIRCUIT FOR AN OPEN Turn the ignition off. Disconnect the Amplifier C2 harness connector. Measure the resistance of the (X298) Amplified Right I/P Speaker (-) Is the resistance below 5.0 ohms? Yes >> Replace the Amplifier in accordance with the service infor- mation. Perform BODY VERIFICATION TEST VER-1. No >> Repair the (X298) Amplified Right I/P Speaker (-) circuit for an open. Perform BODY VERIFICATION TEST VER-1. 8A - 86 AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS ND |
