INSTALLATION

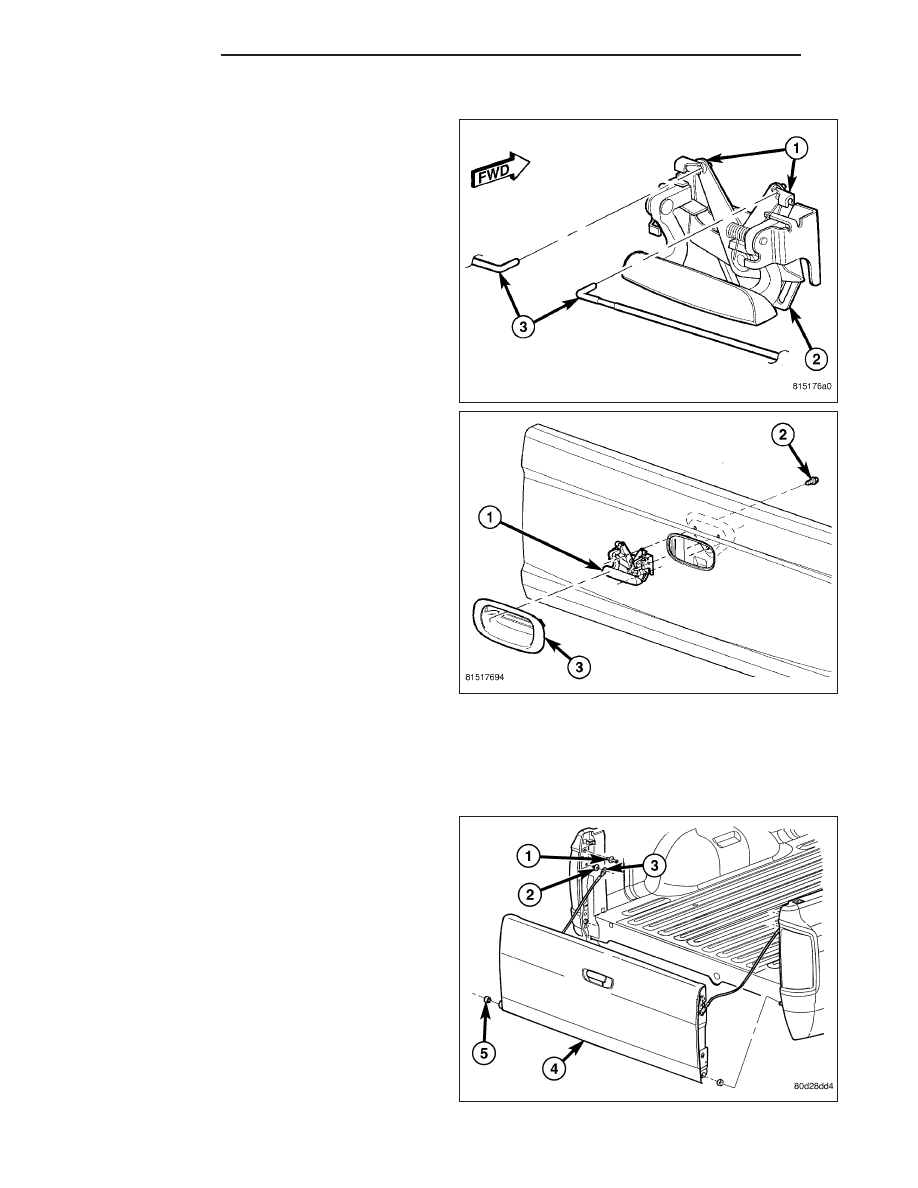

1. Position the release handle (3) in the tailgate and

connect the latch links (3) to the clips (1).

2. Remove the three mounting screws (2) to the

release handle (1). Tighten bolts to 7 N·m (60 in.
lbs.).

NOTE: If equipped with a tailgate cover, it must be
reinstalled after the release handle mounting bolts
are tightened.

TAILGATE

REMOVAL

1. Open the tailgate (4).

2. Disconnect the tailgate check cables (3) from the

cable bolts (2) locate below each tailgate striker (1)
(Refer to 23 - BODY/TAILGATE/CHECK CABLE -
REMOVAL).

3. Partially close the tailgate so that the notch in the

right side tailgate pivot aligns with the flats on the
right side tailgate hinge.

4. Lift the tailgate upward and disconnect the tailgate

pivot from the right side tailgate hinge.

5. Carefully slide the tailgate to the right and discon-

nect it from the left side tailgate hinge and remove
the tailgate.

6. If required, remove the bushing (5) from each tail-

gate hinge.

23 - 296

TAILGATE

ND

INSTALLATION

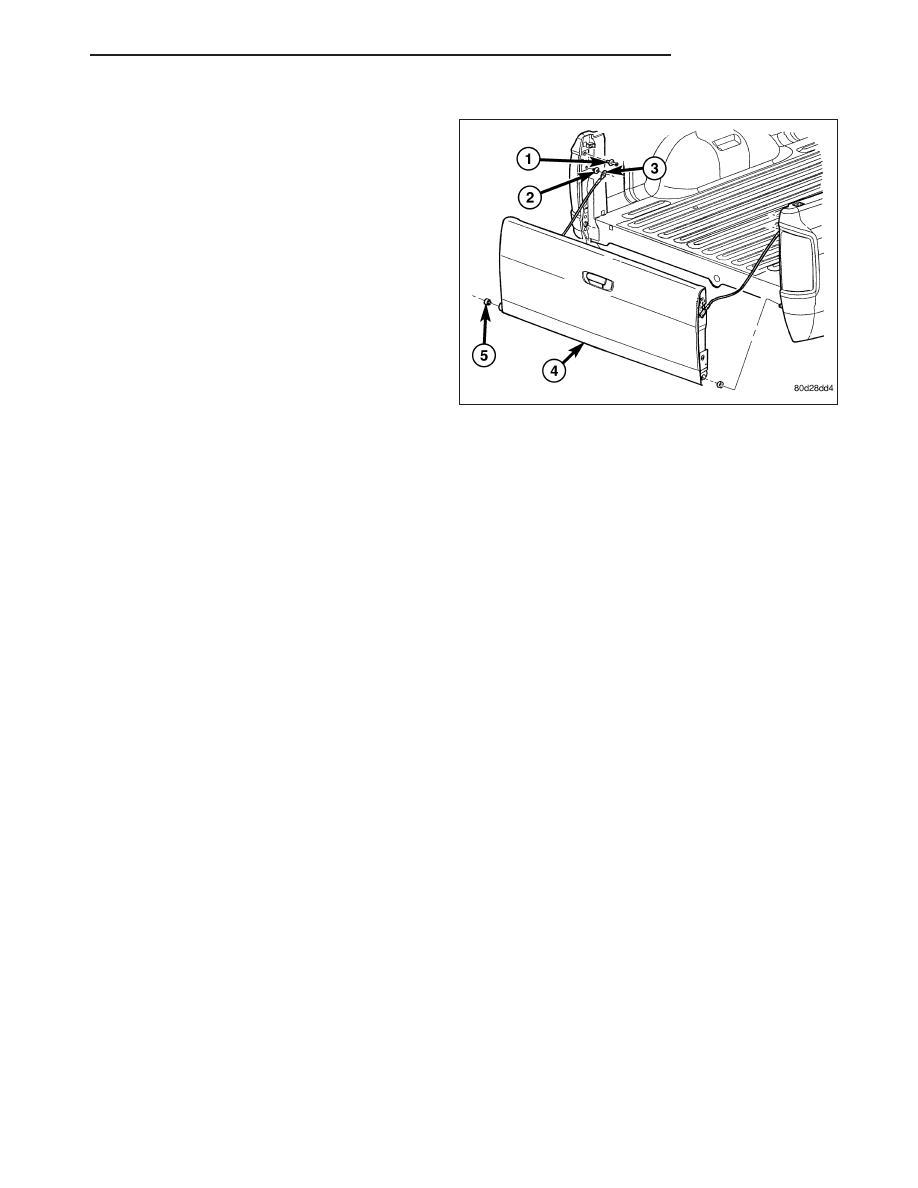

1. If removed, install the bushing (5) onto each tail-

gate hinge.

2. Position the tailgate (4) onto the left side tailgate

hinge.

3. Partially close the tailgate so that the notch in the

right side tailgate pivot aligns with the flats on the
right side tailgate hinge.

4. Lower the tailgate onto the right side tailgate hinge.

5. Connect the tailgate check cables (3) to the cable

bolts (2) located below each tailgate striker (1)
(Refer to 23 - BODY/TAILGATE/CHECK CABLE -
INSTALLATION).

ND

TAILGATE

23 - 297

BODY STRUCTURE

TABLE OF CONTENTS

page

page

GAP AND FLUSH

SPECIFICATIONS

GAP AND FLUSH

. . . . . . . . . . . . . . . . . . . . . 298

OPENING DIMENSIONS

SPECIFICATIONS

OPENING DIMENSIONS

. . . . . . . . . . . . . . . 302

SEALER LOCATIONS

SPECIFICATIONS

BODY SEALER LOCATIONS

. . . . . . . . . . . . 308

STRUCTURAL ADHESIVE LOCATIONS

SPECIFICATIONS

STRUCTURAL ADHESIVE LOCATIONS

. . . . 327

WELD LOCATIONS

SPECIFICATIONS

. . . . . . . . . . . . . . . . . . . . . . 337

GAP AND FLUSH

SPECIFICATIONS

GAP AND FLUSH

GAP & FLUSH DIMENSIONS INDEX

DESCRIPTION

FIGURE

GAP AND FLUSH - 33 ONLY

1

GAP AND FLUSH - 84 ONLY

2

GAP AND FLUSH - 33 AND 84

3

23 - 298

BODY STRUCTURE

ND

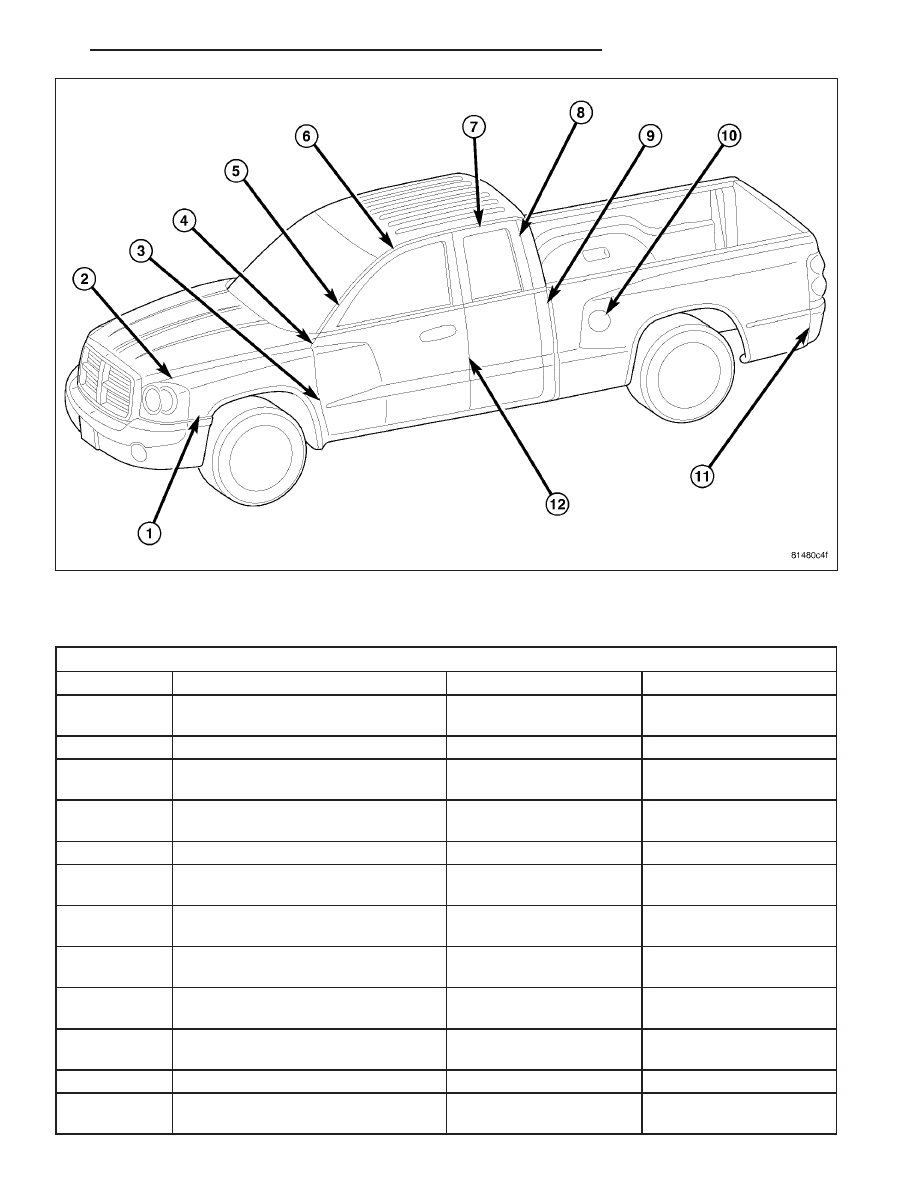

GAP AND FLUSH - CLUB CA (33) ONLY

NOTE: All measurements are in mm.

DIMENSION

DESCRIPTION

GAP

FLUSH

1

Fascia to fender

14.0 ± 4.0

Side to side within 3.0

Fascia over flush to fender

2

Hood to fender

5.0 ± 1.5

3

Fender to front door

5.0 ± 1.5

Parallel within 1.5

Overflush 5.0 ± 1.5

Parallel within 1.5

4

Hood to front door

5.0 ± 1.5

Parallel within 1.5

Overflush 5.0 ± 1.5

Parallel within 1.5

5

Front door to windshield

5.0 ± 1.5

Underflush 2.0 ± 1.5

6

Front door to roof

Overflush 6.0 ± 1.5

Parallel within 1.5

7

Cargo door to roof

Overflush 6.0 ± 1.5

Parallel within 1.5

8

Cargo door to quarter

5.5 ± 1.5

Parallel within 1.5

0.0 ± 1.5

Parallel within 1.5

9

Box outer to cab

24.5 ± 5.0

Parallel within 1.5

Underflush 3.5 ± 3.0

10

Box outer to fuel door

4.0 ± 1.5

Parallel within 1.0

Overflush 0.5 ± 1.5

Parallel within 1.5

11

Bumper to box outer

26.0 ± 4.0

12

Front door to cargo door

5.0 ± 1.5

Parallel within 1.5

0.0 ± 1.5

Parallel within 1.5

Fig. 1 GAP AND FLUSH - CLUB CAB (33) ONLY

ND

BODY STRUCTURE

23 - 299
