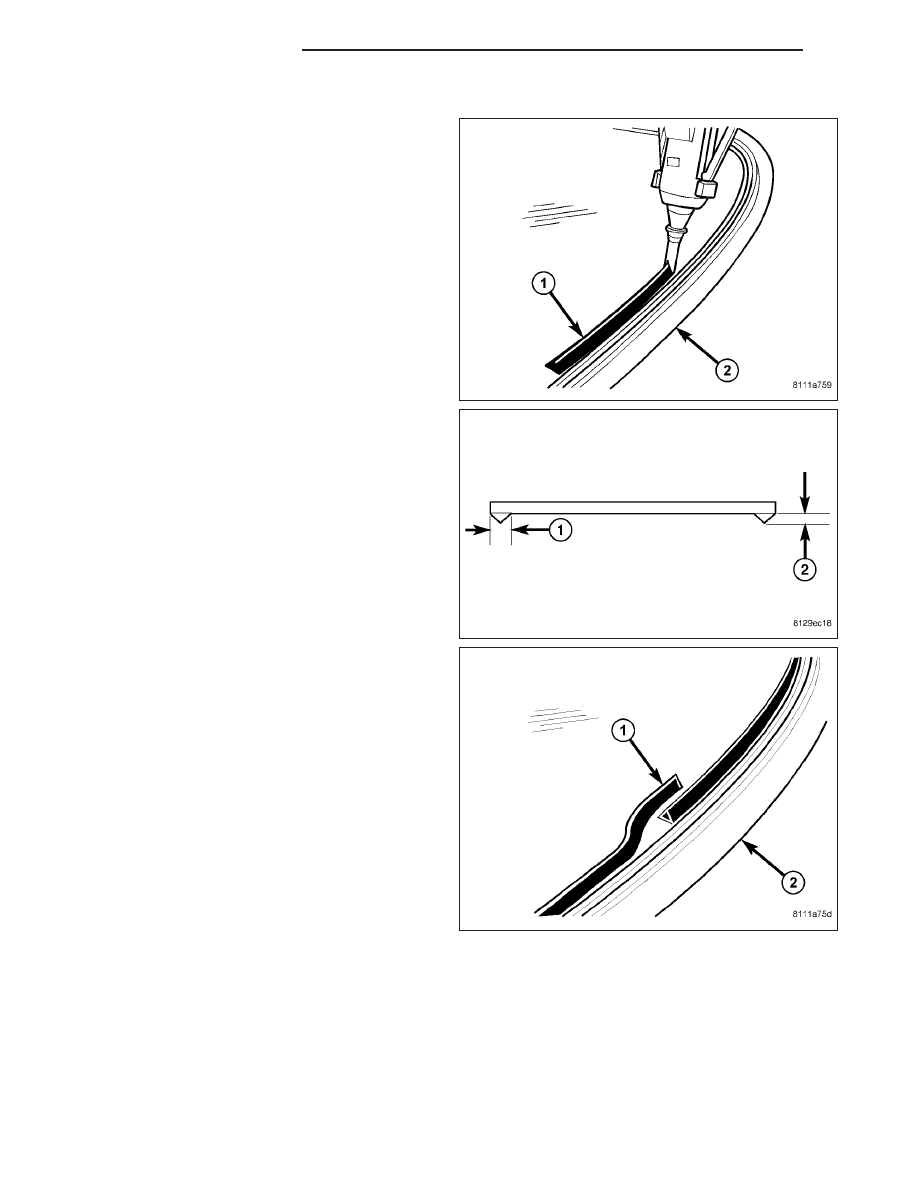

Windshield Installation 1. Apply bead of adhesive (1) with a triangular nozzle directly to the windshield seal starting at bottom in CAUTION: Always apply bead of adhesive to the 2. Bead dimensions should be approximately 9.5 - 12.0 mm wide (1) by 12.7 - 14.0 mm in height (2). 3. Allow end of adhesive bead to run out parallel to the start of the bead and smooth ends flush. 23 - 288 STATIONARY GLASS ND |
