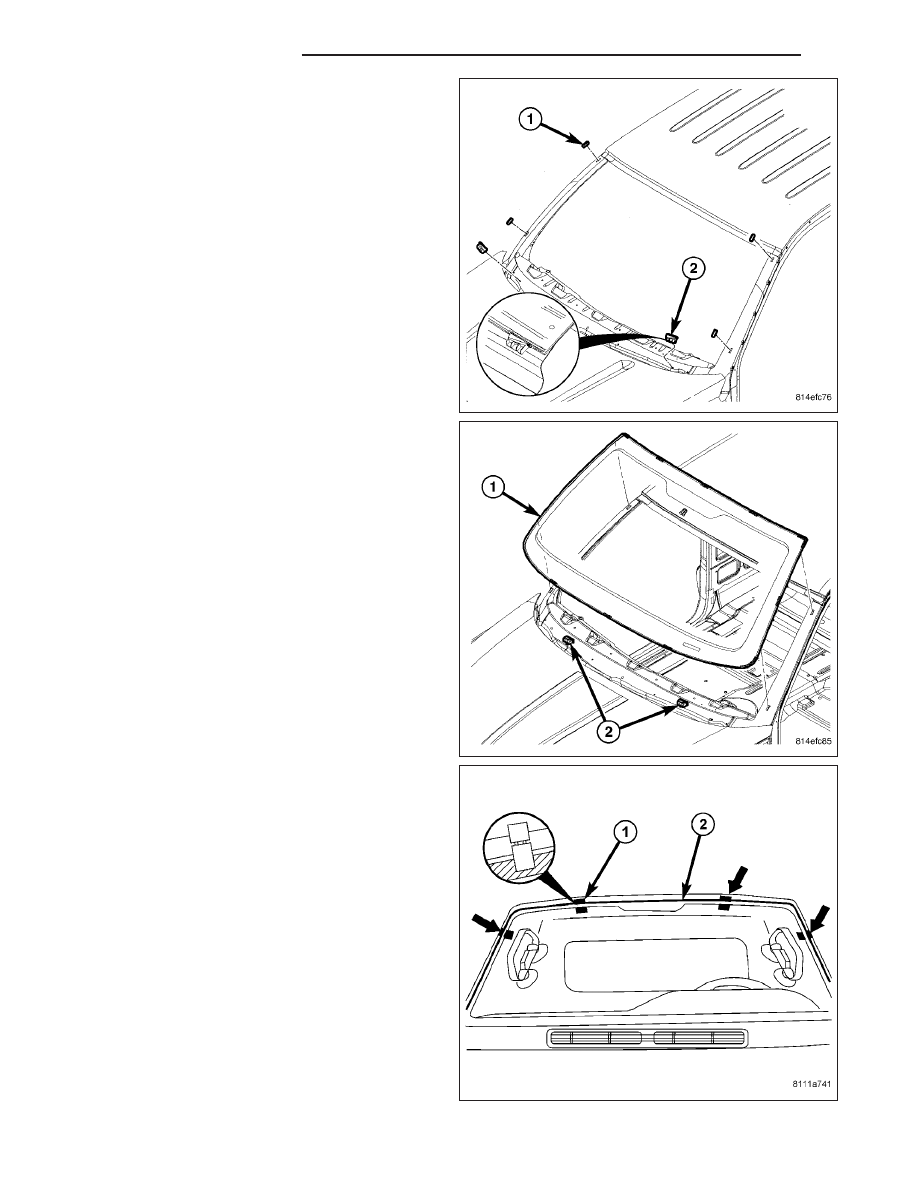

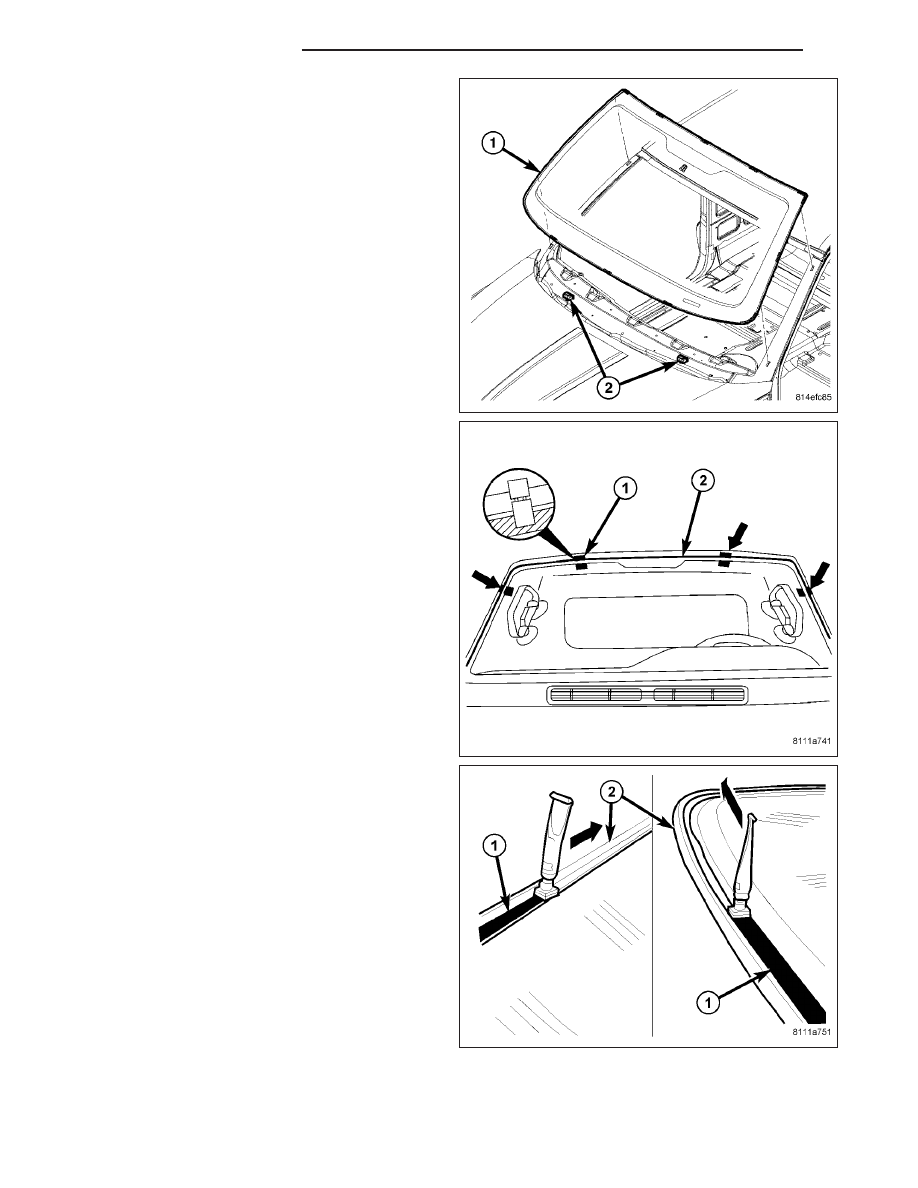

3. Apply four new spacers (1) to the a-pillars and place them evenly apart at the top and bottom. 4. Install the lower spacer assemblies (2) into the slot- ted holes and verify proper installation by pulling to NOTE: Lower spacers must be facing with the flat 5. Position windshield (1) in center of windshield opening and resting on the side and lower spacers 6. Adjust the lower spacers (2) as required, to center the windshield in the windshield opening. 7. Apply adhesive tape (1) to the locations shown to aid with final installation. 8. Verify windshield gap is parallel to with windshield. 9. Cut tape with a sharp knife and remove windshield. 23 - 284 STATIONARY GLASS ND |
