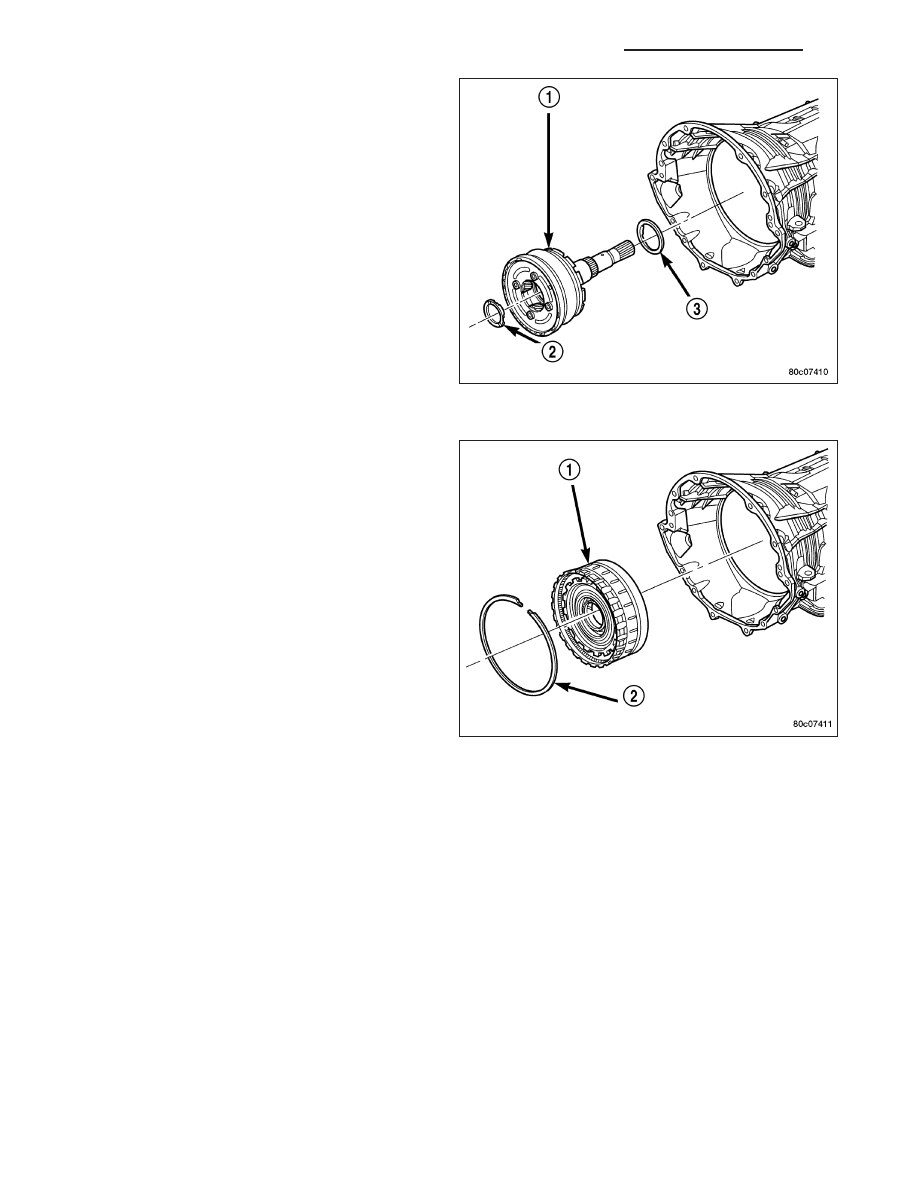

39. Remove the input/reverse planetary assembly (1). 40. Remove the number 12 thrust bearing (3) from the input/reverse planetary assembly (1). 41. Remove the snap-ring (2) holding the low/reverse clutch retainer (1) into the transmission case. 42. Remove the low/reverse clutch retainer (1) from the transmission case. 21 - 700 AUTOMATIC TRANSMISSION 545RFE - SERVICE INFORMATION ND |
