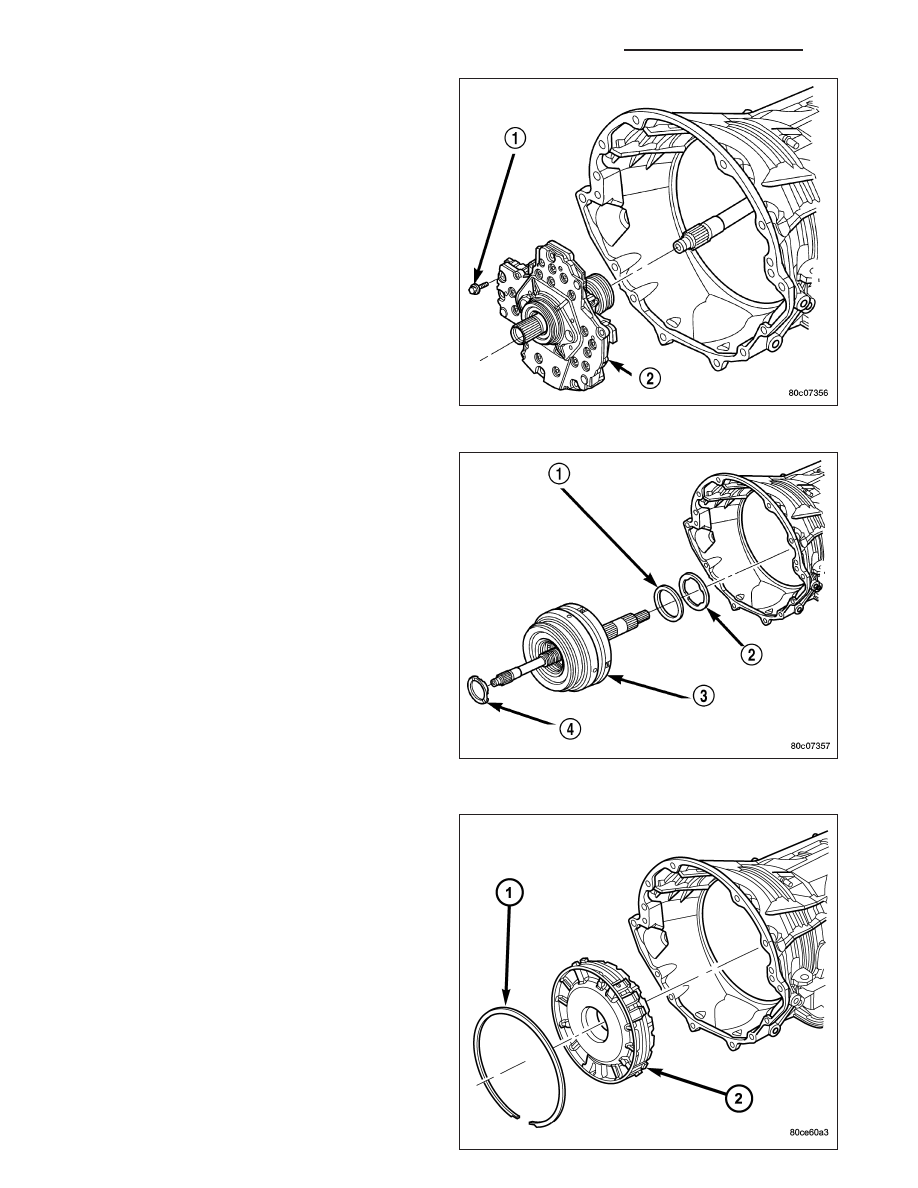

21. Remove the bolts (1) holding the oil pump into the transmission case. 22. Remove the oil pump (2). Hold inward on the input shaft to prevent pulling the input clutch CAUTION: If the input shaft is not held during oil 23. Remove the number 1 thrust bearing (4) from the input clutch assembly. 24. Remove the input clutch assembly (3) from the transmission case. 25. Remove the number 5 thrust bearing (1) and selective thrust plate (2) from the input clutch 26. Remove the 4C clutch retainer/bulkhead tapered snap-ring (1) from the transmission case. 21 - 696 AUTOMATIC TRANSMISSION 545RFE - SERVICE INFORMATION ND |
