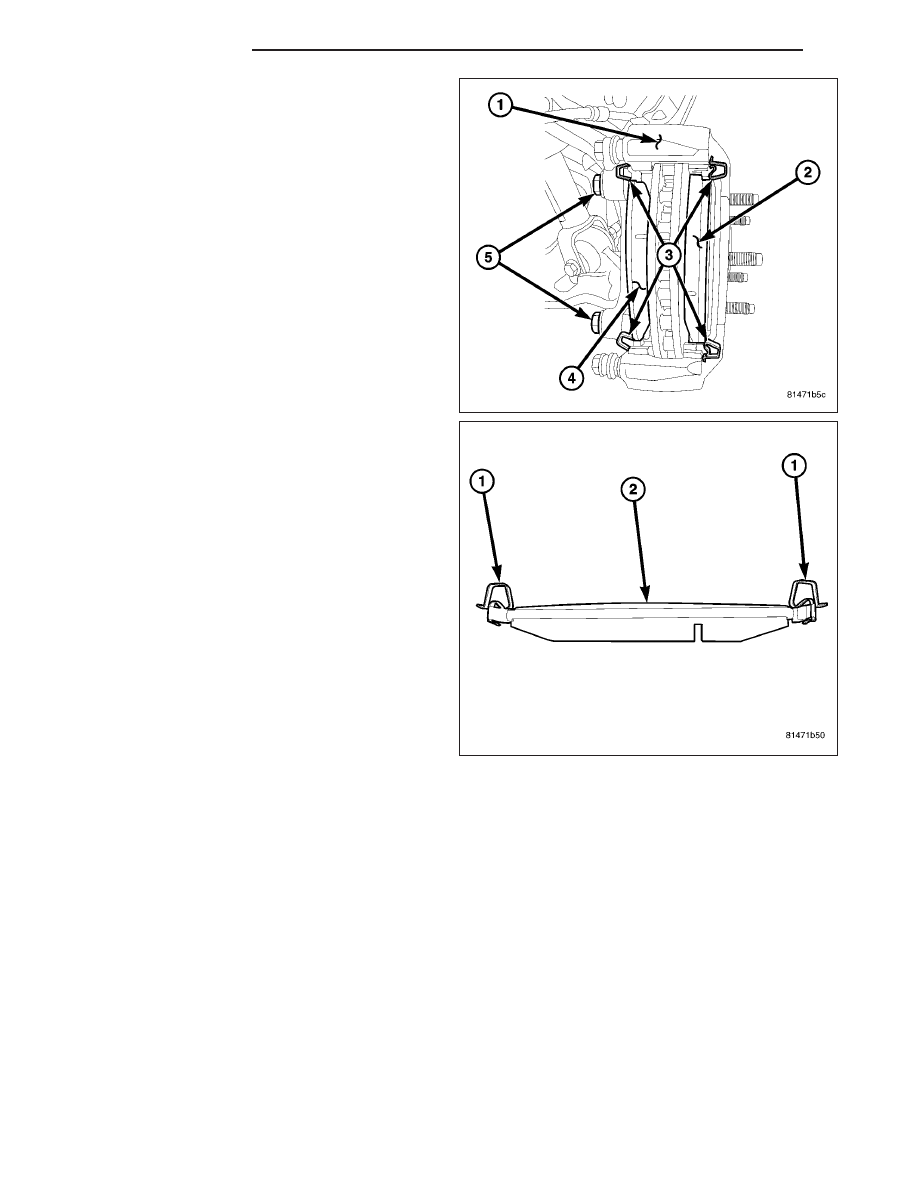

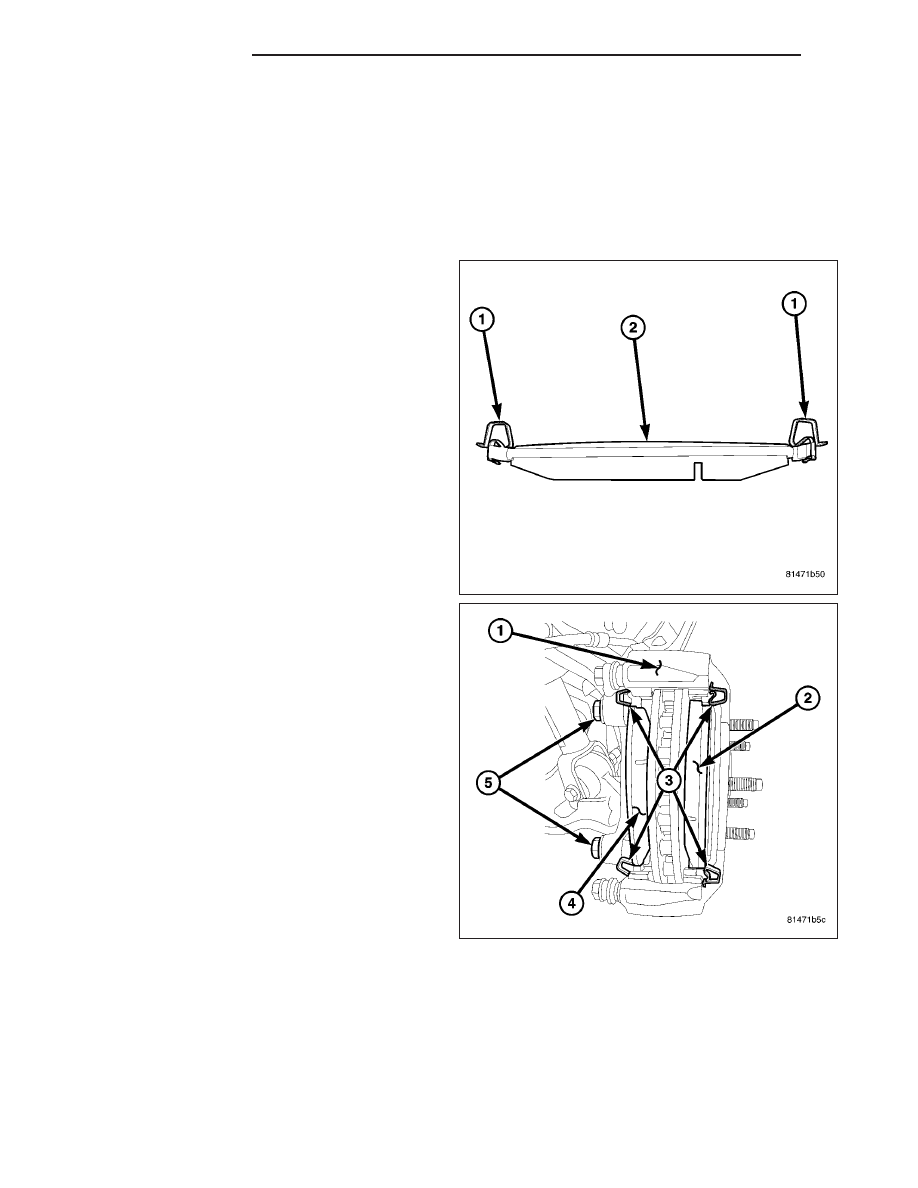

7. Remove the inboard brake pad (4) from the caliper adapter (1). 8. Remove the outboard brake pad (2) from the cali- per adapter (1). 9. Remove the anti-rattle clips (1) from the pad (2). REAR BRAKE SHOES 1. Raise and support vehicle. 2. Remove wheel and tire assembly. 3. Remove clip nuts securing brake drum to wheel studs. 4. Remove drum. If drum is difficult to remove, remove rear plug from access hole in support plate. Back-off self adjusting by inserting a thin screwdriver into access hole and push lever away from adjuster star wheel. Then 5. Vacuum brake components to remove brake lining dust. 5 - 18 BRAKES - BASE ND |
