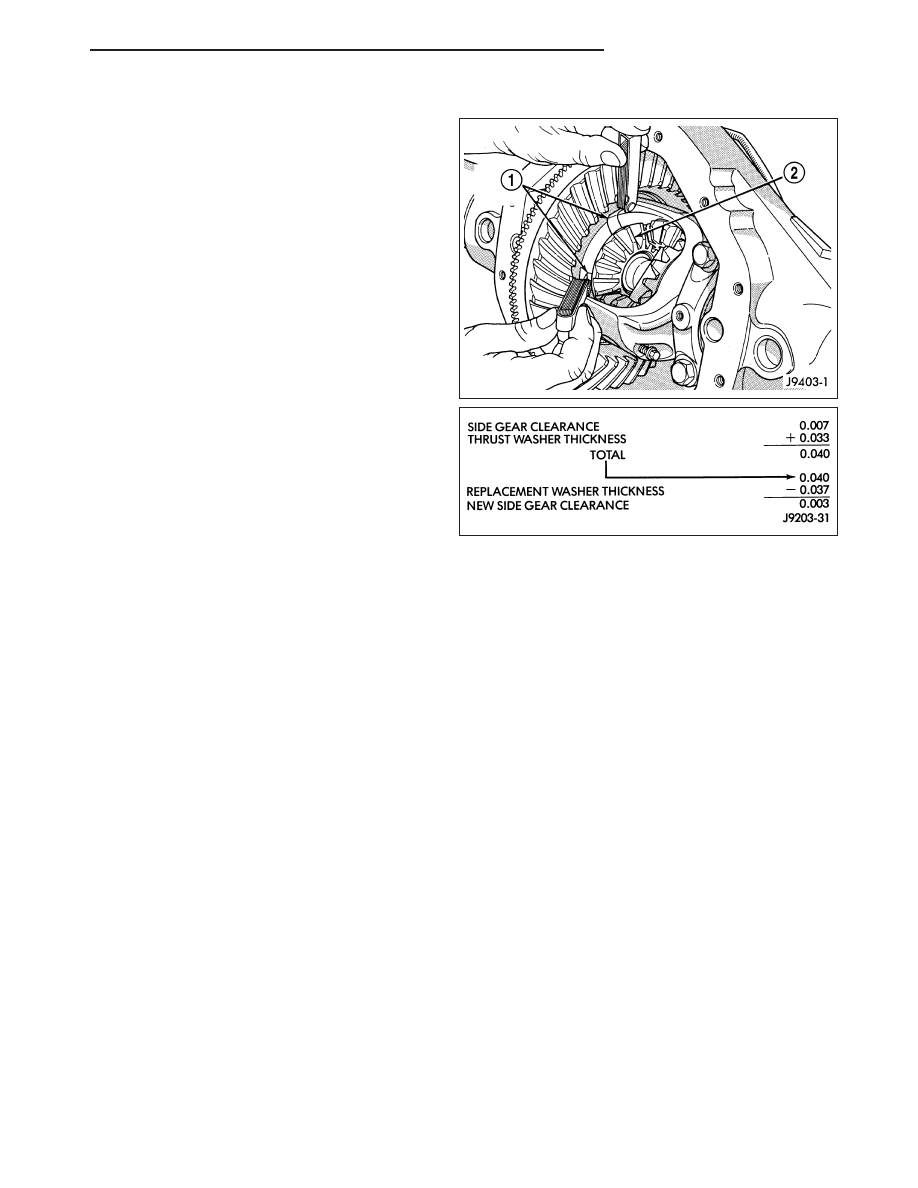

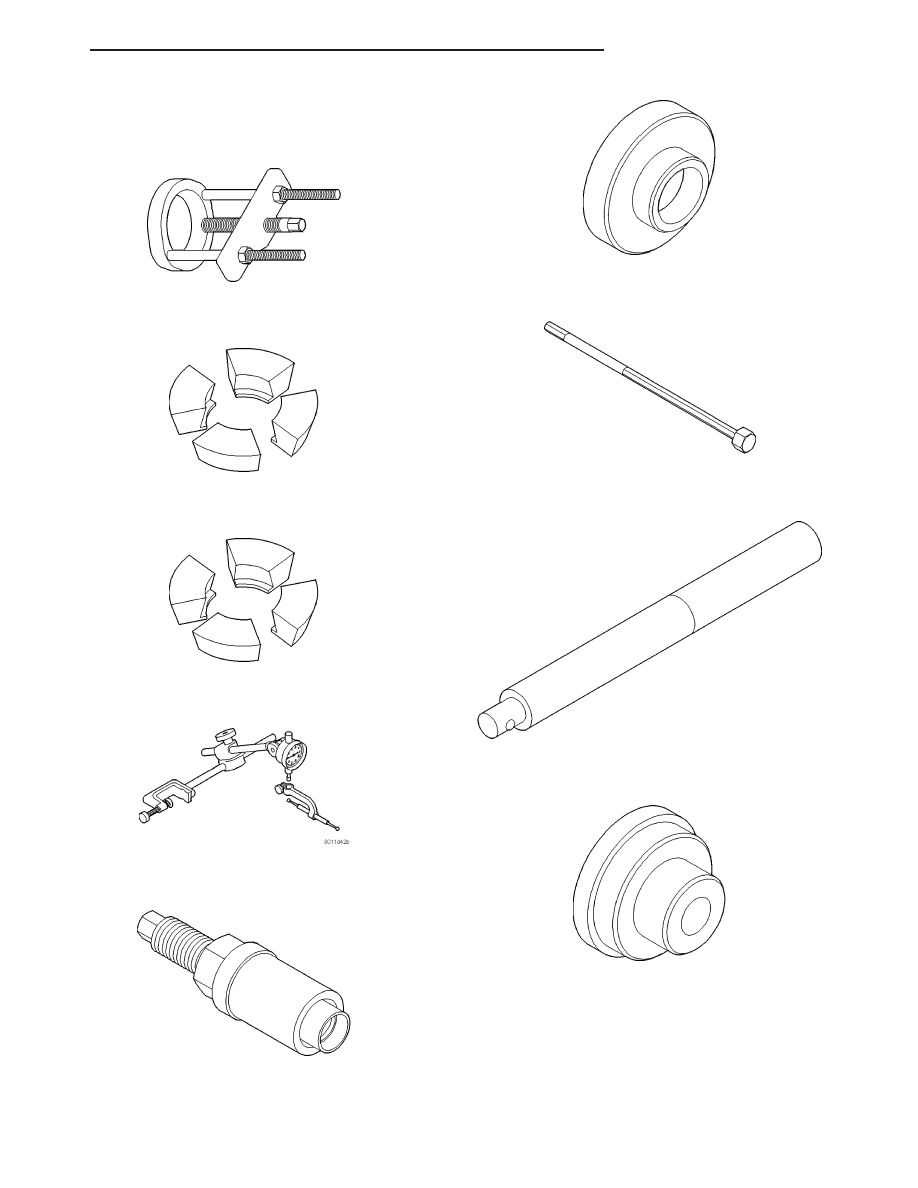

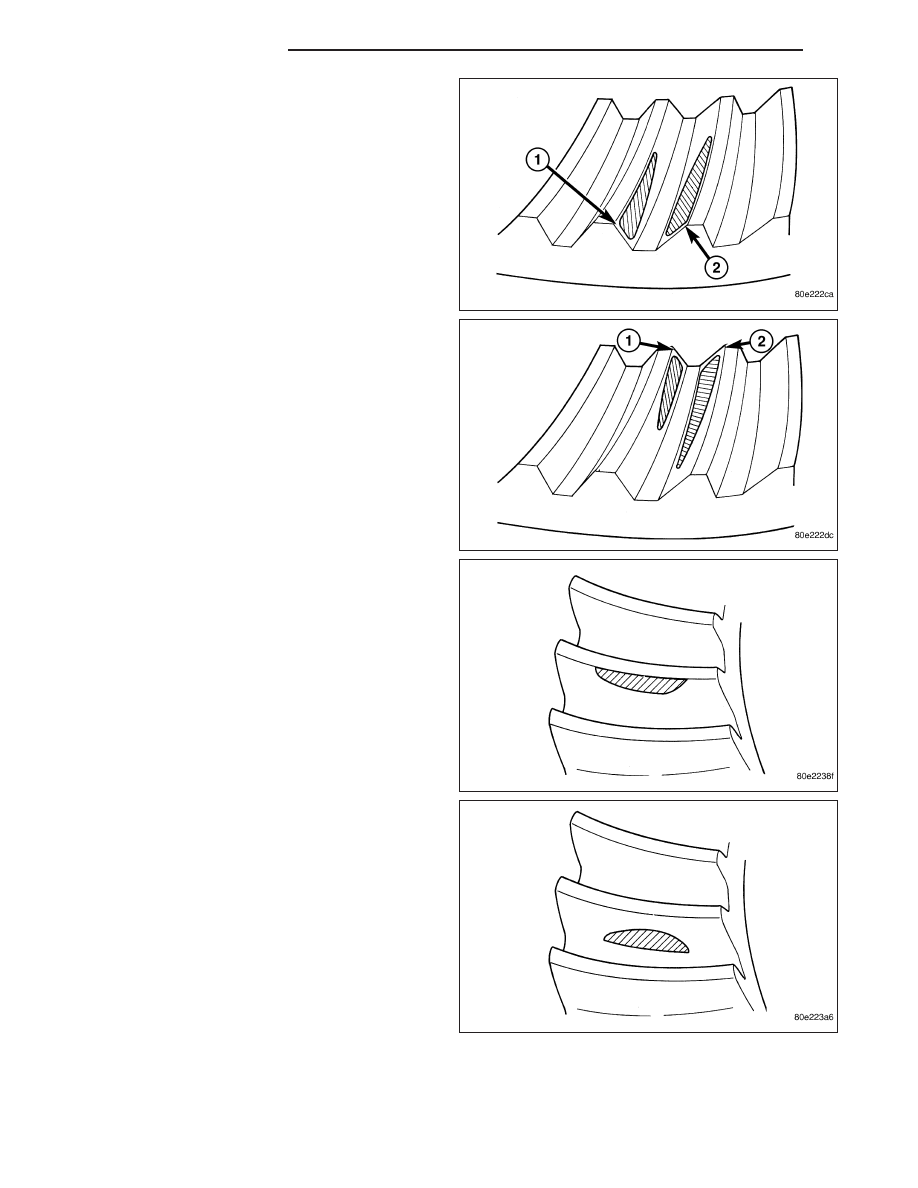

Ring gear is too far away from the pinion gear, drive
side heel (1) coast side heel (2). Decrease backlash
by moving ring gear closer to the pinion gear using
the adjusters.
Ring gear is too close to the pinion gear, drive side
toe (1) coast side toe (2). Increase backlash by mov-
ing ring gear away from the pinion gear using the
adjusters.
Pinion gear is set too low. Increase pinion gear height,
by increasing pinion depth shim thickness.
Pinion gear is set too high. Decrease pinion height by
decreasing the pinion depth shim thickness.
