INTERMITTENT WINDSHIELD WIPER MOTOR AND SWITCH SERVICE

PROCEDURES

INDEX

page

Intermittent Windshield Wiper Switch Tests

. . . . . 12

Intermittent Wipe Switch Test

. . . . . . . . . . . . . . . 14

Intermittent Wiper Function Tests

. . . . . . . . . . . . 14

Intermittent Wiper Motor System Test

. . . . . . . . . 12

Pulse Intermittent Windshield Wiper Controller

(PIWWC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Standard Wiper Switch Test

. . . . . . . . . . . . . . . . 14

Wiper Switch Service Procedure

. . . . . . . . . . . . . 15

INTERMITTENT WIPER MOTOR SYSTEM TEST

Intermittent Wiper Motor Service Procedures for

diagnosis of problems which do not involve the delay
function, refer to the Two-Speed Motor Function
Tests. The two-speed functions of all wiper motors
are identical.

If a problem occurs, only in the DELAY mode, the

following tests are to be performed.

INTERMITTENT WINDSHIELD WIPER SWITCH
TESTS

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAG, SEE GROUP 8M, RESTRAINT SYSTEMS FOR
STEERING WHEEL OR COLUMN REMOVAL PROCE-
DURES.

The intermittent wipe function on AC, AG, AJ and

AY vehicles is controlled by the body controller, lo-
cated in the passenger compartment behind the right
side kick panel (Fig. 22). If the body controller is de-
termined to be the problem, refer to Group 8E, In-
strument

Panels

and

Gauges,

for

replacement

procedures.

CONDITION: WIPERS DO NOT COME ON
WHEN THE SWITCH IS IN DELAY POSITION

PROCEDURE

(1) Disconnect 25-way connector (blue) from the

body controller.

(2) Place wiper control switch in maximum DE-

LAY position.

(3) Connect positive lead of voltmeter to pin 9 of

connector (blue) and negative lead to the good
ground.

(a) If voltmeter reads 0, check control switch and

wiring for an open circuit.

(b) If voltmeter reads 10 to 15 volts, proceed to

step 4.
(4) Connect positive lead of voltmeter to pin 22 of

blue connector and negative lead to a good ground.

(a) If voltmeter reads 0, check fuses and wiring

for an open circuit.

(b) If voltmeter reads 10 to 15 volts, reconnect

body controller and proceed to step 5.
(5) Connect positive lead of voltmeter to pin 24 of

blue connector and negative lead to the metal case of
the body controller. Disconnect wiring harness from
wiper motor. Set control switch to the minimum de-
lay mode.

(a) If voltmeter reads 0, check wiring from the

intermittent wipe switch to body controller for an
open circuit.

(b) If voltmeter reads 10 to 15 volts, proceed to

step 6.
(6) Connect voltmeter to pin L of the Intermittent

wiper switch. Place intermittent wiper switch in the
Max. Delay position.

(a) If voltmeter reads zero volts, change the in-

termittent wiper switch.

(b) If voltmeter reads 10-15 volts, check the wir-

ing harness from the intermittent wiper switch to
the wiper motor for an open circuit.
(7) If all tests above have been performed and the

problem was not found, replace the body controller.

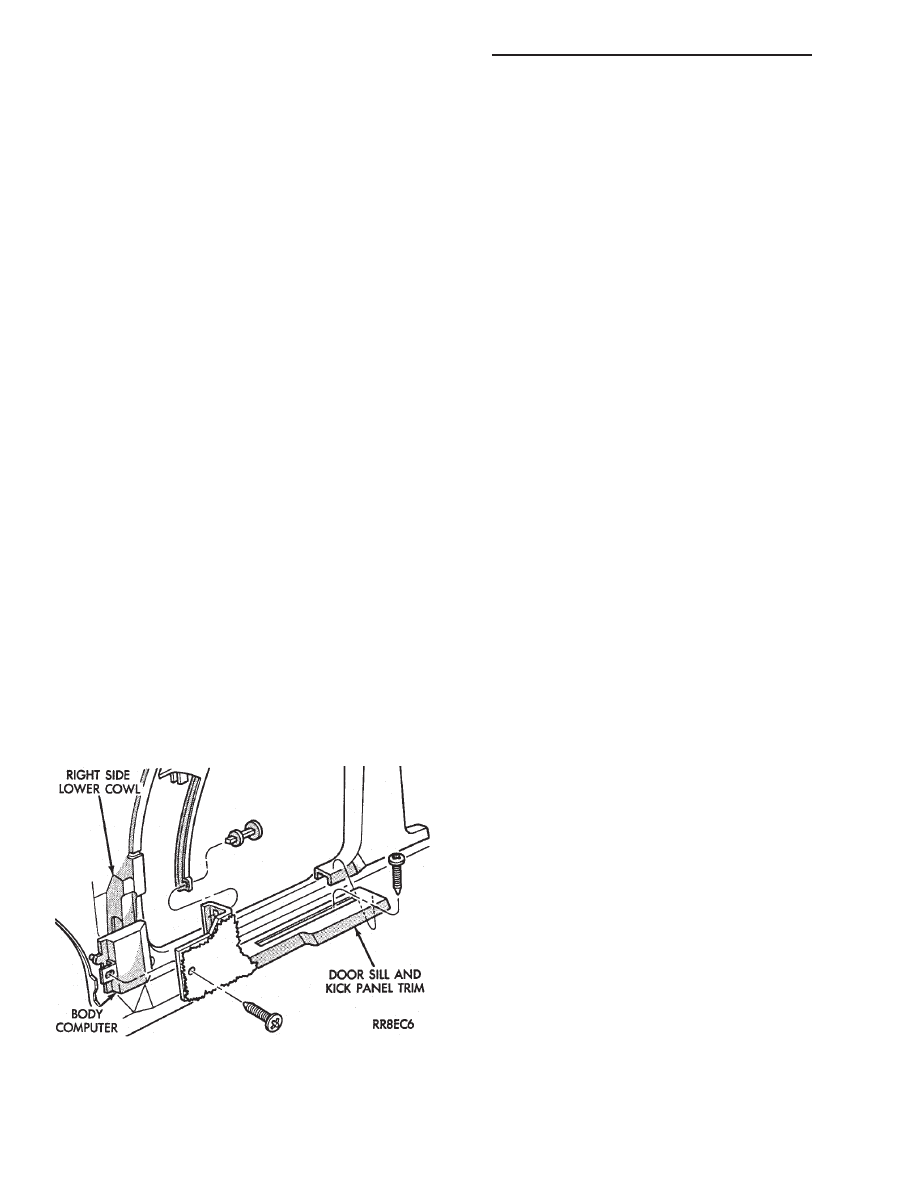

Fig. 22 Body Controller Location

8K - 12

WINDSHIELD WIPER AND WASHER SYSTEMS

CONDITION: WIPERS START TO WIPE, BUT
STOP BEFORE ONE COMPLETE CYCLE AND
DO NOT RETURN TO PARK POSITION

PROCEDURE

(1) Verify that motor will park when the column

switch is put in the OFF position.

(2) Set wiper control switch to maximum DELAY

and allow motor to run until it stops during the wipe
cycle. When motor stops, disconnect 25-way blue con-
nector from the body controller.

(3) Connect positive lead of voltmeter to pin 20 of

blue connector and negative lead to the metal case of
the body controller.

(a) If voltmeter reads 0, check wiring for an open

circuit.

(b) If voltmeter reads 10 to 15 volts, proceed to

step 4.
(4) Using an ohmmeter or continuity tester;

(a) Check for continuity between pins 20 and 24

of blue connector of the body controller.

(b) Reverse ohmmeter leads on pins 20 and 24,

again checking for continuity.

observed in both steps a and b, replace the body
controller.

CONDITION: EXCESSIVE DELAY OF MORE
THAN 30 SECONDS OR INADEQUATE
VARIATION IN DELAY

PROCEDURE

(1) Variations in delay should be as follows:

(a) Minimum delay control to extreme counter-

clockwise position before first detent of 1/2 to 2 sec-
onds.

(b) Maximum delay control to extreme clockwise

position before OFF detent of 15 to 25 seconds.
(2) If there is excessive delay or no variations in

delay, remove the wiper motor wiring harness while
the motor is parked in the OFF position.

(3) Remove 25-way blue connector from the body

controller.

(4) Set wiper control switch to maximum DELAY

position.

(5) With ignition switch in ON position, measure

voltage between pin 9 of black connector and a good
ground.

(a) If voltmeter reads 0, proceed to step 6.
(b) If voltmeter reads 10 to 15 volts, proceed to

step 7.
(6) Set wiper control switch to minimum DELAY

position and measure voltage between pin 9 of blue
connector and a good ground. If voltmeter reads 0,
check for an open circuit in the intermittent wipe
wiring harness.

(7) Remove wiper motor circuit fuse.

(8) Using an ohmmeter, measure the resistance be-

tween pins 9 and 22 of the body controller 25-way
black connector. Set the wiper control switch first to
minimum DELAY and then maximum DELAY.

(a) If resistance reading at minimum DELAY

setting is between 0 and 15 ohms, and at maxi-
mum DELAY setting the resistance is between
240,000 and 400,000 ohms, replace the body con-
troller.

(b) If the resistance values above are not ob-

tained, replace the wiper control switch.

CONDITION: WIPERS DO NOT RUN
CONTINUALLY WHEN WASH CONTROL IS
OPERATED DURING DELAY MODE

PROCEDURE

(1) Disconnect 25-way blue connector from the

body controller

(2) Using a voltmeter, connect the positive lead to

pin 10 of the (Black) connector. Connect negative
lead to the body computer metal case.

(3) Set wiper control switch to DELAY position.
(4) Depress wash switch.
(5) If voltage reads 0, check switch relay and wir-

ing.

(6) If voltage is between 10 and 15 volts, the prob-

lem is in the body controller.

CONDITION: IN DELAY MODE, WIPERS RUN
CONTINUALLY WHEN WASH IS OPERATED
BUT DO NOT PROVIDE FOUR EXTRA WIPES
WHEN WASH CONTROL IS RELEASED

PROCEDURE

Replace body controller.

CONDITION: WIPERS START ERRATICALLY
DURING DELAY MODE

PROCEDURE

(1) Verify that the ground connection at the in-

strument panel is making a good connection, free
from paint and is tight.

(2) Verify that the motor ground strap is making

good contact and that the motor mounting bolts are
tight.

(3) Verify that the wiring connections to the body

controller, wiper motor, and wiper motor switch are
tight and free of corrosion.

(4) If condition is not corrected, problem is with

the body controller

WINDSHIELD WIPER AND WASHER SYSTEMS

8K - 13

INTERMITTENT WIPER FUNCTION TESTS

CONDITION: EXCESSIVE DELAY OF MORE
THAN 30 SECONDS OR INADEQUATE
VARIATION IN DELAY

PROCEDURE

Variations in delay should be as follows:
(1) Minimum delay control to extreme counter-

clockwise position before first detent of one half to
two seconds.

(2) Maximum delay control to extreme clockwise

position before off detent of ten to thirty seconds.

(3) If there is excessive delay or no variations in

delay proceed to intermittent wipe switch test.

CONDITION: IN DELAY MODE WIPERS RUN
CONTINUALLY WHEN WASH IS OPERATED
BUT DO NOT PROVIDE AN EXTRA WIPE
WHEN THE WASH CONTROL IS RELEASED

PROCEDURE

Replace the control unit.

CONDITION: WIPERS START ERRATICALLY
DURING DELAY MODE

PROCEDURE

(1) Verify that the ground connection at the in-

strument panel is making good connection, free from
paint and is tight.

(2) Verify that the motor ground strap is making

good contact and that the motor mounting bolts are
tight.

(3) Verify that the wiring ground connections for

the intermittent wipe control unit and the wiper
switch are tight.

(4) If condition is not corrected, replace control

unit.

STANDARD WIPER SWITCH TEST

AP BODY

To test the switch, first disconnect the switch wires

from the body wiring in the steering column. Using
an ohmmeter, test for continuity between the termi-
nals of the switch, as indicated in the following con-
tinuity chart. The identity of each terminal is shown
in Fig. 23.

INTERMITTENT WIPE SWITCH TEST

AC AND AY BODIES

To test the switch, first disconnect the switch wires

For test purposes, the first position is the OFF po-

sition, next is the slide for the DELAY wipe. LOW is
the next detent position and HIGH is the full coun-
terclockwise detent position.

In any wiper mode, if the knob is pushed all the

way in, the washer circuit will be completed.

AG AND AJ BODIES

To test the switch, remove switch pod from instru-

ment panel. Using an ohmmeter, test for continuity
between the terminals of the switch, as indicated in
the following continuity chart (Fig. 25).

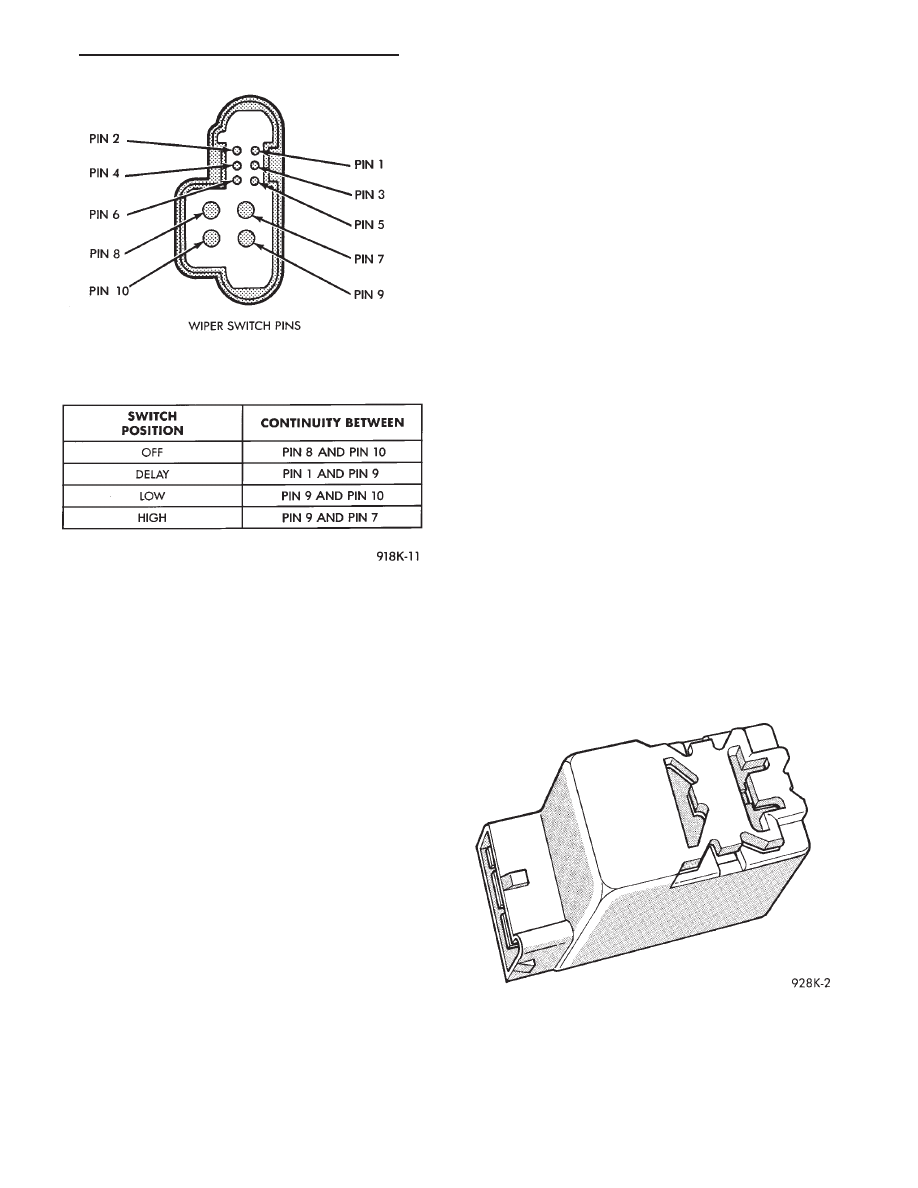

Fig. 23 Standard 2-Speed Wiper Switch Test

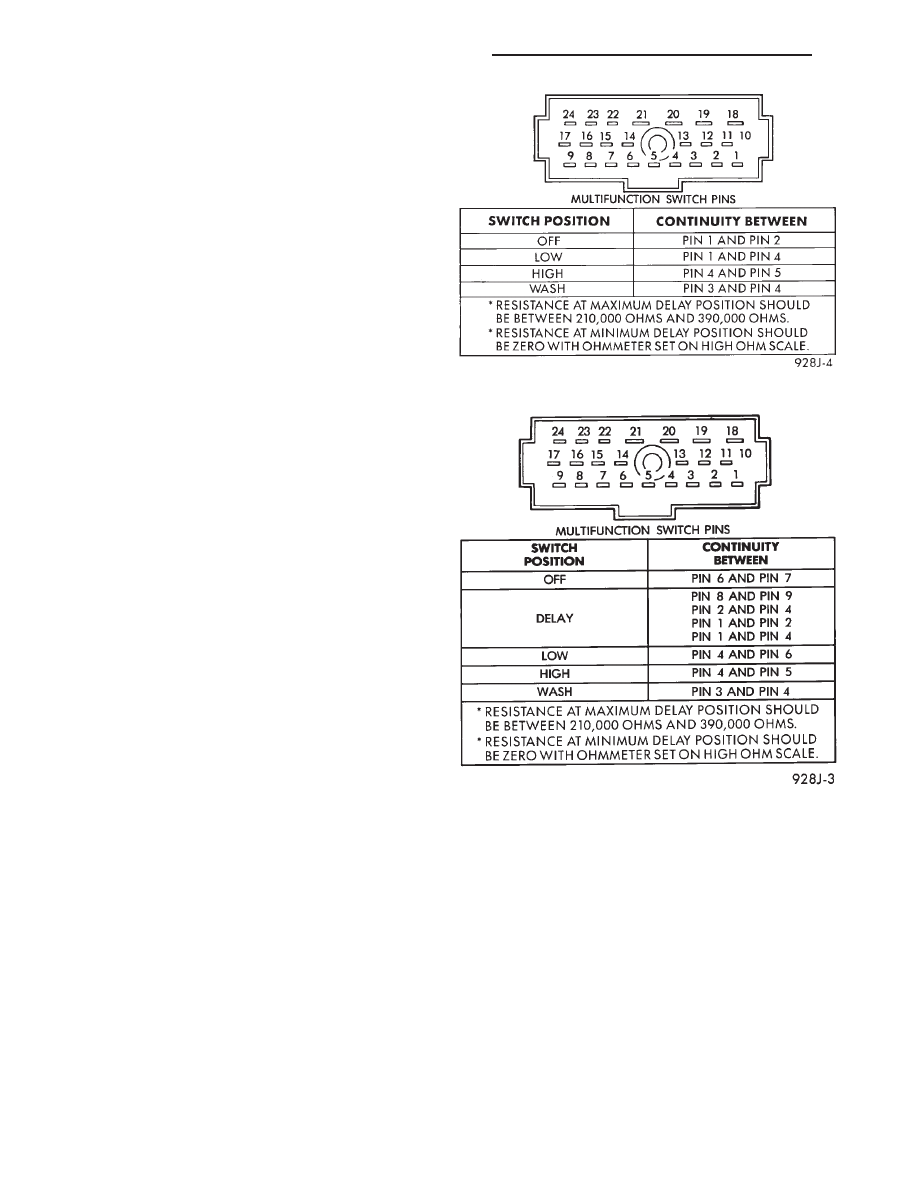

Fig. 24 Multi-Function Switch Connector and

Intermittent Wipe Continuity

8K - 14

WINDSHIELD WIPER AND WASHER SYSTEMS

WIPER SWITCH SERVICE PROCEDURE

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAG, SEE GROUP 8M, RESTRAINT SYSTEMS FOR
STEERING WHEEL OR COLUMN REMOVAL PROCE-
DURES.

AC AND AY BODIES

The wiper switch is part of the multi-function

switch assembly. If the wiper switch fails, the multi-
function switch must be replaced. Refer to Group 8J,
Turn Signals and Hazard Warning Flasher for multi-
function switch service procedure.

AG AND AJ BODIES

REMOVAL

(1) Remove switch pod assembly from instrument

panel.

(2) Remove five inner switch pod panel.
(3) Unhook switch linkage from buttons.
(4) Remove switch mounting screws.
(5) Remove switch.

INSTALLATION

(1) Latch switch linkage in the up position.
(2) Insert switch into switch pod and install

mounting screws.

(3) Unlatch linkage and install onto push buttons.
(4) Operate all switch modes for correct operation.
(5) Reinstall five inner switch pod panel screws.
(6) Reinstall switch pod assembly.

PULSE INTERMITTENT WINDSHIELD WIPER
CONTROLLER (PIWWC)

The controller is a part of the washing and wiper

system which includes:
• Pulse intermittent windshield wiper controller

• Wiper blades and arms

• Wiper motor

• Windshield washer reservoir

• Wiring harness

• Windshield washer pump

• Windshield washer hoses

Any part not working properly could cause, the

whole system not to work properly or at all. If the
system is not working proper, check all parts before
taking any action of part replacements.

The controller controls the pulse/wipe and the inter-

mittent modes only. The time delay in the intermittent
wipe mode is a minimum of 45 to a maximum of 25 sec-
onds depending on the switch setting.

The wash function can be turn ON with the wiper

control switch in the OFF position. Pressing the
wash button on the end of the level will operate the
washer pump until released. The wipers will operate
while the pump is operating and continue for about
three addition wipes (

61) after before parking.

AA BODY

The PIWWC (Fig. 26) is attached to a bracket lo-

cated to the right of the steering column behind the
steering column cover (Fig. 27).

AP BODY

The PIWWC is attached to a bracket located to the

right of the steering column behind the steering col-
umn cover (Fig. 28).

Fig. 25 Front Wiper Continuity—AG and AJ Bodies

Fig. 26 Pulse Intermittent Windshield Wiper

Controller (PIWWC)

WINDSHIELD WIPER AND WASHER SYSTEMS

8K - 15

Content .. 330 331 332 333 ..
