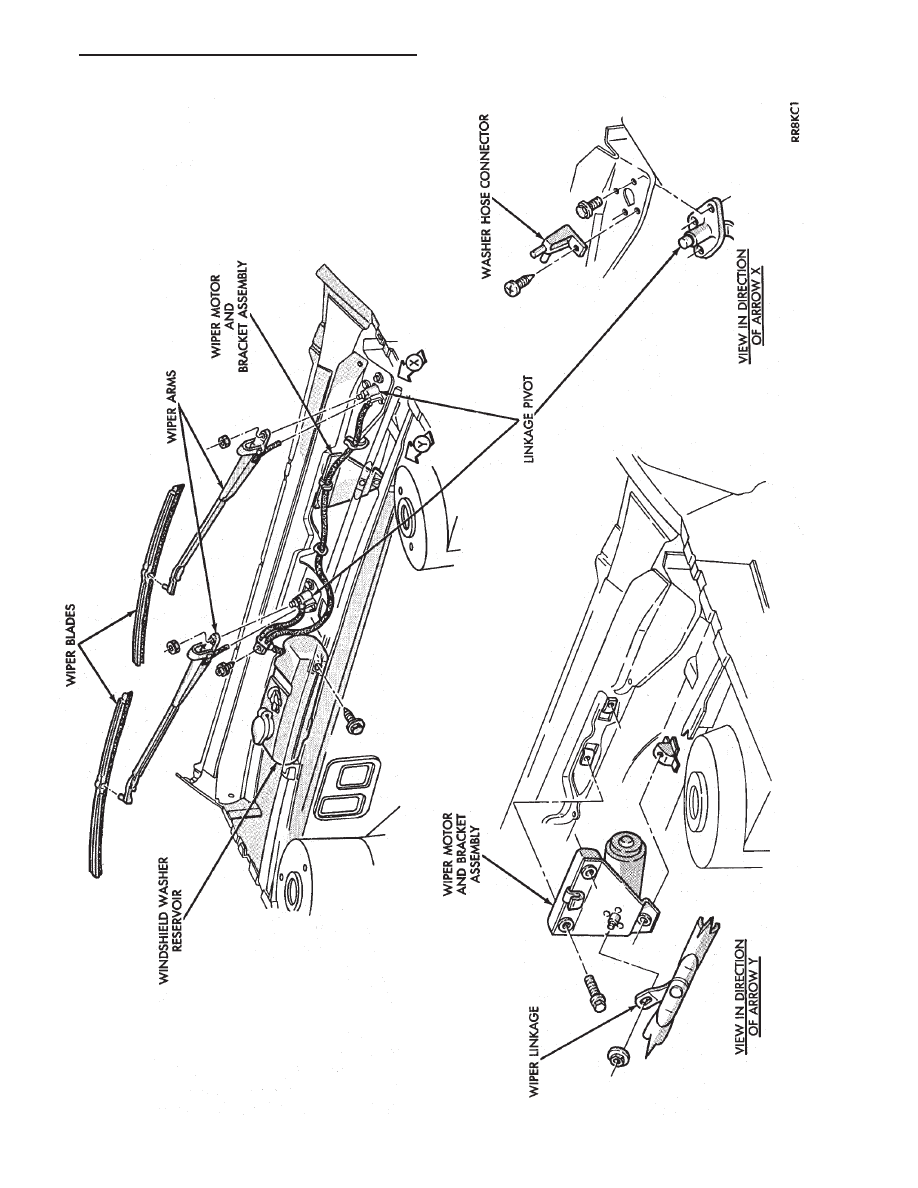

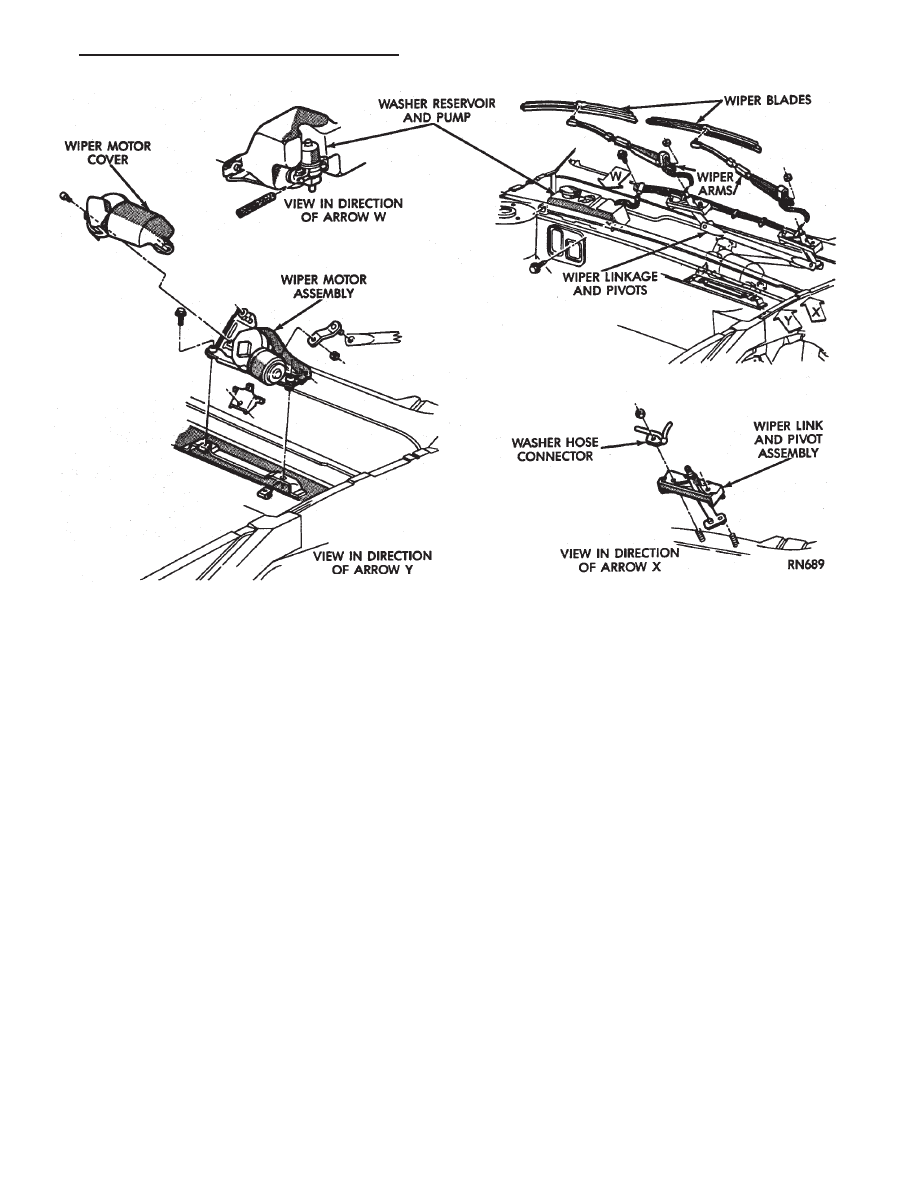

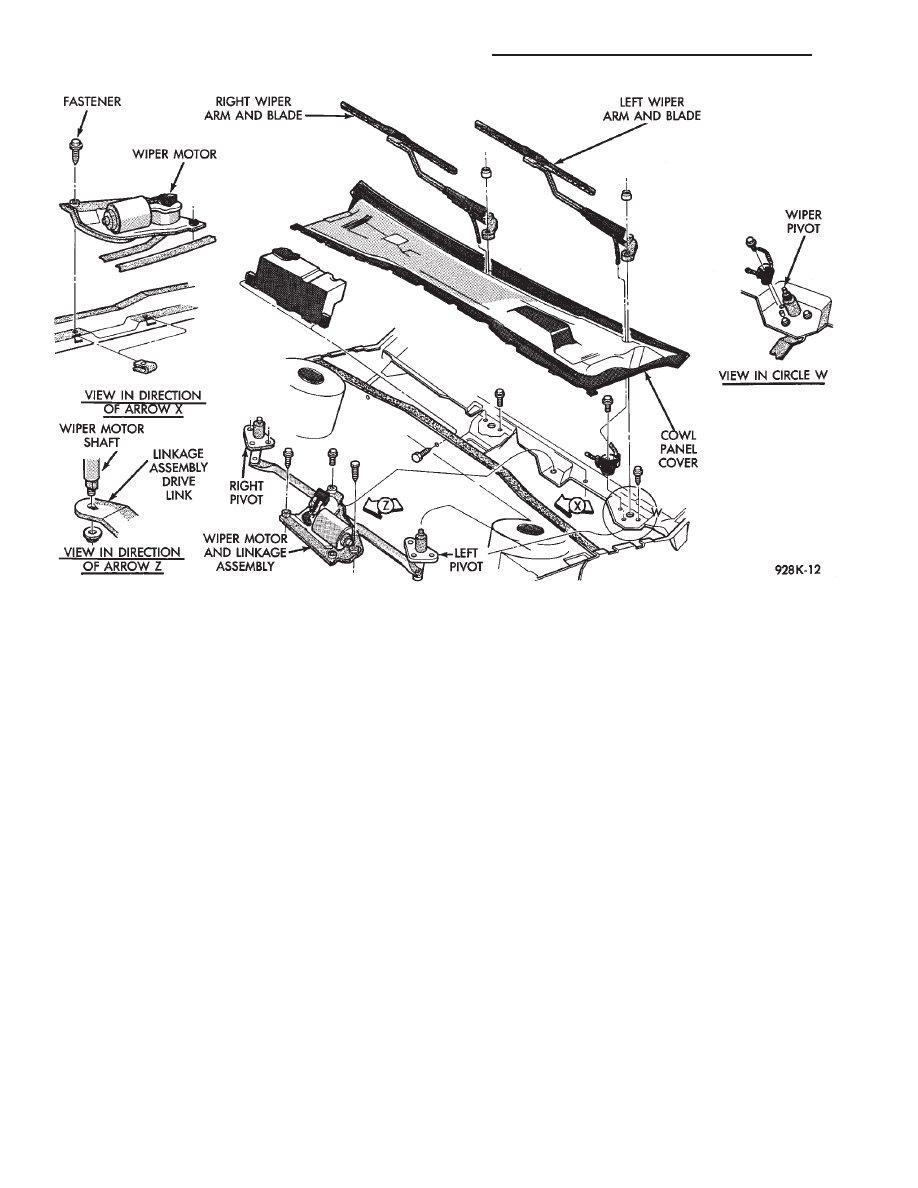

(4) Remove the cowl top plastic screen. harness. (7) Remove three motor mounting nuts. motor out until it clears the mounting studs. Then (9) Clamp motor crank in a vise and remove nut from end of motor shaft. Do not rotate motor output INSTALLATION (1) Assemble linkage to motor. Make sure crank fits over D slot on motor shaft. Tighten mounting nut to 10 Im (90 to 100 in. lbs.) torque. Be sure motor is still in park position before assembling to linkage, if (2) Place left pivot and link into plenum chamber. (a) Slide it all the way to the left or outboard side until motor clears studs and crank is behind sheet (b) Push right pivot and link through opening. studs. to 8 N Im (60 70 in. lbs.) torque. (4) Position pivots and install pivot screws and tighten 7 to 8 N Im (60 to 70 in. lbs.) torque. (5) Connect wiring to motor. Im (35 in. lbs.) torque. (7) Attach reservoir hose to T-connector through hole provided in cowl screen. (8) Use plastic fasteners to install cowl screen. Arm Adjustment. Connect arm washer hoses to REAR WIPER MOTOR ASSEMBLY—AG BODY REMOVAL (1) Remove arm and blade assembly, refer to Arm and Blade Removal. (2) Unlock and open liftgate. (6) Remove two screws fastening bracket to liftgate (Fig. 18). (7) Remove motor from liftgate. INSTALLATION (1) Install new grommet in liftgate glass. screws. Tighten screws 7 to 8 N Im (60 to 70 in. lbs.) torque. (3) Connect feed wires to motor. fer to Arm Assembly. Tighten nut 17 to 19 N Im (150 to 170 in. lbs.) torque. WIPER MOTOR AND LINKAGE ASSEMBLY—AA, REMOVAL (1) Open hood assembly. Fig. 17 Liftgate Wiper Grommet Fig. 18 Liftgate Wiper Motor—AG Body 8K - 8 WINDSHIELD WIPER AND WASHER SYSTEMS Ä |
