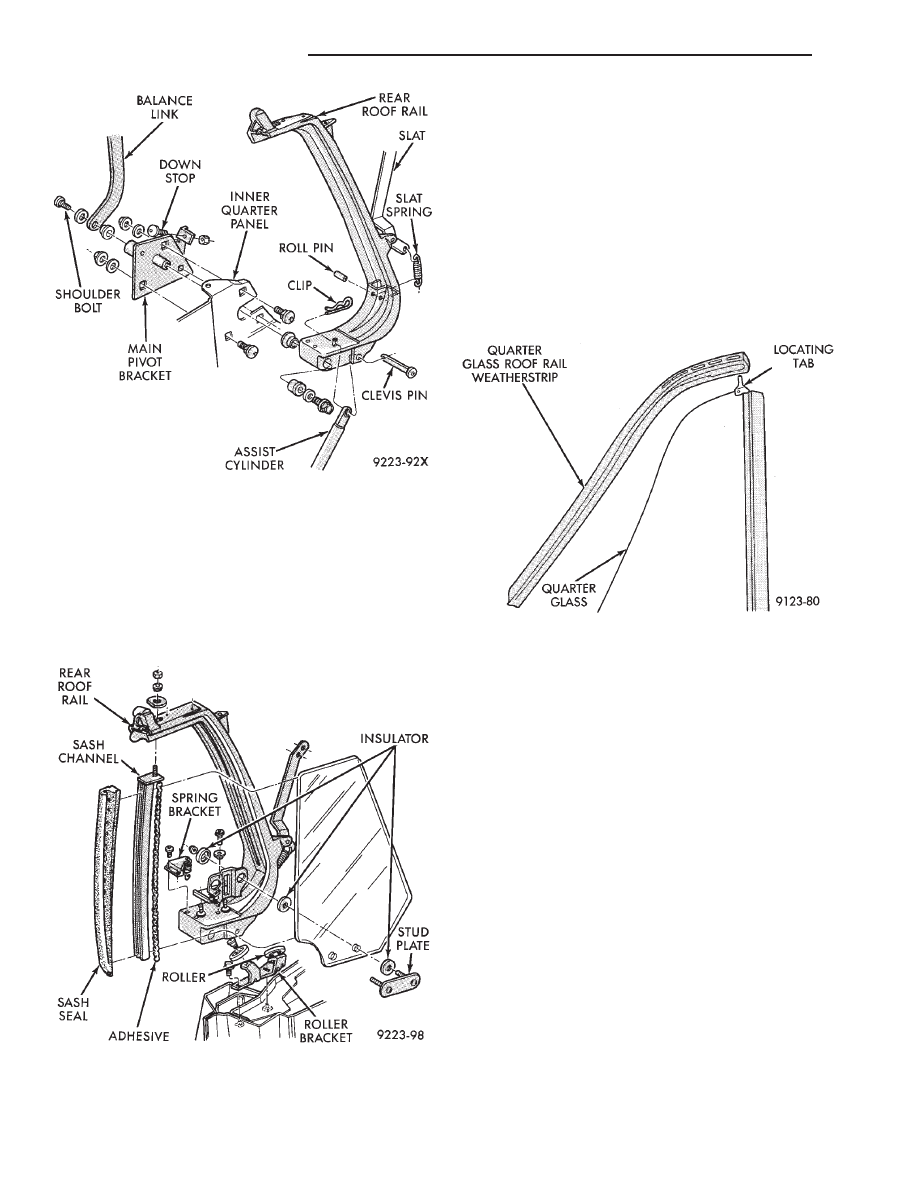

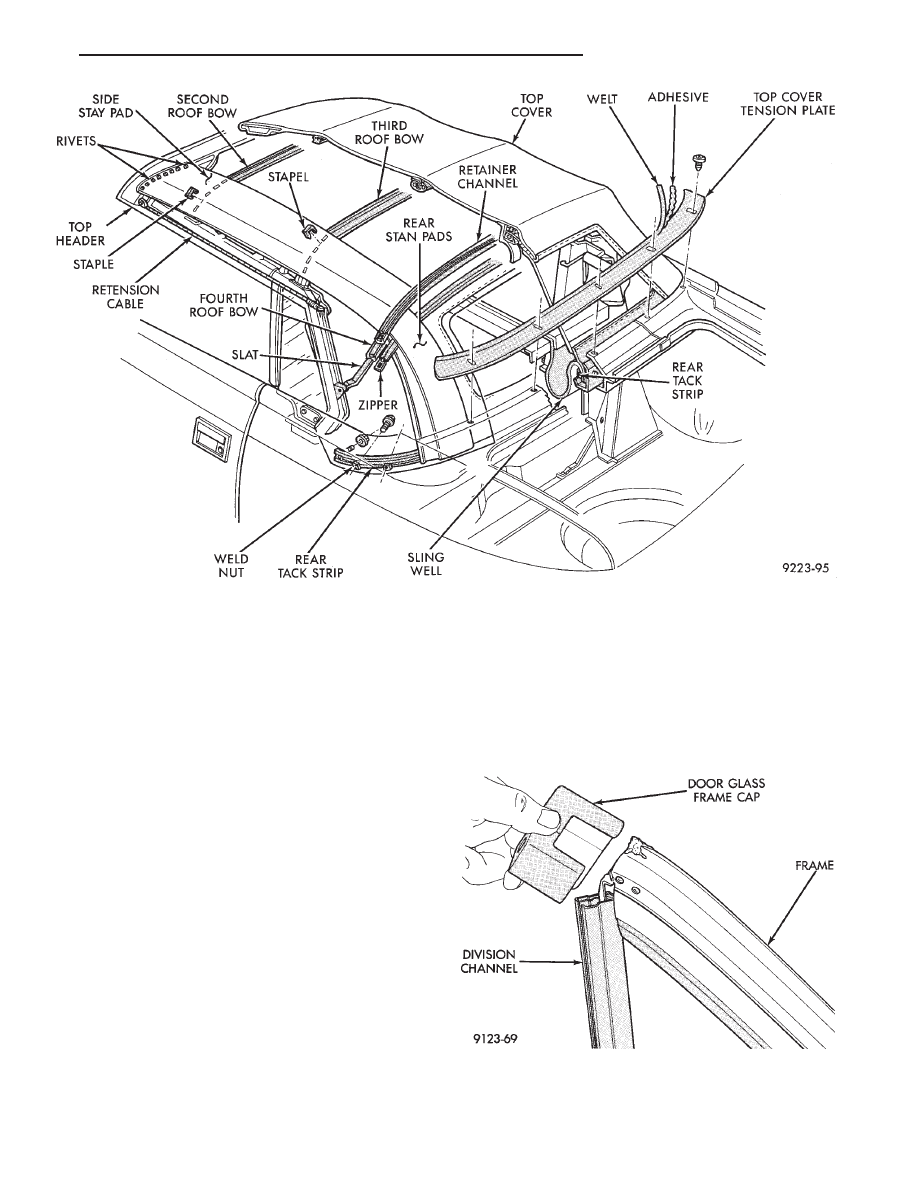

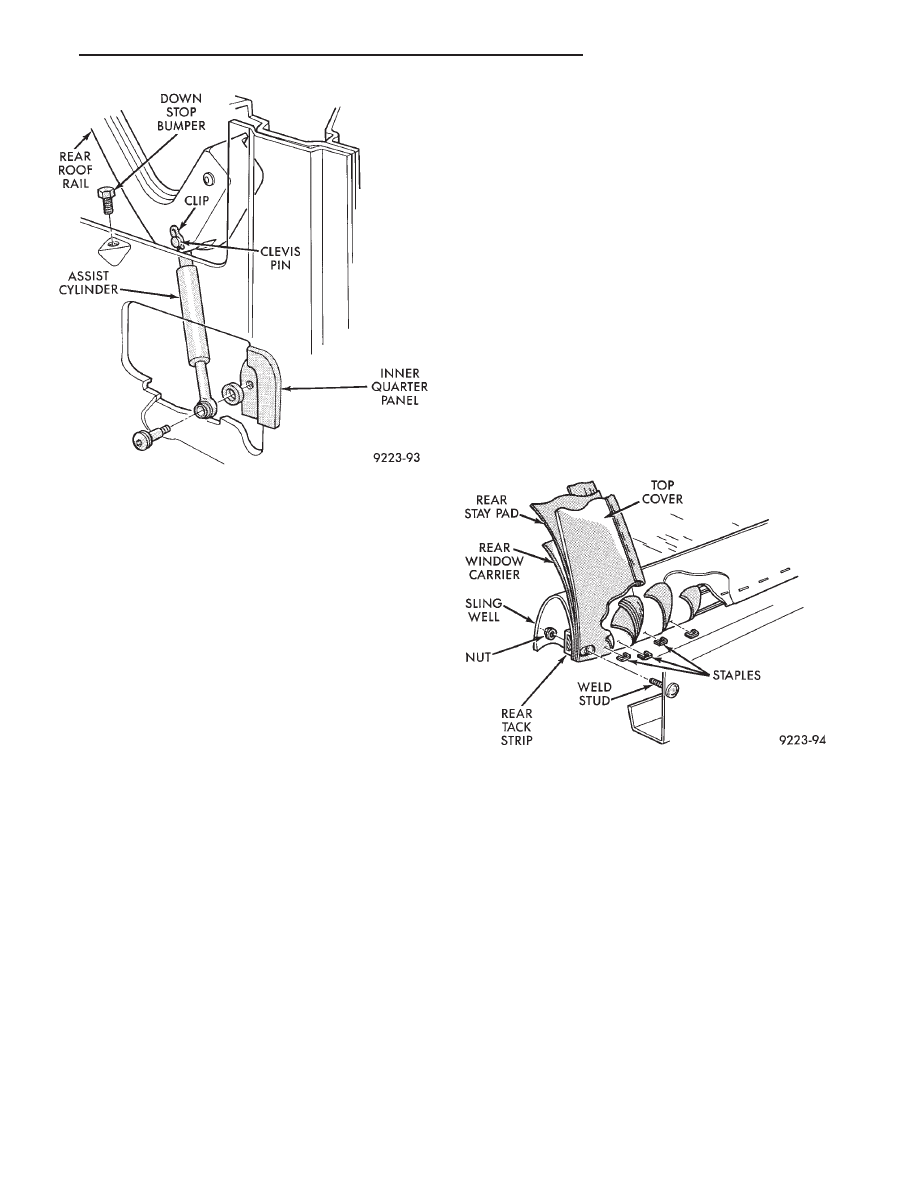

(4) Remove nuts and plastic insulators holding quarter glass to lower mounting bracket. Separate (5) Slide glass downward to clear upper stud from top rail. (6) Separate glass and weatherstrip from convert- ible top frame. INSTALLATION (1) Install roof rail weatherstrip on glass (Fig. 15). (2) Position glass assembly in convertible top frame opening. (3) Install nut and washer to hold upper glass stud to top rail. (4) Install lower glass stud plate and plastic insu- lators through holes at bottom of glass. (5) Install plastic insulators and nuts to hold glass and stud plate to spring bracket. (6) Before tightening nuts at top and bottom of glass, verify alignment to door glass and top rail (7) Secure all nuts holding glass to vehicle and in- stall quarter trim panel. TOP LIFT ASSIST CYLINDER REMOVAL (FIG. 16) (1) Remove interior trim as necessary to gain ac- cess to quarter panel to top frame attachment bolts (2) With top in up position (not latched). Loosen top frame to quarter panel reinforcement bolts to al- (3) Remove clevis pin holding gas cylinder to top frame. (4) Remove door ajar switch from B-pillar below door striker. (5) Through door ajar switch mounting hole, re- move bolt holding bottom of gas cylinder to quarter (6) Separate top lift assist cylinder from vehicle. INSTALLATION Reverse the preceding operation. REAR WINDOW REMOVAL (FIG. 17) There are foam strips attached to the outboard cor- ners of the No. 4 bow on short tacking strips. These Fig. 13 Rear Roof Rail Fig. 14 Stationary Quarter Glass and Weatherstrip Fig. 15 Quarter Glass Roof Rail Weatherstrip 23 - 122 AP/27 CONVERTIBLE Ä |
