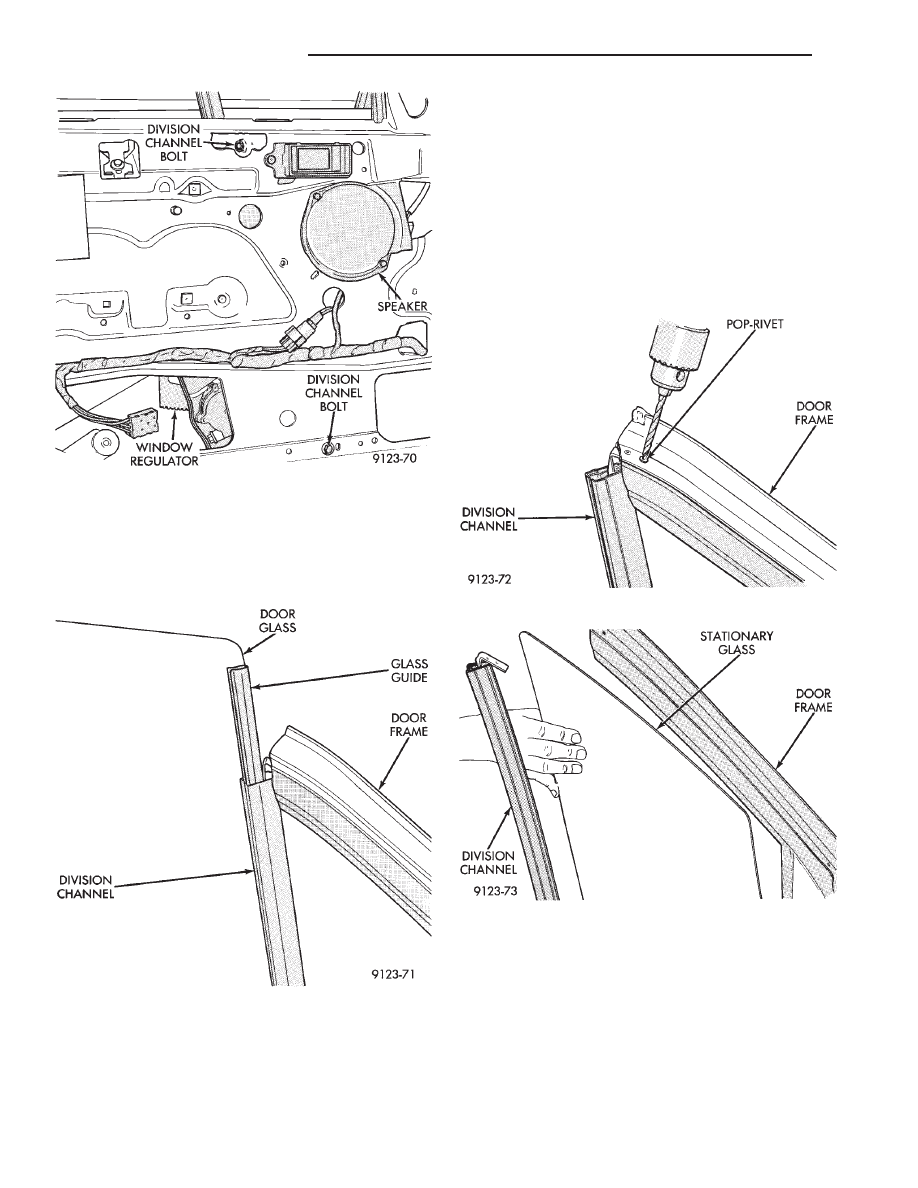

(5) Lift glass upward from opening at top of door. INSTALLATION Reverse the preceding operation. FRONT DOOR STATIONARY GLASS AND DIVISION REMOVAL (1) Remove front door glass. (2) Drill out rivets holding division channel to door frame (Fig. 22). (3) Separate division channel from stationary glass and remove glass from door (Fig. 23). (4) Lift division channel upward, out of the door. division channel. INSTALLATION Install the division channel weatherstrip on the stationary glass. Position the glass in the door frame FRONT DOOR STATIONARY GLASS CHANNEL REMOVAL (1) Remove stationary glass. (Fig. 24). INSTALLATION Loosen outside rear view mirror if necessary, and reverse the removal operation. Fig. 20 Division Channel Bolts Fig. 21 Front Door Glass Fig. 22 Pop-rivet Removal Fig. 23 Front Door Stationary Glass 23 - 126 AP/27 CONVERTIBLE Ä |
