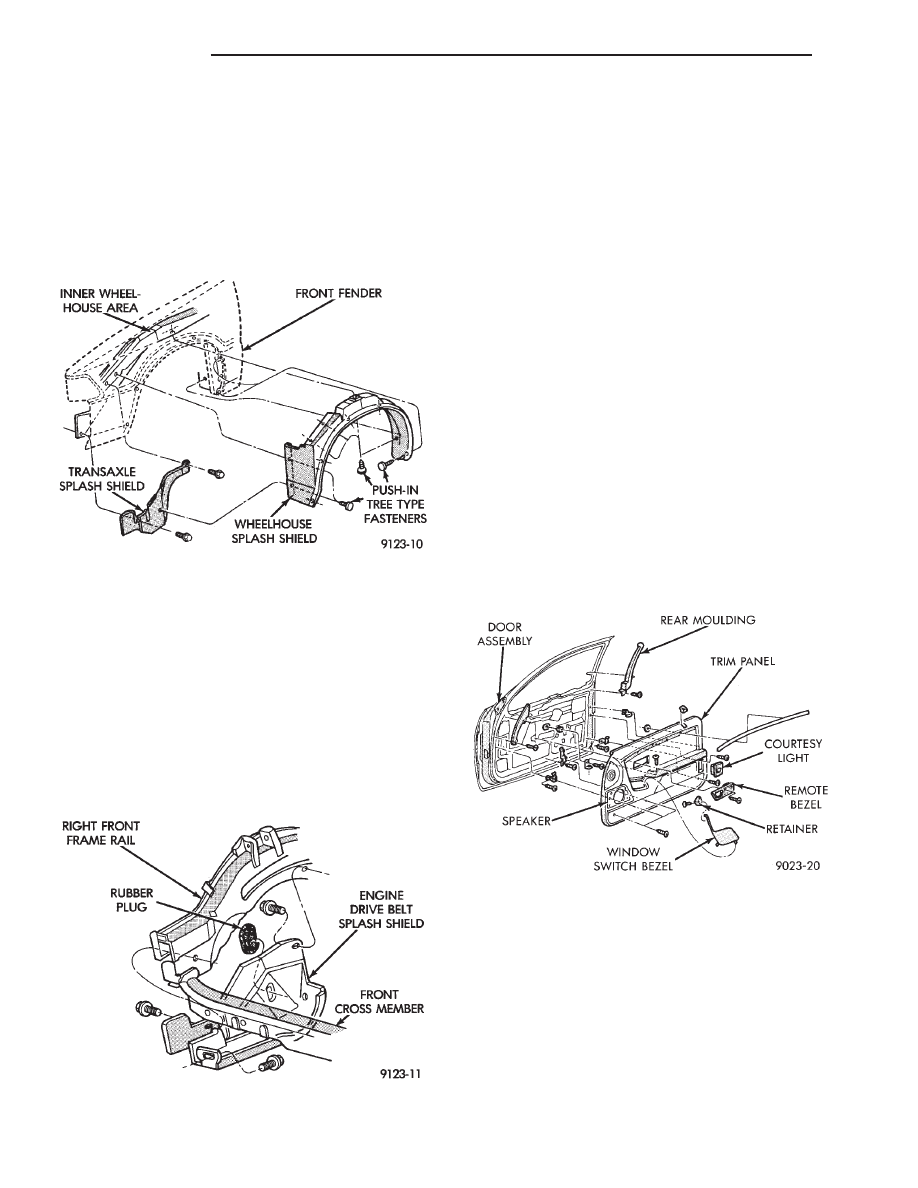

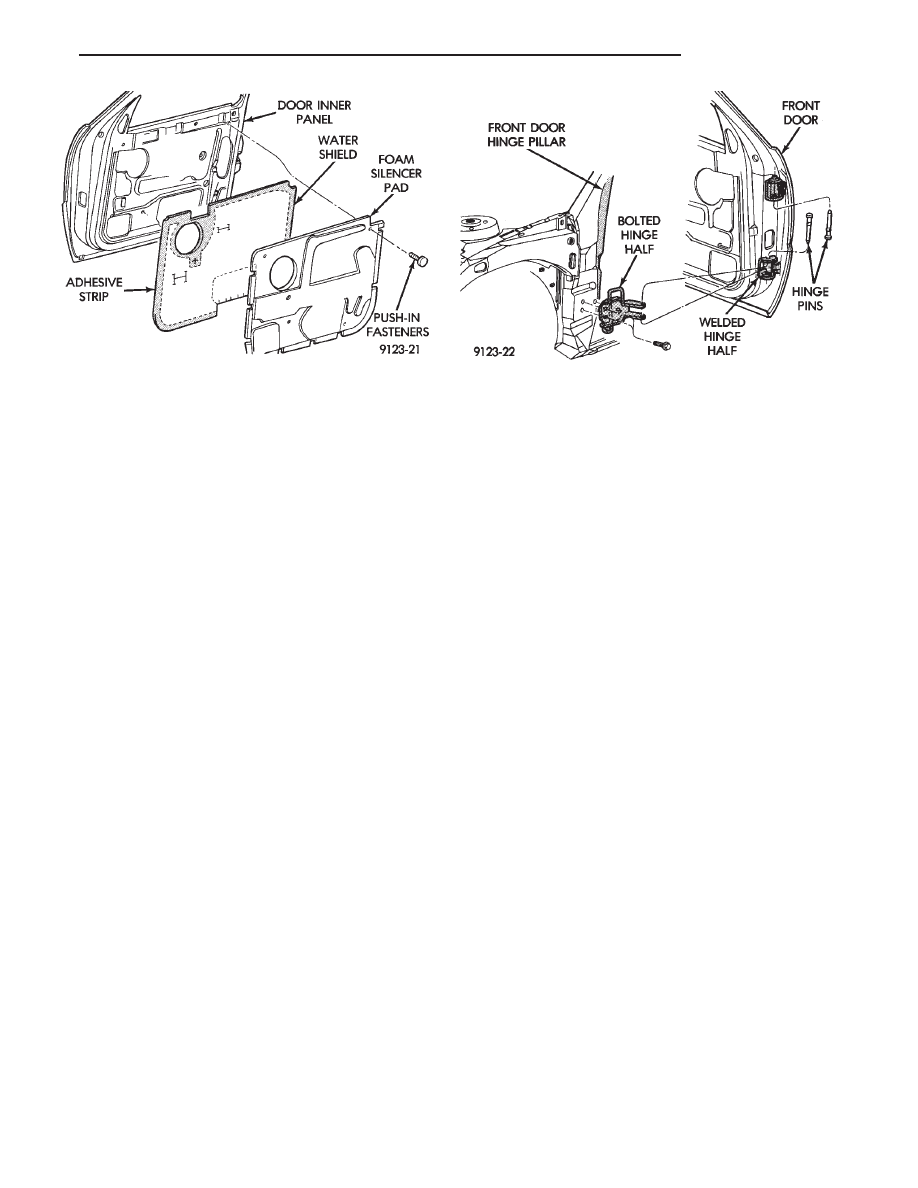

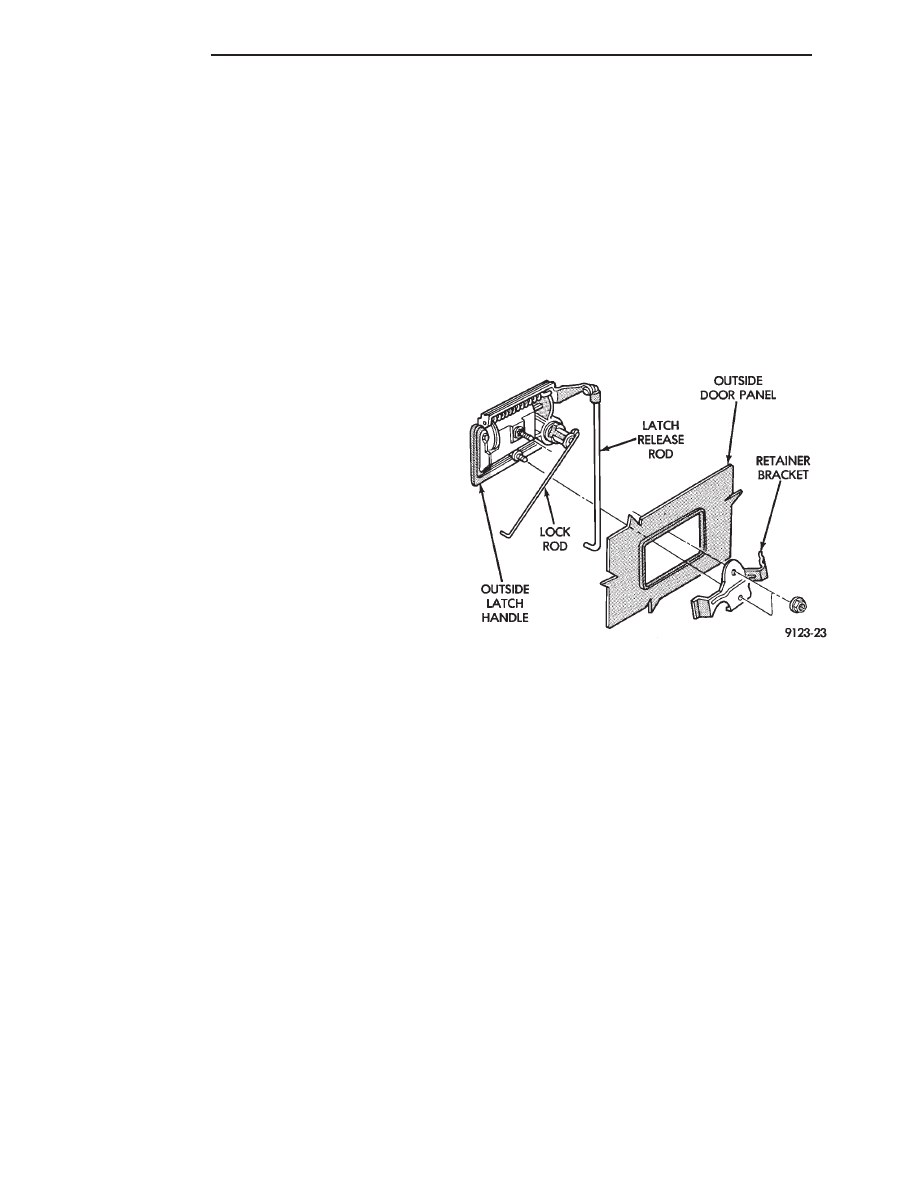

TRANSAXLE SPLASH SHIELD REMOVAL (FIG. (1) Remove one front wheelhouse splash shield push-in fastener and separate wheelhouse splash (2) Remove transaxle splash shield attaching bolts and separate transaxle splash shield from vehicle. TRANSAXLE SPLASH SHIELD INSTALLATION Reverse the preceding operation. ENGINE DRIVE BELT SPLASH SHIELD (1) Hoist vehicle and support on suitable safety stands. (2) Remove bolts holding engine drive belt splash shield to right frame rail. (3) Separate drive belt splash shield from vehicle. ENGINE DRIVE BELT SPLASH SHIELD Reverse the preceding operation. DOOR TRIM PANEL REMOVAL (FIG. 8) (1) Lower door glass and disconnect battery nega- tive cable. (2) Remove courtesy lamp and remove socket. courtesy lamp opening. (4) Disengage clips holding speaker grille to trim panel and separate grille from door. (5) Remove screw holding trim panel to door from speaker grille opening. (6) Remove screw holding inside latch handle bezel to trim panel and separate bezel from door. Discon- (7) Remove window crank, if equipped. arm rest pull cup opening. (9) Remove hidden screws holding trim panel to door from carpet area at bottom of trim. (10) Lift trim panel upward and separate panel from door. (11) Disconnect radio speaker, power window and power mirror wire connectors, if equipped. INSTALLATION Reverse the preceding operation. FRONT DOOR SILENCER AND WATER SHIELD REMOVAL (FIG. 9) (1) Remove front door trim panel. to door inner panel and separate silencer from door. (3) Pull water shield from adhesive around perim- eter of door inner panel. INSTALLATION Reverse the preceding operation. Fig. 6 Front Wheelhouse and Transaxle Splash Shields—Typical Fig. 7 Engine Drive Belt Splash Shield—Typical Fig. 8 Door Trim Panel 23 - 74 AJ-BODY Ä |
