LEAF SUSPENSION

Removal and installation

3-10

9.

Remove the flange bolts (9) from the
pivot-pin flange (5) and use a suitable puller
to pull the pivot pin flange together with the
pivot pin (2) out of the chassis.

10. Drive the pivot pin (2) out of the pivot-pin

flange (5).

W9 04 030

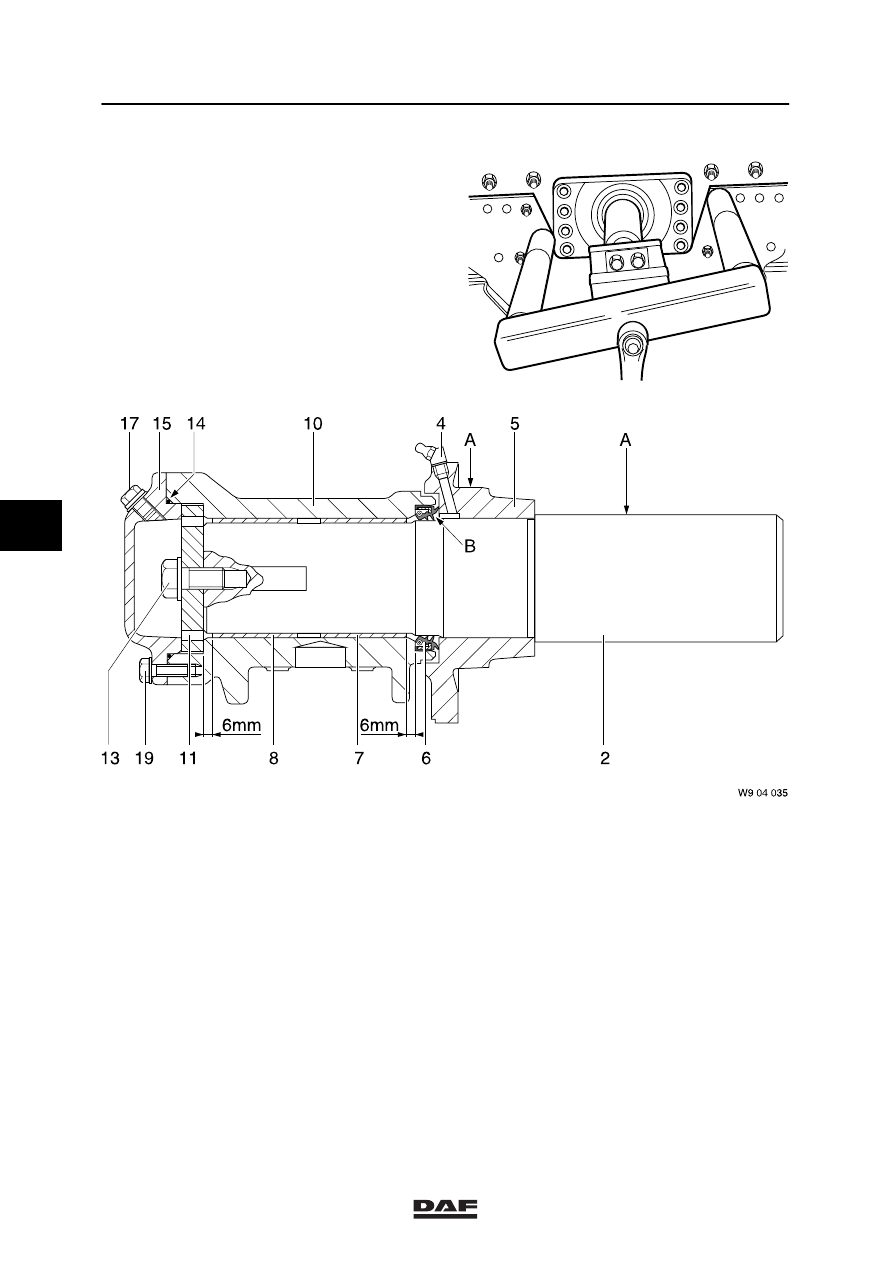

Installation of the pivot pin

1.

Check the oil-seal chamber in the bearing
support for damage.
Check the pivot pin for damage to the oil
seal running surface.

2.

Drive pivot pin (2) into pivot-pin flange (5).

3.

Apply a thin film of oil to surfaces (A) of
pivot pin (2) and pivot-pin flange (5) and
reinstall them in the chassis.

4.

Fit the attachment bolts of the pivot-pin
flange oil pump in a crosswise sequence
and tighten them to the specified tightening
torque, see main group “Technical Data”.

5

ǹ 9701

9

Removal and installation

LEAF SUSPENSION

3-11

5.

Drive the new bearing bushes (7 and 8) to
the correct depth in bearing support (10).

6.

Use a suitable driver to fit a new oil seal (6)
in bearing support (10), with the open side
facing the bearing bushes. When driving,
avoid damaging the outer oil-seal lip.

7.

Apply grease to the outside surface of the
oil seal (6), area B in the drawing above.

8.

Apply oil to the bearing bushes (7 and 8)
and fit bearing support (10) onto the pivot
pin. Avoid damaging the oil seal.

9.

Apply Loctite 243 or an equivalent product
to the attachment bolts (13), and install the
locking plate (11).

10. Fit the cover (15), using a new O-ring (14).

11. Fill the pivot pin with the specified oil.

12. Lubricate the space between the bearing

support (10) and the pivot-pin flange (5)
with grease through the lubricating nipple. A
collar of grease should be visible around
the bearing support.

5

ǹ 9701

9

LEAF SUSPENSION

Removal and installation

3-12

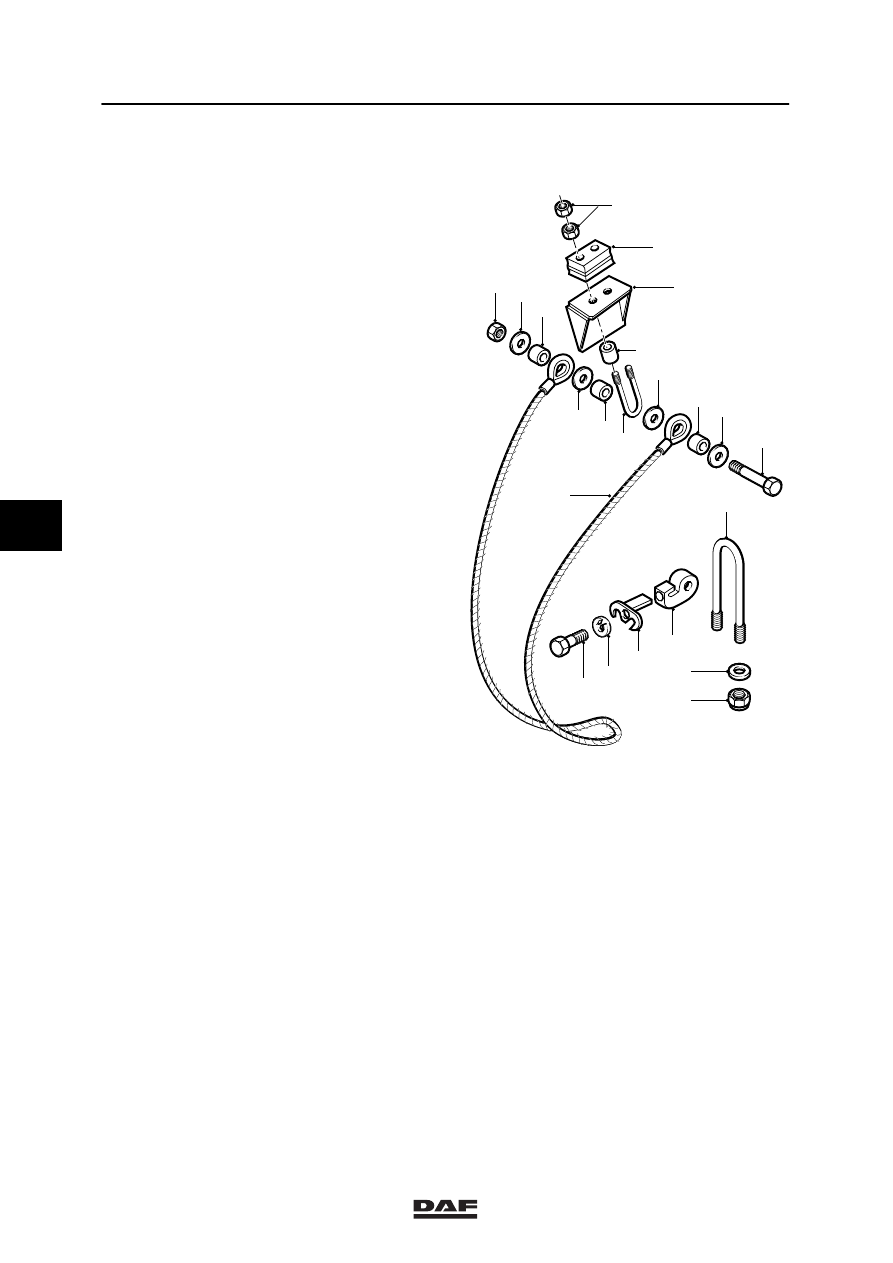

3.8 REMOVAL AND INSTALLATION, ARRESTING CABLE AND BUMP STOP

Removal of the arresting cable
1.

Remove the bolt (16) and the lock
plate (18).

2.

Loosen the nuts (1) a little if necessary and
remove the bolt (14). The cable can now be
removed.

Installation of the arresting cable
1.

Fit the cable to bump stop (2), using
bolt (14).

2.

Check if the rings (5, 7, 11 and 13) just
touch the bracket (3). If not, tighten the
nuts (1) until the rings just touch the bracket
(3).

3.

Make sure that the cable length is divided in
two equal ends and fit the bolt (16) with lock
plate (18). The difference in length between
the two cable halves should not be more
than 2 mm.

4.

Grease the entire cable.

Removal of the bump stop
1.

Remove the four nuts (1) and remove bump
stop (2).

Installation of the bump stop
1.

When reinstalling the bump stop, tighten
the nuts (1) until the rings (5, 7, 11 and 13)
just touch the bracket (3).

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

W9 04 031

5

ǹ 9701

9

Removal and installation

LEAF SUSPENSION

3-13

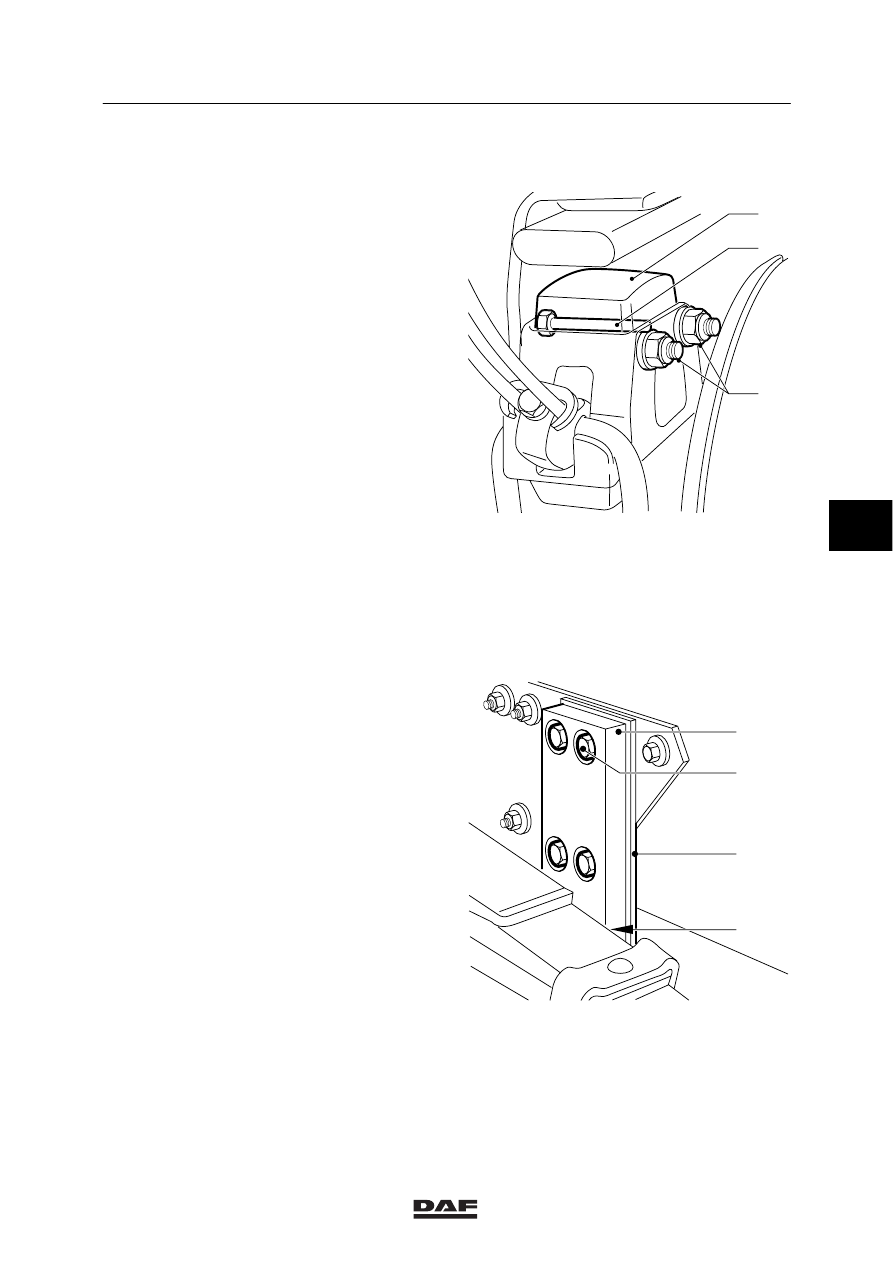

3.9 REMOVAL AND INSTALLATION, SPRING BUFFERS

Removal of the spring buffers
1.

Jack up the vehicle until the
spring-assembly ends are not resting on the
spring buffers any more.

2.

Support the vehicle securely with stands or
blocks under the chassis side members.

3.

Remove the two attachment bolts (3) and
take off the catch plate.

4.

Remove the locking bolt (2) - which lies
loose in the bracket - and lift spring
buffer (1) off the bracket.

Installation of the spring bracket
1.

Put the spring buffer (1) on the bracket.

2.

Fit the locking bolt (2) which lies loose in
the bracket (1).

3.

Install the attachment bolts (3) with the
catch plate.

4.

Remove the bracket.

1

2

3

W9 04 033

3.10 REMOVAL AND INSTALLATION, ALIGNMENT PLATES

Removal of the alignment plates
1.

Remove the attachment bolts (2) and
remove the alignment plate (1).

Installation of the alignment plates
1.

The play (A) between the spring assembly
and the alignment plate can be filled with
filler plates (3) or by replacing the alignment
plate.

2.

Check the play after installing a new
alignment plate. Adjust the play, if required.

3.

Tighten the bolts (2).

1

2

3

A

W9 04 034

5

ǹ 9701
