DAF 95XF. Manual - part 599

8

TRAILING AXLES

General

1-2

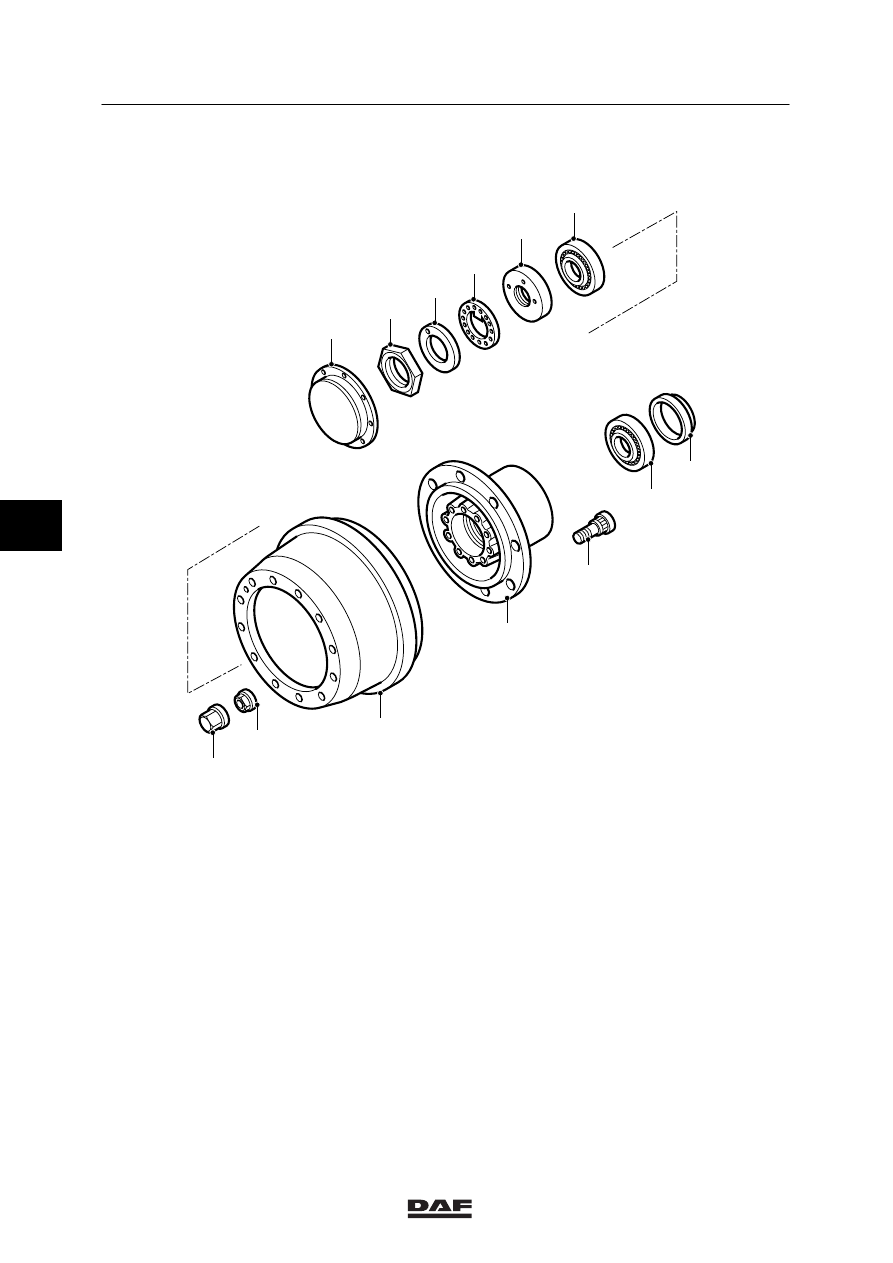

1.2 OVERVIEW DRAWING, HUB OF TRAILING AXLE 09N075

A8 00 439

7

8

9

10

12

11

13

1

2

3

4

5

6

1.

Hub cover

2.

Lock nut

3.

Locking washer

4.

Circlip

5.

Hub nut

6.

Taper roller bearing

7.

Cap

8.

Wheel nut

9.

Brake drum

10. Wheel hub
11.

Wheel stud

12. Taper roller bearing
13. Seal

5

ǹ 200302

8

General

TRAILING AXLES

1-3

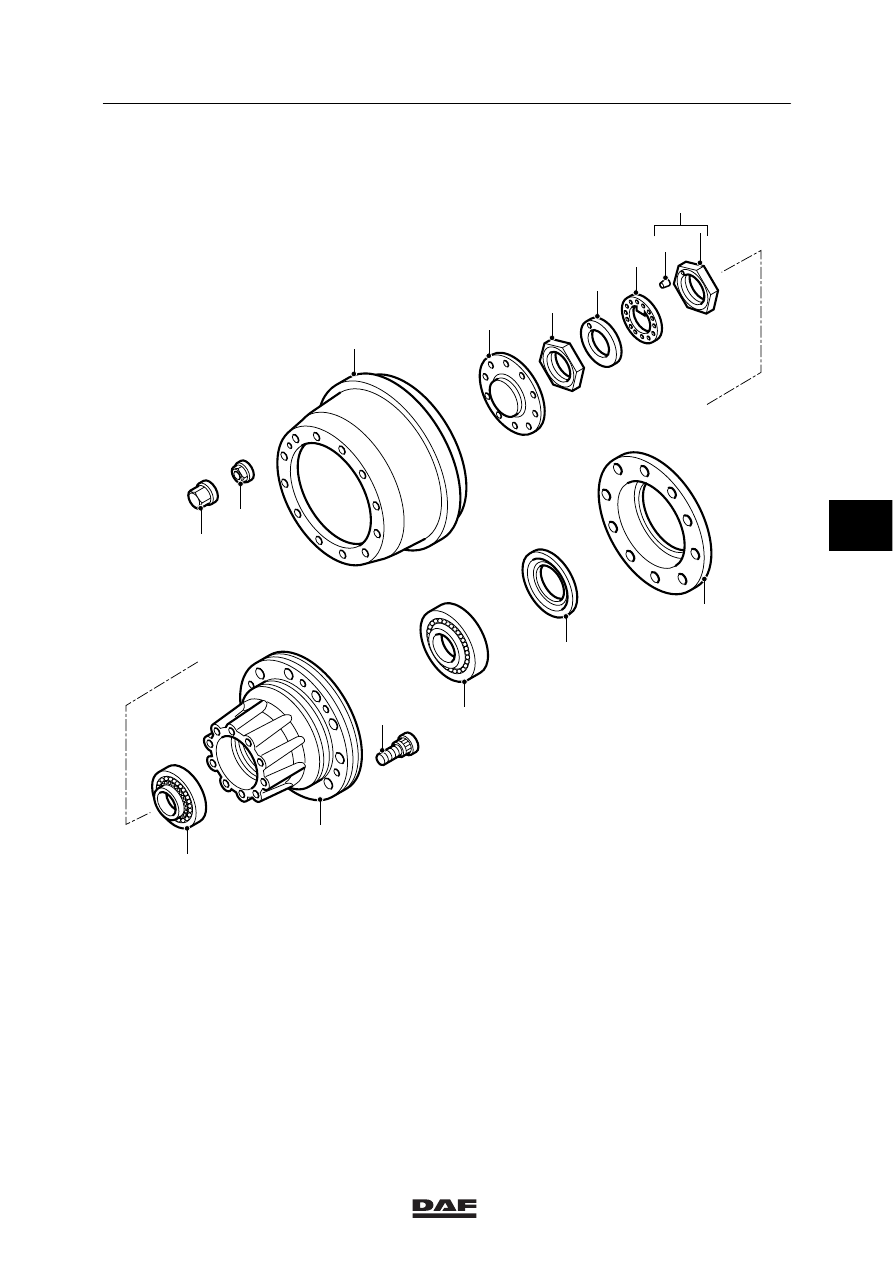

1.3 OVERVIEW DRAWING, HUB OF TRAILING AXLE 9N220

10

11

14

15

13

1

2

12

3

4

5

6

7

8

9

A8 00 438

1.

Cap

2.

Wheel nut

3.

Brake drum

4.

Hub cover

5.

Lock nut

6.

Locking washer

7.

Circlip

8.

Notched pin

9.

Hub nut

10. Taper roller bearing
11.

Wheel hub

12. Wheel stud
13. Taper roller bearing
14. Seal
15. Grease retainer

5

ǹ 200302

8

TRAILING AXLES

General

1-4

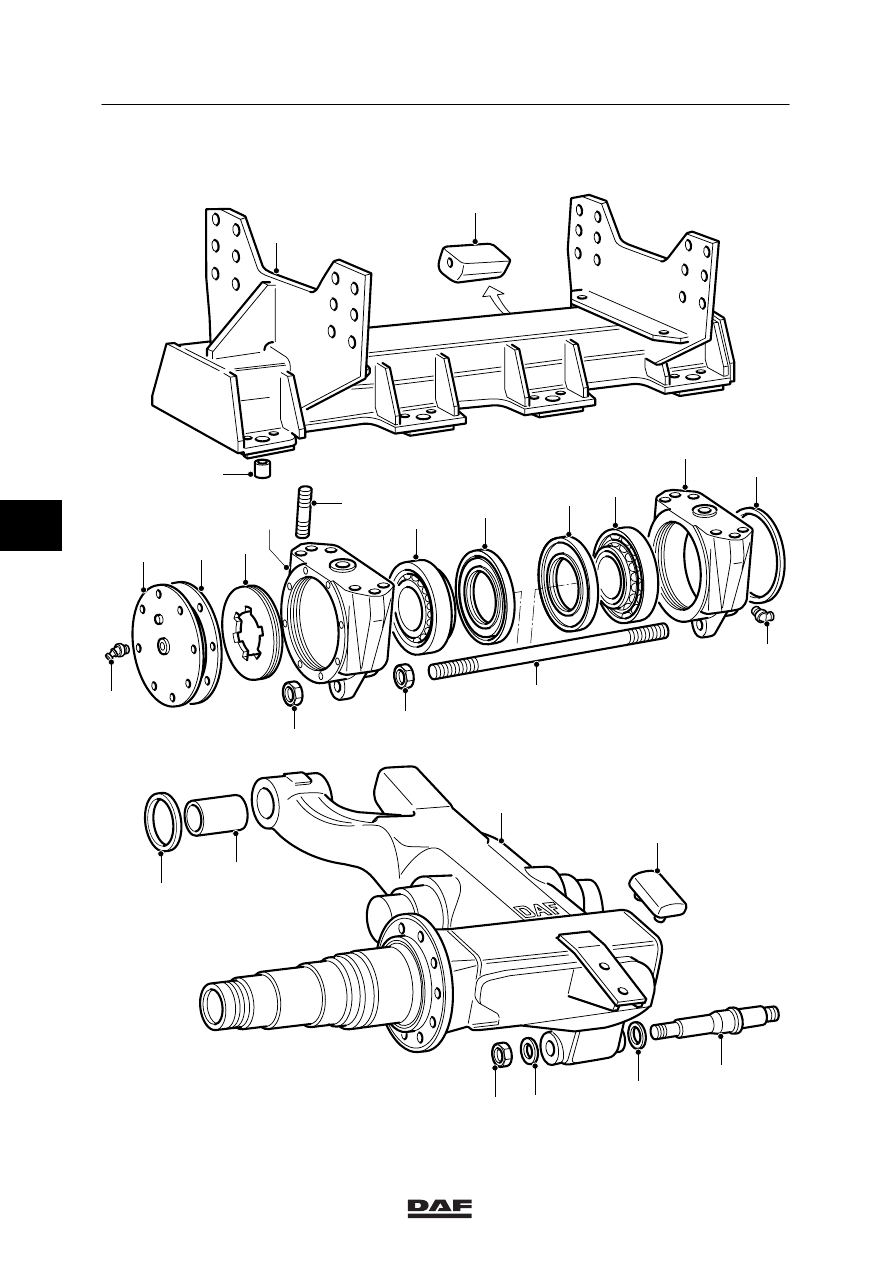

1.4 OVERVIEW DRAWING, TRAILING-AXLE YOKE ATTACHMENT

A8 00 402

18

19

15

8

11

14

12

1

2

11

7

8

10

3

6

5

23

22

21

16

4

9

9

13

4

17

20

5

ǹ 200302

8

General

TRAILING AXLES

1-5

1.

Bearing support

2.

Bump stop

3.

Bush

4.

Lubricating nipple

5.

Trailing-axle yoke cover

6.

Flange seal

7.

Adjusting nut

8.

Bearing block

9.

Nut

10. Stud
11.

Taper roller bearing

12. Seal
13. Pull rod/push rod
14. Seal
15. Sealing plate
16. Bearing-bush rings
17. Bearing bush
18. Trailing-axle yoke
19. Bump stop
20. Nut
21. Washer
22. Washer
23. Pin

5

ǹ 200302
