TRAILING AXLES

General

1-6

ǹ 200302

5

8

Inspection and adjustment

TRAILING AXLES

2-1

2. INSPECTION AND ADJUSTMENT

2.1 INSPECTION AND ADJUSTMENT, WHEEL BEARING PLAY

Inspecting the wheel bearing play
1.

To ensure a reliable inspection of the wheel

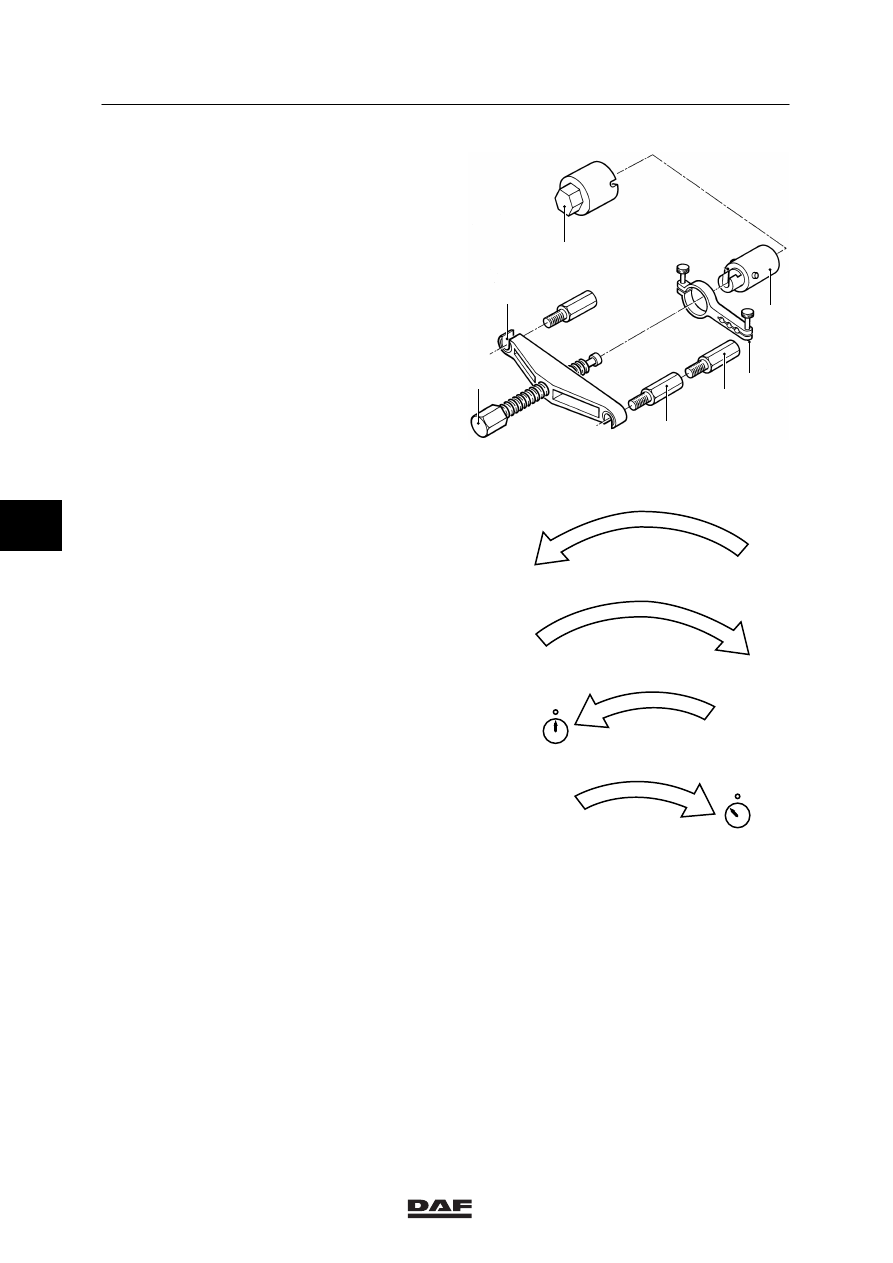

bearing play, use the special tool
(DAF No. 0535595).

The special tool consists of:
1.

extensions

2.

central nut

3.

dial gauge holder

4.

threaded spindle

5.

bridge

6.

socket wrench

7.

additional extension pieces

2.

Remove the hub caps.

3.

Remove two opposite wheel nuts.

4.

Fit the extensions (1) to the vacant wheel
studs. The extensions belonging to the set
should now be extended using the
extensions (7).

5.

Place the dial gauge holder (3) on the
central nut (2).

6.

Fit the central nut (2) to the axle journal
using the socket wrench (6). If too little
screw thread extends from the lock nut to
fasten the central nut (2) to the axle journal,
remove the lock nut from the axle journal
using special tool (DAF No. 0535832 for
trailing axle 09N075 and DAF No. 0535648
for trailing axle 09N220).
When the axle journal lock nut has been
removed, tighten the central nut (2) to the
tightening torque specified for the lock nut.
See main group “Technical data”.

S7 00 131

1

7

6

4

5

3

2

A800149

ǹ 200302

5

8

TRAILING AXLES

Inspection and adjustment

2-2

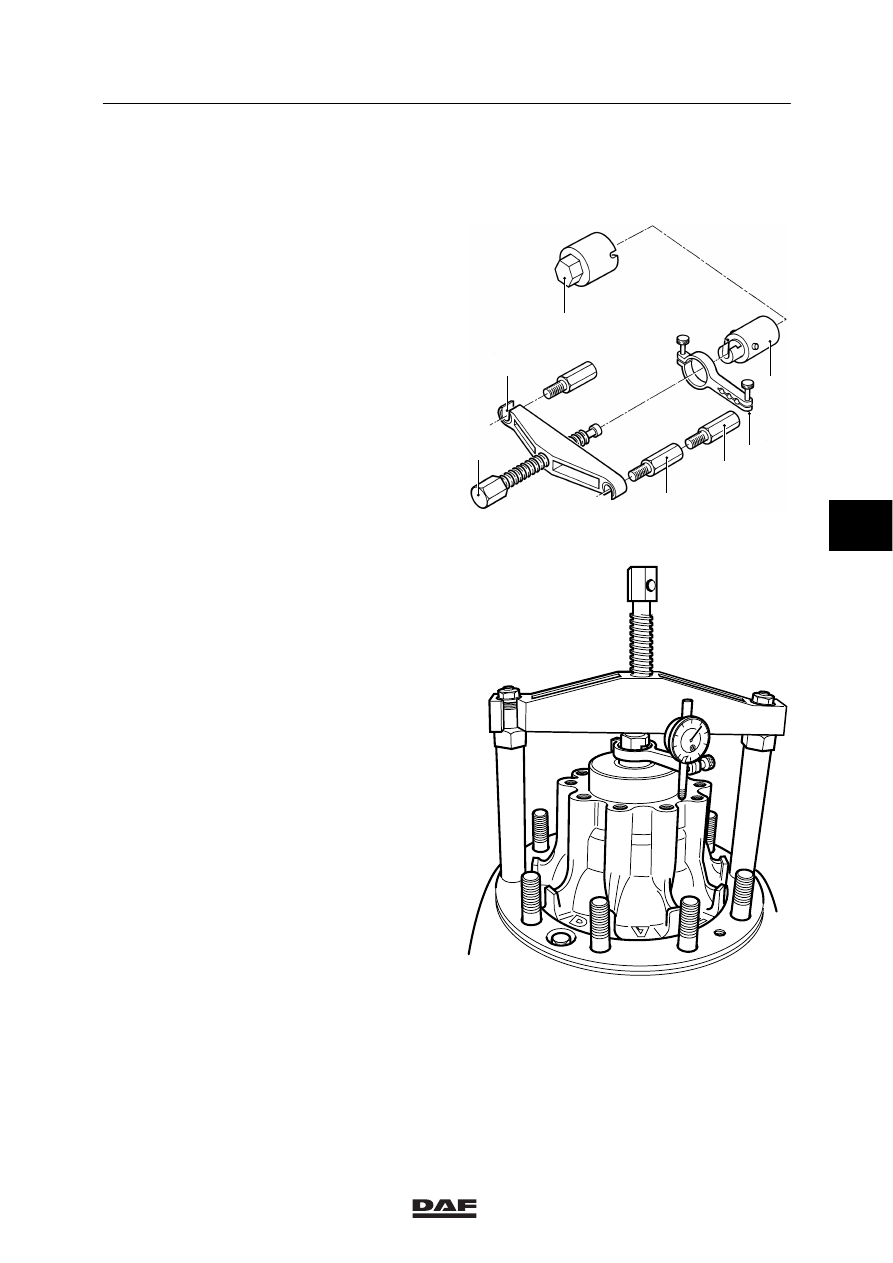

7.

Place the dial gauge in the dial gauge
holder (3) so that the stylus abuts the hub.
Make sure that the stylus of the dial gauge
does not enter a threaded hole of the hub,
because the stylus might break off when the
wheel is turned.

8.

Position the bridge (5) on the extensions (1)
so that the end of the spindle fits into the
recess of the central nut (2). Tighten the
bridge with the nuts.

S7 00 131

1

7

6

4

5

3

2

9.

Place a torque wrench on the hexagon
head of the spindle (4).
Press the hub firmly onto the axle journal by
screwing the spindle in until a tightening
torque of 40 Nm is reached.

10. Withdraw the hub by unscrewing the spindle

until a tightening torque of 40 Nm is
reached.

11. Press the hub firmly onto the axle journal by

screwing the spindle in until a tightening
torque of 15 Nm is reached, and set the dial
gauge to “O”.

12. Withdraw the hub by unscrewing the spindle

until a tightening torque of 15 Nm is
reached. Take the reading from the dial
gauge and compare this value with the
specified value. See main group “Technical
data”.

If the measured value falls outside the
tolerance, the wheel bearing play should be
readjusted.

13. Remove the special tool.

40Nm

40Nm

15Nm

15Nm

(1)

(2)

(3)

(4)

A800150

5

ǹ 200302

8

Inspection and adjustment

TRAILING AXLES

2-3

14. If the lock nut has been removed, the

locking washer should be replaced. Tighten
the lock nut to the specified tightening
torque. See main group “Technical data”.

15. Apply some grease to the outside of the

bearing cage.

16. Apply the specified sealant to the hub cover

and tighten it to the specified tightening
torque. See main group “Technical data”.
Tighten the attachment bolts of trailing axle
09N220 to the specified tightening torque.
See main group “Technical data”.

17. Tighten the two wheel nuts to the specified

tightening torque. See main group
“Technical data”.
Mark these two nuts and tighten them, after
100 km, to the specified tightening torque,
see main group “Technical data”.
