DAF 95XF. Manual - part 498





3

ZF INTARDER

Inspection and adjustment

3-2

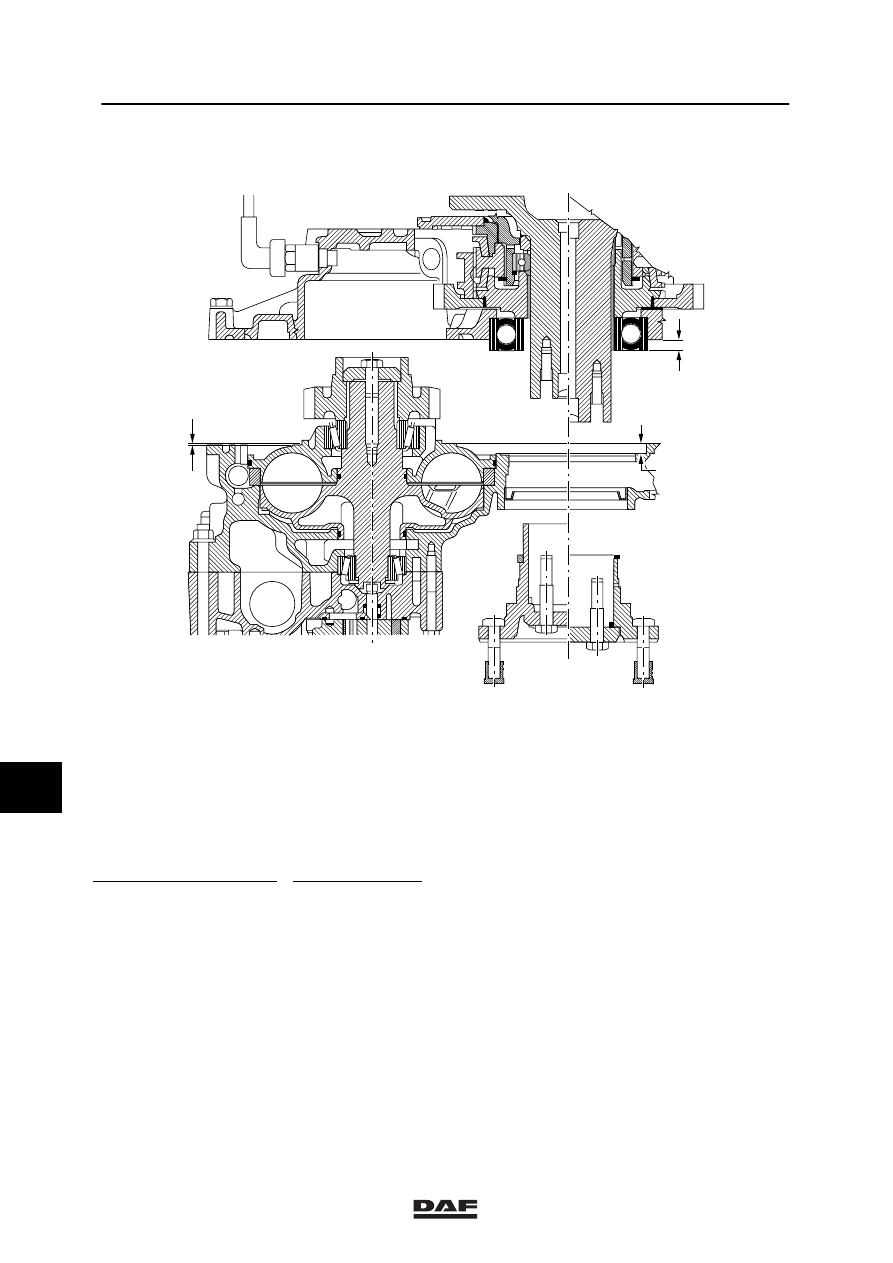

3.2 INSPECTING AND ADJUSTING THE AXIAL CLEARANCE OF THE STATOR

A

C

A

B

D

V300070

1.

Measure and note down distance “A - C”
from sealing surface (A) with gasket to
contact surface (C).

Example:
Distance A - C

=

1.10 mm

Distance A - C
should be

ᐔ 0.05 mm

Required thickness of
filler ring

1.1

ᐔ 0.05 mm

9

ǹ 0002

3

Inspection and adjustment

ZF INTARDER

3-3

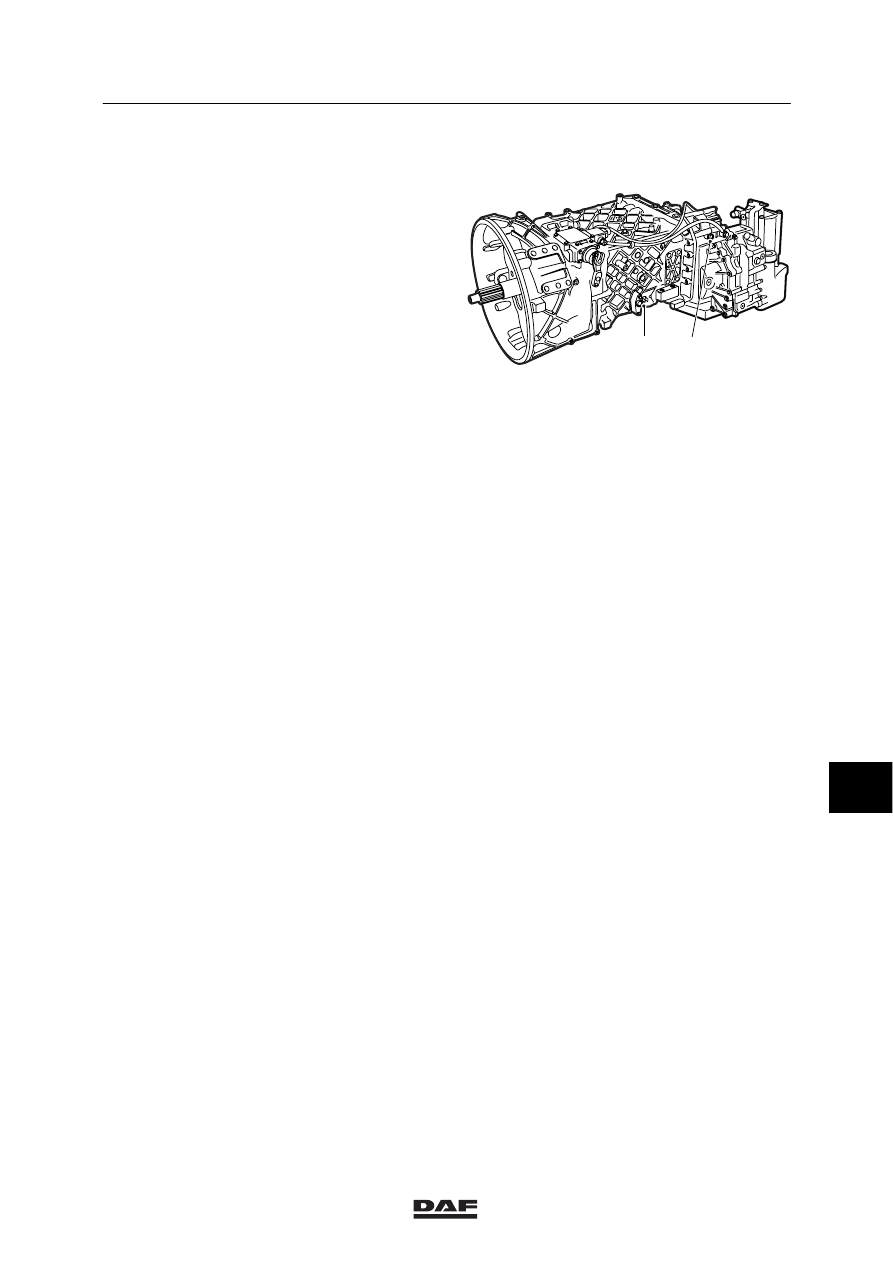

3.3 INSPECTING THE GEARBOX/INTARDER OIL LEVEL

Inspecting the gearbox/intarder oil level
1.

Brake the vehicle without activating the
retarder and place the vehicle on a flat and
level surface.

2.

Wait for some minutes for the gearbox oil to
flow back.

3.

The oil level must reach the rim of the
oil-level/filling opening (4).

4.

Tighten the oil-level/filling plug (4) to the
specified tightening torque, see main group
“Technical Data”.

V300260

5

4

9

ǹ 0002

3

ZF INTARDER

Inspection and adjustment

3-4

9

ǹ 0002

3

Removal and installation

ZF INTARDER

4-1

4. REMOVAL AND INSTALLATION

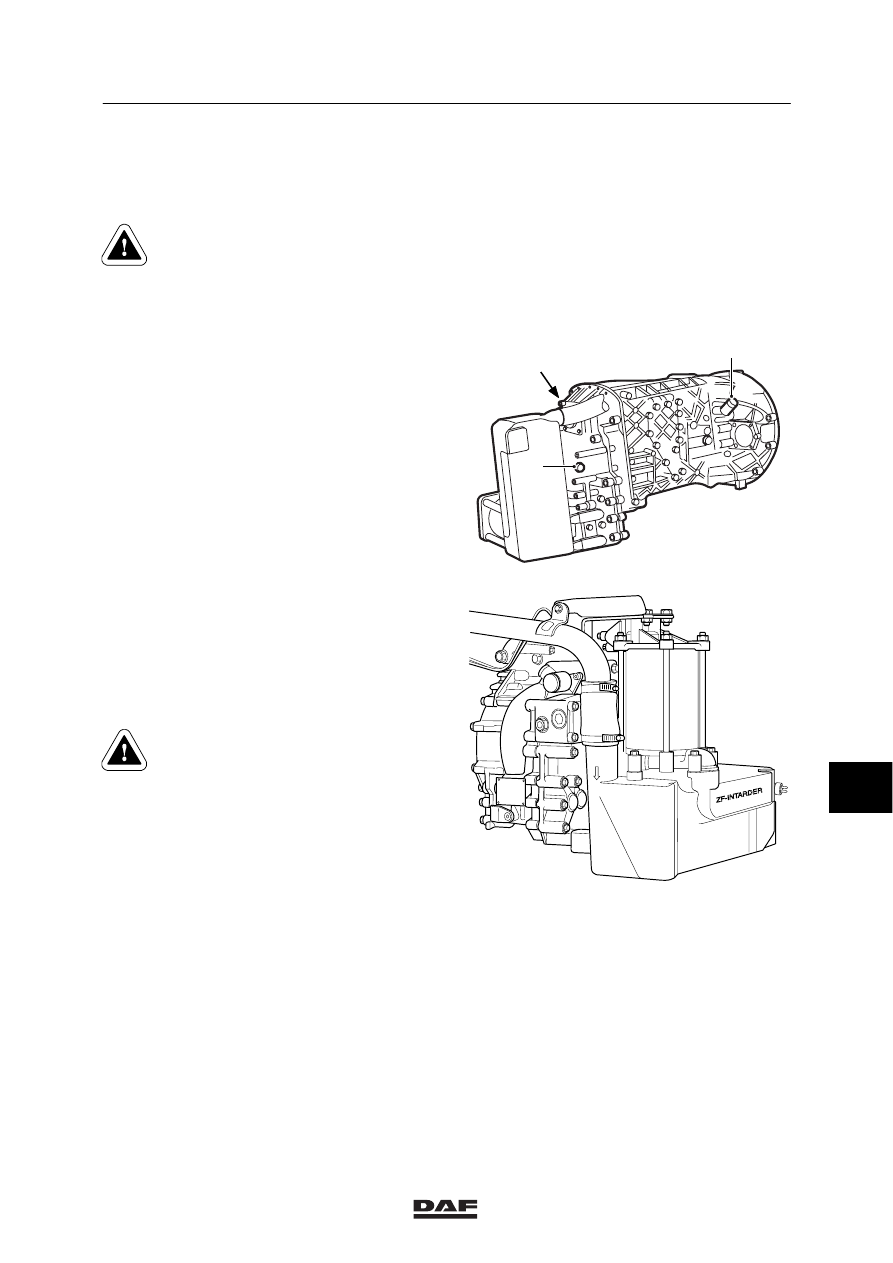

4.1 REMOVING AND INSTALLING THE ENTIRE INTARDER

To prevent skin injury, avoid
unnecessary contact with the
drained oil and coolant.
In the course of the following
operations, oil and coolant may
spill from the gearbox and intarder.
Collect this oil and coolant.

Removing the entire intarder
1.

Remove the drive shaft bolts and suspend
the drive shaft to the side in the chassis.

2.

Drain the gearbox using the drain plugs (1)
and (2).

3.

Drain as much coolant and gearbox oil as
necessary and collect these in clean
containers.

4.

Disconnect the water hoses from both sides
of the heat exchanger.

5.

Remove the air pipe from the magnetic
valve of the intarder.

6.

Remove all electric wiring from the intarder.

7.

Remove the locking plate from the output
shaft drive flange, remove the disk with the
O-ring, and pull the drive flange from the
shaft using a tripod puller.

In the course of the following
operations, the intarder is
disconnected from the gearbox.
Take measures to prevent the
intarder from dropping.

8.

Remove the fixing bolts from the intarder
and remove the intarder.

9.

Remove the gasket and filler rings from the
adjustment stator/output shaft.

V300261

3

1

2

V300129

9

ǹ 0002
