Removal and installation

XE ENGINE

4-17

4.10 REMOVAL AND INSTALLATION, STEERING PUMP

Removal, steering pump
1.

Clean the steering pump and the
surrounding area.

2.

Remove the suction and delivery pipes from
the steering pump. Collect the oil flowing
out of the system.

3.

Immediately plug the openings in the pump
and pipes to prevent dirt entering the
system.

4.

Remove the two fixing bolts in the
timing-gear cover and take the pump from
the timing-gear case.

5.

Check the gear wheel for wear or damage.

6.

Remove the O-ring.

Installation of the steering pump
1.

Fit a new O-ring.

2.

Fit the steering pump. Tighten the fixing
bolts to the specified torque. See main
group “Technical data”.

3.

Install the suction and delivery pipes of the
steering pump. Fit the banjo bolts. Tighten
the banjo bolts to the specified torque, see
main group “Technical data”.

4.

Fill the oil tank with the specified oil.

5.

Bleed the steering system.

6.

Check the pipes for leaks.

5

ǹ 0008

2

XE ENGINE

Removal and installation

4-18

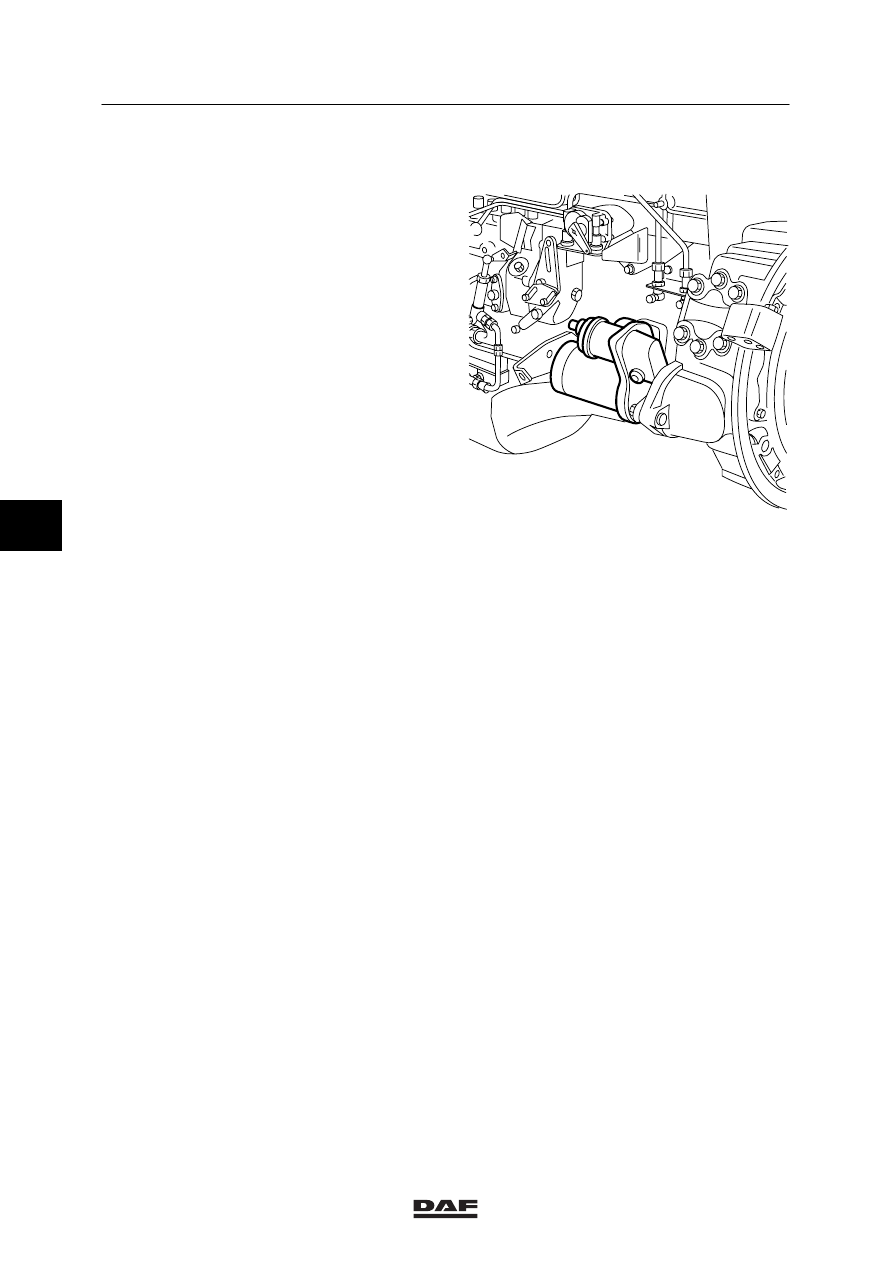

4.11 REMOVAL AND INSTALLATION, STARTING MOTOR

Removing the starting motor
1.

Remove both battery leads from the battery
poles.

2.

Remove the electrical connections from the
starting motor.

3.

Remove the fixing nuts and the starting
motor.

4.

Check the toothed pinion for damage.

Installing the starting motor
1.

Clean the contact surfaces of the starting
motor and the flywheel housing.

2.

Install the starting motor in the flywheel
housing and tighten the fixing nuts to the
specified tightening torque, see main group
“Technical data”.

3.

Install the electrical connections of the
starting motor.

4.

Reconnect both leads to the battery
terminals.

M200568

5

ǹ 0008

2

Removal and installation

XE ENGINE

4-19

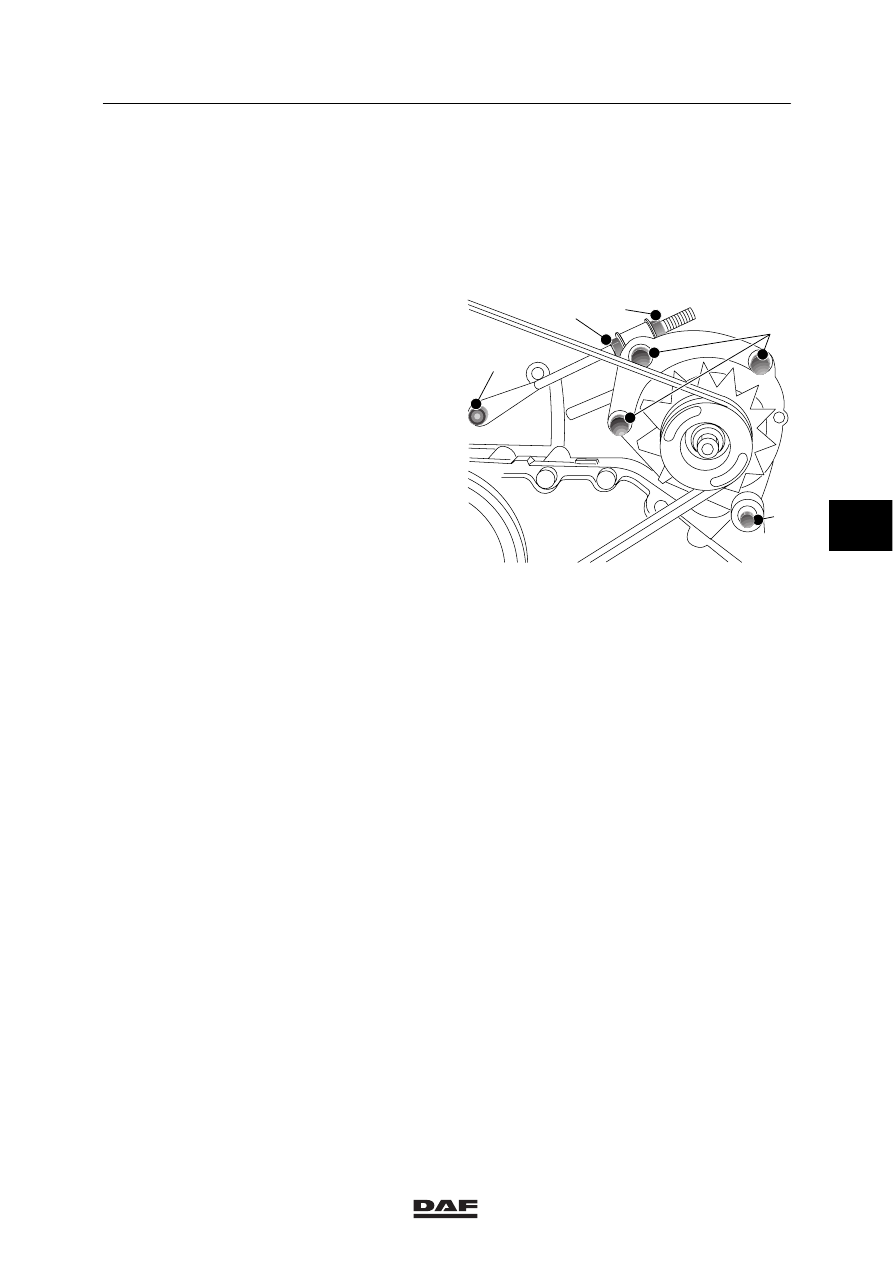

4.12 REMOVAL AND INSTALLATION, ALTERNATOR

Removing the alternator
1.

Remove both battery leads from the battery
poles.

2.

Remove the electrical connections from the
alternator.

3.

Slacken the fixing bolt (3) from the threaded
spindle which is attached to the cooling
water pump.

4.

Slacken the lock nut (5).

5.

Remove the upper fixing bolts (2) of the
alternator.

6.

Remove the lower fixing bolt (1) of the
alternator.

7.

Remove the alternator.

Installing the alternator
1.

Fit the alternator on its bracket.

2.

Install the lower fixing bolt (1) of the
alternator.

3.

Install the upper fixing bolts (2) of the
alternator.

4.

Install the V-belts and check the V-belt
tension, see the chapter
“Checking and adjusting”.

5.

Install the electrical connections of the
alternator.

6.

Reconnect both leads to the battery
terminals.

M200937

1

2

5

3

4

5

ǹ 0008

2

XE ENGINE

Removal and installation

4-20

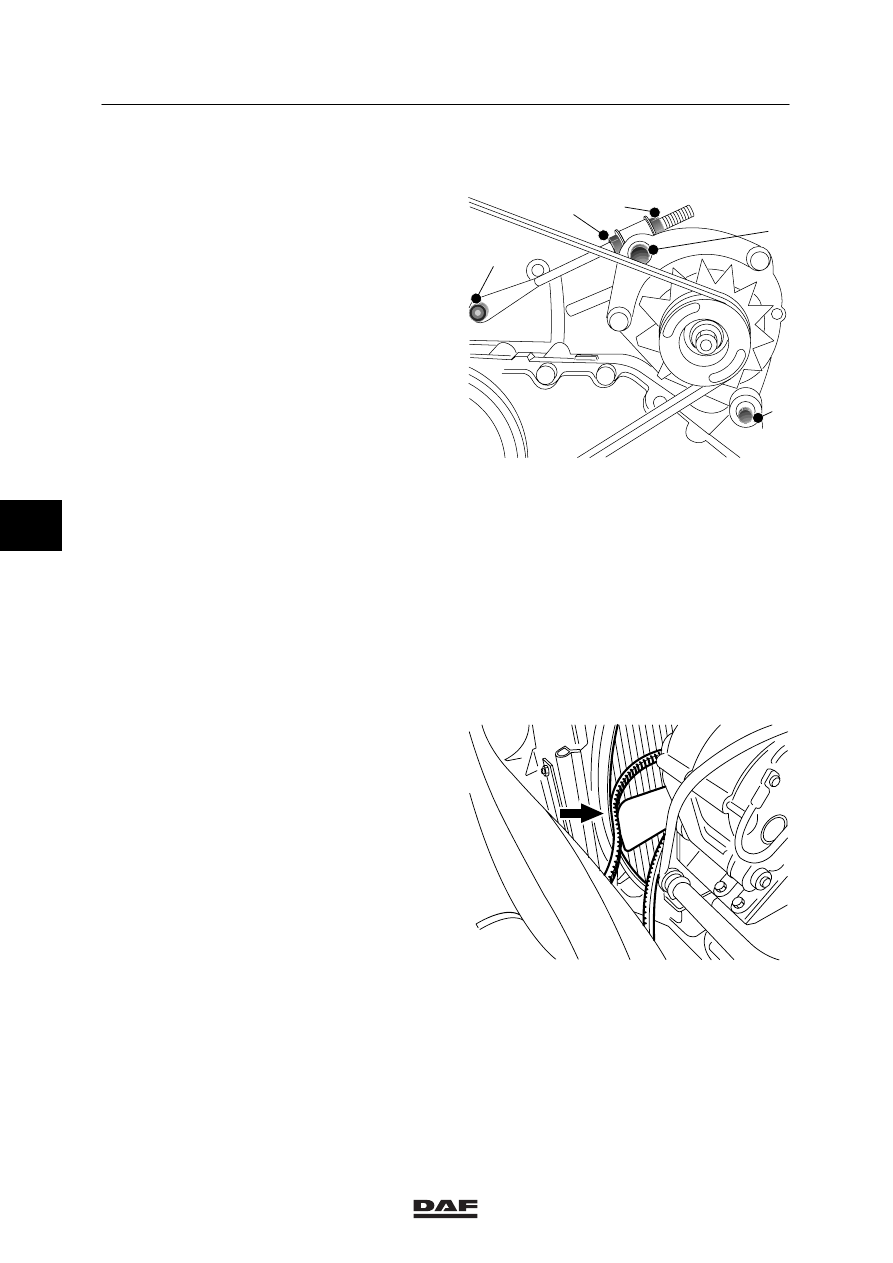

4.13 REMOVAL AND INSTALLATION, V-BELTS

Removal, water pump and alternator V-belt
1.

Slacken the lower fixing bolt (1) of the
alternator.

2.

Slacken the upper fixing bolt (2) of the
alternator.

3.

Slacken the fixing bolt (3) from the threaded
spindle which is attached to the water
pump.

4.

Turn the lock nuts (4) and (5) on the
threaded spindle so that the alternator can
be tilted towards the engine block and the
V-belt can be removed from the pulley.

5.

Remove the V-belt through the opening at
the guide ring (see arrow in drawing). Hang
the V-belt over a fan blade. Rotate the fan
blade by blade, hanging the V-belt over
them. Repeat this for the entire fan, after
which the belt can be removed.

Note:
With versions where the fan ring is mounted
on the engine block, the fan or the fan ring
is to be disconnected prior to removal of the
V-belt, depending on the accessibility of the
attachment bolts.

Installation, water pump and alternator V-belt
1.

Inspect the pulleys for damage, rust and
grease deposits.

2.

Install the V-belt through the opening at the
guide ring (see arrow in drawing) and adjust
the V-belt tension, see the chapter
“Checking and adjusting”.

3.

Install the fan if it has been removed.

M200738

1

2

5

3

4

M200558

5

ǹ 0008
