DAF 95XF. Manual - part 80





2

Removal and installation

XE ENGINE

4-13

4.7 REMOVAL AND INSTALLATION, INLET MANIFOLD

Removal, inlet manifold
1.

Disconnect the earth lead from the battery
pole.

2.

Mark the connectors and remove the
electric wiring from the inlet manifold.

3.

Remove the coolant filter element, if
present.

4.

Remove the fuel leak-off pipe of the inlet
manifold.

5.

Remove the fuel filter element.

6.

Remove the injection lines per set.

7.

Remove the air inlet pipe between the
intercooler and the inlet manifold.

8.

Remove the attachment bolts from the inlet
manifold and remove the manifold.

Installation, inlet manifold
1.

Carefully clean the sealing faces of the inlet
manifold and the cylinder head.

2.

Install the inlet manifold with new gaskets,
Tighten the fixing bolts to the specified
torque. See main group “Technical data”.

3.

Install the air inlet hose between the
intercooler and the inlet manifold.

4.

Fit the fuel leak-off pipe to the inlet
manifold.

5.

Fit the injection lines per set.

6.

Install the fuel filter element.

7.

Install the coolant filter element, if present.

8.

Connect the electric wiring to the inlet
manifold and to the water pipe.

9.

Reconnect the earth lead to the battery
pole.

5

ǹ 0008

2

XE ENGINE

Removal and installation

4-14

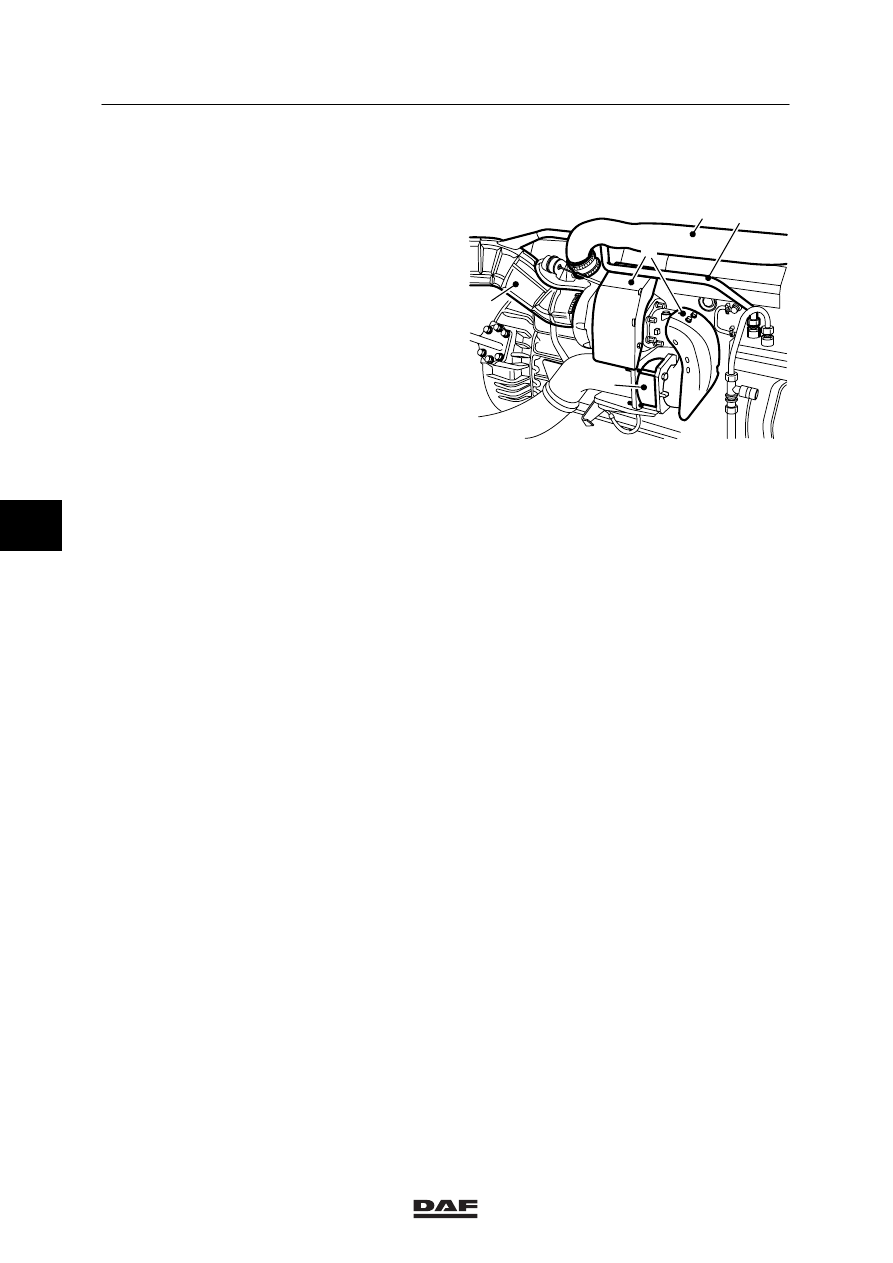

4.8 REMOVAL AND INSTALLATION, EXHAUST MANIFOLD

Removing the exhaust manifold
1.

Remove the heat shields (1) from the
turbocharger.

2.

Remove the air inlet hose (2).

3.

Remove the butterfly valve (3).

4.

Remove the inlet air pipe (4) between the
turbocharger and the intercooler.

5.

Remove the compressor pipe (5).

6.

Remove the heat shields from the exhaust
manifold.

7.

Remove the turbocharger oil supply and
discharge pipes.

8.

Remove the fixing bolts from the exhaust
manifold and remove the manifold.

Installing the exhaust manifold
1.

Install the exhaust manifold with new
gaskets. Tighten the fixing bolts with the
spacer sleeves to the specified torque, see
main group “Technical data”.

2.

Install the heat shields of the exhaust
manifold and tighten the fixing bolts to the
specified tightening torque, see main group
“Technical data”.

3.

Install the oil discharge pipe for the
turbocharger.

4.

Spray clean engine oil into the oil supply of
the turbocharger, and install the oil supply
pipe.

5.

Install the turbocharger pipe (5).

6.

Install the inlet air pipe (4) between the
turbocharger and the intercooler.

7.

Install the butterfly valve (3).

M200565

2

4

1

3

5

5

ǹ 0008

2

Removal and installation

XE ENGINE

4-15

8.

Install the turbocharger heat shields (1).
Tighten the fixing bolts to the specified
torque. See main group “Technical data”.

9.

Install the air inlet pipe (2). Tighten the
fixing bolts to the specified torque. See
main group “Technical data”.

10. Start the engine and check all connections

for leaks.

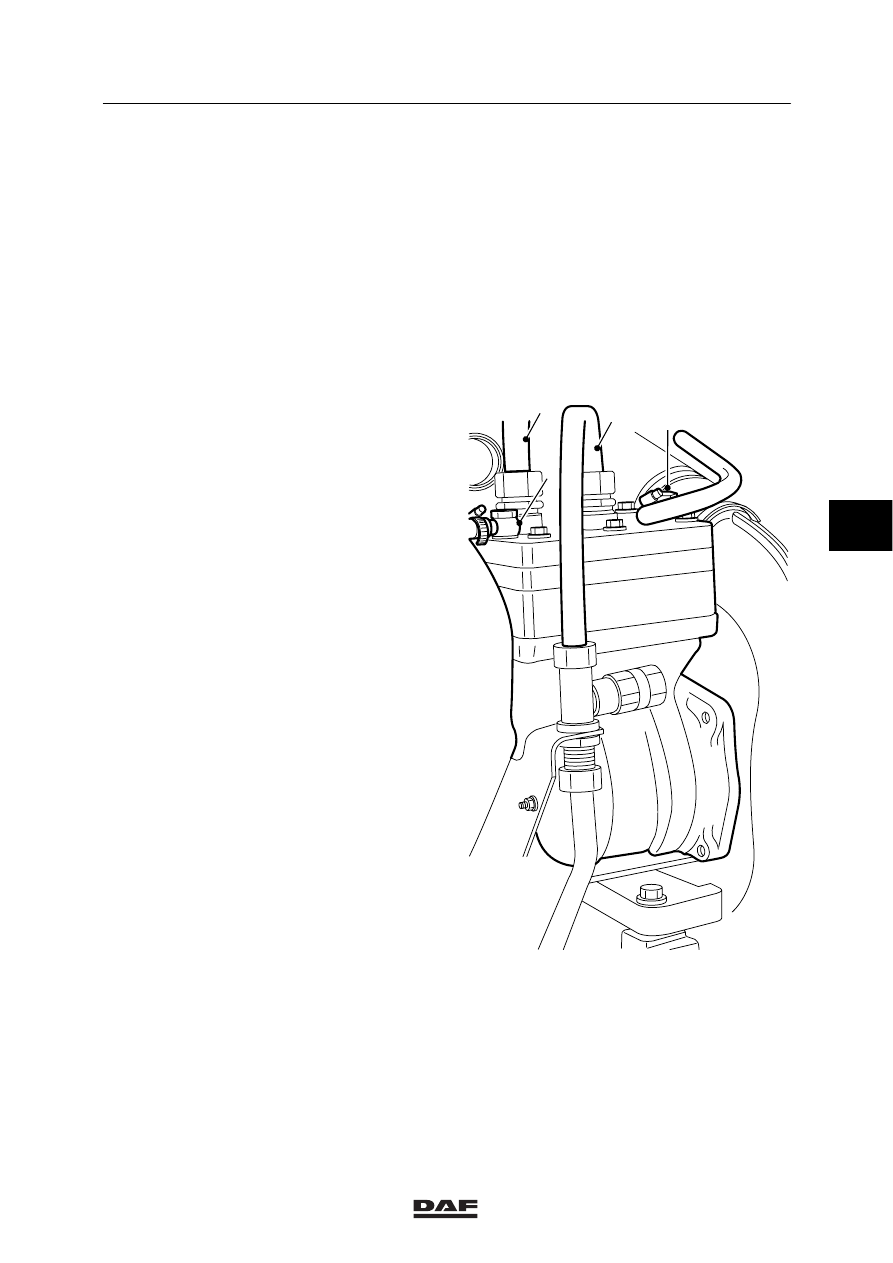

4.9 REMOVAL AND INSTALLATION, AIR COMPRESSOR

Removal, air compressor
1.

Partially drain the coolant.

2.

Remove the coolant connections (1).

3.

Remove the air pipes (2) and (3).

4.

Disconnect the lubricating-oil pipe.

5.

Disconnect the service pipe from the air
dryer.

6.

Remove the mounting bracket at the back
of the compressor.

7.

Remove the fixing bolts from the
timing-gear cover.

8.

Remove the compressor from the
timing-gear case. Remove the O-ring from
the compressor housing.

R600246

1

2

3

1

5

ǹ 0008

2

XE ENGINE

Removal and installation

4-16

Installation, air compressor
1.

Fit a new O ring to the compressor housing
and install the compressor on the
timing-gear case.

2.

Fit the fixing bolts of the air compressor.
Tighten the fixing bolts to the specified
torque. See main group “Technical data”.

3.

Install the mounting bracket at the back of
the compressor. Tighten the fixing bolts to
the specified torque. See main group
“Technical data”.

4.

Fit the service pipe.

5.

Install the lubricating-oil pipe.

6.

Install the air pipes (2) and (3).

7.

Install the coolant pipes (1).

8.

Fill the cooling system.

5

ǹ 0008
