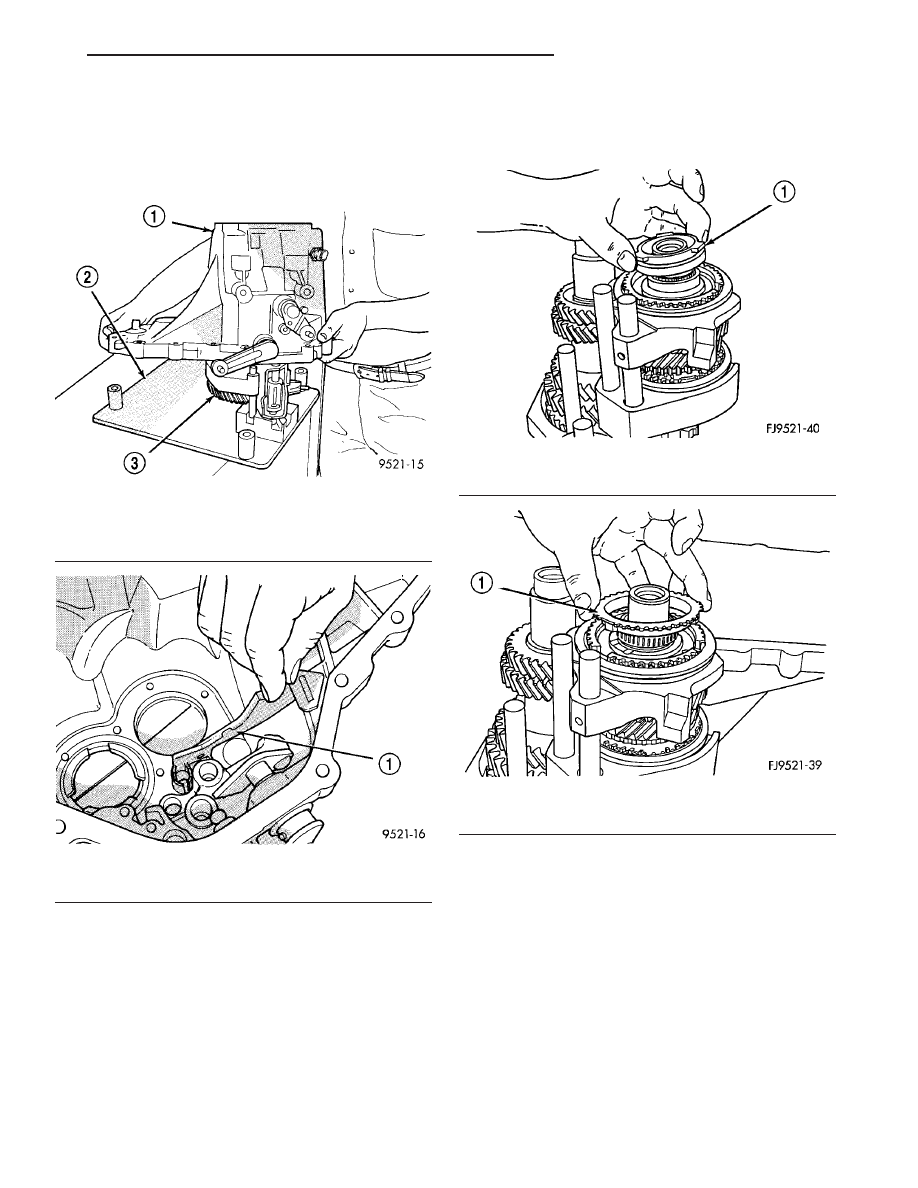

(20) Remove transaxle from press. shaft assemblies and bench fixture (Fig. 23). Be sure (22) Remove the reverse brake friction cone and blocking ring from the input shaft assembly (Fig. 25) Fig. 23 Transaxle Case Removal 1 - TRANSAXLE CASE Fig. 24 Oil Feed Trough 1 - OIL FEED TROUGH Fig. 25 Reverse Brake Friction Cone 1 - REVERSE BRAKE FRICTION CONE Fig. 26 Reverse Brake Blocking Ring 1 - REVERSE BRAKE BLOCKING RING JR T350 MANUAL TRANSAXLE 21 - 9 T350 MANUAL TRANSAXLE (Continued) |
