axle. All gear ranges, except reverse, are synchro-
nized. The reverse gear utilizes a brake and blocking
ring for shifting ease. The reverse idler gear is sup-
ported on a sliding spindle idler shaft. The transaxle
case is aluminum with a steel end–plate bearing
cover. It is housed in a die-cast aluminum case fea-
turing a two–piece, middle split design (Fig. 1).

The T350 transaxle internal components can be

serviced only by separating the gear case from the
bellhousing case.

CAUTION: The transaxle output shaft is serviced as
a unit. No disassembly and reassembly is possible.
Damage to the transaxle may result.

TRANSAXLE IDENTIFICATION

The transaxle model, assembly number, and build

date are on a metal I.D. tag that is attached to the
end cover of the transaxle (Fig. 2). This information
is also shown on a bar code label that is attached to
the front of the transaxle (Fig. 3).

NOTE: Transaxles use various final drive gear ratios
in different vehicle applications. Therefore, it is nec-
essary that the correct transaxle assembly number
is used when ordering service parts.

GEAR RATIOS

CAUTION: All gears and shafts must not be inter-
changed with other transaxles; they will not func-
tion correctly.

The differential is a conventional arrangement of

gears that is supported by tapered roller bearings.
The final output gear turns the ring gear and differ-
ential assembly, thereby turning the drive axle
shafts.

The gear ratios of each transaxle are shown in the

following chart. The chart also shows which transax-
les are available with the reverse–input shaft brake.
This brake allows easier shifting into reverse and
helps eliminate reverse gear clash.

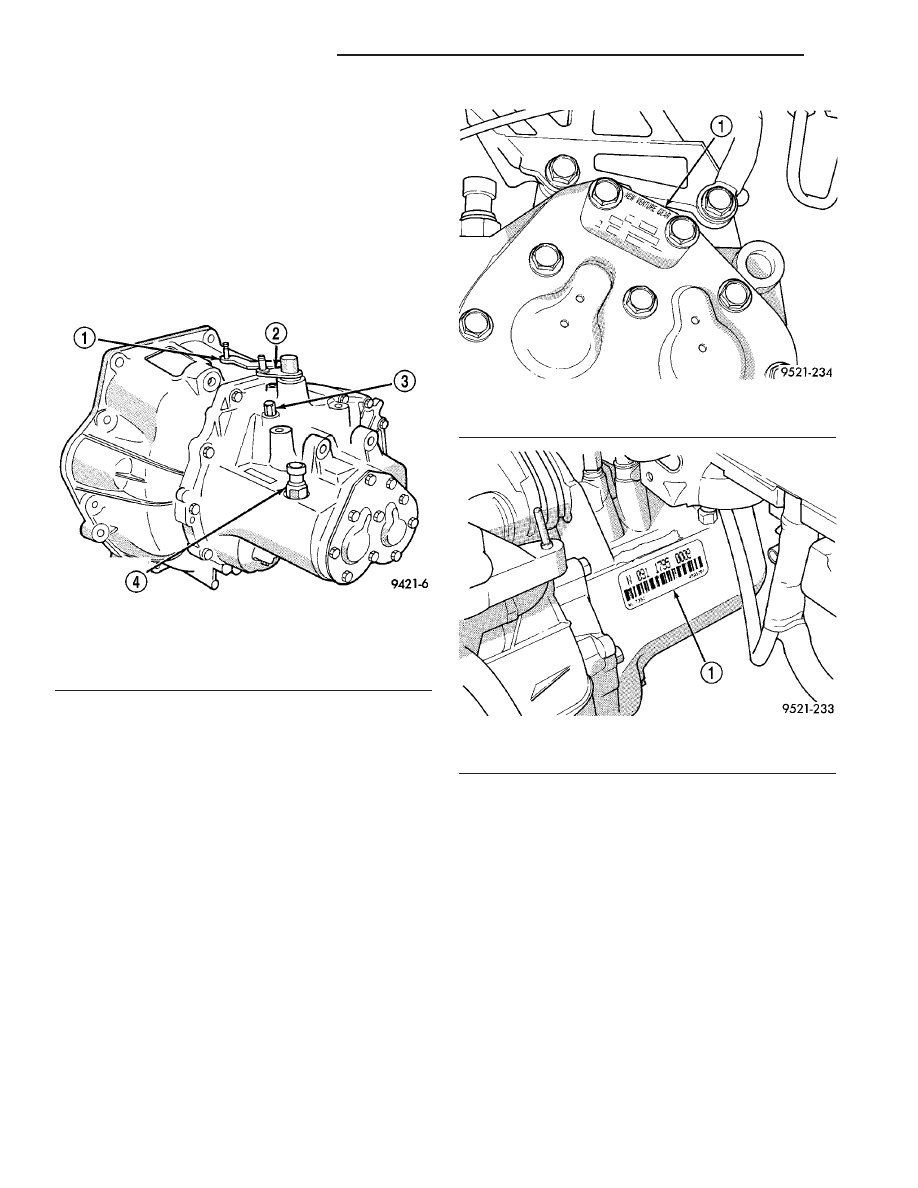

Fig. 1 T350 Manual Transaxle

1 - SHIFT LEVER
2 - CROSSOVER LEVER
3 - VENT
4 - REVERSE LAMP SWITCH

Fig. 2 Metal I.D. Tag

1 - METAL I.D. TAG

Fig. 3 Bar Code Label

1 - BAR CODE LABEL

21 - 2

T350 MANUAL TRANSAXLE

GEAR

RATIO

1st

3.50

2nd

1.95

3rd

1.36

4th

0.97

5th

0.81

FINAL DRIVE RATIO

3.94

REVERSE BRAKE

YES

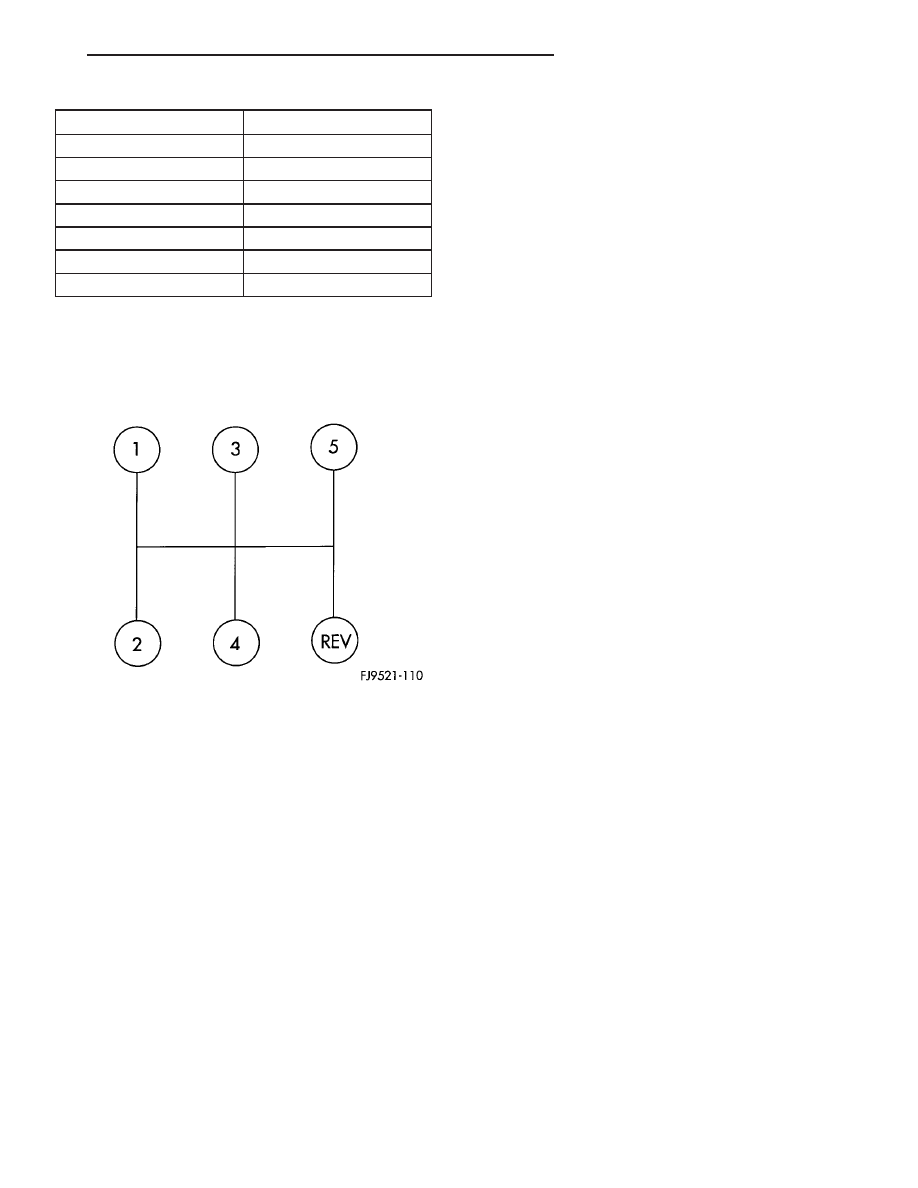

GEARSHIFT PATTERN

The T350 transaxle shift pattern is a modified

H–pattern (Fig. 4). Overdrive fifth and reverse gears
are in–line and outboard of the first through fourth
gear positions.

LUBRICANT/ADDITIVES

T350 transaxles use Mopar

t ATF+4. Hypoid gear

lube or engine oil should not be used in this
transaxle. Hard shifting effort, bearing, gear, and/or
synchronizer failure may occur if incorrect fluid is
used.

The addition of any fluids to the transaxle, other

than the fluid listed above, is not recommended. An
exception to this policy is the use of special dyes to
aid in detecting fluid leaks. The use of transmission
sealers should be avoided, since they may adversely
affect synchronizers and seals.

SEALANTS

The sealant used to seal the transaxle case halves

and input bearing is Mopar

t Gasket Maker, Loctitet

518, or equivalent. The sealant used for the bearing
end plate cover is Mopar

t RTV.

DIAGNOSIS AND TESTING - COMMON
PROBLEM CAUSES

The majority of transaxle malfunctions are a result

of:

• Insufficient lubrication

• Incorrect lubricant

• Misassembled or damaged internal components

• Improper operation

HARD SHIFTING

Hard shifting may be caused by a misadjusted

crossover cable. If hard shifting is accompanied by
gear clash, synchronizer clutch and stop rings or gear
teeth may be worn or damaged.

Misassembled synchronizer components also cause

shifting problems. Incorrectly installed synchronizer
sleeves, struts, or springs can cause shift problems.

Worn, damaged, missassembled or leaking hydrau-

lic system/components can also cause difficult shift-
ing or gear clash.

NOISY OPERATION

Transaxle noise is most often a result of worn or

damaged components. Chipped, broken gear or syn-
chronizer teeth, and brinnelled, spalled bearings all
cause noise.

Abnormal wear and damage to the internal compo-

nents is frequently the end result of insufficient
lubricant.

SLIPS OUT OF GEAR

Transaxle disengagement may be caused by mis-

aligned or damaged shift components, or worn teeth
on the drive gears or synchronizer components. Incor-
rect assembly also causes gear disengagement.

LOW LUBRICANT LEVEL

Insufficient transaxle lubricant is usually the

result of leaks, or inaccurate fluid level check or refill
method. Vehicle must be level to accurately
check fluid level. Leakage is evident by the pres-
ence of oil around the leak point. If leakage is not
evident, the condition is probably the result of an
underfill.

If air–powered lubrication equipment is used to fill

a transaxle, be sure the equipment is properly cali-
brated. Equipment out of calibration can lead to an
underfill condition.

CLUTCH PROBLEMS

Worn, damaged, or misaligned clutch components

can cause difficult shifting, gear clash, and noise.

A worn or damaged clutch disc, pressure plate, or

release bearing can cause hard shifting and gear
clash.

Fig. 4 T350 Transaxle Shift Pattern

T350 MANUAL TRANSAXLE

21 - 3

T350 MANUAL TRANSAXLE (Continued)

REMOVAL

(1) Raise hood.
(2) Disconnect battery negative cable.
(3) Remove air cleaner assembly.
(4) Disconnect Vehicle Speed Sensor/Back-up Lamp

Switch harness connector.

(5) Remove clutch release access cap.
(6) Disconnect clutch release cable.
(7) Disconnect crossover and selector cables from

transaxle.

(8) Remove gearshift cable retainer clips from

bracket and position gearshift cables out of way.

(9) Remove starter motor and secure out of way.
(10) Remove three (3) rear mount bracket-to-tran-

saxle bolts.

(11) Raise vehicle on hoist.
(12) Remove halfshafts.
(13) Remove rear mount bracket-to-transaxle hori-

zontal bolt.

(14) Remove rear mount through-bolt.
(15) Remove three (3) rear mount-to-crossmember

bolts.

(16) Remove rear mount and bracket.
(17) Remove front mount through bolt.
(18) Remove engine front pencil strut brace.
(19) Remove front mount bracket from engine/

transaxle.

(20) Remove structural collar.
(21) Remove bellhousing dust cover.
(22) Remove left wheel opening splash shield.
(23) Remove four (4) modular clutch-to-drive plate

bolts. While removing bolts, one tight-tolerance (slot-
ted) drive plate hole will be encountered. When this
bolt is removed, mark driveplate and modular clutch
assembly at this location, and be sure to align marks
upon reassembly.

(24) Position screw jack and wood block to oil pan.
(25) Remove transaxle upper mount through bolt.
(26) Lower engine transaxle assembly.
(27) Remove transaxle upper mount.
(28) Obtain helper and transmission jack.
(29) Remove transaxle-to-engine block bolts.
(30) Remove transaxle from engine.

DISASSEMBLY

The T350 transaxle internal components can be

serviced only by separating the gear case from the
bellhousing case.

CAUTION: The transaxle output shaft is serviced as
a unit. No disassembly and reassembly is possible.
Damage to the transaxle may result.

(1) Place transaxle on bench.
(2) Remove the clutch release bearing and lever.

Move the release fork and bearing to an in-line posi-

tion. Grasp the release lever with two hands in the
pivot stud socket area. Pull with even pressure to
release the lever from the pivot stud.

CAUTION: Do not use a screwdriver or pry bar to
release the lever as this may cause damage to the
lever and/or clip.

(3) Remove shift levers by driving out the roll pins.
(4) Remove transaxle case half bolts (Fig. 5).

(5) Place two screwdrivers into the slots provided

in the case halves near the dowels (Fig. 6). Separate
the case halves (Fig. 7).

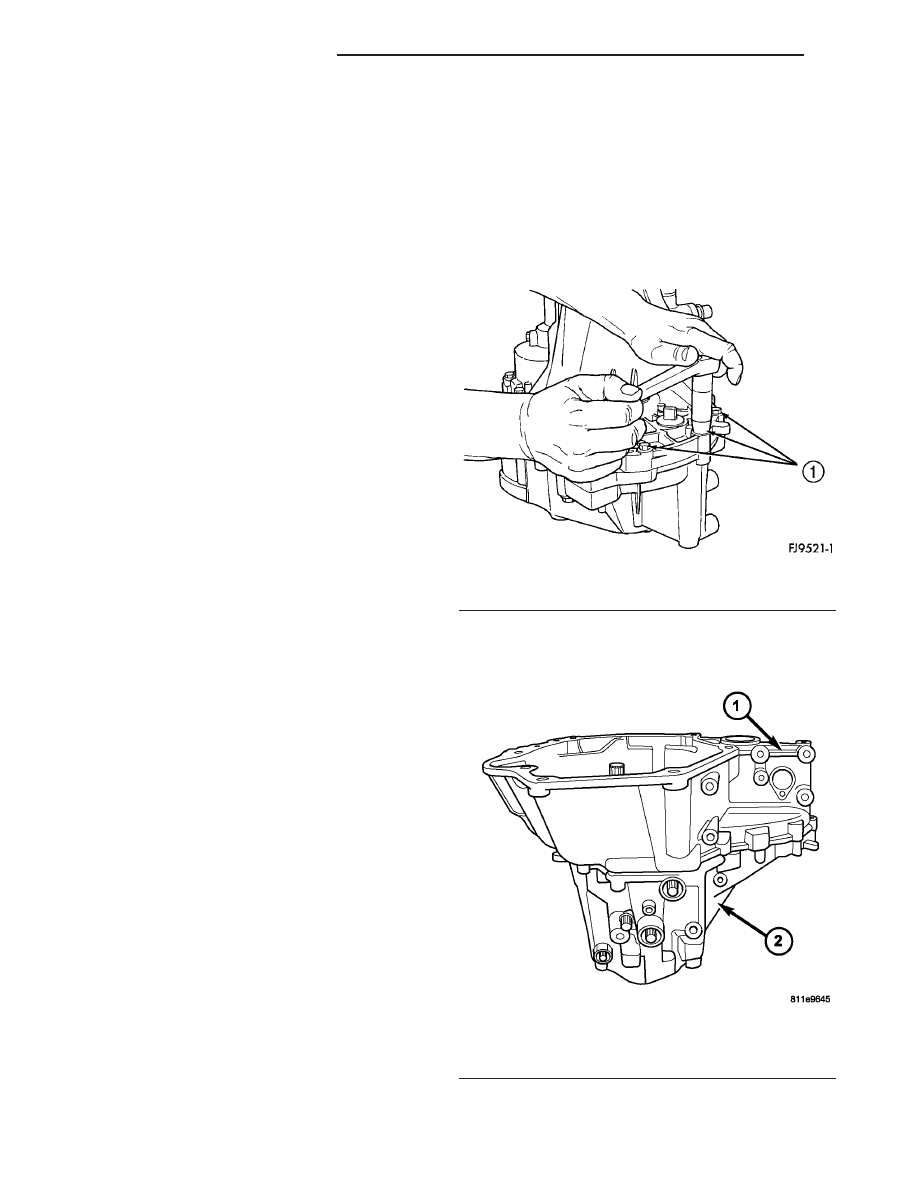

Fig. 5 Case Bolts

1 - CASE BOLTS

Fig. 6 Transaxle Case Halves

1 - BELLHOUSING HALF
2 - GEARTRAIN HALF

21 - 4

T350 MANUAL TRANSAXLE

T350 MANUAL TRANSAXLE (Continued)
