Fig.

26

RIGHT

SIDE

INSTRUMENT

P

ANEL

JR

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 31

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

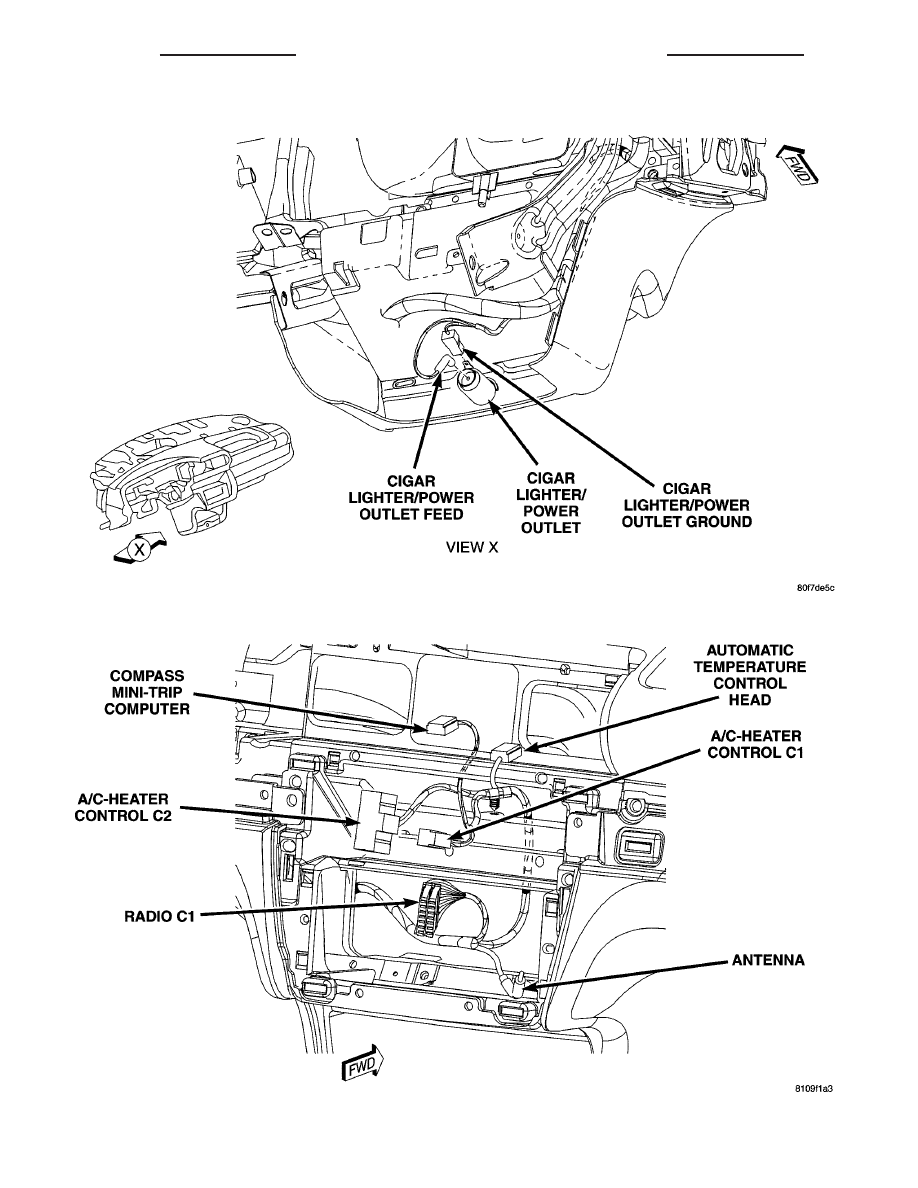

Fig. 27 CENTER INSTRUMENT PANEL REAR

Fig. 28 CENTER INSTRUMENT PANEL CONNECTORS

8W - 91 - 32

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

JR

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

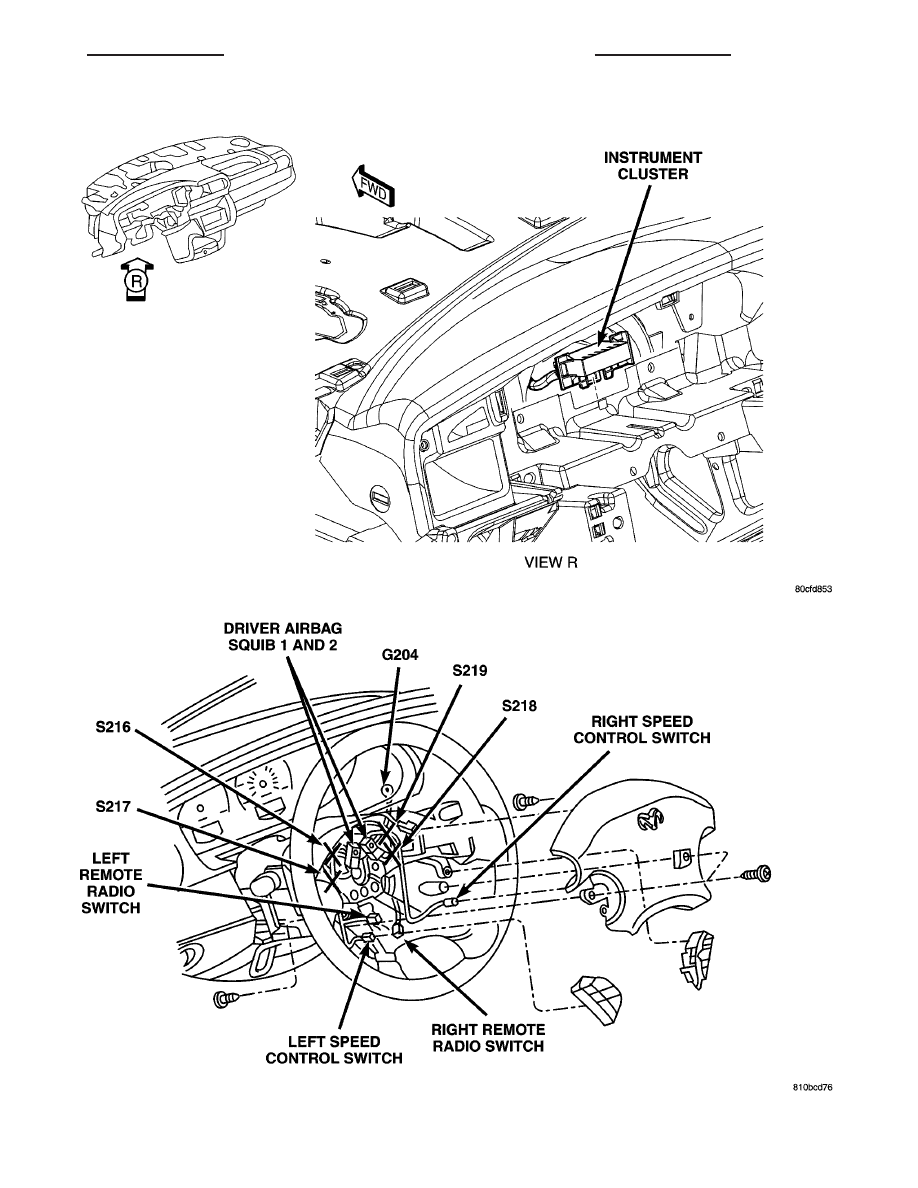

Fig. 29 INSTRUMENT CLUSTER

Fig. 30 STEERING COLUMN

JR

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 33

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

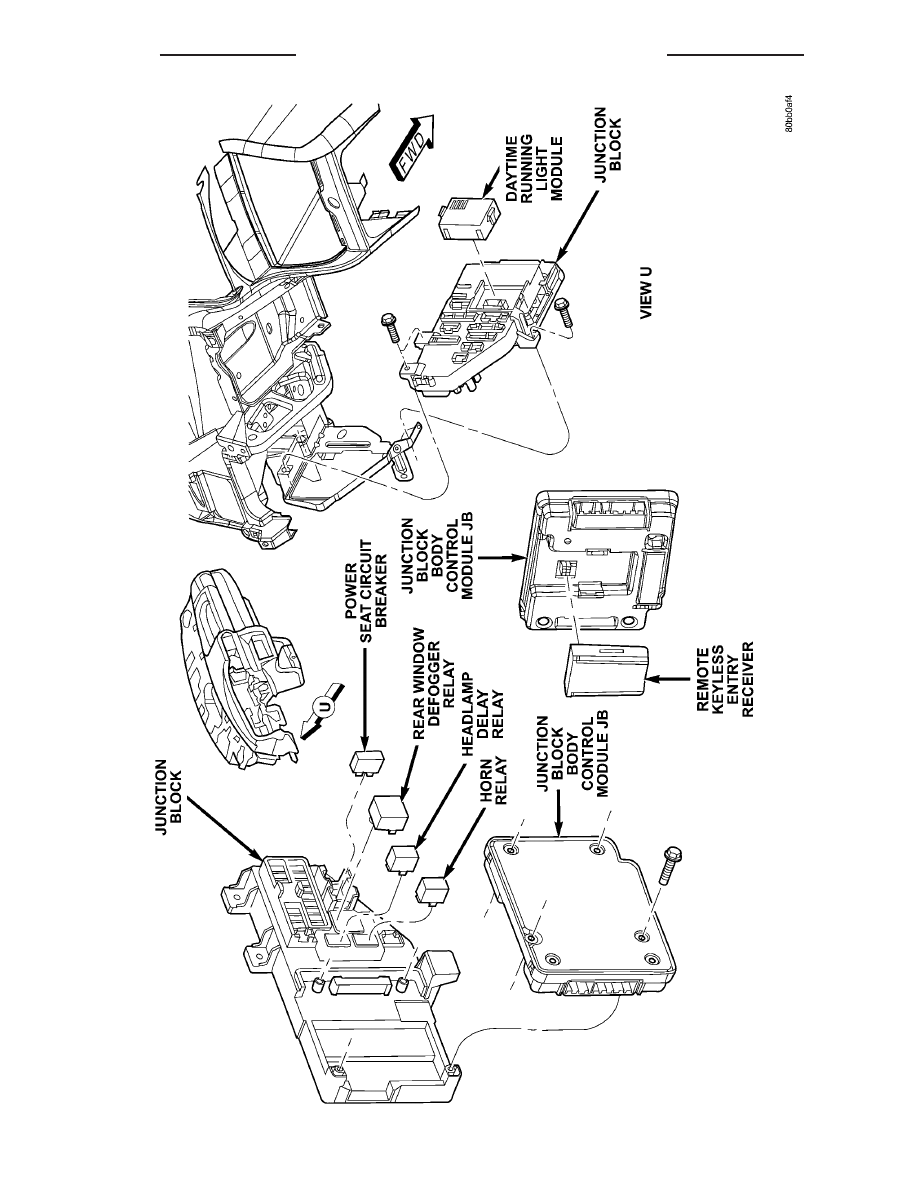

Fig.

31

JUNCTION

BLOCK

8W - 91 - 34

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

JR

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
