Fig.

15

ENGINE

CONNECT

ORS

2.7L

JR

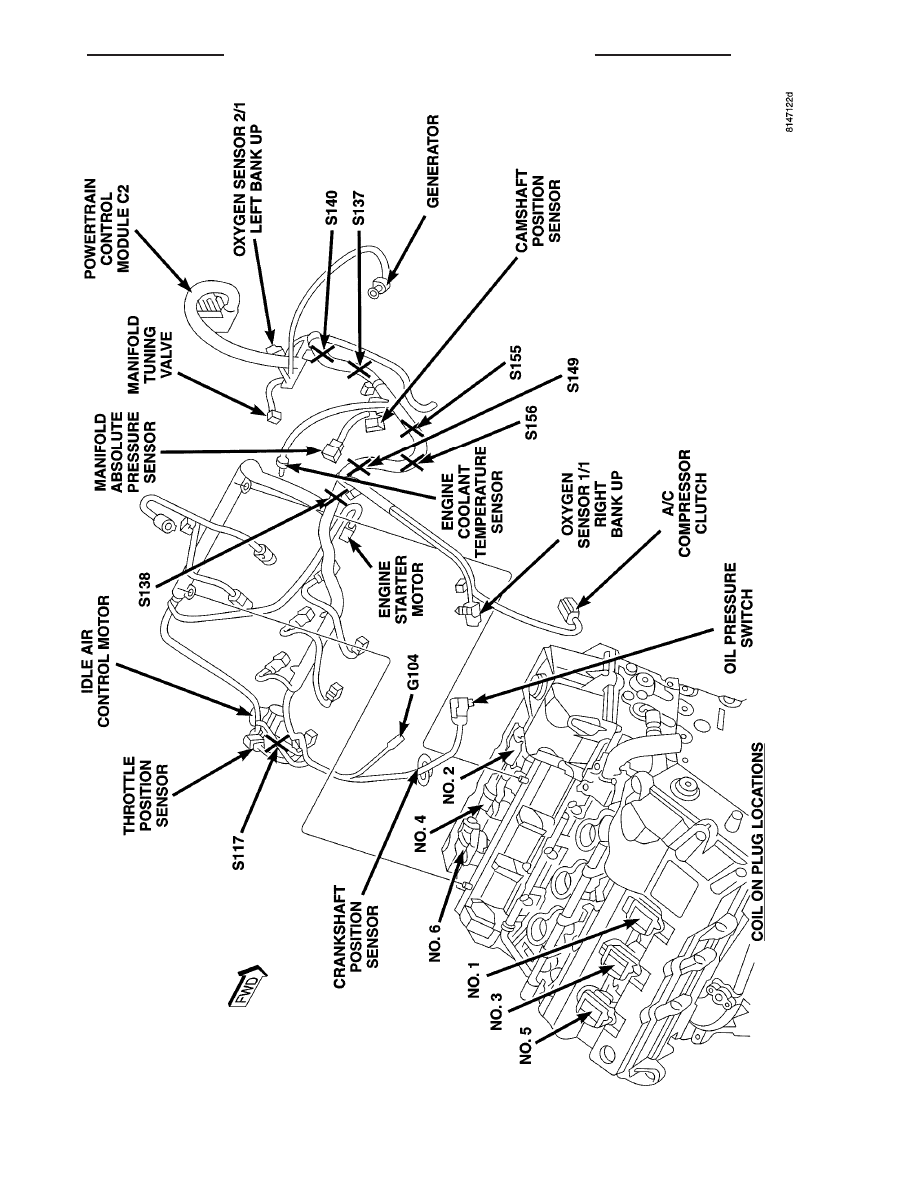

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 23

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

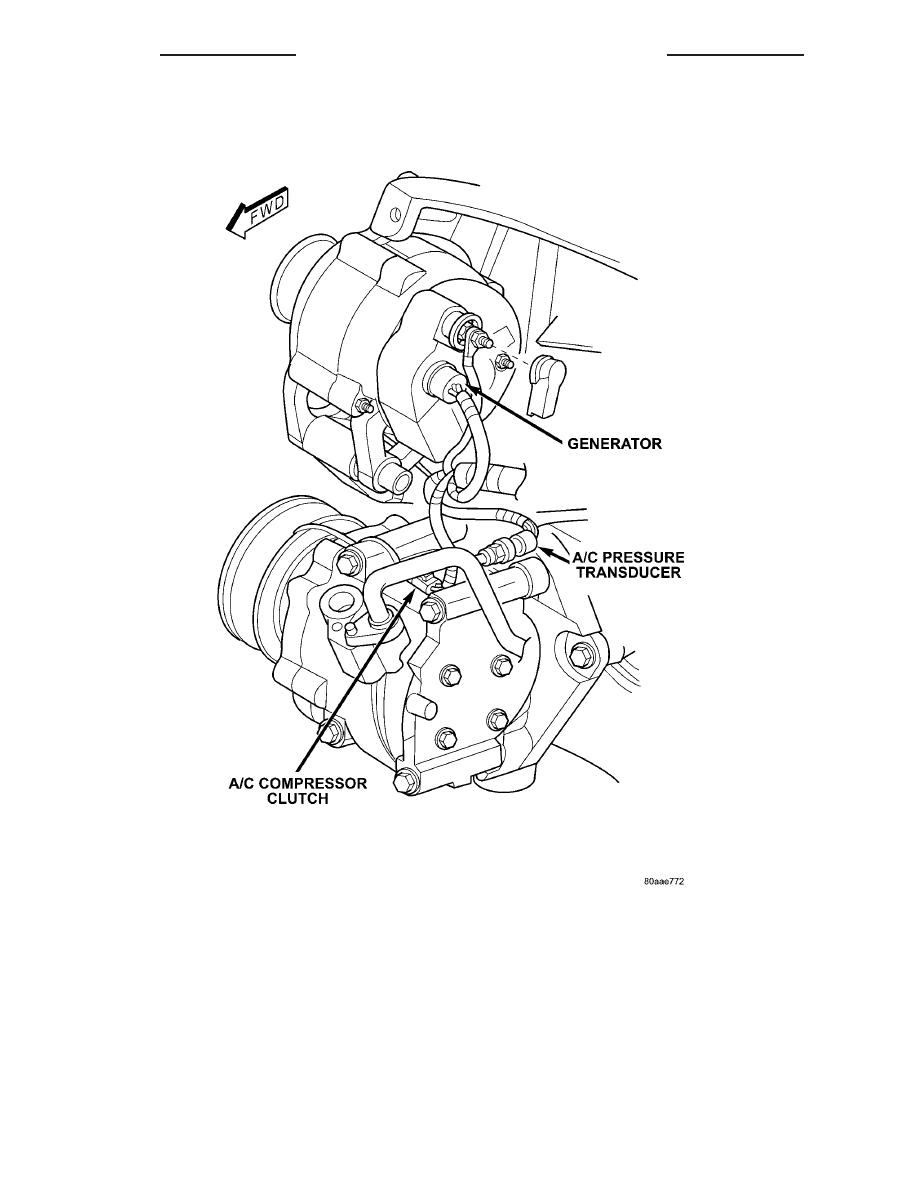

Fig. 16 GENERATOR AND A/C CONNECTORS

8W - 91 - 24

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

JR

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 17 INLET AIR TEMPERATURE SENSOR 2.7L

Fig. 18 REAR ENGINE CONN 2.0L/2.4L

JR

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 25

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

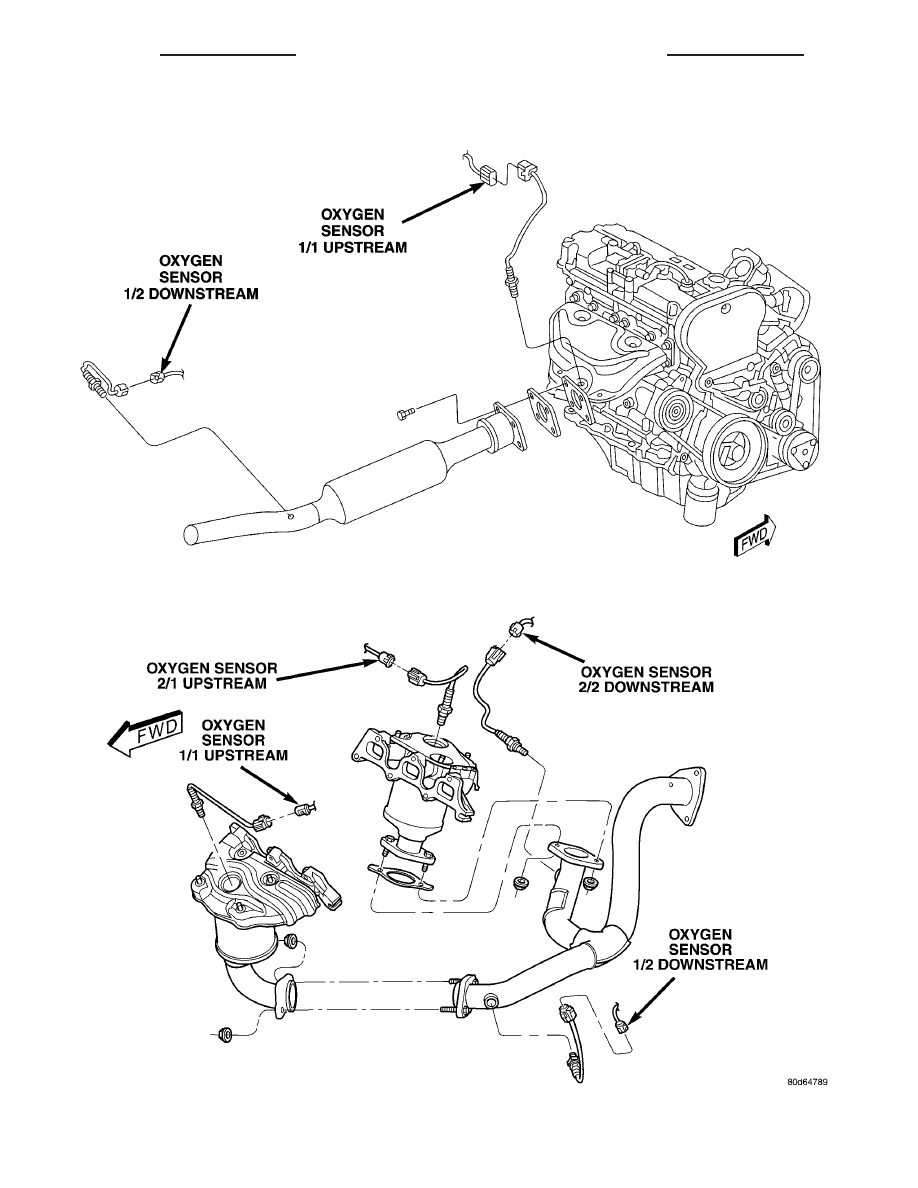

Fig. 19 OXYGEN SENSORS 2.0L/2.4L

Fig. 20 OXYGEN SENSORS 2.7L

8W - 91 - 26

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

JR

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
