Fig.

5

LEFT

SIDE

ENGINE

COMP

AR

TMENT

CONNECT

ORS

JR

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 15

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

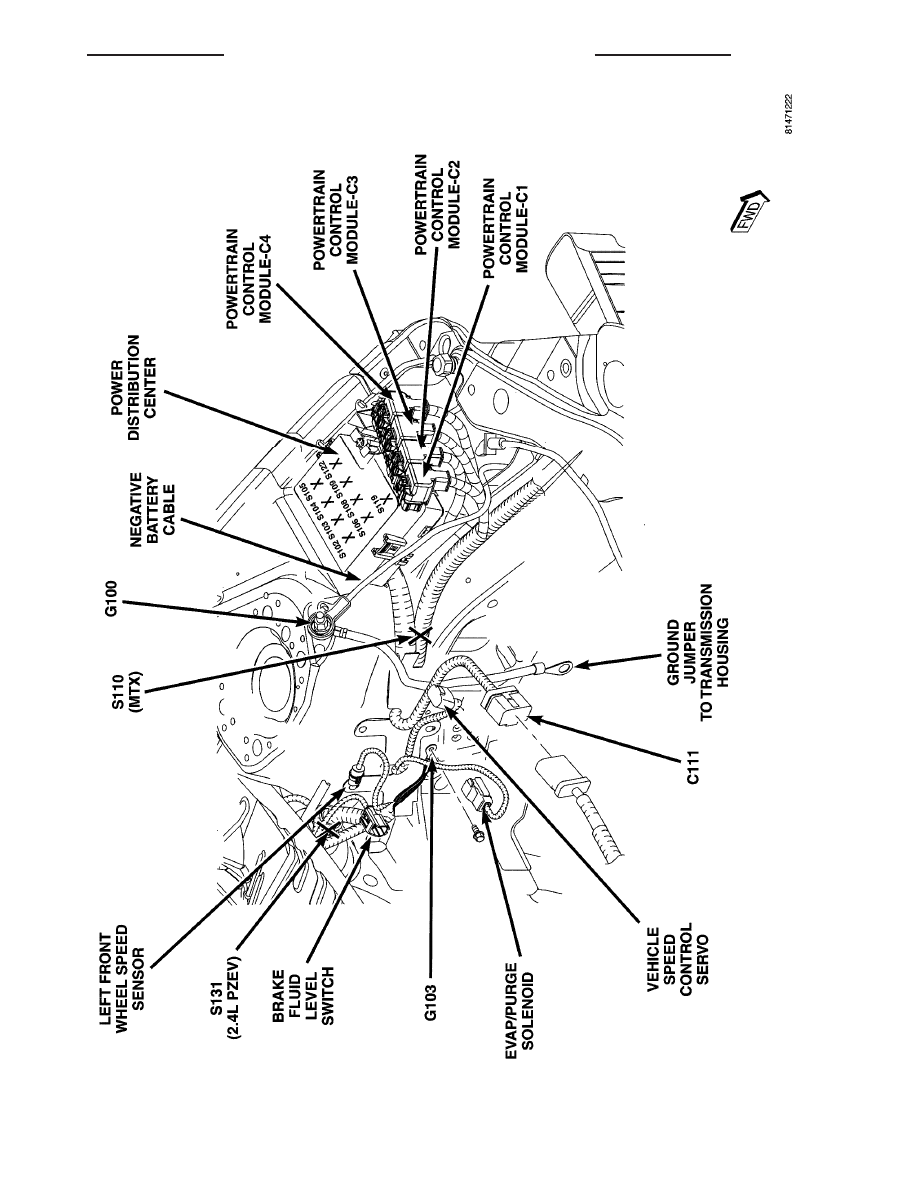

Fig. 6 LEFT REAR ENGINE COMPARTMENT CONNECTORS

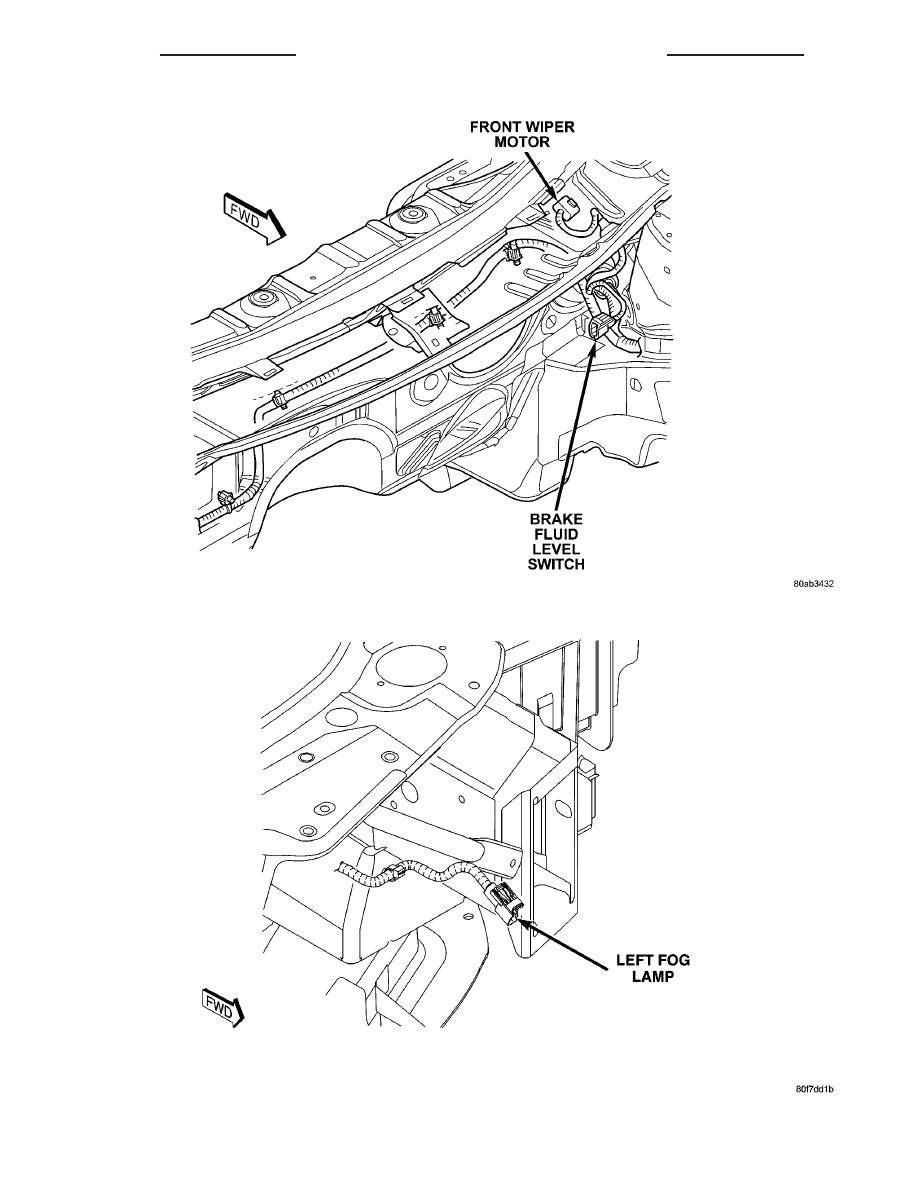

Fig. 7 LEFT FOG LAMP

8W - 91 - 16

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

JR

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

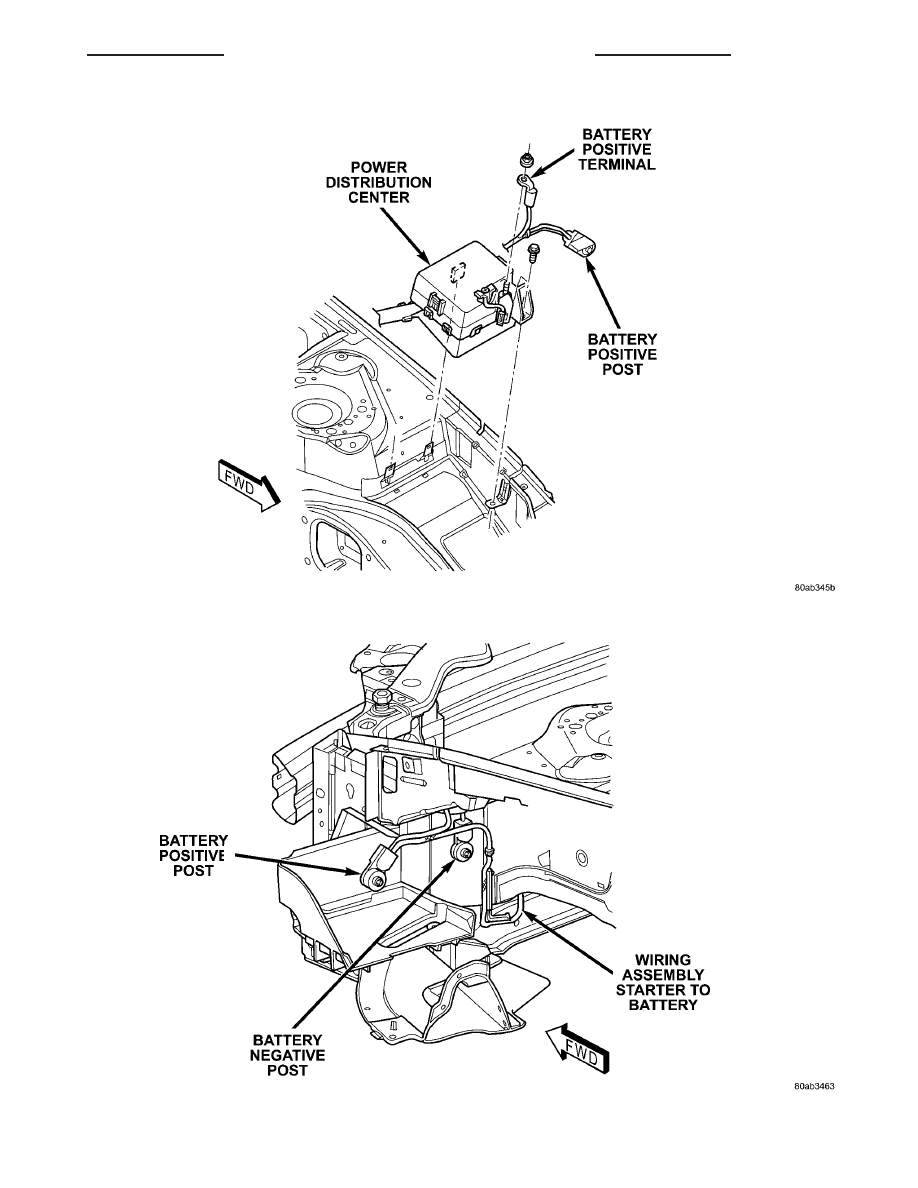

Fig. 8 POWER DISTRIBUTION CENTER

Fig. 9 BATTERY CABLE CONNECTORS

JR

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 17

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

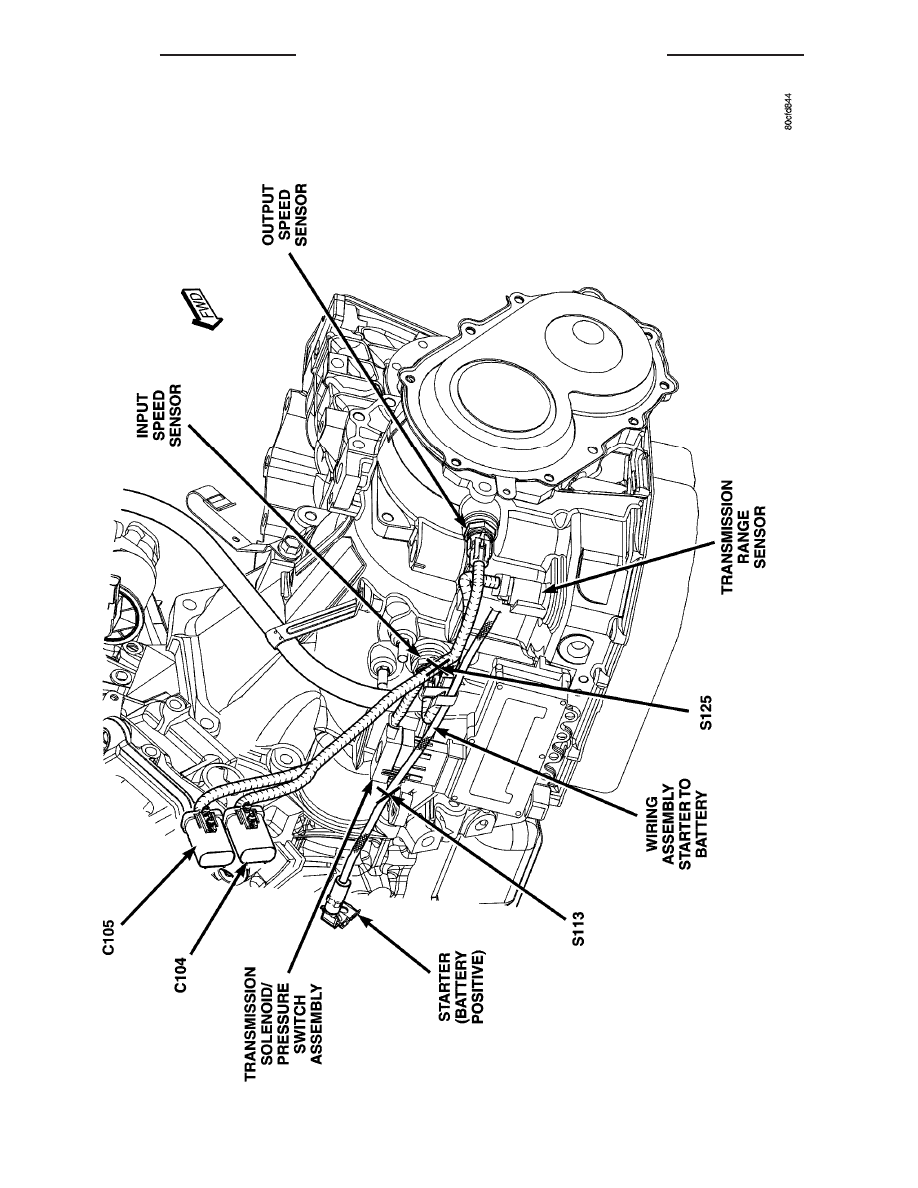

Fig.

10

AUT

OMA

TIC

TRANSMISSION

CONNECT

ORS

8W - 91 - 18

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

JR

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
