Chrysler Sebring, Stratus sedan, Sebring Convertible. Manual - part 462

Splice Number

Location

Fig.

S125

Near A/T inline Connectors

10

S127

Left Front Engine Compartment

4

S130

Near T/O for Left Headlamp

4

S131

Near T/O for Brake Fluid Level Switch

5

S135

Near T/O for Power Steering Pressure Switch

14

S137 (2.7L)

In Engine Valley Near Left Engine Head

15

S138 (2.7L)

Near T/O for Oxygen Sensor 1/1 Right Bank Up

15

S139 (2.7L)

Near T/O for Knock Sensor

N/S

S140

At Front corner of Left Engine Head

15

S142

Near T/O for Powertrain Control Module C1

14

S143 (2.7L)

Left Fuel Rail

N/S

S149 (2.7L)

Near T/O For Generator Feed

N/S

S155

Near T/O for Camshaft Position Sensor

15

S200

Between A/C Evap Temperature Sensor & Blend Door Actuator

34

S201

Between Blend Door Actuator and Mode Door Actuator

N/S

S202

Between Blend Door Actuator and Mode Door Actuator

N/S

S203

Center of Instrument Panel, Near Take-out for Data Link
Connector

N/S

S207

Left Side of Instrument Panel

21, 22

S208 (Export)

Left Side of Instrument Panel

21, 22

S209

Left Center of Instrument Panel

21, 22

S210

Left Center of Instrument Panel

21, 22

S211

Left Center of Instrument Panel

21, 22

S212

Left Center of Instrument Panel

21, 22

S214

Right Center of Instrument Panel

21, 22

S215

Left Side of Instrument Panel

21

S216

Under Horn Pad

30

S217

Under Horn Pad

30

S218

Under Horn Pad

30

S219

Under Horn Pad

30

S220

Near Brake Trans. Shift Interlock Solenoid

21

S221

Near Junction Block C4, & C5

21, 32

S222

Next to S207

21

S223

Near Body Control Module C3 & C4

32

S224

Near Sentry Key Immobilizer Module

21

S225

Near Fog Lamp Relay

22

S226

Near Data Link Connector

21

S227

Near Junction Block C4 & C5

32

S228

Near Fog Lamp Relay

22

S301

Front Left Center of Trunk

46

S302

Between Automatic Day/Night Mirror and Left Visor/Vanity
Lamp

38

S303

Near Splice S302 on Mirror Side

N/S

JR

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 11

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Splice Number

Location

Fig.

S304

Between Left Tail/Stop Lamp and Left Turn Lamp

N/S

S305

Between Right Tail/Stop Lamp and Right Turn Lamp

N/S

S306

Near Rear Window Defogger

43

S307

Near C320

N/S

S310

2.4

9

(60mm)Toward Passenger Heated Seat Module, from

Harness tie down

N/S

S311

Near Passenger Heated Seat Module

N/S

S312

In Heated Seat

N/S

S313

Center Body Floor Between Airbag Module and Shifter
Assembly

40

S318

Near T/O for Left Tail/Stop Lamp

N/S

S319

Near T/O for Right Tail/Stop Lamp

N/S

S320

In Driver Door

50

S321

In Passenger Door

50

S324

In Rear Fog Lamp Harness

N/S

S326

Near Fuel Pump Module

N/S

S327 (JR27)

In Driver Door

50

S327 (JR41)

Driver Door Forward From Take-out for Power Window and
Power Mirror Switches

N/S

S330

In Driver Door

50

S331

Between T/O for C320 & T/O For License Lamp

N/S

S332

Near Left License Lamp

N/S

S333 (JR27)

Between Left Rear Fog Lamp & Right Rear Fog Lamp

N/S

S334

Near Left Rear Fog Lamp

N/S

S335 (JR41)

Near Left/Right License Lamp

N/S

S336 (JR41)

Near Left/Right License Lamp

N/S

8W - 91 - 12

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

JR

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

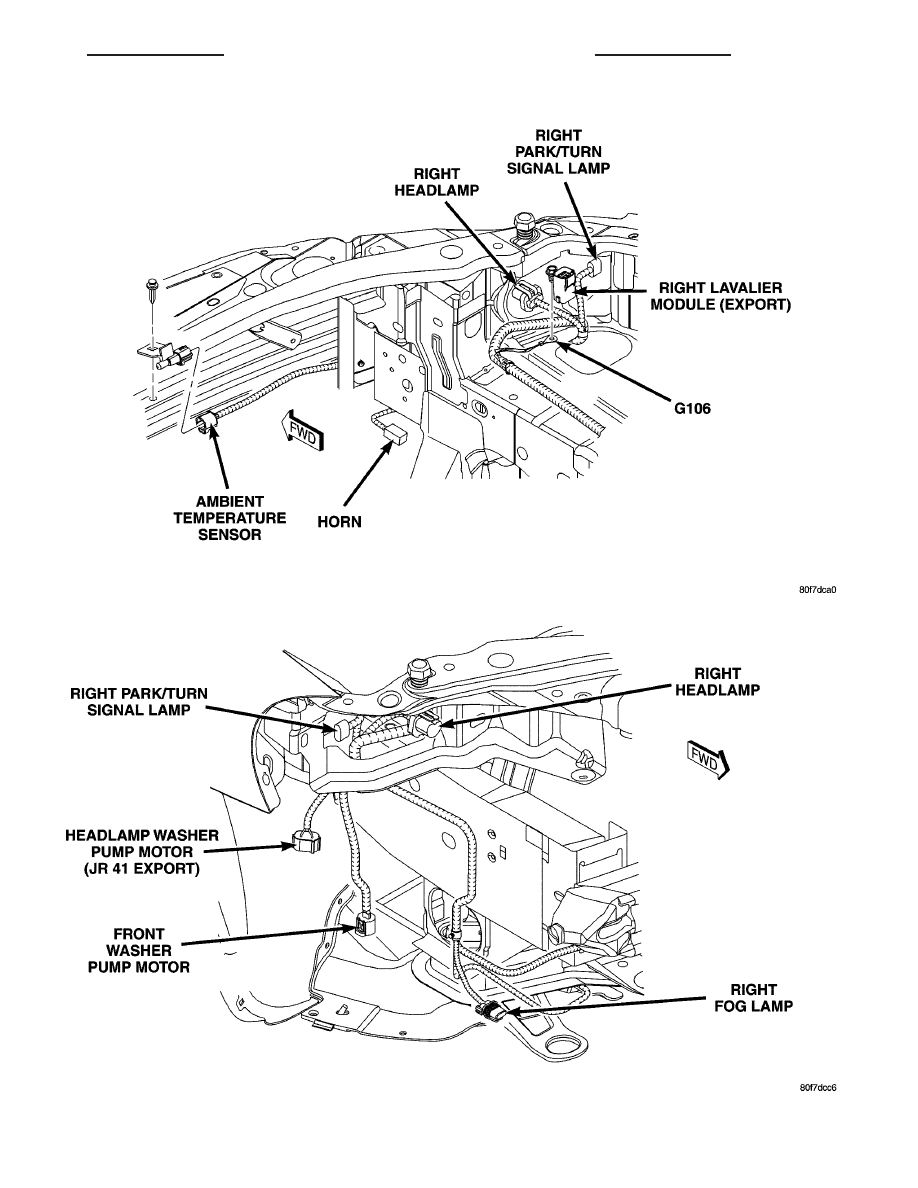

Fig. 1 RIGHT HEADLAMP CONNECTORS

Fig. 2 RIGHT FRONT LIGHTING CONNECTORS

JR

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 13

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

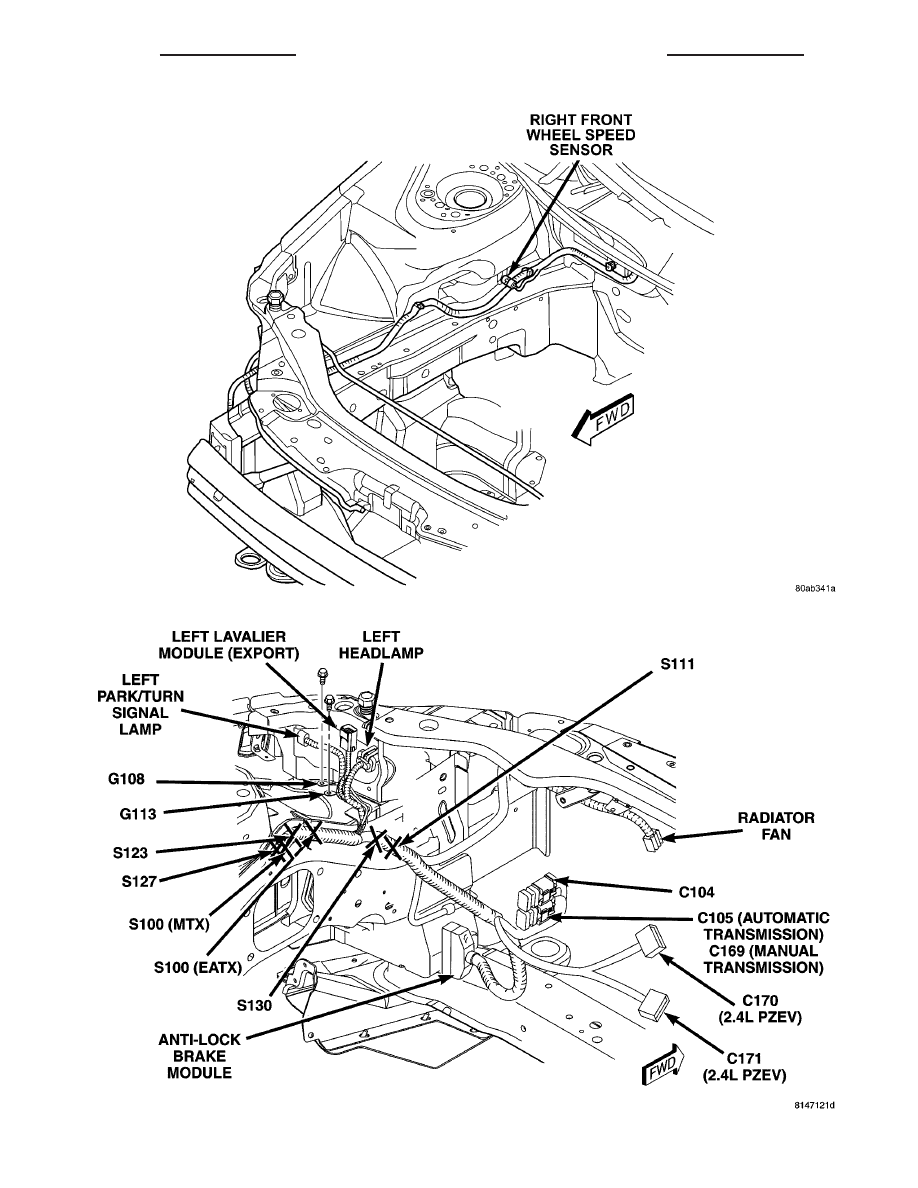

Fig. 3 RIGHT SIDE ENGINE COMPARTMENT CONNECTORS

Fig. 4 LEFT FRONT ENGINE COMPARTMENT CONNECTORS

8W - 91 - 14

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

JR

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
