Fig.

32

LEFT

FRONT

KICK

P

ANEL

JR

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 35

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

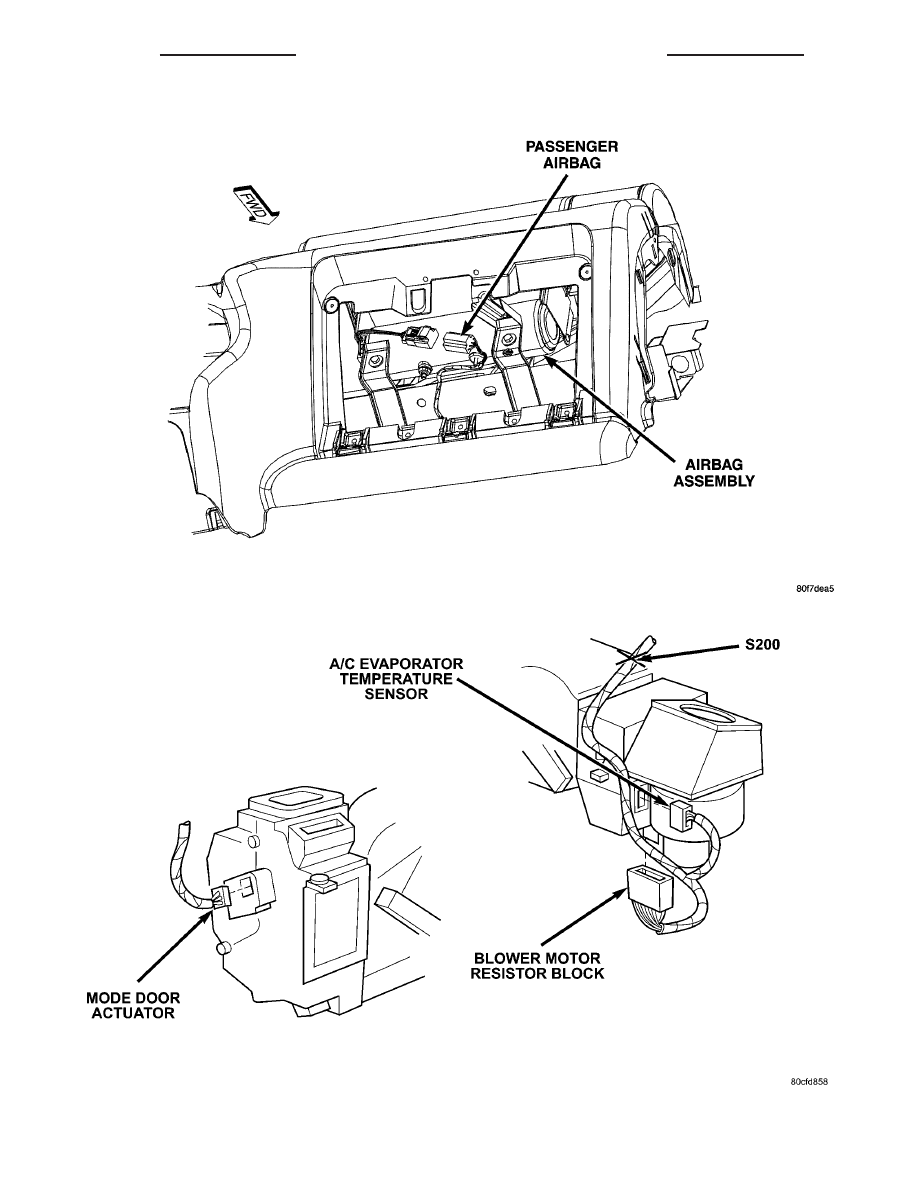

Fig. 33 GLOVE BOX CONNECTORS

Fig. 34 HVAC CONNECTORS (MTC)

8W - 91 - 36

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

JR

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

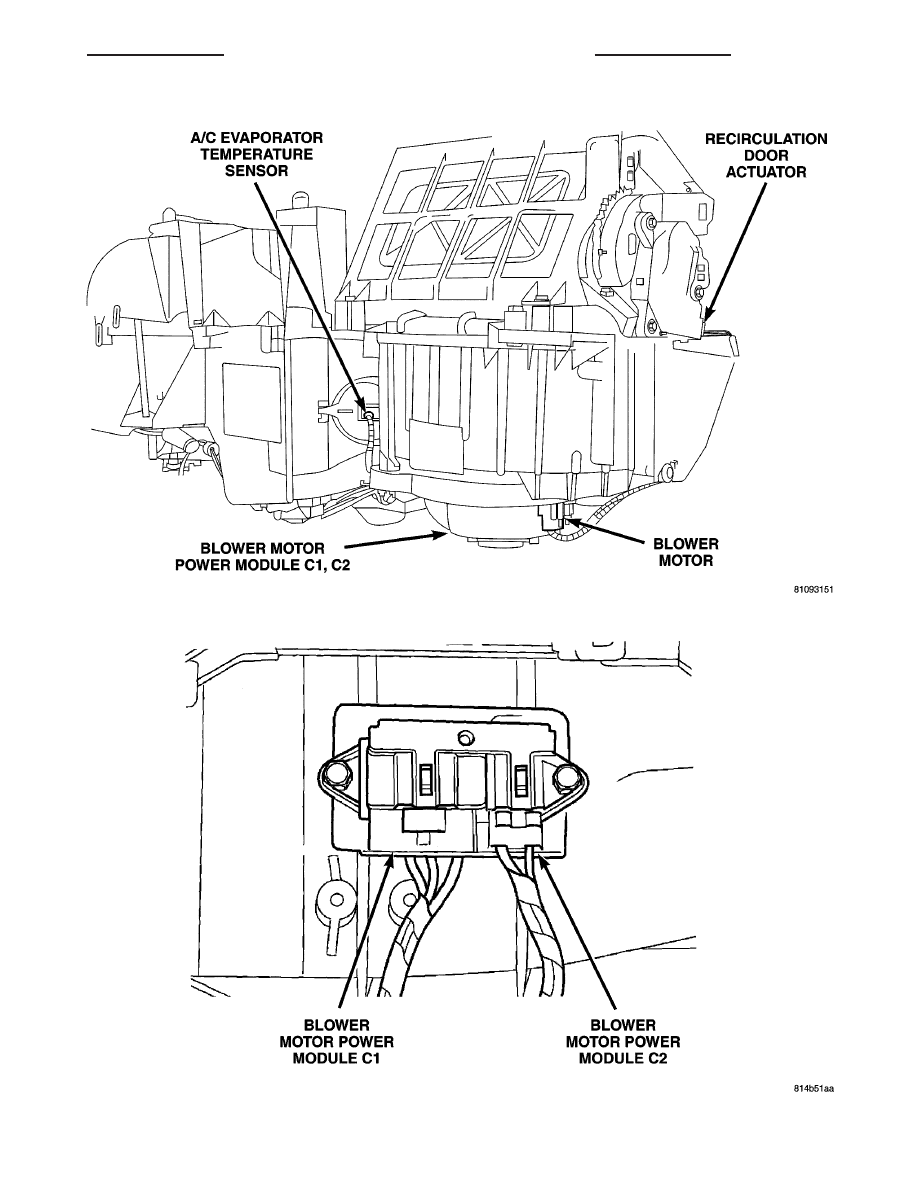

Fig. 35 HVAC RIGHT (ATC)

Fig. 36 BLOWER MOTOR POWER MODULE

JR

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 37

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

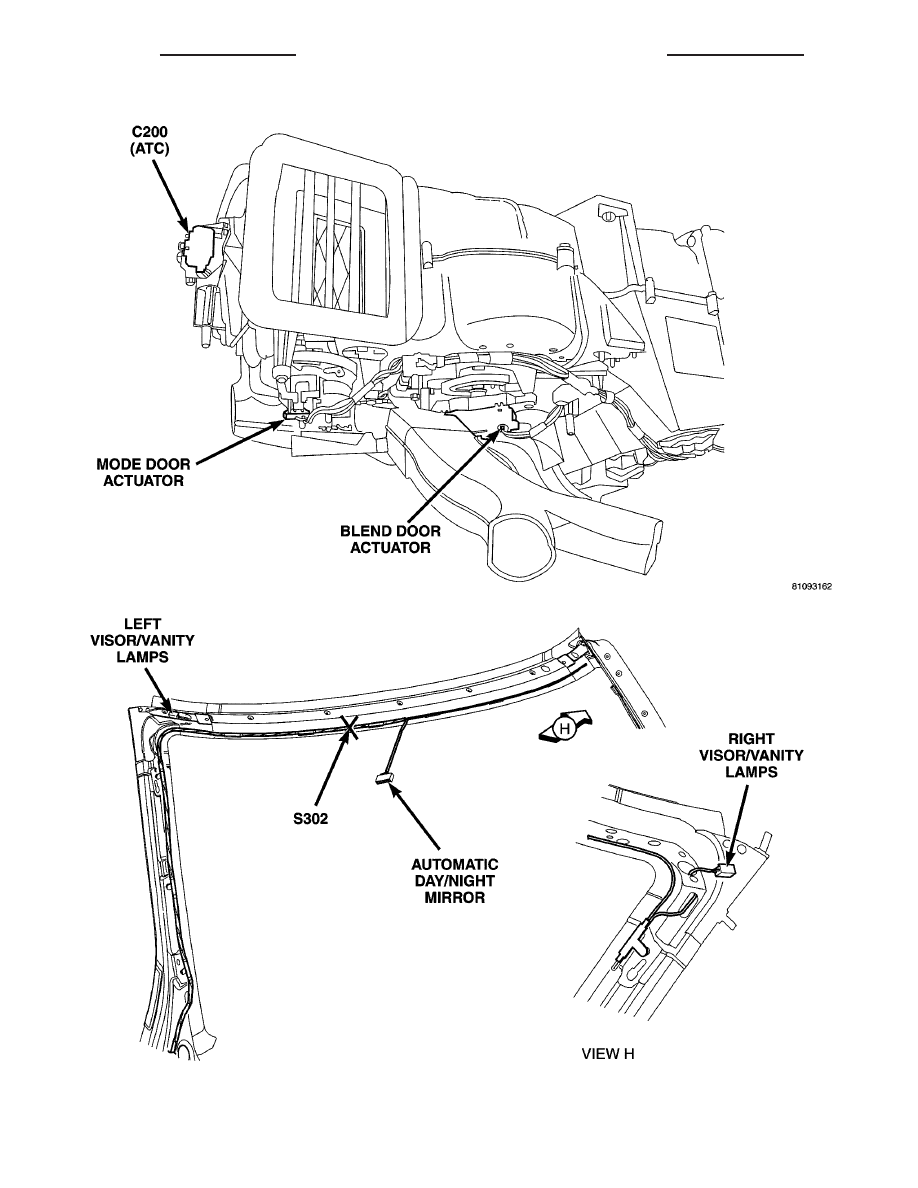

Fig. 37 HVAC LEFT (ATC)

Fig. 38 HEADER CONNECTORS

8W - 91 - 38

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

JR

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
