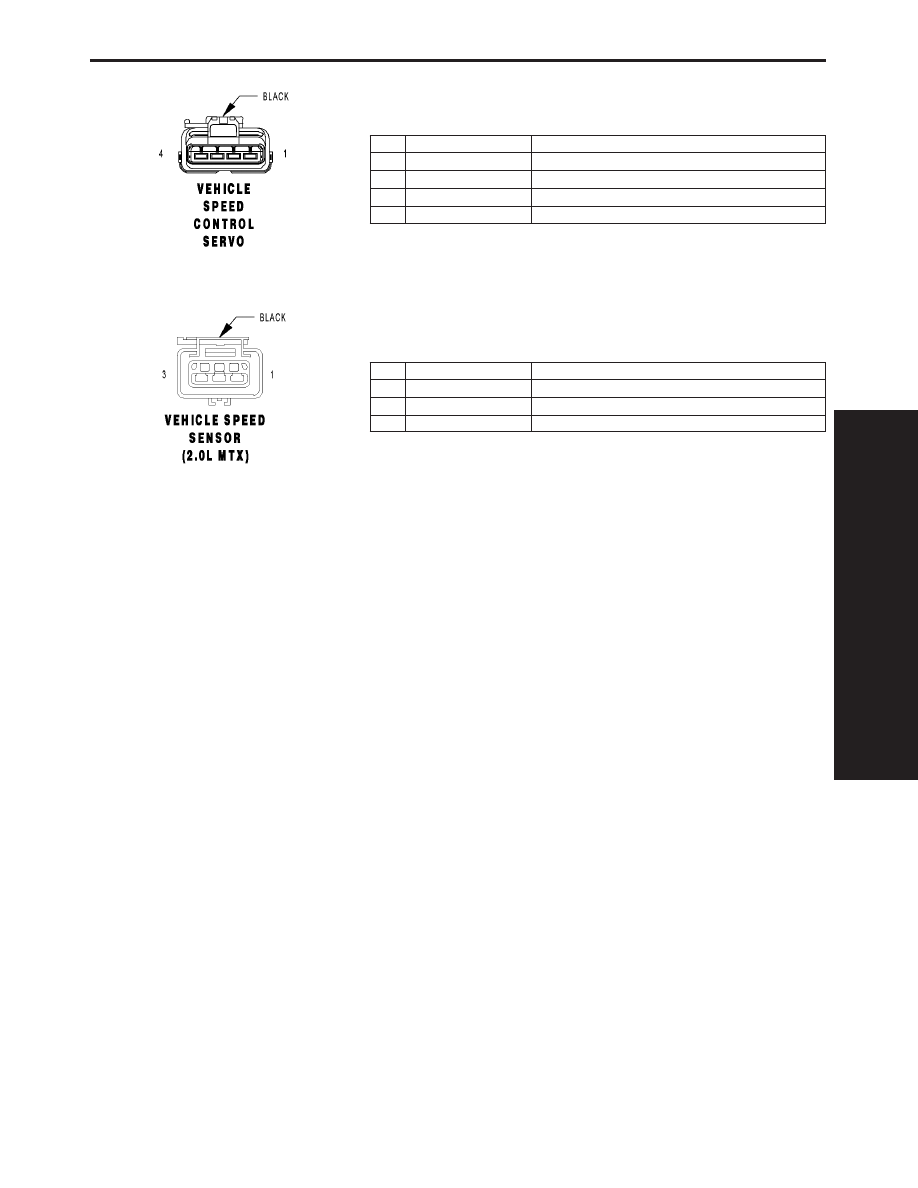

VEHICLE SPEED CONTROL SERVO - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

V36 20TN/RD

S/C VACUUM CONTROL

2

V35 20LG/RD

S/C VENT CONTROL

3

V30 20DB/RD

SPEED CONTROL BRAKE SWITCH OUTPUT

4

Z190 20BK

GROUND

VEHICLE SPEED SENSOR (2.0L MTX) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

K7 18OR/WT

5 VOLT SUPPLY

2

K4 20BK/LB

SENSOR GROUND 1

3

G7 18WT/OR

VEHICLE SPEED SIGNAL

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

377

CONNECTOR PINOUTS

NOTES

378

10.0

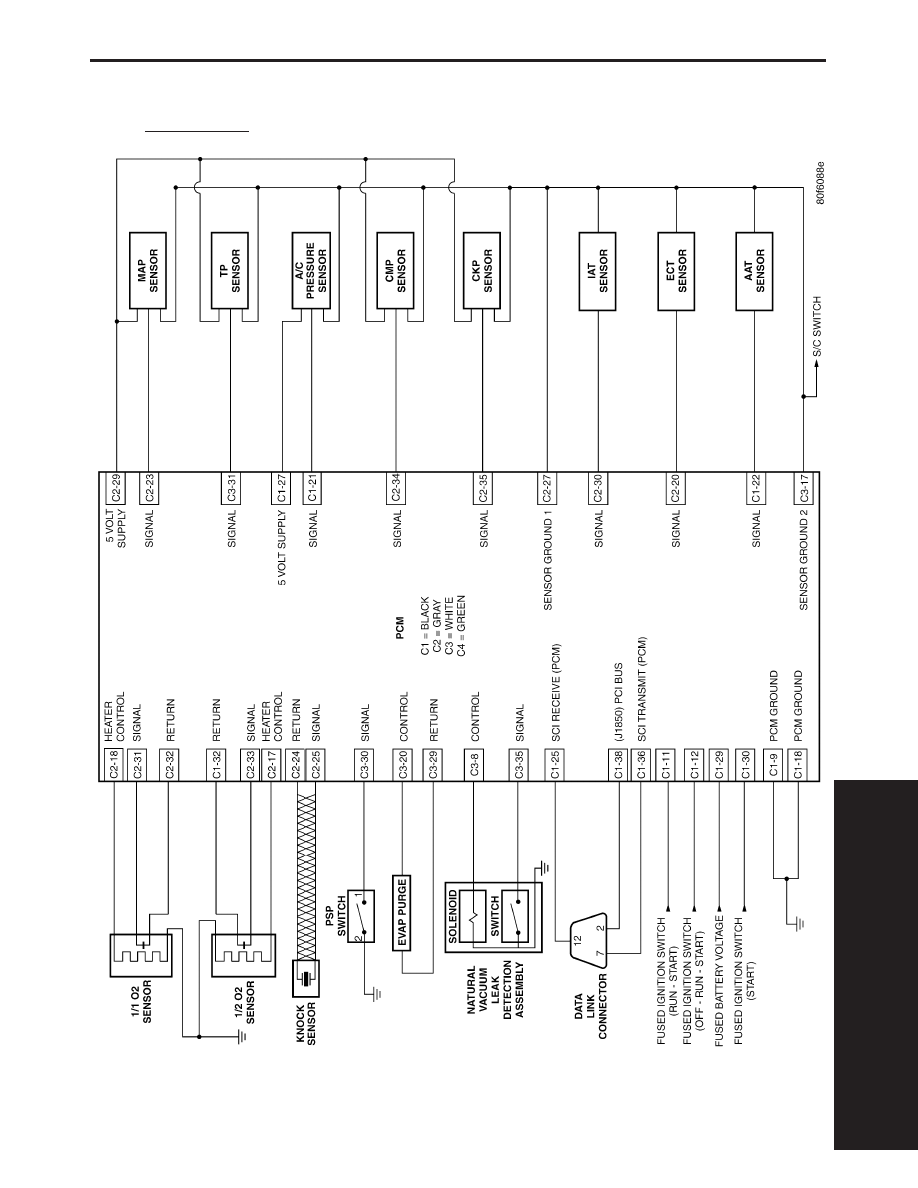

SCHEMATIC DIAGRAMS

10.1

JR 2.0L/2.4L

S

C

H

E

M

A

T

I

C

D

I

A

G

R
A

M

S

379

SCHEMATIC DIAGRAMS

S

C

H

E

M

A

T

I

C

D

I

A

G

R
A

M

S

380

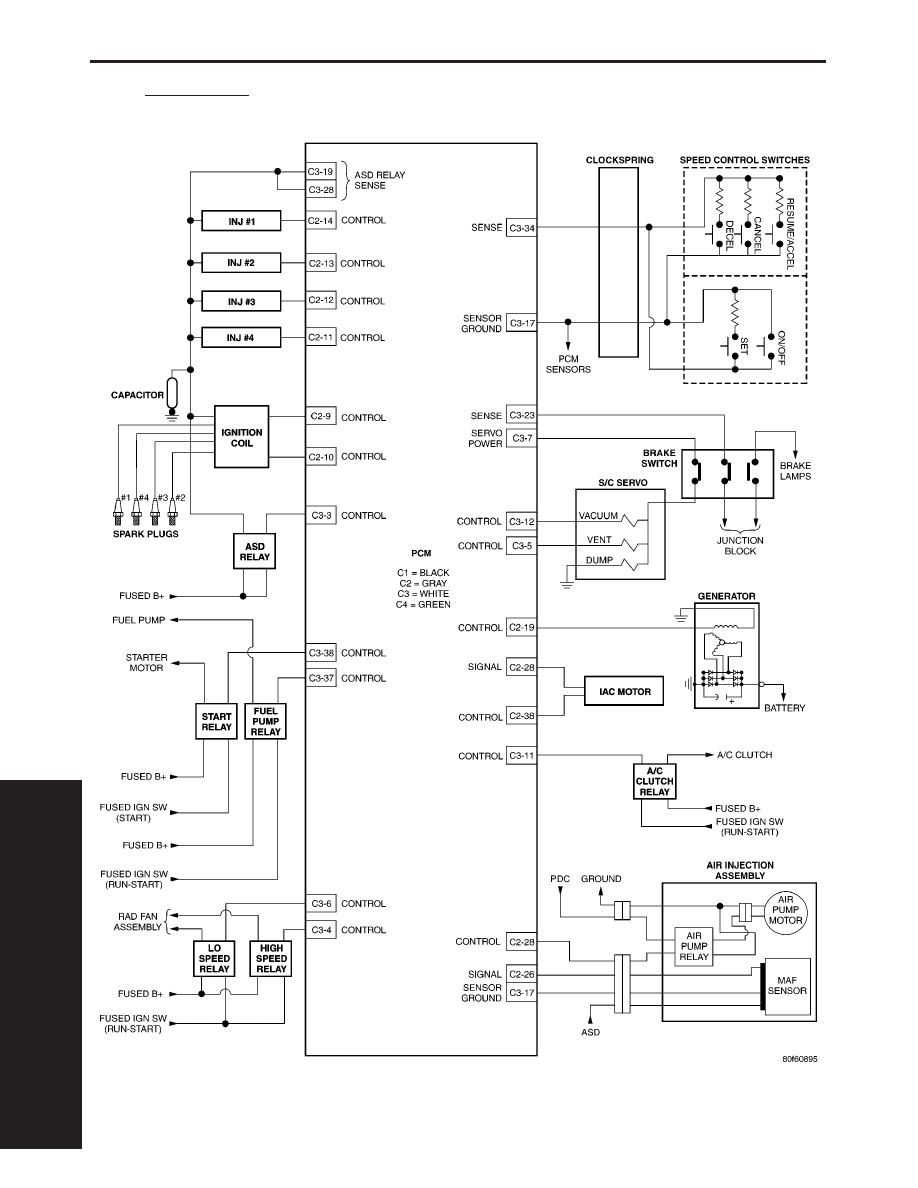

SCHEMATIC DIAGRAMS

10.1

JR 2.0L/2.4L (Continued)
