SPEED CONTROL SERVO (GAS) - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

V36 18VT/YL

S/C VACUUM CONTROL

2

V35 18VT/OR

S/C VENT CONTROL

3

V30 20VT/WT

S/C BRAKE SWITCH OUTPUT

4

Z155 18BK/LG

GROUND

THROTTLE POSITION SENSOR (GAS) - GRAY 3 WAY

CAV

CIRCUIT

FUNCTION

1

K900 18DB/DG

SENSOR GROUND

2

K22 18BR/OR

TP SIGNAL

3

F855 20PK/YL

5 VOLT SUPPLY

VEHICLE SPEED SENSOR (MTX) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

F855 20PK/YL (2.4L)

5 VOLT SUPPLY

1

F202 18PK/GY (DIESEL)

FUSED IGNITION SWITCH OUTPUT (RUN-START)

2

K900 18DB/DG (2.4L)

SENSOR GROUND

2

K900 20DB/DG (DIESEL)

SENSOR GROUND

3

N7 18DB/OR (2.4L)

VEHICLE SPEED SIGNAL

3

N7 20DB/OR (DIESEL)

VEHICLE SPEED SENSOR SIGNAL

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

350

CONNECTOR PINOUTS

10.0

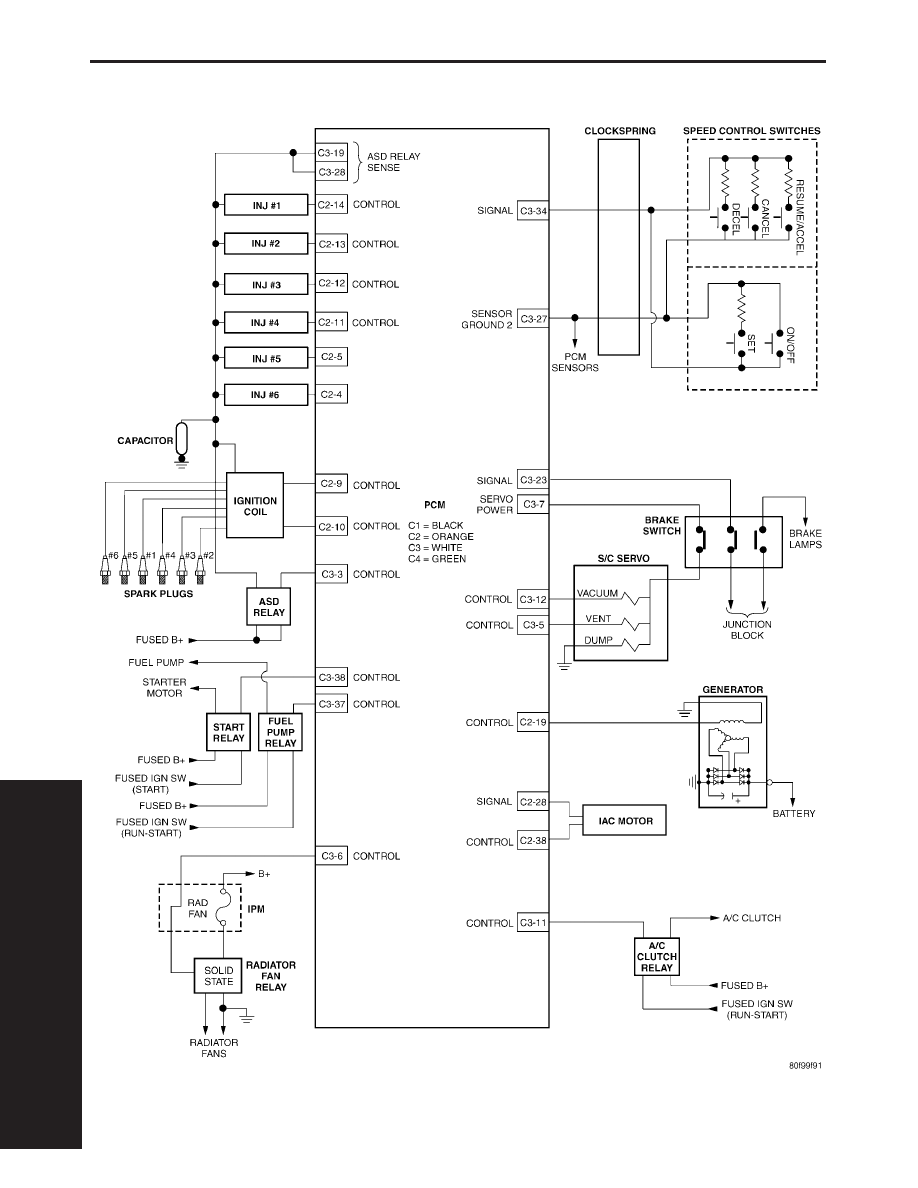

SCHEMATIC DIAGRAMS

10.1

S

C

H

E

M

A

T

I

C

D

I

A

G

R
A

M

S

351

SCHEMATIC DIAGRAMS

S

C

H

E

M

A

T

I

C

D

I

A

G

R
A

M

S

352

SCHEMATIC DIAGRAMS

10.1

(Continued)

11.0

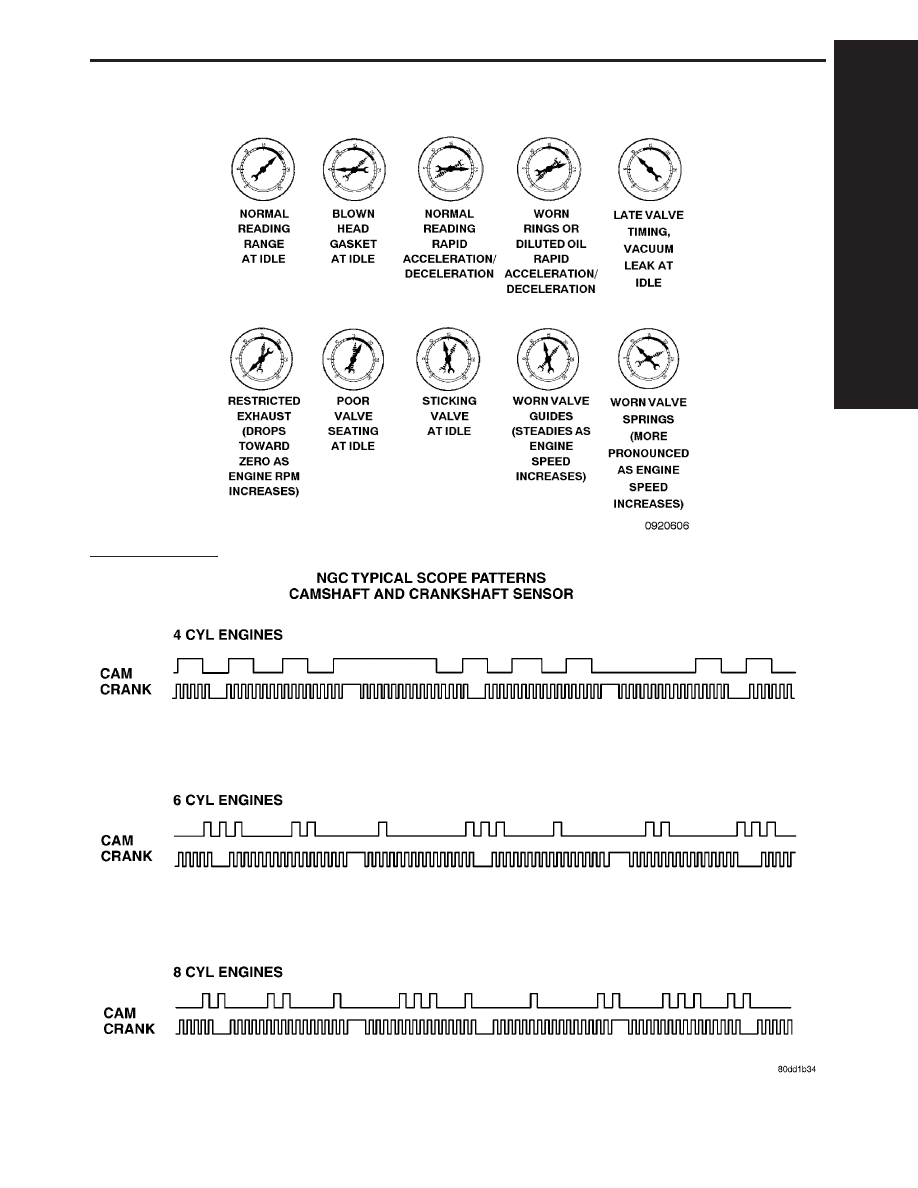

CHARTS AND GRAPHS
