If you do not achieve the results as listed in both

figures, the switch is faulty and must be replaced.
Refer to Removal And Installation in this section.

If the switch is found to be operating properly, it

may be misadjusted. Do not reinstall the switch,
replace it. (Refer to 8 - ELECTRICAL/LAMPS/
LIGHTING - EXTERIOR/BRAKE LAMP SWITCH -
INSTALLATION)

CAUTION: The switch can only be adjusted once.
That is during initial installation of the switch. If the
switch

not

adjusted

properly

has

been

removed for any reason, a new switch must be
installed and adjusted.

REMOVAL

(1) Disconnect and isolate the battery negative

cable from its post on the battery.

(2) Remove the brake lamp switch by rotating the

switch in a clockwise direction approximately 30
degrees and pulling it out of the mount (Fig. 4).

(3) Release the locking tab and disconnect the wir-

ing connector from the switch.

(4) Discard the brake lamp switch. It must not be

reused.

INSTALLATION

CAUTION: Do not reuse the original brake lamp
switch. The switch can only be adjusted once. That
is during initial installation of the switch. If the
switch

not

adjusted

properly

has

been

removed for some service, a new switch must be
installed and adjusted.

(1) Mount and adjust the NEW brake lamp switch

using the following procedure:

(a) Connect the wiring connector to the switch

and latch the locking tab.

(b) Install the switch in its bracket by aligning

the index tab on the switch with the slot in the
mounting bracket (Fig. 4).

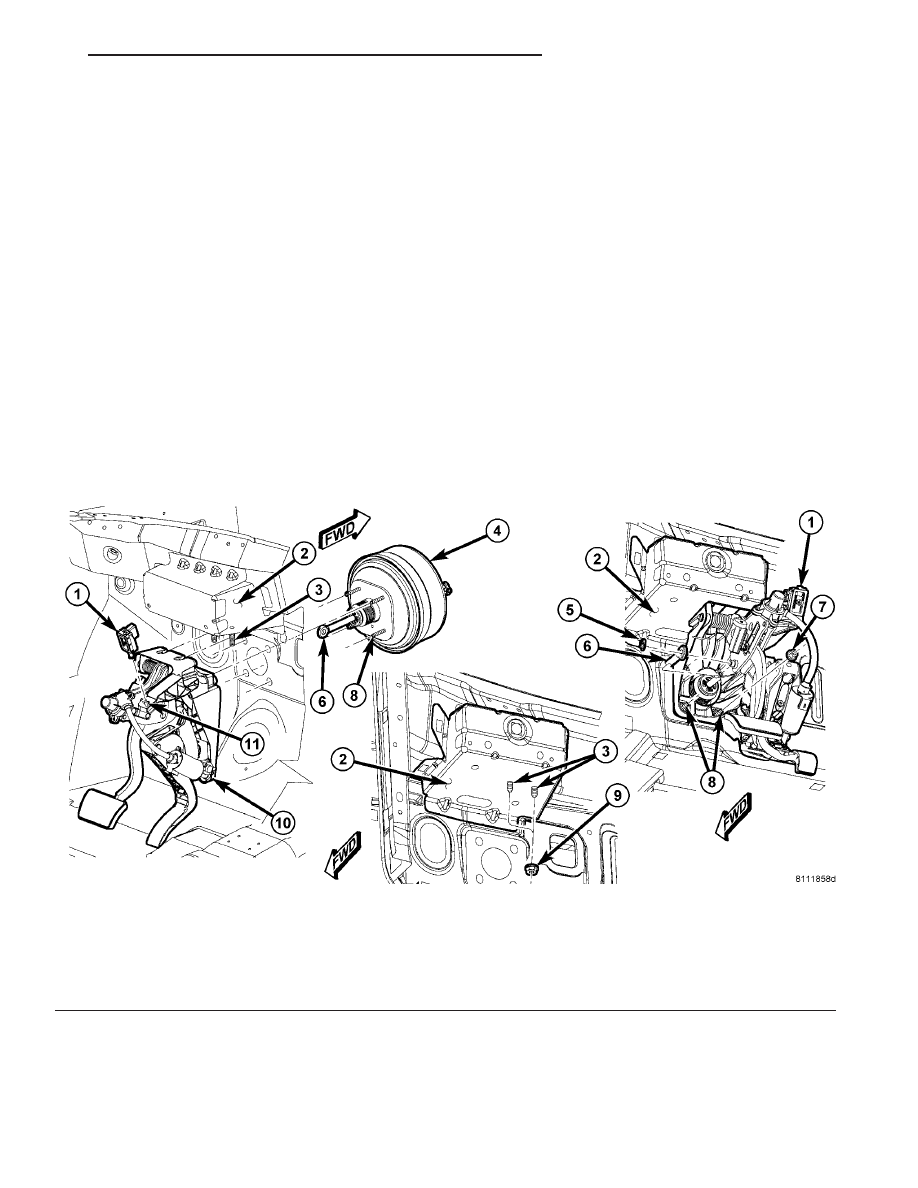

Fig. 4 Adjustable Pedals And Booster Mounting

1 - BRAKE LAMP SWITCH
2 - DASH PANEL BRACKET
3 - PEDAL MOUNTING STUDS
4 - POWER BRAKE BOOSTER
5 - RETAINING CLIP
6 - BOOSTER PUSH ROD

7 - BOOSTER MOUNTING NUT
8 - BOOSTER MOUNTING STUDS
9 - PEDAL BRACKET MOUNTING NUT
10 - ADJUSTABLE PEDALS ASSEMBLY
11 - BRAKE LAMP SWITCH MOUNT

LAMPS/LIGHTING - EXTERIOR

8L - 7

BRAKE LAMP SWITCH (Continued)

rotate the switch counterclockwise approximately
30° to lock the switch into place.

(d) With the brake pedal in the fully released

position, move the lever on the back of the brake
lamp switch from the angled non-adjusted position
to the full vertical position as shown (Fig. 5). This
will adjust the brake lamp switch to the vehicle.

(2) Reconnect the battery negative terminal.
(3) Check the stop lamps to verify they are operat-

ing properly and not staying on when the pedal is in
the released position.

(4) Road test the vehicle to ensure proper opera-

tion of the brakes including ABS and speed control.

CENTER HIGH MOUNTED
STOP LAMP UNIT

REMOVAL

The Center High Mounted Stop Lamp (CHMSL) is

a Light Emitting Diode (LED) unit and must be
replaced as such. There are no serviceable lamps on
the CHMSL. If found defective, replace the entire
unit.

(1) Remove the liftgate spoiler (Refer to 23 -

BODY/EXTERIOR/SPOILER - REMOVAL).

(2) Separate the CHMSL from the spoiler by

removing the fasteners.

INSTALLATION

(1) Place the CHMSL into position and install the

fasteners.

(2) Install the liftgate spoiler (Refer to 23 - BODY/

EXTERIOR/SPOILER - INSTALLATION).

(3) Verify vehicle and system operation.

FOG LAMP

REMOVAL

(1) Open hood, disconnect and isolate the battery

negative cable.

(2) Reach up behind the front fascia and discon-

nect the fog lamp electrical connector (Fig. 6).

(3) Twist the fog lamp 1/4 turn counterclockwise

and pull rearward from fog lamp unit.

INSTALLATION

(1) Place the fog lamp into fog lamp unit and twist

the fog lamp 1/4 turn clockwise until it hits its stop.

(2) Connect the fog lamp electrical connector (Fig.

6).

(3) Connect the battery negative cable.
(4) Verify vehicle and system operation.
(5) Close hood.

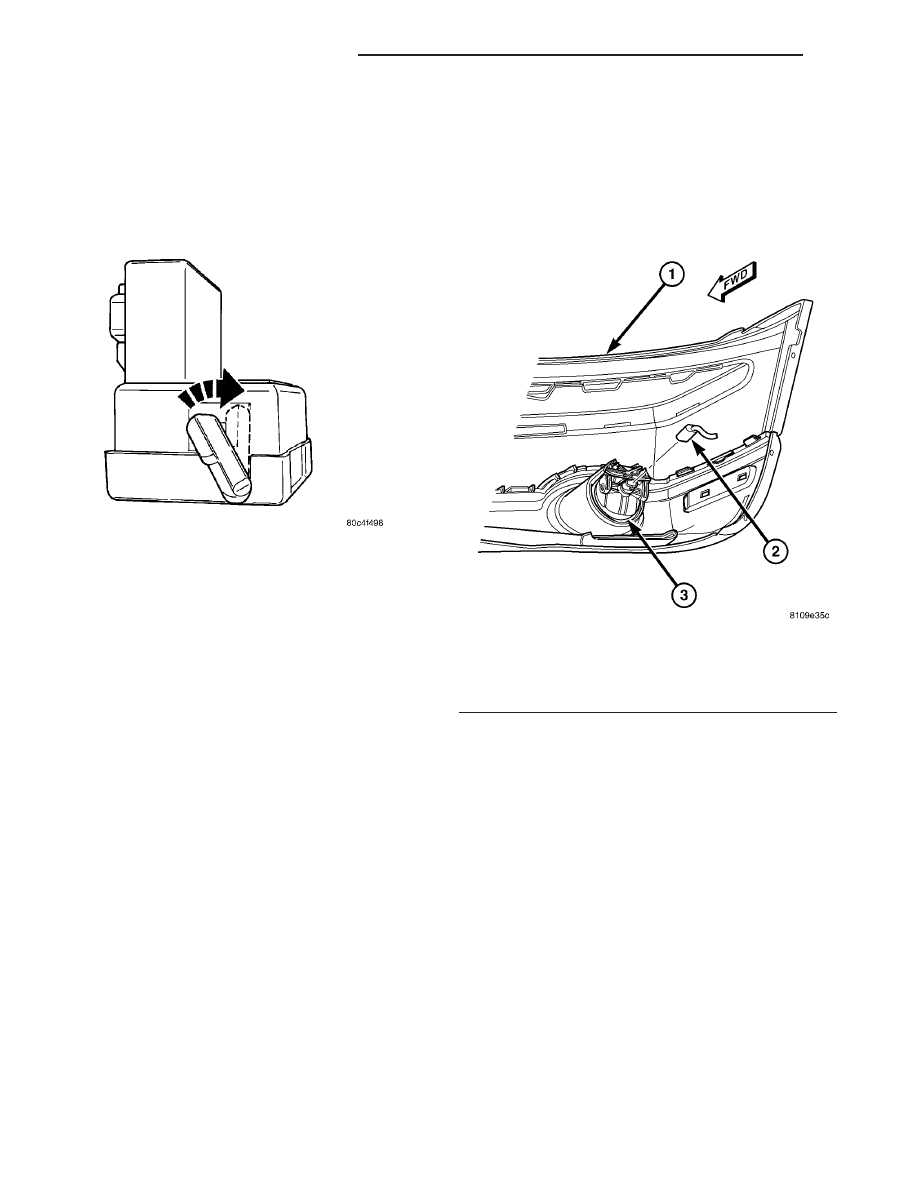

Fig. 5 Adjustment Lever Movement

Fig. 6 FOG LAMP ELECTRICAL CONNECTION

1 - FRONT FASCIA
2 - FOG LAMP ELECTRICAL CONNECTOR
3 - FOG LAMP UNIT

8L - 8

LAMPS/LIGHTING - EXTERIOR

BRAKE LAMP SWITCH (Continued)

FOG LAMP UNIT

STANDARD PROCEDURE - FOG LAMP UNIT
ALIGNMENT

FOG LAMP UNIT ALIGNMENT

Prepare an alignment screen (Refer to 8 - ELEC-

TRICAL/LAMPS/LIGHTING

EXTERIOR/HEAD-

LAMP

UNIT

STANDARD

PROCEDURE).

properly aligned fog lamp will project a pattern on
the alignment screen 100 mm (4 in.) below the fog
lamp center line and straight ahead (Fig. 7). To
improve visual interpretation of the fog lamp pattern
on the alignment screen, the headlamps should be in
the “OFF” position.

The fog lamps are adjusted vertically by a adjust-

ment screw located just above the fog lamp unit in
the front.

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the one retaining screw from the under-

side of the fascia in the fog lamp opening (Fig. 8).

(3) Pull fog lamp unit straight out of front fascia.
(4) Disconnect the electrical connection to the fog

lamp and separate from vehicle.

If replacing fog lamp unit with new, the fog lamp

must be transferred to the new unit.

INSTALLATION

If replacing fog lamp unit with new, the fog lamp

must be transferred to the new unit.

CAUTION: Do not touch the glass of fog lamps with
fingers or other possibly oily surface. Reduced
lamp life will result.

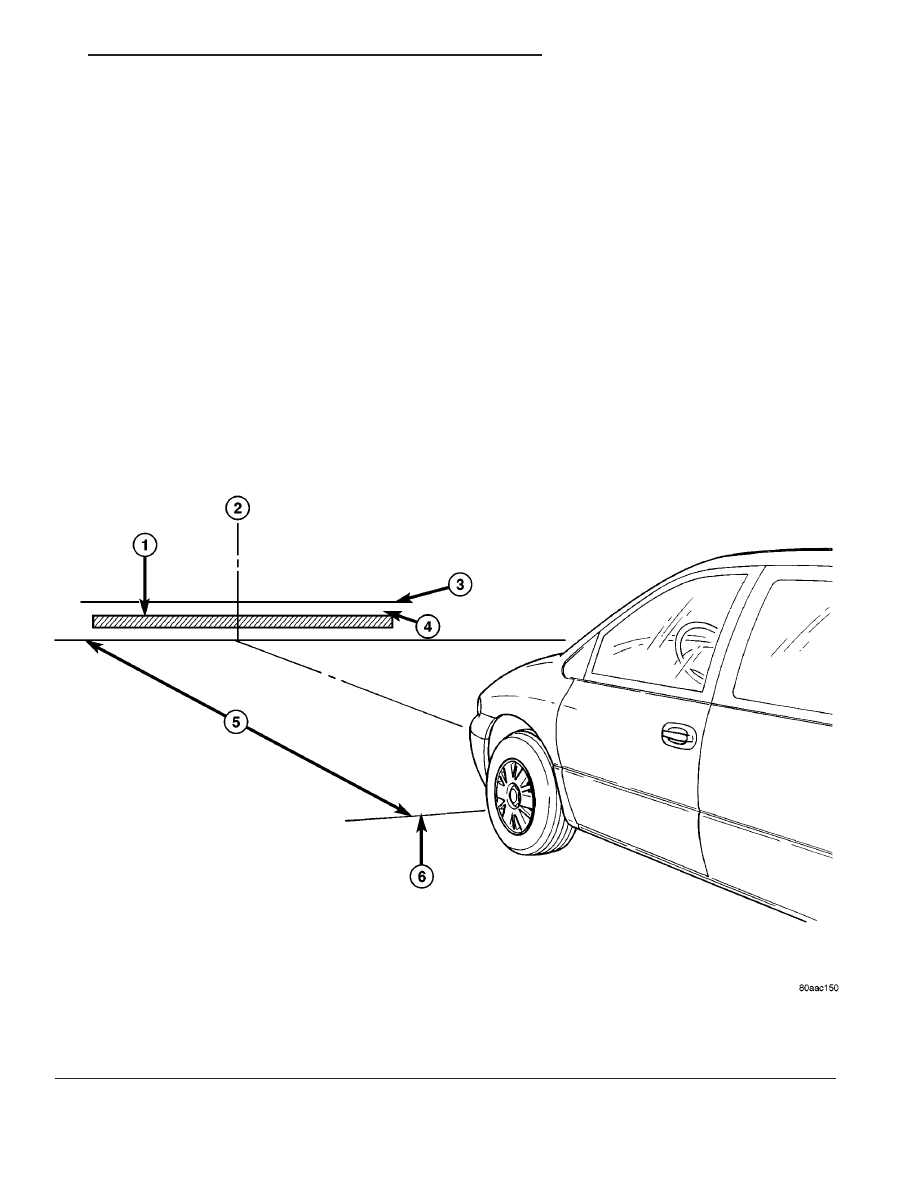

Fig. 7 FRONT FOG LAMP UNIT ALIGNMENT

1 - HIGH INTENSITY AREA

4 - 100MM (4 IN.)

2 - CENTER OF VEHICLE

5 - 7.62 METERS (25 FT.)

3 - HORIZONTAL CENTER OF FOG LAMP

6 - FRONT OF FOG LAMP

LAMPS/LIGHTING - EXTERIOR

8L - 9

(1) Connect the electrical connection to the fog

lamp.

(2) Make sure as you install the fog lamp unit into

the fascia, the rear indexing dowels are properly
lined up (Fig. 9).

(3) Push the fog lamp unit straight into the front

fascia.

(4) Install one retaining screw to the underside of

the fascia in the fog lamp opening (Fig. 8).

(5) Connect the battery negative cable.
(6) Verify vehicle and system operation
(7) Close hood.

FRONT SIDE MARKER LAMP

REMOVAL

(1) Remove headlamp unit (Refer to 8 - ELECTRI-

CAL/LAMPS/LIGHTING - EXTERIOR/HEADLAMP
UNIT - REMOVAL).

(2) Twist the front side marker lamp counterclock-

wise and pull straight out of headlamp unit (Fig. 17).

(3) Pull front side marker lamp straight out of

lamp socket.

INSTALLATION

(1) Push front side marker lamp straight into the

lamp socket.

(2) Place the front side marker lamp into head-

lamp unit and twist clockwise (Fig. 17).

(3) Install the headlamp unit (Refer to 8 - ELEC-

TRICAL/LAMPS/LIGHTING

EXTERIOR/HEAD-

LAMP UNIT - INSTALLATION).

(4) Verify vehicle and system operation.

HAZARD SWITCH

DESCRIPTION

The Hazard Switch is part to the instrument panel

switch pod located in the instrument cluster bezel,
just to the right of the cluster (Fig. 10).

If found to be faulty or defective, the entire instru-

ment panel switch pod must be replaced (Refer to 8 -
ELECTRICAL/INSTRUMENT

CLUSTER/INSTRU-

MENT PANEL SWITCH POD - REMOVAL).

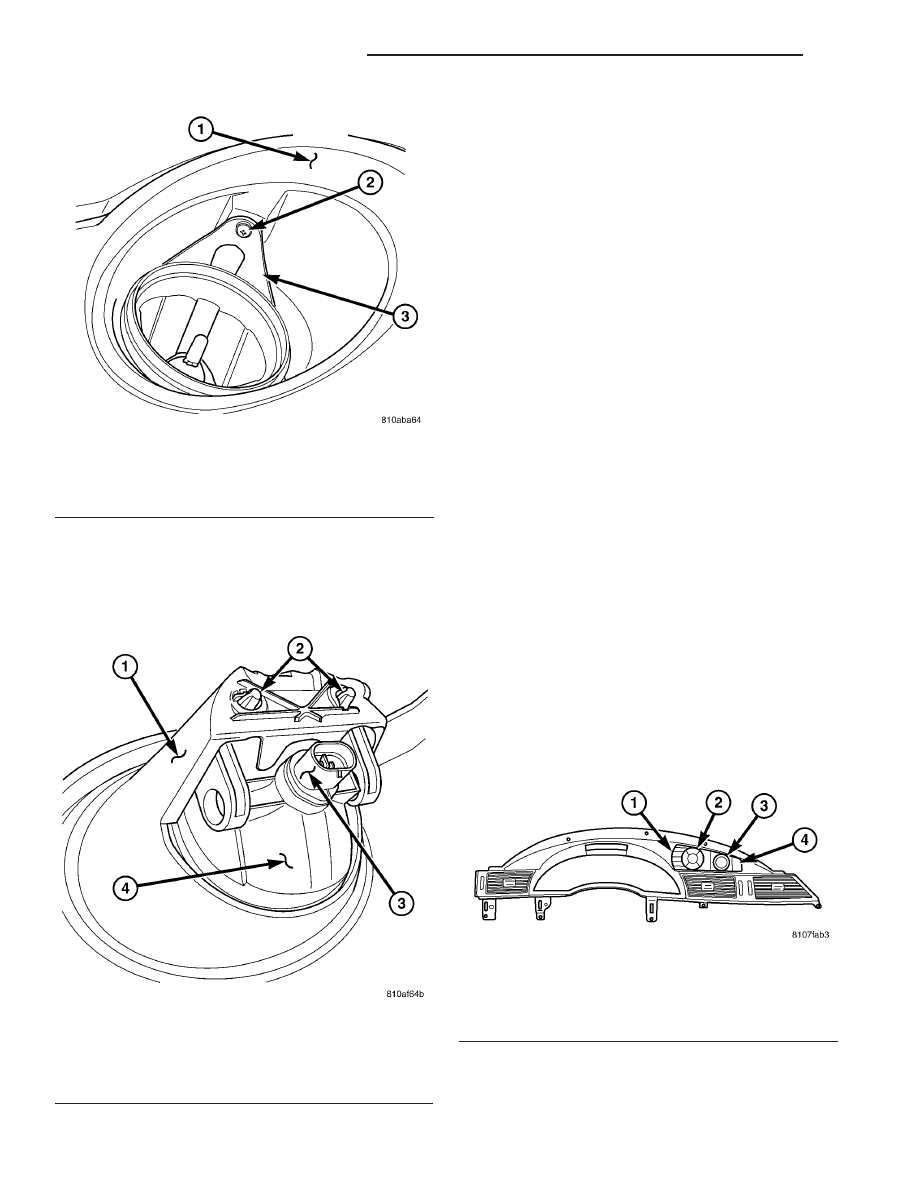

Fig. 8 FOG LAMP UNIT - REMOVE/INSTALL

1 - FRONT FASCIA
2 - FOG LAMP UNIT RETAINING SCREW
3 - FOG LAMP UNIT

Fig. 9 FRONT FOG LAMP REAR INDEXING

1 - BACK OF FRONT FASCIA
2 - FOG LAMP UNIT ALIGNMENT DOWELS
3 - FOG LAMP
4 - FOG LAMP UNIT

Fig. 10 HAZARD SWITCH LOCATION

1 - EVIC CONTROLS
2 - NAVIGATION CONTROLS
3 - CLOCK
4 - HAZARD SWITCH

8L - 10

LAMPS/LIGHTING - EXTERIOR

FOG LAMP UNIT (Continued)
