HEADLAMP SYSTEM

The headlamp system will default to headlamps

ON position when ignition switch is ON and when an
open or short circuit failure occurs on the headlamp
switch input or PCI data bus communication between
the BCM and the IPM fails. The system will return
to normal operation when the open or short is
repaired. A fault will be reported by the BCM when a
failure occurs on the dimmer or headlamp switch
input.

If the exterior lamps are ON and the headlamp

switch is in any position other than OFF or AUTO
and with the ignition switch OFF (LOCK) after 3
minutes the BCM sends a message via the PCI bus
to the IPM informing the IPM to turn off the head-
lamps, park lamps and fog lamps. This feature pre-
vents the vehicle battery from being discharged when
the vehicle lights have been left ON.

OPTICAL HORN/HIGH BEAMS

When the multi-function switch is pulled to the

first detent (optical horn) with the headlamps ON
and the key-in the ignition, the BCM shall send a
message via PCI bus to the IPM to turn on the head-
lamps drivers to illuminate all four filaments (Low
and High beams). When the multi-function switch is
pulled to the second detent (high beam) signal and
the headlamps are ON, the BCM shall send a mes-
sage via PCI bus to the IPM to turn on the head-
lamps drivers. The High Beams and Low Beams are
illuminated and the Fog Lamps (if ON) are extin-
guished. If the headlamps were in the high beam
configuration when power was removed from the
headlamps, the headlamps will be configured as low
beam the next time they are activated.

HEADLAMP SWITCH

The Headlamp Switch uses a multiplexed (MUX)

circuit to the Body Control Module (BCM). The Head-
lamp Switch controls the Fog lamp relay, Park lamps
and the Low and High beam headlamps. The BCM
then sends a signal through the PCI data bus line to
the IPM as to what state the switch has selected.
The IPM energizes the high side output drivers to
turn ON the desired lamps.

FRONT PARK and SIDE MARKER LAMPS

The park lamp switch is a direct input to the BCM.

The BCM sends a PCI data bus message to the IPM
informing it to turn on the park and side marker
lamps. The park lamp relay is then powered through
low side control of the IPM. This circuit is electroni-
cally controlled and continuously monitored for mal-
functions. The IPM provides power through a high
side driver.

HEADLAMP TIME DELAY SYSTEM

The headlamp time delay system is activated by

turning the headlamps ON (high or low beam) while
the engine is running, turning the ignition switch
OFF, and then turning the headlamp switch OFF
within 45 seconds. The system will not activate if
more than 45 seconds elapse between ignition switch
OFF and headlamp switch OFF. The BCM will allow
the headlamps to remain ON for 90 seconds (config-
urable) before they automatically turn off (if the key
is in the ignition during the headlamp time delay
mode, then both the headlamps and park lamps
(including panel dimming) will be ON).

If the headlamp switch is in the Auto Headlamp

Position, the headlamps are ON due to the night sig-
nal from the CMTC and the ignition switch is in any
position other than run/start, the BCM shall enter a
90 second (configurable) Auto Headlamps time delay
mode. If the key is in the ignition during the head-
lamp time delay mode, then both the headlamps and
park lamps (including panel dimming) will be ON. If
the key is not in the ignition, then only the head-
lamps will be ON. The BCM will allow the head-
lamps to remain ON for 90 seconds before they
automatically turn OFF.

FRONT FOG LAMP

The fog lamp switch is a direct input to the BCM.

The BCM sends a PCI data bus message to the IPM
informing it to turn on the fog lamps. This circuit is
electronically controlled and continuously monitored
for malfunctions. Fog lamp functionality is not
equipped on all vehicles. The IPM

9learns9 that the

vehicle is equipped with fog lamps by reading the
BCM data bus message. The Fog lamps can only be
ON when the park and low beams are ON. If the
high beams are switched ON then the Fog lamps will
be automatically turned OFF.

EXTERIOR LIGHTING BATTERY SAVER

The BCM monitors the status of the control of the

Park Lamps, Headlamps and Fog Lamps. If any exte-
rior lamps are left ON after the ignition is turned
OFF, the BCM will send this information to the IPM
which will then turn the drivers OFF after 3 min-
utes.

AUTOMATIC HEADLAMPS

Automatic headlamps are controlled by the Body

Control Module (BCM). With the headlamp switch in
the AUTO position, the BCM will control the head-
lamp, parking, side marker, tail and instrumentation
lamps based on ambient light levels. Ambient light
levels are monitored by the BCM using the Day/
Night signal and Electrochromatic Mirror (ECM)
present from the Compass Mini Trip (CMTC) located

CS

LAMPS/LIGHTING - EXTERIOR

8L - 3

LAMPS/LIGHTING - EXTERIOR (Continued)

on the front windshield in front of the rear view mir-
ror ECM. Ambient light readings are averaged to
limit cycling the lamps ON and OFF when passing
through areas with varying light levels. The auto-
matic headlamps will only function when the engine
is running with RPM > 450. When the headlamp
switch is in the AUTO position (Automatic mode), the
Headlamp Time Delay system will function when the
ignition switch is placed in any position other than
run/start.

DAYTIME RUNNING LAMPS

Power is reduced using pulse-width modulation

(PWM) to the high beams, where by the power is
switched on and off rapidly instead of remaining on
continuously. The duration and interval of the power
pulses is programmed into the IPM.

WARNING

WARNING: EYE PROTECTION SHOULD BE USED
WHEN SERVICING GLASS COMPONENTS. PER-
SONAL INJURY OR DEATH COULD RESULT.
THIS

VEHICLE

CONTAINS

MERCURY

ADDED

DEVICES ADDED BY THE MANUFACTURER: HIGH
INTENSITY

DISCHARGE

(H.I.D.)

HEADLAMPS.

REMOVE DEVICES BEFORE VEHICLE DISPOSAL.
UPON REMOVAL OF DEVICES, PLEASE REUSE,
RECYCLE,

OR

DISPOSE

OF

AS

HAZARDOUS

WASTE.
DO NOT BACK PROBE ANY CONNECTORS OR
PIERCE ANY WIRING TO THE HID HEADLAMP SYS-
TEM. HIGH VOLTAGE (AC VOLTAGE) IS USED IN
THIS SYSTEM AND COMPONENT AND PERSONAL
INJURY OR DEATH COULD RESULT. FOLLOW PRO-
CEDURES OUTLINED IN THE DIAGNOSIS AND
TESTING - HEADLAMPS PORTION OF THIS MAN-
UAL (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING -
EXTERIOR/HEADLAMP - DIAGNOSIS AND TESTING
- HID HEADLAMPS).
DO NOT POWER UP THE HEADLAMP ASSEMBLY
WITH THE HEADLAMP ACCESS COVER OFF. A
HIGH

VOLTAGE

AC

(ALTERNATING

CURRENT)

SHOCK MAY OCCUR CAUSING PERSONAL INJURY
OR DEATH.
ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE
THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY
STEERING

WHEEL,

STEERING

COLUMN,

OR

INSTRUMENT PANEL COMPONENT DIAGNOSIS OR
SERVICE. DISCONNECT AND ISOLATE THE BAT-
TERY NEGATIVE CABLE, THEN WAIT TWO MIN-
UTES FOR THE AIRBAG SYSTEM CAPACITOR TO
DISCHARGE

BEFORE

PERFORMING

FURTHER

DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE
PROPER PRECAUTIONS COULD RESULT IN ACCI-

DENTAL AIRBAG DEPLOYMENT AND POSSIBLE
PERSONAL INJURY OR DEATH.

CAUTION: Do not touch the glass of halogen bulbs
with fingers or other possibly oily surface, reduced
bulb life will result. Do not use bulbs other than
those indicated in the Bulb Application table. Dam-
age to lamp and/or Daytime Running Lamp Module
can result. Do not use fuses, circuit breakers or
relays having greater amperage value than indi-
cated on the fuse panel or in the Owners Manual.

CAUTION: Do not use bulbs other than those listed
in the Bulb Application Table. Damage to lamp can
result. Do not touch halogen bulbs with fingers or
other oily surfaces. Bulb life will be reduced.

DIAGNOSIS AND TESTING - LAMPS/LIGHTING
- EXTERIOR

The lighting on the interior and exterior of the

vehicle is used for illuminating and indicating pur-
poses. Lighting circuits are protected by fuses and
circuit protection in the Body Control Module (BCM).
Lighting circuits require an overload protected power
source, ON/OFF device, lamps and good body ground
to operate properly. Plastic lamps require a wire in
the harness to supply body ground to the lamp
socket. Lamp sockets that are exposed to moisture
should be coated with Mopar

t Multi-purpose Grease

or equivalent to avoid corrosion. If a socket has
become corroded, clean socket and bulb base with
abrasive fiber sanding pad or metallic bristle brush.
Replace sockets and bulbs that are deformed from
corrosion that could prevent continuous body ground.

Wire connectors can make intermittent contact or

become corroded. Before coupling wire connectors,
inspect the terminals inside the connector. Male ter-
minals should not be bent or disengaged from the
insulator. Female terminals should not be sprung
open or disengaged from the insulator. Bent and
sprung terminals can be repaired using needle nose
pliers and pick tool. Corroded terminals appear
chalky or green. Corroded terminals should be
replaced to avoid recurrence of the problem symp-
toms. Wire connector terminals should be coated with
Mopar

t Multi- purpose Grease or equivalent to avoid

corrosion.

Begin any electrical system failure diagnosis by

testing all related fuses in the Integrated Power
Module (IPM). Verify that bulbs are in good condition
and test continuity of the circuit ground. Refer to the
appropriate wiring information and Body Diagnostic
Procedures manual.

8L - 4

LAMPS/LIGHTING - EXTERIOR

CS

LAMPS/LIGHTING - EXTERIOR (Continued)

SPECIFICATIONS - EXTERIOR LAMPS

CAUTION: Do not use bulbs that have a higher can-
dle power than the bulb listed in the chart below.
Damage to lamp can result.

CAUTION: Do not touch halogen/High Intensity Dis-
charge bulbs with fingers or other oily surfaces.
Bulb life will be reduced.

BULB APPLICATION TABLE

LAMP

BULB

BACK-UP

921

CHMSL

LED-REPLACE

AS UNIT

FOG LAMP

880L

FRONT SIDE MARKER

194

FRONT TURN SIGNAL

3157

HEADLAMP (STANDARD
HALOGEN)

H7

HEADLAMP (HID)

D2S

LICENSE LAMP

168

PARK/TURN SIGNAL

3157

REAR SIDE MARKER

168

REAR STOP, TURN SIGNAL

3157

BACK UP LAMP

REMOVAL

(1) Remove the tail lamp unit (Refer to 8 - ELEC-

TRICAL/LAMPS/LIGHTING

-

EXTERIOR/TAIL

LAMP UNIT - REMOVAL).

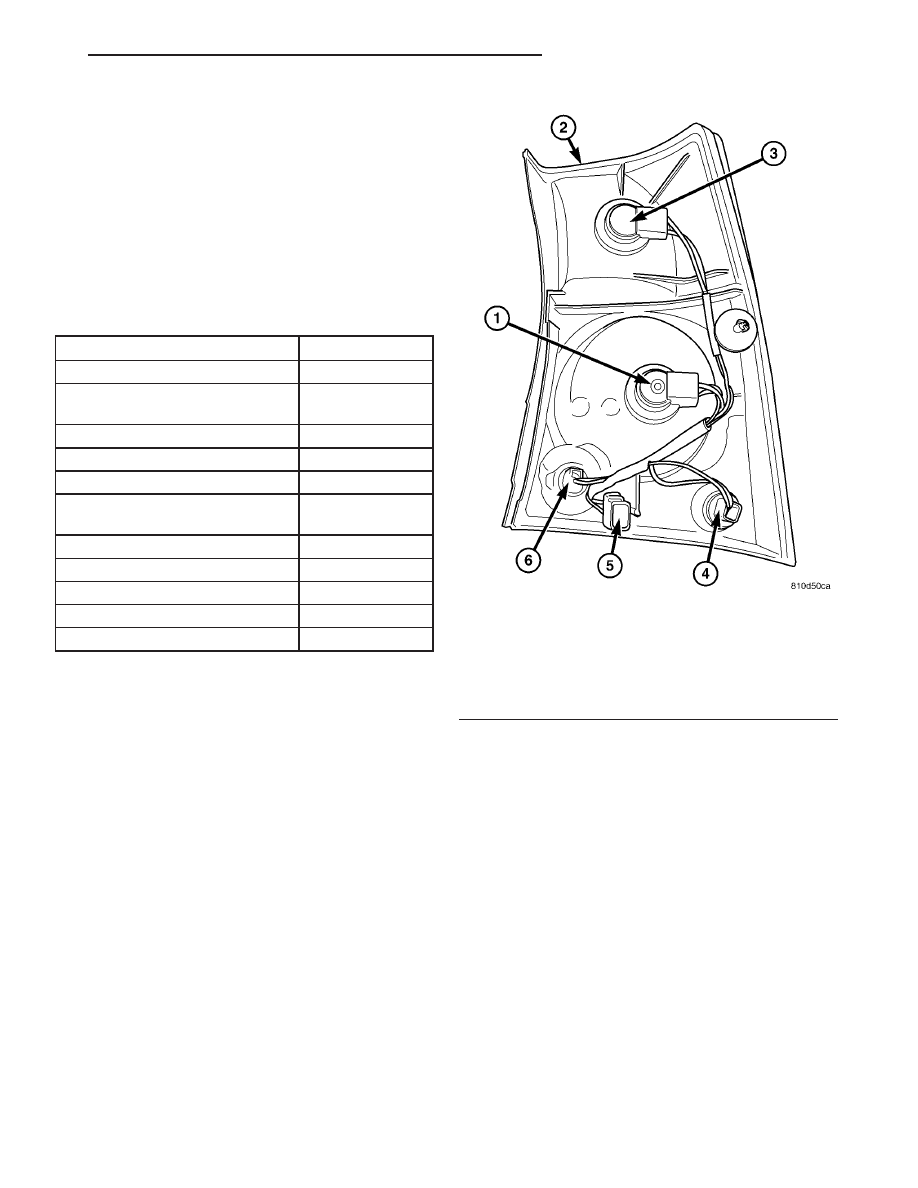

(2) Twist counterclockwise and pull out lamp from

tail lamp unit (Fig. 1).

(3) Pull lamp straight out of lamp socket.

INSTALLATION

(1) Push lamp straight into lamp socket.
(2) Place lamp into tail lamp unit and then twist

clockwise until lamp stops (about 1/4 turn).

(3) Install the tail lamp unit (Refer to 8 - ELEC-

TRICAL/LAMPS/LIGHTING

-

EXTERIOR/TAIL

LAMP UNIT - INSTALLATION).

BRAKE LAMP SWITCH

DESCRIPTION

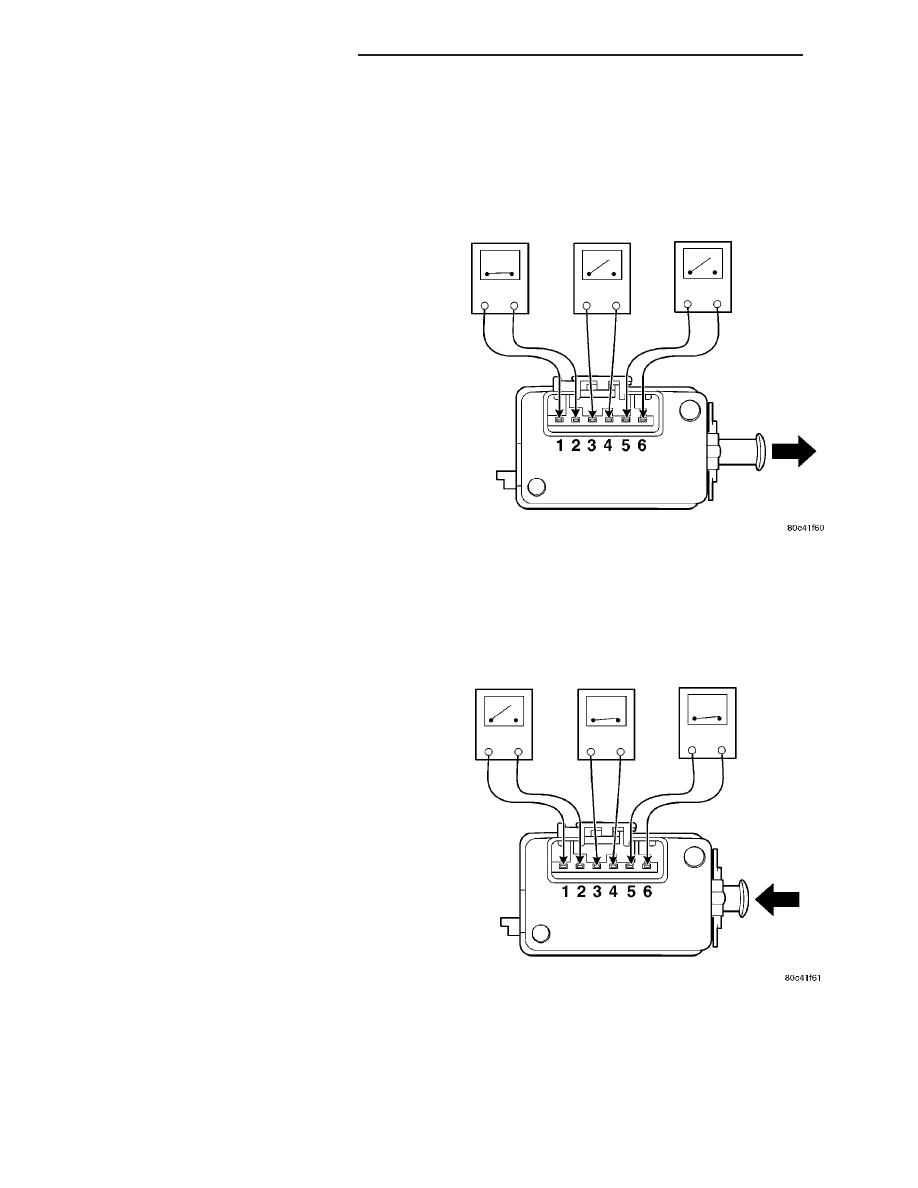

The brake lamp switch is located under the instru-

ment panel, at the brake pedal arm (Fig. 4). It has
three internal switches controlling various functions
of the vehicle. It’s main function is to control opera-
tion of the vehicle’s brake lamps. Other functions
include speed control deactivation, brake sense for
the antilock brake system and brake sense for the
brake transmission shift interlock.

CAUTION: The switch can only be adjusted once.
That is during initial installation of the switch. If the
switch

is

not

adjusted

properly

or

has

been

removed for some service, a new switch must be
installed and adjusted.

Fig. 1 LAMP LOCATION

1 - BRAKE/STOP LAMP
2 - TAIL LAMP UNIT
3 - TURN SIGNAL LAMP
4 - SIDE MARKER LAMP
5 - TAIL LAMP UNIT ELECTRICAL CONNECTOR
6 - BACK UP LAMP

CS

LAMPS/LIGHTING - EXTERIOR

8L - 5

LAMPS/LIGHTING - EXTERIOR (Continued)

OPERATION

When the brake pedal is pressed, the plunger on

the outside of the brake lamp switch extends out-
ward. This action opens or closes the contacts of the
three switches inside the brake lamp switch.

With the brake pedal pressed down (plunger

extended), the switch for terminals 1 and 2 is closed
completing the circuit. The switch for terminals 3
and 4 is open and so is the switch for terminals 5
and 6.

When the brake pedal is released (plunger pushed

in), the three switches assume the opposite positions.
The switch for terminals 1 and 2 is now open while
the other two switches are now closed, completing
their circuits.

A lever on the back of the switch is used to set the

switch into the “adjusted” position. A non-adjusted
switch will have the lever set to the diagonal position
in relation to the switch housing. The plunger can be
moved in and out, but the states of the internal
switches will not change.

CAUTION: Never move the adjustment lever of the
new brake lamp switch without it being properly
installed in the vehicle first. Such action will render
the switch unusable and the switch must be dis-
carded.

Once installed in the vehicle as described in the

brake lamp switch installation procedure (Refer to 8 -
ELECTRICAL/LAMPS/LIGHTING

-

EXTERIOR/

BRAKE LAMP SWITCH - INSTALLATION), the new
switch’s adjustment lever is rotated to the adjusted
position as indicated (Fig. 5). This action locks the
plunger to the internal switches. Once in this posi-
tion the switch is permanently adjusted (or
locked) and cannot be readjusted or released
even if the lever is moved back.

DIAGNOSIS AND TESTING - BRAKE LAMP
SWITCH

NOTE: Before proceeding with this diagnostic test,
verify the adjustment lever on the back of the
switch is in the adjusted position. If the lever is in
the non-adjusted (diagonal) position it may have
never been adjusted (Refer to 8 - ELECTRICAL/
LAMPS/LIGHTING

-

EXTERIOR/BRAKE

LAMP

SWITCH - OPERATION). For adjustment, (Refer to 8
-

ELECTRICAL/LAMPS/LIGHTING

-

EXTERIOR/

BRAKE LAMP SWITCH - INSTALLATION)

If the electrical circuit has been tested and the

brake lamp switch is suspected of being faulty, it can
be tested using the following method.

(1) Remove the switch from the vehicle. (Refer to 8

- ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/
BRAKE LAMP SWITCH - REMOVAL)

(2) With

the

switch

in

the

released

position

(plunger extended), use an ohmmeter to test each of
the three internal switches as shown (Fig. 2). You
should achieve the results as listed in the figure.

(3) Gently push the plunger on the brake lamp

switch in until it stops.

(4) With the switch in this depressed position

(plunger pushed in), use an ohmmeter to test each of
the three internal switches as shown (Fig. 3). You
should achieve the results as listed in the figure.

Fig. 2 SWITCH TEST - RELEASED POSITION

Fig. 3 SWITCH TEST - DEPRESSED POSITION

8L - 6

LAMPS/LIGHTING - EXTERIOR

CS

BRAKE LAMP SWITCH (Continued)















Content   ..  503  504  505  506   ..
