Chrysler Pacifica. Manual - part 446





OUTPUT SEAL

REMOVAL

(1) Raise vehicle on hoist.
(2) Remove rear driveline module. (Refer to 3 -

DIFFERENTIAL & DRIVELINE/REAR DRIVELINE
MODULE - REMOVAL)

(3) Use suitable screwdriver to remove output seal

(Fig. 69).

INSTALLATION

(1) Install output flange seal to differential hous-

ing using tool C4171A and 8493 (Fig. 70).

(2) Install rear driveline module. (Refer to 3 - DIF-

FERENTIAL

&

DRIVELINE/REAR

DRIVELINE

MODULE - INSTALLATION)

(3) Check differential assembly fluid level and

adjust as required. (Refer to 3 - DIFFERENTIAL &
DRIVELINE/REAR DRIVELINE MODULE/FLUID -
STANDARD PROCEDURE)

VISCOUS COUPLER

DESCRIPTION

The heart of the all-wheel drive system is the

inter-axle viscous coupling and bi-directional over-
running clutch. Under normal driving the vehicle
retains predominantly front wheel drive characteris-
tics. The all-wheel drive takes effect when the front
wheels start to slip. Under normal level road,
straight line driving, 100% of the torque is allocated
to the front wheels. The viscous coupler allows more
torque to the rear wheels in accordance with the
amount of slippage at the front wheels. The variable
torque distribution is automatic with no driver
inputs required.

OPERATION

The viscous coupler (Fig. 71) is a housing nearly

filled with a high viscosity silicone liquid and thin
metal plates alternately splined to an inner and
outer drum. The viscous coupler provides torque in
the following modes:

• Shear mode (normal operation)

• Hump mode (locked mode)
The inner plates are slotted around the radius and

the outer plates have holes in them. In the shear
mode (normal operation), the plates are evenly
spaced and the torque is created by the shearing of
the plates through the fluid and 90-100% of the
torque is applied to the rear axle. During the shear
mode, a fluid flow pattern is created from this design
(holes and slots). This fluid flow causes high pressure
on each side of each pair of plates and low pressure
between each pair of plates.

When a high speed difference (shear) occurs

because of loss of traction (one axle spinning faster
than the other), the silicone fluid expands as it heats
from this shearing. When the silicone expands to fill
the viscous coupler completely, this pressure differ-
ence is high enough to squeeze each pair of plates
together. The resulting hump torque is up to 8 times
higher than the shear torque. When the viscous cou-
pler is in the hump mode, it does not lock the axles
(undifferentiated 4-Wheel Drive). It controls the
amount of slippage while delivering maximum power
to the axle having greatest traction. Once the speed
difference equalizes the fluid and plates cool down
and the viscous coupler goes back to the shear mode.

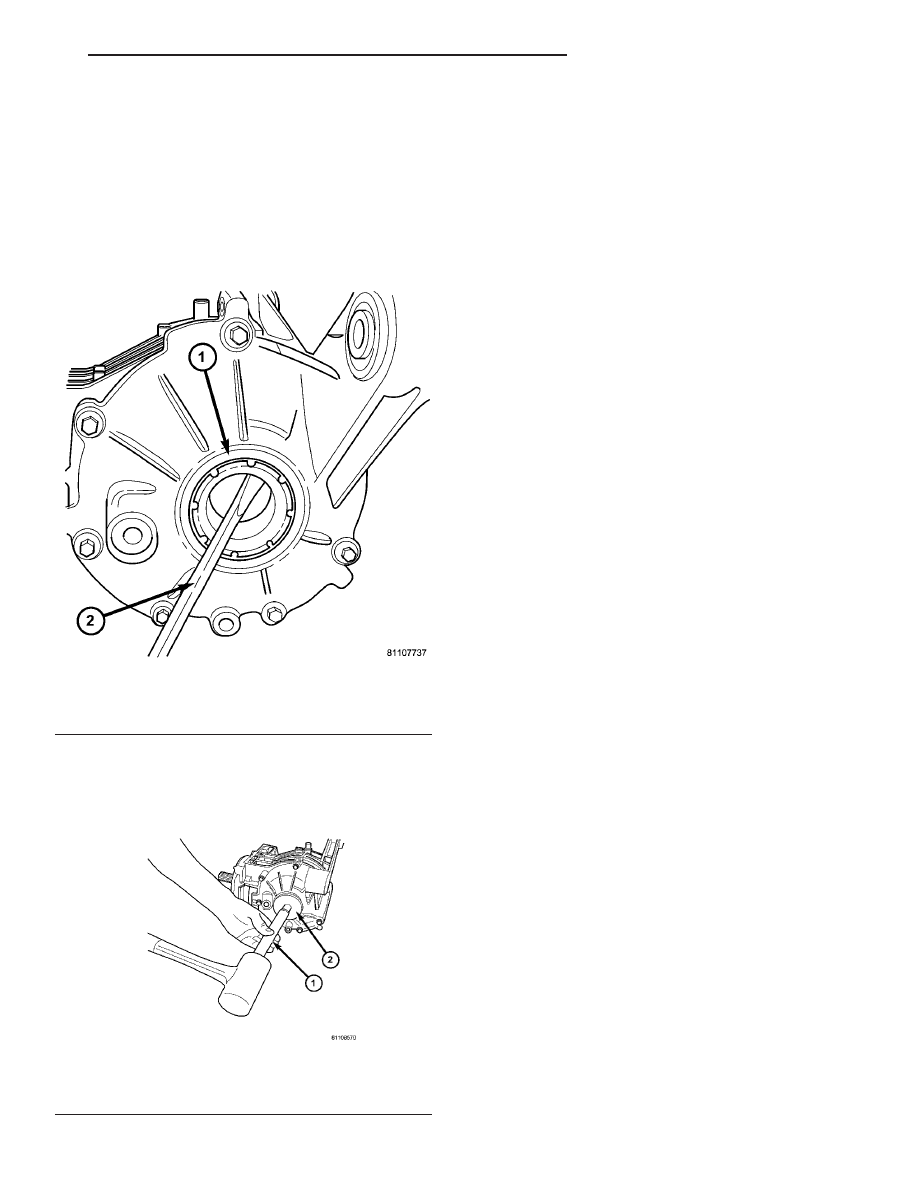

Fig. 69 Axle Seal Removal

1 - SEAL
2 - SCREWDRIVER

Fig. 70 Axle Seal Installation

1 - TOOL C-4171
2 - TOOL 8493

CS

REAR DRIVELINE MODULE

3 - 53

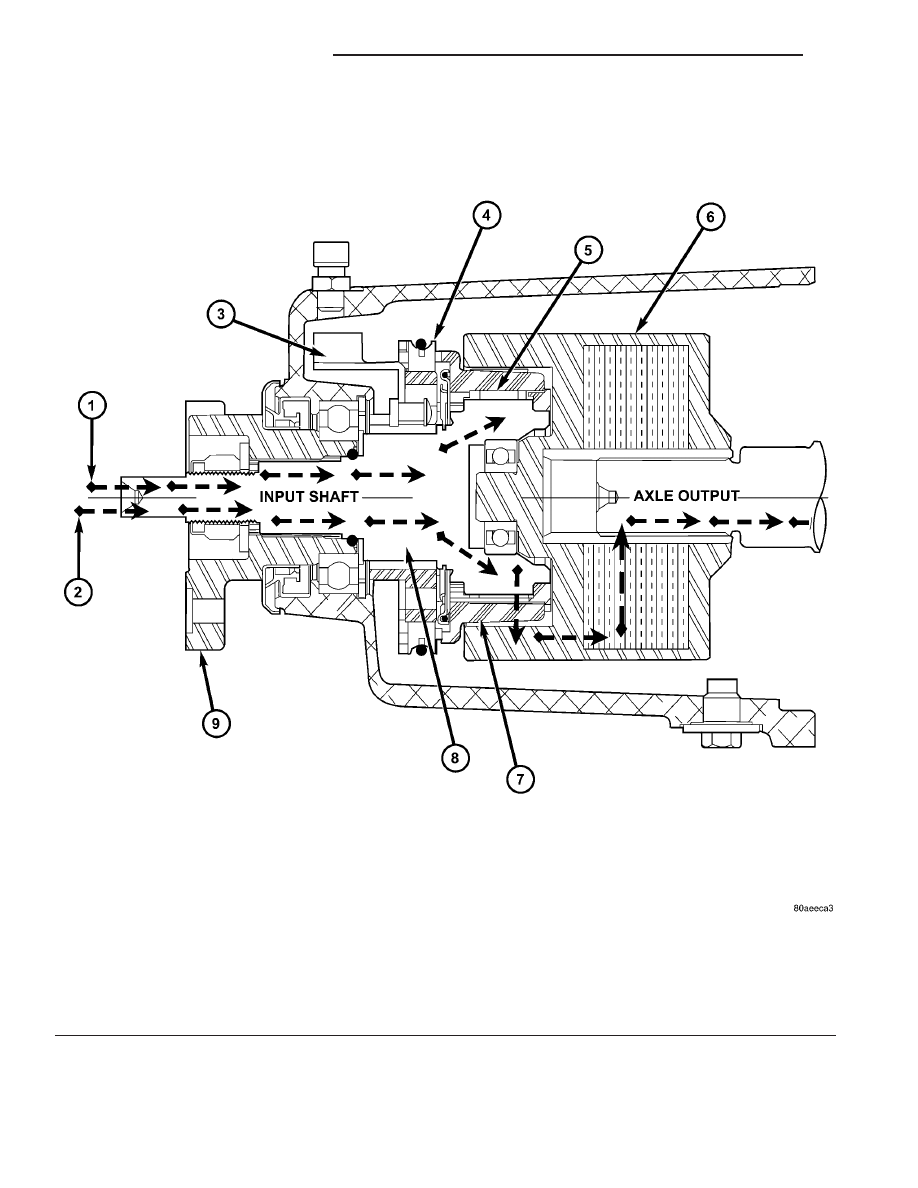

Fig. 71 Bi-directional Overrunning Clutch (BOC) and Viscous Coupler Powerflow

1 - POWERFLOW - BOC OVERUNNING

6 - VISCOUS COUPLER

2 - POWERFLOW - BOC LOCKED

7 - BOC ROLLER CAGE

3 - BOC GROUND TAB

8 - BOC INPUT SHAFT

4 - FRICTION BRAKE SHOES

9 - INPUT FLANGE

5 - BOC ROLLERS

3 - 54

REAR DRIVELINE MODULE

CS

VISCOUS COUPLER (Continued)

BRAKES

TABLE OF CONTENTS

page

page

BRAKES - BASE . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

BRAKES - ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

BRAKES - BASE

TABLE OF CONTENTS

page

page

BRAKES - BASE

DESCRIPTION - BASE BRAKES

. . . . . . . . . . . . . 2

WARNING

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

CAUTION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

DIAGNOSIS AND TESTING - BASE BRAKE

SYSTEM

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

STANDARD PROCEDURE - BASE BRAKE

BLEEDING

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

SPECIFICATIONS

BRAKE FASTENER TORQUE

. . . . . . . . . . . . . 7

SPECIAL TOOLS

BASE BRAKE SYSTEM

. . . . . . . . . . . . . . . . . . 7

BRAKE FLUID LEVEL SWITCH

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 8

PEDAL POSITION SENSOR - BRAKE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 9

BRAKE LINES

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 9

OPERATION - BRAKE TUBES AND HOSES

. . . . 9

INSPECTION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 9

BRAKE PADS/SHOES - FRONT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 10

BRAKE PADS/SHOES - REAR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 12

DISC BRAKE CALIPER - FRONT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

DISASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . 14

CLEANING - DISC BRAKE CALIPER

. . . . . . . . . 15

INSPECTION - DISC BRAKE CALIPER

. . . . . . . 16

ASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 17

DISC BRAKE CALIPER - REAR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

DISASSEMBLY

DISASSEMBLY - CALIPER GUIDE PIN

BUSHINGS . . . . . . . . . . . . . . . . . . . . . . . . . . 18

DISASSEMBLY - CALIPER PISTON AND

SEAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

CLEANING - CALIPER

. . . . . . . . . . . . . . . . . . . 20

INSPECTION - CALIPER

. . . . . . . . . . . . . . . . . . 20

ASSEMBLY

ASSEMBLY - CALIPER GUIDE PIN

BUSHINGS . . . . . . . . . . . . . . . . . . . . . . . . . . 20

ASSEMBLY - CALIPER PISTON AND SEAL

. . 21

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 22

DISC BRAKE CALIPER ADAPTER - FRONT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 23

DISC BRAKE CALIPER GUIDE PINS - FRONT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 25

FLUID

DIAGNOSIS AND TESTING - BRAKE FLUID

CONTAMINATION

. . . . . . . . . . . . . . . . . . . . . 25

STANDARD PROCEDURE - BRAKE FLUID

LEVEL CHECKING

. . . . . . . . . . . . . . . . . . . . . 25

SPECIFICATIONS

BRAKE FLUID

. . . . . . . . . . . . . . . . . . . . . . . . 26

MASTER CYLINDER

STANDARD PROCEDURE - MASTER

CYLINDER BLEEDING

. . . . . . . . . . . . . . . . . . 26

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

DISASSEMBLY - MASTER CYLINDER (FLUID

RESERVOIR)

. . . . . . . . . . . . . . . . . . . . . . . . . 28

ASSEMBLY - MASTER CYLINDER (FLUID

RESERVOIR)

. . . . . . . . . . . . . . . . . . . . . . . . . 28

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 28

PEDALS - ADJUSTABLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 30

CS

BRAKES

5 - 1

POWER BRAKE BOOSTER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 32

ROTOR

DIAGNOSIS AND TESTING - BRAKE ROTOR

. . 32

STANDARD PROCEDURE - BRAKE ROTOR

MACHINING

. . . . . . . . . . . . . . . . . . . . . . . . . . 35

REMOVAL

REMOVAL - FRONT

. . . . . . . . . . . . . . . . . . . . 35

REMOVAL - REAR

. . . . . . . . . . . . . . . . . . . . . 36

INSTALLATION

INSTALLATION - FRONT

. . . . . . . . . . . . . . . . 36

INSTALLATION - REAR

. . . . . . . . . . . . . . . . . 38

SPECIFICATIONS

BRAKE ROTOR

. . . . . . . . . . . . . . . . . . . . . . . 38

PARKING BRAKE

STANDARD PROCEDURE

STANDARD PROCEDURE - AUTOMATIC

ADJUSTER LOCKING OUT . . . . . . . . . . . . . . 38

STANDARD PROCEDURE - AUTOMATIC

ADJUSTER UNLOCKING . . . . . . . . . . . . . . . . 39

PARKING BRAKE CABLE - FRONT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 42

PARKING BRAKE CABLE - LEFT REAR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 43

PARKING BRAKE CABLE - RIGHT REAR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 44

PARKING BRAKE LEVER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 45

PARKING BRAKE SHOES

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 46

ADJUSTMENTS

ADJUSTMENT - PARKING BRAKE SHOES

. . 47

BRAKES - BASE

DESCRIPTION - BASE BRAKES

The base brake system consists of the following

components:

• Brake pedal (adjustable)

• Power brake booster

• Master cylinder

• Brake tubes and hoses

• Disc brakes (4-wheel)

• Brake lamp switch

• Brake fluid level switch

• Parking brakes
Antilock brakes are standard equipment on this

vehicle. Refer to ABS section.

For information on the brake lamp switch, (Refer

to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERI-
OR/BRAKE LAMP SWITCH - DESCRIPTION)

Vehicles equipped with the optional antilock brake

system (ABS) use a system that is available with or
without traction control. This system shares most
base brake hardware used on vehicles without ABS.
ABS

components

are

described

in

detail

in

ANTILOCK BRAKE SYSTEM.

WARNING

WARNING: DUST AND DIRT ACCUMULATING ON
BRAKE PARTS DURING NORMAL USE MAY CON-
TAIN ASBESTOS FIBERS FROM PRODUCTION OR
AFTERMARKET

BRAKE

LININGS.

BREATHING

EXCESSIVE

CONCENTRATIONS

OF

ASBESTOS

FIBERS CAN CAUSE SERIOUS BODILY HARM.
EXERCISE

CARE

WHEN

SERVICING

BRAKE

PARTS. DO NOT SAND OR GRIND BRAKE LINING
UNLESS EQUIPMENT USED IS DESIGNED TO CON-

TAIN THE DUST RESIDUE. DO NOT CLEAN BRAKE
PARTS

WITH

COMPRESSED AIR

OR

BY DRY

BRUSHING. CLEANING SHOULD BE DONE BY
DAMPENING THE BRAKE COMPONENTS WITH A
FINE MIST OF WATER, THEN WIPING THE BRAKE
COMPONENTS CLEAN WITH A DAMPENED CLOTH.
DISPOSE OF CLOTH AND ALL RESIDUE CONTAIN-
ING ASBESTOS FIBERS IN AN IMPERMEABLE
CONTAINER WITH THE APPROPRIATE LABEL. FOL-
LOW PRACTICES PRESCRIBED BY THE OCCUPA-
TIONAL SAFETY AND HEALTH ADMINISTRATION
(OSHA) AND THE ENVIRONMENTAL PROTECTION
AGENCY (EPA) FOR THE HANDLING, PROCESSING,
AND DISPOSING OF DUST OR DEBRIS THAT MAY
CONTAIN ASBESTOS FIBERS.

CAUTION

CAUTION: During service procedures, grease or
any other foreign material must be kept off brake
shoes and braking surfaces of brake rotor or drum,
and external surfaces of hub and bearing assembly.

CAUTION: Brake rotor and caliper handling must be
done in such a way as to avoid damage to the rotor,
especially the machined surfaces, and scratching or
nicking of the brake linings.

CAUTION: Only the recommended jacking or hoist-
ing procedures for this vehicle are to be used
whenever it is necessary to lift a vehicle. Failure to
raise a vehicle utilizing the recommended lift points
can result in damage to the vehicle. (Refer to
LUBRICATION & MAINTENANCE/HOISTING - STAN-
DARD PROCEDURE)

5 - 2

BRAKES - BASE

CS















Content   ..  444  445  446  447   ..
